A biomarker based on gene expression indicates plant water status

In Controlled And Natural Environments

Gwenaëlle Marchand 1,2, Baptiste Mayjonade 1,2, Didier Varès 1,2, Nicolas Blanchet 1,2, Marie-Claude Boniface 1,2, Pierre Maury 3,5, Fety Andrianasolo Nambinina 4,5, Philippe Burger 5,6, Philippe Debaeke 5,6, Pierre Casadebaig 5,6, Patrick Vincourt 1,2,7, Nicolas B. Langlade 1,2,7

Addresses :

1 INRA, Laboratoire des Interactions Plantes-Microorganismes (LIPM), UMR441, F-31326 Castanet-

Tolosan, France

2 CNRS, Laboratoire des Interactions Plantes-Microorganismes (LIPM), UMR2594, F-31326 Castanet-

Tolosan, France

3 Université Toulouse, INPT ENSAT, UMR1248 AGIR, F-31320 Castanet-Tolosan, France 4 CETIOM, Centre INRA de Toulouse, F-31320 Castanet-Tolosan, France 5 INRA, UMR1248 AGIR, F-31320 Castanet-Tolosan, France 6 Université Toulouse, INPT, UMR AGIR, F-31029 Toulouse, France 7 These authors contributed equally to this work.

Abstract

Plant or soil water status are required in many scientific fields to understand plant responses to drought. Because the transcriptomic response to abiotic conditions, such as water deficit, reflects plant water status, genomic tools could be used to develop a new type of molecular biomarker.

Using the sunflower (Helianthus annuus L.) as a model species to study the transcriptomic response to water deficit both in greenhouse and field conditions, we specifically identified three genes that showed an expression pattern highly correlated to plant water status as estimated by the pre-dawn leaf water potential, fraction of transpirable soil water, soil water content or fraction of total soil water in controlled conditions. We developed a generalized linear model to estimate these classical water status indicators from the expression levels of the three selected genes under controlled conditions. This estimation was independent of the four tested genotypes and the stage (pre- or post-flowering) of the plant. We further validated this gene expression biomarker under field conditions for four genotypes in three different trials, over a large range of water status, and we were able to correct their expression values for a large diurnal sampling period.

Keyword Index

Soil water deficit, sunflower, Helianthus annuus L., transcriptomic, drought, biomarker, leaf water

Introduction

Water deficit in plants can be defined as the imbalance between the actual evaporative demand resulting from climatic conditions and the available water in the soil (Tardieu, Granier & Muller, 2011) This major environmental stress affects the growth and physiology of the entire plant and can therefore dramatically reduce crop yield and quality (Bhatnagar-Mathur, Vadez & Sharma, 2008). Recent intensification of drought events in Europe, Australia and North America, together with climatic model forecasts, suggest that drought will continue to dramatically affect crop productivity in the 21st century (Moriondo, Bindi, Kundzewicz, Szwed, Chorynski, Matczak, Radziejewski, McEvoy & Wreford, 2010). At the same time, the reduction of arable land area, the scarcity of water resources and the development of the human population all amplify the need to develop agrosystems that are more tolerant to water deficit or less water-consuming.

In this context, plant molecular physiologists, eco-physiologists and agronomists conduct experiments to estimate the plant response to water stress. One major requirement of these experiments is the estimation of soil water available to crops, at least at the most critical points of the developmental process. The direct estimation of water accessible to individual plants can be very difficult or even impossible in natural environments such as the field. Water status indicators can be of two types: soil- or plant-based measurements.

Soil-based measurements use either thermogravimetry, which requires samples for over-drying, or physical measurements of soil properties varying with its water content (Dobriyal, Qureshi, Badola & Hussain, 2012). Neutron probes have been widely used since the 1960s (reviewed by Gardner, Bell, Cooper, Dean, Gardner & Hodnett, 1991; Klenke & Flint, 1991), and dielectric methods, such as time- domain reflectometry (Topp & Davis, 1985) or capacitance sensors (Whalley, Dean & Izzard, 1992), have been used since the 1980s. Generally, these techniques can only describe limited soil regions that may not

Marchand Et Al., 2013

correctly represent the plant rhizosphere (Ferreira, Valancogne, Daudet, Ameglio, Pacheco & Michaelsen, 1996). The access tube used for the probe measurement is difficult to install and often modifies the water circulation and root dynamics surrounding the tube. Furthermore, these tools are time-consuming and labor-intensive and cannot be scaled up for high-throughput evaluation, which is needed in genetic analyses.

Therefore, plant-based measurements are often preferred. These measurements are based on the fact that the plant status reflects soil water availability. Morphological indicators can be used to evaluate drought stress. For example, breeders often score leaf rolling to estimate plant water status in monocots (O'Toole, Cruz & Singh, 1979). For perennial species, trunk diameter reflects water fluxes in the plant and can be used to manage irrigation (Goldhamer & Fereres, 2001). In eco-physiological studies, different indicators of plant status are commonly measured at different organizational levels, such as whole-plant transpiration, leaf water potential or stomatal conductance. For example, water transpiration cools the leaves and can therefore be monitored through thermal infrared measurements such as in wheat (Blum, Mayer & Gozlan, 1982). The measurement of pre-dawn leaf water potential (ΨPD) has been largely used for decades and is considered to be a standard. It is based on the fact that at dawn, water equilibrates between the rhizosphere and leaves, reflecting the water available to the plant. Therefore, it is subject to some limitations for heterogeneous soils (Ameglio, Archer, Cohen, Valancogne, Daudet, Dayau & Cruiziat, 1999) and its determination in numerous plants is restricted by the need of operating at pre- dawn.

Another method that is successfully used in controlled environments is based on the measurement of the daily transpiration of water-stressed plants relative to well-watered controls. This method defines a scale for water available for plant transpiration between an upper and lower limit of soil water content (SWC).

The upper limit matches the SWC at field capacity and the lower limit is the SWC where relative transpiration decreases to less than 0.1 (Sinclair, 1986). According to Sinclair (2005), plants respond to the progressive drying of soil in a similar manner across a wide range of environmental conditions when

Marchand Et Al., 2013

this scale is used, where water stress is expressed as the fraction of transpirable soil water (FTSW). Variability in the leaf expansion and plant transpiration rate in response to water stress has been previously reported in different sunflower genotypes by using this method (Casadebaig, Debaeke & Lecoeur, 2008). When dealing with field conditions, several main drawbacks limit the applicability of this method. First the need for a control plot (in order to measure transpiration in well-watered conditions) doubles the experimental space required, which thus precludes the use of this indicator for large-scale genetic programs in crops. More importantly, to estimate FTSW in field environment, measurements of soil depth (soil profile, endoscopy), portion of soil explored by roots and soil water content (probes, soil cores) are required but are often unrealistic for genetic studies at microplot scale or poorly estimated.

In the context of the development of high-throughput phenotyping platforms, the need to develop a tool that would allow the early quantification of water deficit in a dose- and time-dependent manner is even more acute. Following the definition of Ernst & Peterson (1994) a soil water content biomarker could be a biochemical, physiological or morphological change in plants that measures their exposure to the environment (i.e., water deficit). This biomarker could therefore be used to reveal the status and trends in environmental assessment and also to predict crop responses to other biotic and abiotic stresses that interact with drought.

The transcriptomic response to water deficit is a widely described molecular process that allows plants to adapt to the water imbalance between supply and demand, and to develop a large range of morpho- physiological changes (Shinozaki & Yamaguchi-Shinozaki, 2007). The gene regulation cascade begins from the composite molecular perception of the environmental signal (the biophysical water imbalance) and moves via signal transduction down to the level of enzymes and structural proteins to produce biochemical compounds, fluxes and developmental adaptations. In accordance, some transcript expression levels are correlated only to FTSW but not to other major plant responses (Rengel, Arribat, Maury, Martin-Magniette, Hourlier, Laporte, Vares, Carrere, Grieu, Balzergue, Gouzy, Vincourt & Langlade, 2012). Such genes correspond to the definition of biomarkers that reflect soil water status.

Marchand Et Al., 2013

Assembling several genes robustly correlated to soil water content appears to now be an attainable goal given recent progress in the description of the transcriptomic response to water deficit at the interface of molecular biology and eco-physiology (Ingram & Bartels, 1996); Ramanjulu & Bartels, 2002; Bartels & Sunkar, 2005; Harb, Krishnan, Ambavaram & Pereira, 2010; Aasamaa & Sober, 2011).

In fact, gene expression biomarker search and development is a long-standing goal of the reference meta- analysis platform Genevestigator (Zimmermann, Laule, Schmitz, Hruz, Bleuler & Gruissem, 2008). Recently, a successful meta-analysis of a large transcriptomic data set in maize allowed the development of a composite gene expression scoring system to quantitatively assess the response of maize to nitrogen conditions (Yang, Wu, Ziegler, Yang, Zayed, Rajani, Zhou, Basra, Schachtman, Peng, Armstrong, Caldo, Morrell, Lacy & Staub, 2011). Importantly, this first gene expression biomarker for in planta nitrogen status is independent of genotype, does not vary throughout plant development and was validated in field and greenhouse conditions.

The development of such tools has certainly been hampered by the rapid variation of plant transcriptome in response to many external factors, such as illumination and handling/wounding, as well as internal factors, such as the circadian clock. However, whole transcriptomic studies now show that part of the transcriptome robustly reacts to the plant environment in a dose- and time-dependent manner, which allows statistical models to be built, notably for the sunflower (Rengel et al., 2012).

In this context, we used the sunflower as a model to develop a composite gene expression biomarker that is independent of genotype, developmental stage and time of day and that allows the estimation of soil water constraint in greenhouse and field experiments. This biomarker was standardized using the pre- dawn leaf water potential, FTSW, soil water content and fraction of total soil water when available.

Plant Material And Growing Conditions

Four experiments, i.e., one in greenhouse conditions and three in field conditions, using the four sunflower (Helianthus annuus L.) inbred lines XRQ, PSC8, their F1 named Inedi and another cultivated hybrid Melody were conducted in 2012 near Toulouse (Haute-Garonne, France).

For the greenhouse experiment conducted from May to June 2012, bleach-sterilized seeds were germinated on Petri dishes with Apron XL and Celeste solutions (Syngenta, Basel, Switzerland) for 3 days at 28°C. Plantlets were transplanted in 236 individual pots, and each pot contained one single plant.

Pots were filled with 15 L of a substrate composed of 10% sand, 40% P.A.M.2 potting soil (Proveen distributed by Soprimex, Chateaurenard, Bouches-du-Rhône, France) and 50% clay loam from the INRA site in Auzeville-Tolosane (Haute-Garonne, France).

Plantlets were sown on two different dates to obtain plants at two different stages (before and after flowering) respectively, 10 weeks and 4 weeks before the beginning of the stress treatment. For each phenological (pre-flowering or post-flowering) stage with, respectively, 144 and 92 plants, the pots were arranged in a split-split-plot design with three blocks. The stress intensity (i.e., FTSW values of 0.8, 0.7, 0.5, 0.35, 0.20 and 0.12) was the main factor within the block, the genotype was the second factor, and finally the treatment (control plants were well-watered and treated plants were water-deprived) was the third factor. After an assessment of Alternaria blight evolution, plants of genotype PSC8 were not considered in the experiment dedicated to the post-flowering stage. Each pot was fertilized and irrigated as in Rengel et al. (2012) before the beginning of the water stress application.

In field conditions, the same genotypes were sown at three different locations: Samatan (Gers, France),

Marchand Et Al., 2013

Fleurance (Gers, France) and Auzeville-Tolosane. In Samatan, the four genotypes were sown on April 20, 2012 and grown without irrigation. In Fleurance, PSC8, Melody and Inedi were sown on April 6, 2012 and grown without irrigation. In Auzeville-Tolosane, Inedi and Melody were sown on May 25, 2012 and grown in both irrigated (163 mm) and non-irrigated conditions.

The field experiments were designed in six randomized blocks for each location or location*condition combination. Each plot consisted of 12 rows with a length of 10 m, 12 rows with a length of 6 m and 9 rows with a length of 5.2 m for each genotype in Samatan, Fleurance and Auzeville-Tolosane, respectively, at the same plant population density (6.5 plants.m-2).

Soil Analysis

An 800-g soil sample was taken at depths of 60 cm and 30 cm in each trial and sent to the INRA LAS laboratory (Arras, Pas-de-Calais, France) for physical and chemical analyses.

Water Stress Treatment

In the greenhouse experiment, the pots were saturated with water 31 and 73 days after germination, respectively, for pre-flowering and post-flowering plants. The following morning, excessive water was drained for two hours and pots were weighed to obtain the saturation mass. From this point, irrigation was stopped for water-deprived (WD) plants. Both control and WD plants were weighed every day between 16:00 and 17:00 to determine the daily evapotranspiration. The water lost was added back to the control plants. To prevent soil evaporation, pots were covered with a 3-mm-thick polystyrene sheet. However, soil evaporation could not be neglected.

In the field experiments, 53, 70 and 40 mm of water were provided, respectively, on June 29, July 11 and August 13 2012 in the irrigated condition in Auzeville-Tolosane.

Soil Evaporation Estimation In The Greenhouse

Six pots without plants that represented the different water content were also weighed every day for two weeks during the experiment. Climate conditions, such as relative humidity and average temperature in the greenhouse, were monitored daily. The soil evaporation could, therefore, be estimated by performing a linear regression with pot water content, relative humidity and average temperature using the function regress (MATLAB version 7.13.0.564, Statistics Toolbox 7.6).

This model is detailed in Supporting Table S1 and was used to estimate the soil evaporation during the greenhouse experiment. Plant leaf area and transpiration in the greenhouse For all plants, the length and width of odd leaves were measured every other day. The total leaf area was calculated from these measurements as described in Casadebaig et al. (2008) The plant transpiration (E in g.mm-2) for each pot was calculated every day as the difference between the water lost by the pot and the water lost by soil evaporation divided by the total plant leaf area.

The normalized transpiration (EN) for each WD plant was calculated every day as the ratio between its transpiration and the average transpiration of control plants of the same genotype in the same block. Estimation of the fraction of transpirable soil water (FTSW) in the greenhouse

Experiment

The total transpirable soil water (TTSW) is the maximum amount of soil water available to the plant. In our experiment, 8 treated plants reached EN values less than or equal to 10% and were used to estimate

Marchand Et Al., 2013

the TTSW. This weight (W10%) corresponded to the dry soil plus 26% (w/w) of the water contained in the saturated pot. The fraction of transpirable soil water (FTSW) was finally calculated as follows: FTSW = (Wd-W10%)/TTSW, where Wd is the weight of the pot at day d.

The FTSW value was used to determine whether a plant had reached the target stress intensity. Estimation of the soil water content (SWC) in the greenhouse experiment At the end of the greenhouse experiment, a soil core was collected from each pot. The soil samples were weighed to obtain the fresh weight and then dried for 48 h at 120°C before a second weighing to obtain the dry weight. The soil water content (SWC in percentage w/w) was calculated daily as follows: SWCj = (Wfi-Wd)/(Wd-Wd’), where Wfi is the weight of the fresh soil and plant at day i, Wd is the weight of the dry soil and plant and Wd’ is the weight of the dry plant. The weight of the fresh plant at day i is estimated using the dry weight of the plant and based on the assumption that the plant water content was, on average, 81% for post-flowering plants and 87% for pre-flowering plants and was the same for the different plant tissues.

Estimation of the fraction of total soil water (FtotSW) in the greenhouse

Experiment

Another soil water content indicator is the fraction of total soil water (FtotSW), which was estimated as follows: FtotSW=(Wfi-Wd)/(Wsat -Wd), where Wsat is the weight of the water-saturated pot. Measurement of leaf water potential (Ψ) in greenhouse and field experiments In the greenhouse experiment, the harvested plants for transcriptomic analysis (WD and control plants) were placed in a dark room until the next morning. The water status at the time of harvest (between 11:00

Marchand Et Al., 2013

and 12:30) was noted ΨPD’ and estimated as the leaf water potential, after equilibrium with the soil was reached. ΨPD’ was measured on the nth leaf for each harvested plant using a Scholander’s pressure chamber (Soil Moisture Equipment Corp., California, U.S.A.), where n was 2/3 of the total leaf number Ntot.

In the field experiments, the water status at dawn was estimated as the classical pre-dawn leaf water potential ΨPD and was measured for one plant per plot between 4:00 and 5:30 once a week for three weeks. Measurements began when plants were at the F1 stage (CETIOM nomenclature). In the Fleurance and Samatan trials, the first measurement occurred, respectively, on July 18 and 19, 2012. In Auzeville- Tolosane, the measurements began on July 31, 2012. The water potential was measured for the 5th leaf from the head (Ntot -5) using a Scholander’s pressure chamber.

It is important to note that contrary to the transcriptomic harvests that were always performed at noon (except for the diurnal variation study), ΨPD and ΨPD’ are slightly different measurements of plant water status. ΨPD was measured at dawn (between 4:00 and 5:30) after a normal night, thus representing soil- plant water status the day before leaf harvest (Fig S2 A). In contrast, ΨPD’ was measured after the soil- plant water equilibrium had been reached during artificial night in dark room representing the exact plant water status at leaf harvest time (between 11:00 and 12:30) (Fig S2 B).

In the Auzeville-Tolosane trial, to study the influence of the diurnal variations on leaf water potential and gene expression, leaves were harvested in each of 3 blocks for each genotype, both in irrigated and non- irrigated conditions, in the same order, between 4:00 and 5:30, 7:00 and 8:30, 10:00 and 11:30, 11:30 and 13:00, 13:00 and 14:30, 16:00 and 17:30, 19:00 and 20:30, 22:00 and 23:30, and 1:00 and 2:30 (Fig S2 C). Separate leaves were used from the same plant for the leaf water potential measurement and for transcriptomic analysis. This study occurred on August 9 and 10, 2012 under high evaporative demand and constant sunny conditions.

Gene Indicators Of Water Status

From the study of Rengel et al. (2012), we selected genes that were found to (1) be correlated to the integrated transpired water (ITW) in fixed duration stress and in fixed intensity stress (R2>0.65) and (2) show a treatment or a treatment*genotype interaction effect in the ANOVA for either type of stress. From this list of 143 genes, we chose to focus on sunflower homologues of Arabidopsis genes that have been described in the literature to be involved in abiotic stress responses. We finally kept 28 genes. Detailed descriptions of these genes are presented together with all the genes in this study in Supporting Table S3.

Circadian Clock-Related Genes

Numerous genes have been identified to vary according to the circadian clock. We chose the four Arabidopsis circadian clock regulators TIMING OF CAB EXPRESSION 1 (TOC1), LATE ELONGATED HYPOCOTYL (LHY), CONSTANS (CO) and ZEITLUPPE (ZTL) (Alabadi, Oyama, Yanovsky, Harmon, Mas & Kay, 2001; Wilkins, Brautigam & Campbell, 2010) and identified the best BLAST hits in the sunflower transcriptome (https://www.heliagene.org/HaT13l). HaDHN1 and HaDHN2 of the sunflower were first described by Cellier, Conejero & Casse (2000) to vary during the circadian cycle and were re- examined in this study. All correspondences are summarized in Supporting Table S3.

Genes showing a genotype*treatment interaction effect in ANCOVA In addition to the 28 genes correlated to water stress intensity, we studied the gene expression levels of

Marchand Et Al., 2013

four transcripts: HaT13l002164, HaT13l009999, HaT13l009995 and HaT13l020030. The expression of these transcripts was found to be correlated to three other morpho-physiological variables in Rengel et al. (2012): carbon isotopic discrimination (CID), evapotranspiration (ET) and osmotic potential (OP). The identification of Arabidopsis homologs was performed according to the best BLAST hits. These four genes and a fifth gene originally correlated to ITW in Rengel et al., (2012) study, were used to illustrate a genotype*WSB interaction effect in ANCOVA analysis explained below. Detailed descriptions of the corresponding genes are presented in Supporting Table S3.

Tool

(http://probes.pw.usda.gov/batchprimer3/index.html) using the default parameters with an optimal product size of 60bp (min=50bp, max=80bp). All primers are summarized in Supporting Table S4.

Tissue Harvest And Rna Extraction

One non-senescent and non-growing leaf by plant was harvested between 11:00 and 13:00, except during the diurnal variation study. Each leaf was sampled and treated separately. After freezing and grinding the samples, RNA was extracted and checked for quality and quantity. Detailed protocol of these steps and the cDNA synthesis is provided in Supporting Material and Method.

Estimation Of Gene Expression By Qrt-Pcr

Gene expression was estimated by qRT-PCR. and was normalized according to the amplification efficiency and the expression levels of seven reference genes identified in Rengel et al. (2012). Detailed protocol of these steps is provided in Supporting Material and Method and reference gene information is summarized in Supporting Table S3.

Marchand Et Al., 2013

Gene expression correction following the time of the day The linear regression of gene expression as a function of the hour of the day was performed on the diurnal variation study’s data between 10:00 and 20:00 for genes chosen for the biomarker model using the robustfit function in MATLAB. The linear regression was set to pass by means of the expression levels of samples harvested between 11:00 and 12:00, to match with the harvest time observed in the field and greenhouse experiments that were used to calibrate and validate the biomarker models. We corrected the gene expression for samples harvested at different times of the day to obtain an estimated gene expression at 11:30 using linear regression parameters.

Test Of Genotypic Effect On The Models

For each selected gene correlated with water stress intensity, we performed a covariance analysis (aoctool function in MATLAB) by testing genotype-dependent (1) and non-genotype-dependent (2) models for the gene expression level as a function of water stress status as follows: (1) Yi,t=ai+biXi,t+Zit : genotype-dependent model and (2) Yi,t=a+bXi,t+Z’it : genotype-independent model, where Yi,t is the expression level of the gene for genotype i and for the actual water stress intensity t (with different values in each of the three blocks), Xi,t is the value of the stress intensity, and Zi,t and Z’i,t are the residues.

The gene expression was considered to not have no genotypic effect if the F-test performed as follows

F = (Sse2-Sse1/(2*(G-1))/(Sse1/Df1),

where SSE1 and SSE2 are, respectively, the sum of the squared errors for model (1) and model (2), G is the number of genotypes and df1 is the number of degrees of freedom attached to the error in the model (1).

Statistical calibration and validation of the water status biomarker (WSB) All combinations of 3, 4, 5 or 6 genes that were correlated to stress intensity and presented no genotypic effect were tested to construct a model to estimate the pre-dawn leaf water potential. The model fitting was performed by the GeneralizedLinearModel.fit function in MATLAB using the greenhouse data as the calibration set. For each of the four types of models, we selected the 50 best models according to the AIC criterion.

Selected models were then tested using the predict function in MATLAB, and field data served as the validation set. For each of the four types of models, we selected the best model according to the R of the correlation between WSBΨPD predictions and the corrected values of observed ΨPD.using the regress function in MATLAB (corrections are described in Supporting Material and Methods and Fig S5). We compared the four types of models and chose the best one according to the R of the correlation.

Test Of Trial Effect

We considered samples harvested only in non-irrigated conditions for the three field trials. For the four genes correlated to morpho-physiological traits and and one gene to ITW, we performed an ANOVA using the anovan function in MATLAB to test the genotypic, trial and genotypic*trial interaction effects.

Marchand Et Al., 2013

Genes found to have no trial effect were tested for the genotype*WSB interaction. We performed a covariance analysis using the aoctool function in MATLAB with the following model:

Yi,B = Ai +Bixi,B+Zi,B,

where Yi,b is the expression level of the gene for genotype i and biomarker level b, Xi,b is the value of the WSB level and Zi,b is the residue.

Selection Of Candidate Genes

Based on our previous results (Rengel et al., 2012), we selected 28 genes that were found to be correlated to the integrated transpired water (ITW) in fixed duration stress and in fixed intensity stress (R2>0.65). As the expression of these genes was independent of the tested genotypes, they were strong candidates to build a biomarker for plant water status. To assess a particular level of gene expression that reflects stress intensity, we needed to study these genes through a larger range and at a finer scale of drought stress.

Establishment Of A Fine Scale Of Drought Stress

To study changes in gene expression at different stress levels, we established a large range of drought stress with a fine scale. For the treated plants, the water status indicators ranged from 0.97 to -0.087 for the FTSW, from -0.2 to -2.4MPa for the pre-dawn leaf water potential (ΨPD’), from 54.3% to 5.98% for the soil water content (SWC) and from 0.13 to 1 for the FtotSW. The four genotypes and the two stages were represented through the entire range.

The four water status indicators measured during the greenhouse experiment were highly correlated with the R2 values, ranging from 0.65 to 0.96 (Fig. 1). Interestingly, the ΨPD’ was only correlated with FTSW values below 0.4, SWC values below 25% and FtotSW values below 0.5. This selective correlation reflects that, in our data, ΨPD’ did not discriminate high water status levels.

Marchand Et Al., 2013

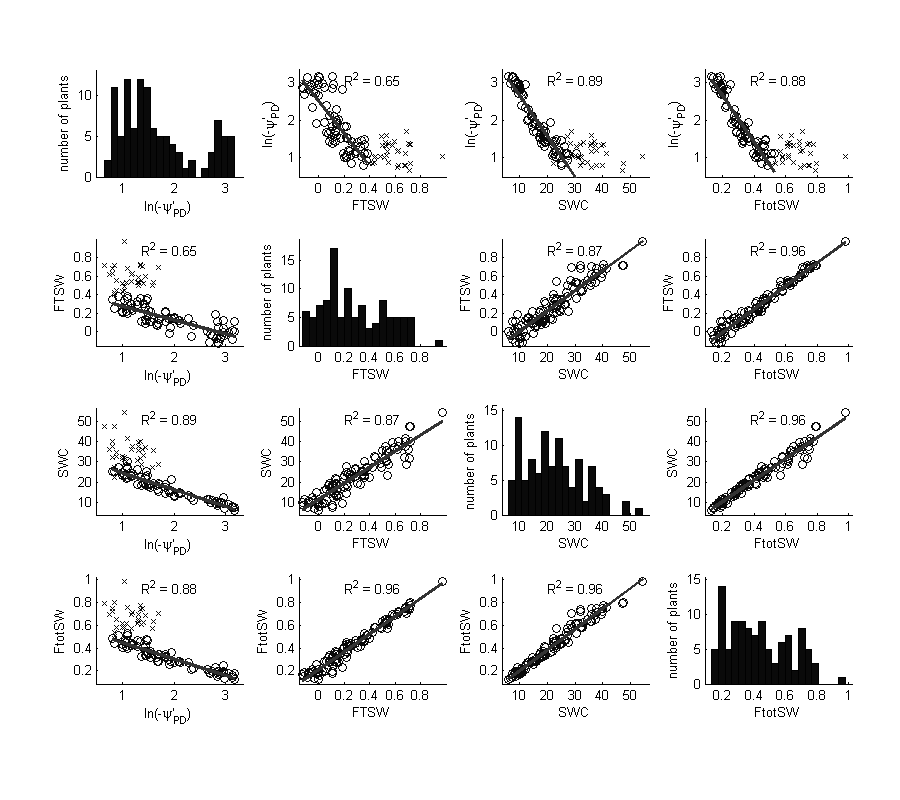

Figure 1: The distributions and correlations between the four water status indicators measured in the greenhouse experiment: ΨPD’, FTSW, SWC and FtotSW. Correlation between gene expression and water status indicators As a confirmation of our previous results using the FTSW (Rengel et al., 2012), we estimated the correlations of 28 selected genes to the four water status indicators over the new finer and larger scales of water status, considering together the treated plants of all genotypes and growth stages. Raw data of the gene expression level compared to FTSW level for the 28 candidate genes are shown in figure S6. We identified 18 genes whose expression was correlated (p<0.01) to the FTSW, 20 for ΨPD’, 21 for the SWC

Marchand Et Al., 2013

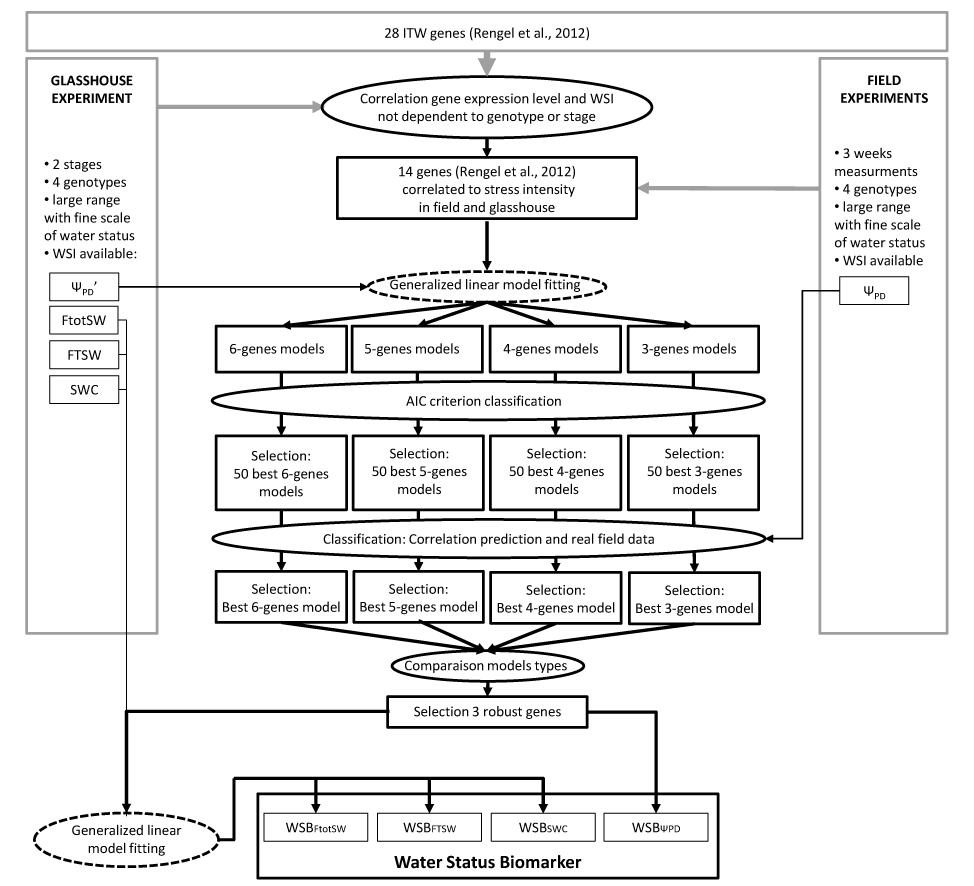

and 18 for FtotSW (Table 1 and Fig S7). Figure 2. A schematic description of the water status biomarker construction. WSBΨPD was developed in greenhouse conditions and validated in the field. WSBFtotSW, WSBFTSW and WSBSWC were built in the greenhouse environment using field-robust genes used for WSBΨPD.

A covariance analysis was used to test genotype-dependent correlations (p<0.01). Among the correlated genes, we found two genes (according to the water status indicator) whose correlations were genotype- dependent (summarized in Table 1 and Fig S8).

Marchand Et Al., 2013

Finally, among the 28 initial genes, we retained 14 genes that showed neither genotype nor stage effects in the greenhouse experiment and that were technically robust in both greenhouse and field experiments. These first steps of gene selection for biomarker construction are summarized in Figure 2.

0.18

Table 1. The number of genes correlated (p<0.01) to each water deprivation indicator and genotype effects to be

Used In Gene Combinations For Biomarker Fitting

Construction of Generalized Linear Models to estimate plant water status

Model For Ψpd’ In Glasshouse

According to the AIC criterion, we selected the 50 best generalized linear models with 3, 4, 5 and 6 genes to fit the ΨPD’ from the greenhouse data (Fig 2). The adjusted R and RMSEc for the different types of models are presented in Table 2. Considering only these glasshouse data, the adjusted R increased with the number of genes introduced in the model, and the RMSEc values for the four types of models were similar.

0.65-0.68

Table 2. The range of adjusted R and RMSEc for the 50 best linear models with 3, 4, 5 and 6 genes fitting the ΨPD' in the greenhouse experiment.

Field Experiment Validation With Ψpd

We used the results of three field trials to select the best predictive model for ΨPD’ (Fig 2). The field trial experiments were implemented in environments with deep (Auzeville-Tolosane) or shallow (Fleurance and Samatan) soils. The Fleurance and Samatan trials had clay soils (respectively in average 52.5% and 52.8% of clay) with a low water-holding capacity. The Auzeville-Tolosane trial had soil with an equilibrate texture between the silt loam and sand (composed in average of 24.3% of clay, 29.8% of silt and 45.9% of sand), and therefore, with a high water holding capacity and therefore with a high field capacity (Supporting Table S9). Trials were chosen with different soil characteristics to ensure a wide range of plant water statuses. For the same reason, we harvested samples and measured ΨPD over 3 weeks for six repetitions per genotype. Finally, the Samatan data over the last week was disturbed by an important rain event and was discarded. Overall, we obtained a good range of water stress across the entire experiment: ΨPD ranged from -0.5 to -2.2 MPa in the Fleurance trial and from -0.7 to -2.3 MPa in the Samatan trial, whereas in Auzeville-Tolosane, where we set up irrigated and non-irrigated conditions, ΨPD ranged from -0.3 to -1.5 MPa.

Using field experiment data, we compared the models’ prediction (WSBΨPD) and ΨPD’ estimated from the measured ΨPD. We observed that models with 6 genes that were better in the greenhouse environment introduced errors in field predictions. We selected the three-gene model that showed the best correlation between the observed and predicted ΨPD’ with an R equal to 0.61 (Fig 3) and an RMSEp of 0.67. With

This Model, The Wsbψpd Was Estimated As Follows:

WSBΨPD=ln(-ΨPD’) = 1.53 + 0.35*ln(dCtHaT13l002207) – 0.39*ln(dCtHaT13l002636) +0.16*ln(dCtHaT13l5199). where ψPD’ is expressed in 0.1MPa. In the greenhouse, this model had an adjusted R of 0.78 and an RMSEc of 0.64 and therefore offered better prediction in both controlled and field environments.

Marchand Et Al., 2013

Models for water stress indicators not accessible in field conditions The three genes used in the model to predict ΨPD’ appeared to be robust enough in predicting the stress intensity in both the greenhouse and field environments. We used these same genes in the construction of models for water stress indicators that are not accessible in field conditions. FTSW, SWC and FtotSW were estimated by generalized linear modeling using gene expression levels of HaT13l002722,

Hat13L002636 And Hat13L005199 As Follows:

WSBFTSW = 0.42 - 0.0618*ln(dCtHaT13l2207) +0.21*ln(dCtHaT13l002636) - 0.04*ln(dCtHaT13l005199), WSBSWC = 27.70 - 3.83*ln(dCtHaT13l002207) + 8.51*ln(dCtHaT13l002636) - 1.79*ln(dCtHaT13l005199), and WSBFtotSW = 0.54 - 0.06*ln(dCtHaT13l002207) + 0.17*ln(dCtHaT13l002636) - 0.03*lnd(CtHaT13l005199).

Models had adjusted R values of, respectively, 0.69, 0.72 and 0.74 for FTSW, SWC and FtotSW, and their RMSEc values were, respectively, 0.20, 9.31 and 0.18.
