Estimation Using Radar Point Clouds

Abstract—Conventional radar segmentation research has typ- ically focused on learning category labels for different moving objects. Although fundamental differences between radar and optical sensors lead to differences in the reliability of predicting accurate and consistent category labels, a review of common radar perception tasks in automotive reveals that determining whether an object is moving or static is a prerequisite for most tasks. To fill this gap, this study proposes a neural network-based solution that can simultaneously segment static and moving objects from radar point clouds. Furthermore, since the measured radial velocity of static objects is correlated with the motion of the radar, this approach can also estimate the instantaneous 2D velocity of the moving platform/vehicle (ego- motion). However, despite performing dual tasks, the proposed method employs very simple yet effective building blocks for feature extraction: multi-layer perceptrons (MLPs) and recurrent neural networks (RNNs). In addition to being the first of its kind in the literature, the proposed method also demonstrates the feasibility of extracting the information required for the dual task directly from unprocessed point clouds, without the need for cloud aggregation, Doppler compensation, motion compensation, or any other intermediate signal processing steps. To measure its performance, this study introduces a set of novel evaluation metrics and tests the proposed method using a challenging real-world radar dataset, RadarScenes. The results show that the proposed method not only performs well on the dual tasks, but also has broad application potential in other radar perception tasks. More qualitative results can be viewed here: https://youtu.be/3ejS1chSvQ8?si=uGRugVA63BCyvNBV.

Index Terms—Radar segmentation, ego-motion estimation, au- tomotive radar, radar point cloud, deep learning.

O

VER the past decade, the automotive industry has made tremendous progress in autonomous driving technology, revolutionizing today’s smart vehicles and transportation. As the goal shifts from testing to real-world driving environments, developing reliable sensor perception systems to ensure the safety of autonomous driving systems has become imperative.

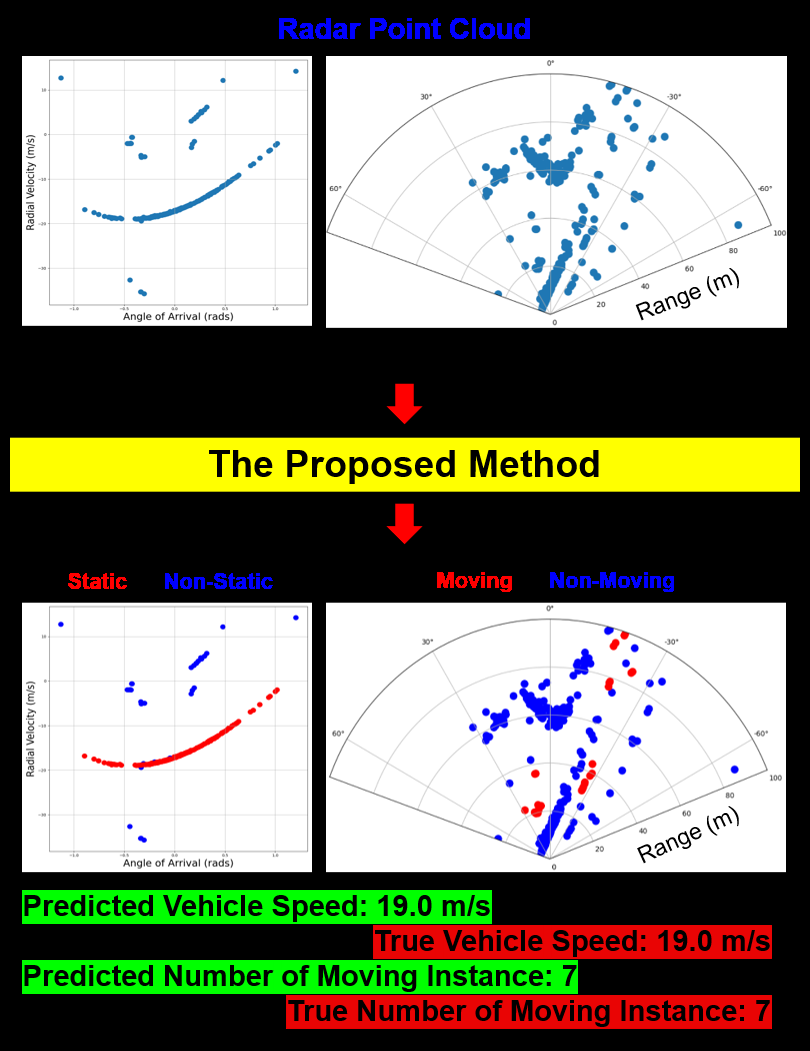

Common sensors used in perception systems include cameras, automotive radar, lidar, and sonar . Among these sensor options, autonomous radars play a vital role in providing robust perception information and demonstrate unparalleled advantages in the following aspects: firstly, the performance Simin Zhu, Francesco Fioranelli, Alexander Yarovoy are with the Mi- Satish Ravindran is with NXP Semiconductors, San Jose, CA, USA (e- Fig. 1: The proposed method takes multidimensional radar point clouds as input, uses neural networks (NNs) for auto- matic feature extraction, and then segments static and moving objects. Based on the measured radial velocity of static ob- jects, the method can estimate the ego-motion of the moving vehicle. The distinct moving instances can also be generated after applying a clustering algorithm to the predicted moving objects. In this example, the RadarScenes dataset is used for testing.

of radar perception is very robust to low light and adverse weather conditions such as rain, snow, and fog ; secondly, automotive radar can detect objects that are partially or com- pletely obscured or even out of the line-of-sight of the radar ; thirdly, automotive radar can measure the radial velocity of detected objects, which can be used directly to estimate the speed of the ego-vehicle and other moving objects .

The above advantages make automotive radar a powerful perception sensor in the automotive industry. Among many perception tasks, radar-based segmentation has gained signif- icant attention in the past few years. The main objective in radar segmentation is to assign a class label to each point

2

in the radar point cloud or each cell in the radar data cube . The radar point cloud is generated after applying a detector such as one of the Constant False Alarm Rate (CFAR) algorithms on the radar data cube. Both data formats capture information such as range, radial velocity, and angle of arrival (AoA) of objects in the scanned environment.

Therefore, performing segmentation on these data is crucial for scene understanding and driving safety. In the related radar literature, three categories of segmentation tasks have been

Explored, Namely, Semantic Segmentation , , –,

instance segmentation –, and panoptic segmentation . Undoubtedly, these studies have demonstrated the great potential of radar sensors and laid a solid foundation for future perception systems.

However, most segmentation works have focused only on moving objects, while radar point clouds typically contain detections from moving objects (e.g., cars), static objects (e.g., buildings), and false positives (e.g., unidentified objects and multipath reflections). Further literature review shows that in other radar-based perception tasks, identifying which objects are static is also very important –. To locate static detections, some studies have to assume a static environment , , while others usually rely on knowing the vehicle’s

, Such As The Random Sample Consensus (Ransac)

algorithm . While these remedies can help identify static objects, they either require external odometry sensors or assume that most objects are static, and often leave moving objects mixed with false positives, requiring further separation.

Therefore, to bridge the gap between the unprocessed radar point cloud and various perception applications that either require knowing the positions of static or moving objects, or the vehicle’s speed, this study redefines the objective in conventional radar segmentation tasks. For this, it proposes a unified solution that can simultaneously perform the dual task of static and moving object segmentation and vehicle ego-motion estimation, as illustrated in Figure 1. To the best of our knowledge, this method is the first attempt to enable this dual task, and the results demonstrate that raw radar point clouds contain sufficient information to achieve both.

In addition to this primary contribution, the proposed method

Offers The Following Advancements:

1) Radar-only: Unlike many other studies, the proposed method performs the dual tasks using only radar data. For example, it eliminates the need for odometry sensors to measure vehicle ego-motion to assist with radial velocity compensation or motion compensation. This preserves sensor independence and removes concerns about errors introduced by sensor synchronization or output glitches.

2) No Aggregation: The Proposed Method Can Handle

sparse radar point clouds and does not require cloud aggregation from multiple radars or radar frames. In- stead, to extract temporal features, the proposed method uses a moving window and takes multiple radar point clouds as input. This preserves temporal features and removes the need for direct coordinate transformation or transformation with motion compensation1, making it robust in highly dynamic scenes.

3) Lightweight: The proposed method uses simple yet ef- fective neural network backbones for feature extraction, where the multi-layer perceptron (MLP) is used for spatial features and the recurrent neural network (RNN) is used for temporal features. The resulting model is lightweight (0.15 M parameters) while providing critical information for understanding vehicle motion and other downstream perception tasks.

4) Dataset: As no existing radar dataset fully supports the objective of the proposed method, this work reorganized the ground-truth (GT) class labels of the RadarScenes dataset . Specifically, vehicle ego-motion was used to separate static from non-static objects; the output of the DeepEgo+ approach was incorporated to compensate for the effects of vehicle acceleration , which can oth- erwise cause mislabeling of static objects; and moving versus non-moving objects were subsequently classified using the dataset’s original labels.

Finally, it must be noted that the goal of this study is different from previous studies on radar-based segmentation. While previous studies have focused on assigning detailed class labels, which is undoubtedly important and meaningful, this study began by seeking a continuation of traditional seg- mentation, but ended by filling an important gap in the radar perception processing chain. Therefore, it is unfair to compare this work via previous research aiming only at assigning class labels to pixels or points. Instead, the proposed method should be viewed as complementary to traditional radar segmentation and to other radar perception tasks.

The rest of this paper follows this structure. Section II pro- vides an overview of existing research on this topic. Section III presents the detailed design of the proposed method. Section IV first introduces the testing radar dataset and evaluation metrics, and then measures the performance of the proposed method. Finally, Section V draws conclusions and outlines future research directions.

Ii. Related Works

This section reviews the relevant literature. It first outlines prior work on radar-based segmentation and recent advances in the field. It then examines studies on other radar perception tasks to highlight the importance of performing the proposed dual tasks on radar point clouds. Finally, a brief summary of the literature review is provided.

A. Radar-Based Segmentation

According to its objectives, previous radar-based segmen- tation studies can be divided into three categories: semantic

Segmentation , , –, Which Assigns A Class Label

1Radar point cloud aggregation with motion compensation means that several point clouds are transferred to a reference point cloud and their positions in the reference cloud are compensated for the vehicle ego-motion.

In other words, motion compensation requires knowledge of the vehicle’s ego-motion, while direct aggregation does not.

3

to each radar point (detection); instance segmentation – , which not only classifies each point but also distinguishes between individual objects within the same class; and panop- tic segmentation , which combines both approaches by providing semantic labels for all points while also separating instances for object classes. In addition, previous studies can also be divided according to the format of radar data, where except , , , which use radar cubes (before detection), all of the rest use radar point clouds (after detection). Methods using radar cubes claim they are superior in segmenting small objects, as information can be lost during the detection process , . Nevertheless, there are currently no conclusive experimental comparisons demonstrating their effectiveness.

For methods that rely on radar point clouds, the RadarScenes dataset appears to be a popular choice since all methods use it to evaluate their performance. Although the RadarScenes dataset provides 10 different classes for moving objects, almost all studies use less than half of them, reflecting the challenges of performing detailed semantic segmentation using sparse and noisy radar data. To handle this challenge, PointNet++ ,

, , And Transformer , , , Become

the most commonly used feature extraction backbones in these studies. Theoretically, Transformer outperforms PointNet++ in handling sparsity and long-range dependencies; experimen- tally, Transformer also demonstrates better performance than PointNet++ , , .

Based on this brief literature review, it is evident that many studies have extensively explored the topic of radar-based segmentation from various perspectives, such as in terms of objectives, data formats, and feature extraction backbones.

It is a solid start, especially in such a pioneering field as automotive radar. However, there are still areas for further improvement. Firstly, except for studies using stationary ego- vehicle datasets , , nearly all prior research requires knowledge of vehicle ego-motion provided by odometry sen- sors. Ego-motion is often used to compensate for the measured radial velocity, which is then used as an important input object feature. However, if ego-motion is known, segmenting the static background becomes straightforward, as was done in . Furthermore, since almost 97% of radar detections come from static objects , the computational complexity of these methods can be significantly reduced by removing static points from the input. Also, with the compensated radial velocity, it is understandable that most studies achieve scores exceeding 99% on the Intersection over Union (IoU) metric for classifying ‘static’2 objects. Last but not least, relying on external sensors may compromise sensor independence and system robustness due to potential erroneous outputs or synchronization issues.

Secondly, to address the sparsity problem, some studies ,

, , Rely On Combining Radar Point Clouds Over A

fixed time period (e.g., 500 ms), regardless of the number of clouds aggregated. However, this approach can adversely increase inference latency and system memory consumption

. In Contrast, Other Studies , , , Also

2In the RadarScenes dataset, radar detections from static objects and false positives are both labeled as ‘static’, whereas in this study, they are treated separately.

merge clouds, but they only allow each radar to contribute once per fused cloud. Given a 60 ms update rate per radar, this can shorten aggregation time while still benefiting from the increased cloud density due to overlapping fields of view (FoVs). Nevertheless, all of the above solutions still introduce some degree of inference latency. Moreover, without motion compensation, they may experience performance degradation in highly dynamic scenes, especially when moving objects are present in the overlap region. Furthermore, since the radars in the RadarScenes dataset are fully unsynchronized3, fusing radar point clouds cannot be done directly but requires a heuristic process .

Thirdly, to handle the challenging task of labeling objects in sparse and noisy radar point clouds, previous studies usually adopt NNs with sophisticated feature extraction backbones, such as Transformer and PointNet++. While Transformer outperforms PointNet++, they are typically too bulky to be suitable for radar processing systems that require real-time prediction and immediate feedback . In addition, these backbones are often described as ‘data-hungry’, but large radar datasets are expensive to generate and annotate. In any way, due to the fundamental limitations of radar sensors, the performance gains from using complex backbones are not as significant as with optical sensors , , leading one to wonder: why not use radar for tasks that are better suited to its characteristics? For example, recent studies , no longer search for specific object types or bounding boxes, but instead focus on a simpler task of class-agnostic segmentation and tracking.

Last but not least, it is worth noting that most previous studies have only focused on segmenting moving objects from radar point clouds, labeling static objects and false positives together as ‘static’. From the perspective of various radar perception tasks, it is important to conduct a comprehensive segmentation, the reasons for which will be further explained in the next section.

B. Other Radar-Based Tasks

A radar point cloud typically contains a mix of detections from moving objects (e.g., vehicles), static objects (e.g., buildings), and false positives (e.g., false detections from sidelobes). Most existing radar-based segmentation tasks focus on separating moving objects, leaving static objects mixed with false positives. However, static objects also play a vital role in many radar perception tasks. For example, the measured radial velocity of static objects can be used to estimate the vehicle’s ego-motion , and thus calibrate the radar’s extrinsic parameters , . Additionally, knowing where static objects are located allows for the implementation of algorithms such as semantic grid mapping , simultaneous

Localization And Mapping (Slam) , , And Amplitude

and phase calibration . Furthermore, separating static points from the radar point cloud can help perform free space

Detection , , Road Course Estimation , , And

multi-object tracking . Among these studies, most rely 3The time intervals between individual radar outputs are not uniform, and radar transmit and receive operations are not ordered.

4

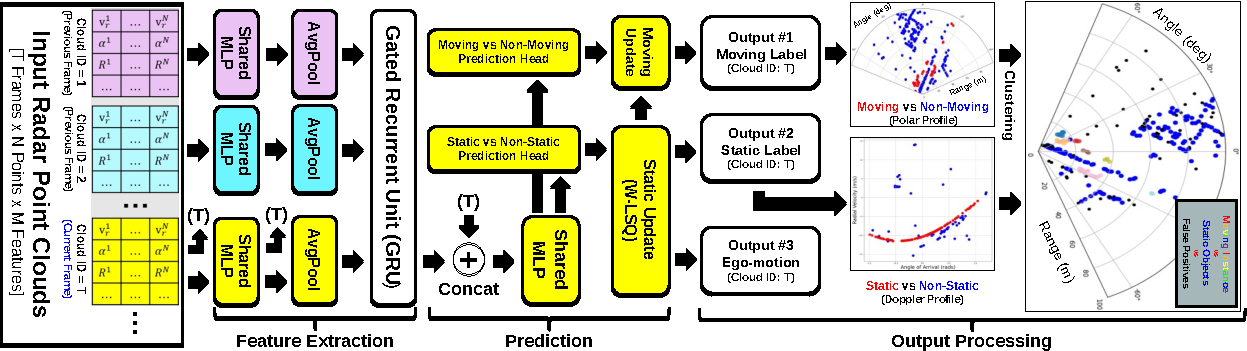

Fig. 2: Architecture of the proposed neural network for simultaneous static-moving object segmentation and vehicle ego- motion estimation. The network takes multidimensional radar point clouds as input, performs automatic spatial-temporal feature extraction, predicts static labels and moving labels for each detection point, and implements the weighted least squares (w- LSQ) for ego-motion estimation. As an illustrative application, moving instances can be generated after applying a clustering algorithm to the grouped moving objects.

on knowing the vehicle’s ego-motion provided by external sensors to localize static objects; some use neural networks , ; and some assume a majority of static points and employ one additional processing step such as RANSAC

Or M-Estimator Sample Consensus (Msac) . However,

while these solutions can help localize static objects, they leave moving objects mixed with false positives.

C. Summary

In summary, it is essential to point out that in the current radar perception processing chain, there is a missing compo- nent that can not only explicitly but also simultaneously seg- ment static objects, moving objects, and false positives from the radar point cloud, which, according to the literature review, is considered crucial for various downstream applications.

Furthermore, as the first processing unit after CFAR detectors, this component should be able to work independently, extract important segmentation features automatically from sparse and noisy radar point clouds, and provide fast, accurate, and reliable predictions. The realization of this component summarizes the goals of this research, which will be further described in the next section.

Iii. Methodology

Figure 2 presents the architecture of the proposed method for simultaneous static-moving object segmentation and ve- hicle ego-motion estimation. The proposed method: takes unprocessed radar point clouds as input, which will be detailed in Section III-A; performs automatic spatial-temporal feature extraction, as explained in Section III-B; predicts static and moving objects and estimates ego-motion in Section III-C; and finally outputs detailed object type labels and moving object instances after several processing steps as detailed in Section III-D. Implementation details will be presented in Section

A. Network Input Analysis

The proposed method takes T, unprocessed and chrono- logically ordered, radar point clouds as input. Typically, the radar point cloud is generated after the application of CFAR algorithms. Each point cloud is assumed to have N radar detection points, and each detection point contains M object features. In this work, M is assumed to be greater than or equal to 3, thus containing at least the uncompensated radial velocity (vr), range (R), and angle of arrival (AoA) (α) information of the detected objects. The reason for including at least the three selected object features and having T consecutive radar clouds is that they contain the necessary spatial and temporal features for the network to distinguish between moving and static objects, which can also be visually seen in Figure 3.

In the Doppler profile, not only is there a clear spatial distinction between static and non-static objects, but there is also a strong temporal correlation between consecutive point clouds of the static detections. In this work, static objects refer to detection points whose measured radial velocity is solely determined by the measurement angle and ego-radar motion, thereby forming a characteristic sine-like pattern in the Doppler profile. In contrast, non-static objects are detec- tion points that deviate from this pattern due to additional velocity contributions, such as independent target motion or false positives. The temporal correlation of static detections is dominated by the continuous motion of the ego-vehicle; consequently, the sine-like pattern remains stable over time, enabling estimation of the radar/vehicle motion from the measured features of static objects, see e.g., .

In the polar profile, there are also spatial and temporal corre- lations between objects in consecutive point clouds. However, because the ego-vehicle is moving and there is no motion compensation, all objects appear to ‘move’ across frames.

Furthermore, due to the nature of radar data, the shape and density of detected objects may vary between frames, making reliable discrimination of static objects more challenging. In contrast, detection points from moving objects are usually more spatially concentrated in the polar profile than in the

5

Doppler profile, especially when they are near the radar. This is because, in the Doppler profile, the measured radial velocity at different points on a moving object can vary greatly depending on the measurement angle. Thus, once static objects are first separated in the Doppler profile, the polar profile can help refine the identification of moving objects. In this study, moving objects are defined as detection points originating from targets physically in motion at the time of measurement, whereas non-moving objects comprise static detections, false positives, and inherently mobile targets that are currently stationary (e.g., parked or waiting vehicles).

In summary, unlike previous studies, the proposed method does not require point cloud aggregation, knowledge of the vehicle’s ego-motion, or compensation for radial velocity or ego-motion. In contrast, the authors believe that using T con- secutive raw radar point clouds is sufficient to simultaneously distinguish between static and moving objects and estimate the vehicle’s ego-motion. Regarding the latency issue, for real- time applications, the requirement of T radar frames can be formulated as a moving window so that the proposed method can provide instantaneous predictions. Lastly, the remaining issues are how to effectively extract relevant features for segmentation, which will be detailed in the next section.

B. Feature Extraction

As a result of clear spatial distinctions and strong temporal correlation in the input radar point clouds, the proposed method is able to perform effective feature extraction with simple neural network backbones. For spatial feature extrac- tion, this work employs the PointNet architecture , which consists of a shared multi-layer perceptron (MLP) followed by an average pooling. Specifically, the MLP is applied indepen- dently to each radar detection point in each input point cloud.

Afterwards, the pooling layer is used to aggregate a global feature vector for each input point cloud. Despite its simple architecture, the combination of MLP and average pooling has demonstrated effectiveness in extracting the sine-like spatial feature for static object segmentation and vehicle ego-motion estimation , . Furthermore, because the MLP is shared across input point clouds, the network complexity does not increase with the number of input point clouds. However, it must be acknowledged that this combination has limited ability to capture relationships between neighboring detection points and may therefore be insufficient for tasks requiring fine-grained spatial understanding. Nevertheless, given the sparse radar point clouds, it remains to be seen how much performance improvement more advanced feature extraction backbones (with local details) can bring, as a previous explo- ration has shown only modest gains .

For temporal feature extraction, the proposed method uses the gated recurrent unit (GRU). GRU is a type of recurrent neural network (RNN) that can extract long-term dependencies in sequential data. In this study, the global feature vectors generated by the previous pooling layer are first arranged in chronological order. The GRU then processes these feature vectors sequentially, capturing the hidden relationships within them and outputting a feature vector that contains both spatial and temporal information. It is important to mention that the temporal dependencies between radar point clouds are governed by the continuous motion of the ego-vehicle and moving objects. However, since the input data has no radial velocity compensation or motion compensation, the authors hypothesize that temporal feature extraction is more beneficial for the segmentation of moving objects, while static objects already provide strong differentiation in spatial features, and temporal features are only supplementary.

C. Prediction

The previous section extracts spatial features from the input radar point cloud and captures the temporal dependencies caused by the continuous object motion. This section explains how to make predictions for each radar detection point. Firstly, the generated spatial-temporal feature vector by the GRU is backpropagated to the original input point cloud and the outputs of different layers in the first shared-MLP through feature concatenation. The concatenation outputs a 2D matrix that still contains N points in one dimension, but in the other dimension contains more global and spatial details in addition to the original M input features. Then, another shared-MLP acts as a decoder, refining the fused features and producing a rich feature vector (per-point) that is based on both spatial- temporal context and local details. After that, the decoder output is sent to two prediction heads, one for static and non-static prediction (static head) and the other for moving and non-moving prediction (moving head). Each head consists of three 1D convolutional layers with the last layer having a sigmoid activation function. The static head outputs a N × 1 vector, where each element contains a value from 0 to 1, indicating the probability of being non-static (0) or static (1). The moving head functions similarly, with its elements representing the probability of a detection point being non- moving (0) or moving (1).

Until here, the output of the static head is sufficient for the task of ego-motion estimation. However, since one of the goals is to localize all static objects, the chosen feature extraction backbone has limited ability to capture local context, which is the price of a lightweight network. Consequently, some static objects may be misclassified as non-static and assigned lower weights in the static head, or misclassified as moving and assigned higher weights in the motion head. To address this issue, the proposed method employs two update heads: one for the static weight update and the other for the moving weight update. The initial prediction of the static weight is updated first, based on the fact that knowing the radar motion helps to localize all static objects. Therefore, in the static update head, initial static weights are used to first compute the radar motion via the weighted least squares (w-LSQ) method. Then the estimated radar motion is used to update the static weights

6

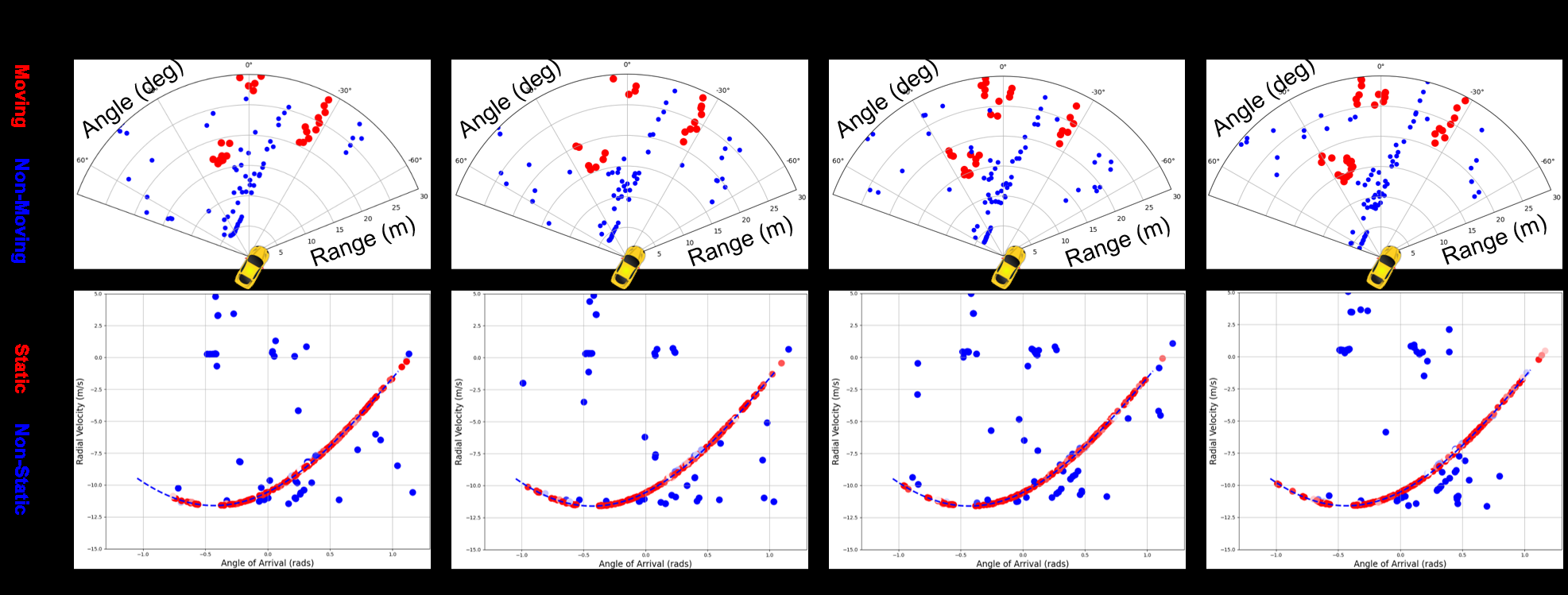

Fig. 3: An illustration of how moving and static objects appear in radar point clouds across multiple consecutive frames. The first row shows the polar profile, which presents the radar point cloud in the Range-AoA domain. The moving objects, marked in red, exhibit clear spatial concentration and temporal correlation in the polar profile. The second row shows the Doppler profile, which presents the radar point cloud in the radial velocity-AoA domain. The static objects, marked in red, exhibit distinct sine-like spatial pattern with little temporal variation. In this example, the RadarScenes dataset is used.

R

.

Sin(Α1)

.

(4)

Where vr is the measured radial velocity, α is the AoA measurement, σ is the standard deviation of the assumed Gaussian error distribution in the radial velocity measurement,

W Ini

static is the diagonal matrix which contains the predicted

Static Is The Vector Of Updated Static

weights, and Vradar is the estimated radar velocity on its x- and y-axes. As for updating the moving weights, the method uses the assumption that a detection point cannot have high weights in both the static head and the moving head, which means that an object cannot be stationary and moving at the same time. Therefore, the updated static weights are used to refine the initial moving weights, as shown below:

(5)

Where cstatic is the empirical parameter of the threshold. Lastly, Figure 4 presents a visual illustration of the update process of the static weights and the moving weights.

Finally, it is important to clarify that although a single 3- class prediction head (moving–static–false positives) is possi- ble, the problem exhibits a hierarchical structure, as shown pre- viously. In this hierarchy, the initial static prediction provides the basis for estimating radar motion, which in turn updates the initial static prediction and cross-checks subsequent moving predictions. Using two prediction heads allows the architecture to explicitly encode this structure, enabling the network to solve simpler binary classification tasks rather than implicitly learning the full set of relationships. Moreover, the two-head approach avoids the need to directly model false positives, which is inherently ill-defined and highly variable, thereby improving robustness and overall classification accuracy.

D. Output Processing

For the current radar input point cloud, the proposed method can simultaneously estimate the vehicle’s ego-motion and provide labels for static and moving objects. Given the radar extrinsic parameters and the estimated radar motion, the

Is The Vehicle’S Translational Speed, Ω Is Its

rotation rate, and the vehicle is assumed to have no lateral

= 0. X, Y, And Θ Are The Mounting Position

and angle of the radar sensor with respect to the rear center of the vehicle. The labels for static and moving objects can be obtained directly by applying thresholds to the updated static and moving weights respectively. In this study, both thresholds are set empirically to 0.1. As shown in the rightmost sub-figure of Figure 2, the static and moving labels can be merged together to achieve a clear separation of false positives.

Furthermore, since moving objects are explicitly separated, clustering algorithms such as the DBSCAN can be applied to them to achieve moving instance segmentation. However, the instance segmentation is just one illustrative example, and as discussed in Section II, many radar perception tasks can be connected to the output of the proposed method.

7

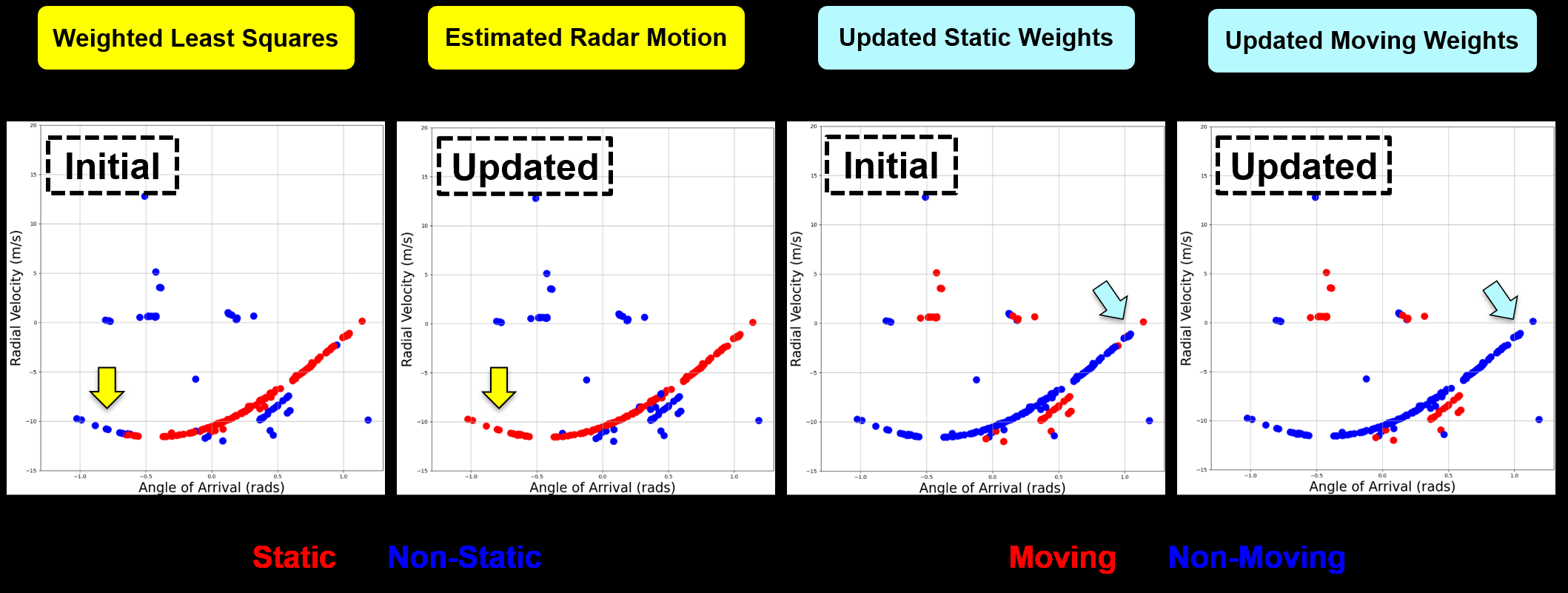

Fig. 4: An illustration of how the initial weights for static and moving objects are updated in the two weight update heads. The yellow blocks represent the static update head, and the cyan blocks represent the moving update head. In this example, the RadarScenes dataset is used, and the plots show the radar point cloud in the radial velocity-AoA domain.

E. Implementation Details

The proposed method is trained with one Nvidia A100 GPU provided by the Delft High Performance Computing Centre (DHPC) . The batch size is 64 and the maximum training epoch is 400, but training can be stopped when the training loss stops improving after more than 10 epochs. The Adam optimizer is used and the initial learning rate is 0.001. The learning rate is decreased by a factor of 0.5 when the training loss stops improving after more than 5 epochs. The tuning parameter σ is empirically set to 0.013. For the shared-MLP, it contains three 1D convolutional layers, each followed by a batch normalization layer and a ReLU layer for non-linearity.

In the second shared-MLP (the decoder), the second 1D convolutional layer is followed by an additional dropout layer with a dropout rate of 0.3, and the randomly generated dropout mask is identical for the feature vector of each detection point.

Finally, this study uses two cross-entropy losses to measure the difference between the predicted results and the true values of static labels and moving labels, respectively. Since the loss of ego-motion estimation is closely related to the loss of static prediction, errors in ego-motion are not backpropagated. To mitigate the influence of low-quality training examples, the final loss is the sum of the two cross-entropy losses multiplied by the sample weight (described in more details in ).

Iv. Results And Discussion

This section presents the evaluation results of the proposed method. Specifically, the used radar dataset and the generation of ground truth will be introduced first, followed by a compre- hensive performance study of the proposed method and related methods in the literature.

A. Radar Dataset

Following the practice in previous studies on ego-motion

Estimation , And Radar Segmentation , , This

study uses the RadarScenes dataset to evaluate the pro- posed method. RadarScenes is a challenging radar dataset collected from real-world traffic and driving. During data collection, four automotive radars were installed on the front of the vehicle, two of which faced forward (hereinafter referred to as ‘Radar 2’ and ‘Radar 3’), and the other two faced the side (hereinafter referred to as ‘Radar 1’ and ‘Radar 4’). After collection, the radar data is preprocessed to generate radar point clouds containing detection range, AoA, radial velocity, and radar cross section (RCS). In addition, moving objects are manually annotated by human experts and classified into 10 different object categories. The ego-motion information of the vehicle is recorded using the vehicle’s odometry sensors and a differential global positioning system (DGPS).

Although the RadarScenes dataset records accurate vehicle motion and provides manually labeled point clouds, due to the new task proposed in this study, four additional processing steps are required, in order to generate ground truth (GT) data for model training and evaluation. Firstly, radar detections of static objects and false positives are not individually labeled in the dataset. To distinguish them, the recorded vehicle motion is used to localize static detections from the radar point cloud. Specifically, similar to Eq. 2, the vehicle motion is first transformed to radar motion, and then the GT static labels can be calculated. For moving objects, the GT moving labels are generated based on the class labels provided by the dataset, where 0 represents non-moving (‘Class 11’) and 1 represents moving (‘Class 1 to 10’). If a detection is neither labeled as static nor moving, it is defined as one of the false positives.

Conversely, if a detection is labeled as both static and moving due to, for example, mislabeling in the GT, it is corrected to static but non-moving, as vehicle GT motion is more reliable and trustworthy than human annotations.

In the second processing step, the effect of vehicle ac- celeration on the measured radial velocity is resolved. As detailed in Section-IV-G (Fig. 9-(c)), due to vehicle non-

8

zero acceleration, the Doppler frequency and the associated phase shift will vary with slow time and the estimated radial velocity will not match the vehicle velocity. Therefore, the GT static labels generated solely based on vehicle motion may be inaccurate. As shown in , DeepEgo+ can mitigate this effect by using a two-step signal processing with NNs. The first step locates the static detection points, and the second step compensates for the effect of non-zero acceleration and estimates the vehicle ego-motion. Therefore, in this study, if the DeepEgo+ ego-motion estimation error is below a preset threshold, its output is used to help better localize static objects; otherwise, the vehicle’s GT motion is used.

Thirdly, the RadarScenes dataset contains 158 2-minute- long individual sequences from each of the four radars. In almost half of the sequences, the ego-vehicle is (or almost is) stationary and monitors moving objects. This is well-suited for tasks such as object detection and motion segmentation.

However, for the dual task of ego-motion estimation and static-moving object segmentation, a dataset containing an ego-vehicle in constant motion is desired for both training and evaluation. Therefore, this work uses a minimum driving distance of 500 meters for sequence selection, resulting in 63 radar sequences captured in challenging scenarios such as highways and city traffic. Nevertheless, these 63 radar sequences still contributed more than 2 hours of recording time, which is equivalent to a driving distance of more than 70 km. It is worth mentioning that the reduction in the number of sequences necessarily increases the difficulty of the task, because not only is it more difficult and meaningful to distinguish between static and moving objects when the vehicle is in constant motion rather than stationary, but also training neural networks on smaller datasets can lead to some well-known challenges such as overfitting and generalization problems.

The last processing step is to deal with short-lived la- beled moving objects. As shown in Table I, due to different installation angles, the number of moving objects observed by the four radars varies greatly. Radar 1 faces the side of the street and picks up minimal objects, while Radar 2 and Radar 3 face forward, cover both lanes, and pick up the most objects. In addition, since Radar 1 and Radar 4 face sideways, moving objects often appear at close range and enter and leave the radar field of view quickly, resulting in a very short lifespan. Moving objects with short lifespans contain little temporal features and may confuse model training and increase false alarm rates. Therefore, moving objects with a lifespan shorter than 5 radar frames (around 0.3 s) are labeled as non-moving for the sake of training. Also, the data from Radar 1 is not used for performance evaluation because there are only about 10 moving objects per sequence on average.

Finally, unless otherwise specified, the following experiments are all conducted using Radar 3 data, and the ‘leave-one- out’4 training, validation, and testing strategy is adopted so 4The test radar sequences are taken out, one by one, from the selected 63 radar sequences, and the remaining sequences are used for model training and validation following the 80%-20% rule. After all 63 sequences have been used once as the test sequence, the final performance of the tested method is measured and averaged.

the performance on ‘unseen’ data can be measured.

B. Evaluation Metrics

Due to the dual task of the proposed method, this study proposes a series of evaluation metrics to measure its per- formance in ego-motion estimation and static-moving object segmentation. For moving object segmentation, inspired by one downstream application of radar-based object tracking , the moving objects predicted by the proposed method and identified by the GT labels are first clustered into moving instances, respectively. The density-based spatial clustering of applications with noise method (DBSCAN) is used for clustering. Then, the grouped moving objects are converted into point target lists by finding the average position of all points in the same cluster. Afterwards, the cost matrix is cal- culated based on the L2 distance between the point objects in the GT list and the prediction list. Next, the Jonker–Volgenant algorithm is implemented to solve the data association problem. Based on its output, three numbers can be determined for a given radar frame: the number of correctly detected moving objects (TP), the number of false detections (FP), and the number of missed detections (FN). Finally, the TP, FP, and FN of all radar frames are summed separately, and the

Following Evaluation Metrics Can Be Calculated:

1) False Discovery Rate (FDR) shows the proportion of false detections among all detected moving instances. In other words, it reflects the frequency of false detections.

(7)

2) Missed Detection Rate (MDR) measures how often true moving instances are misclassified as non-moving. It is

(8)

3) F1 Score (F1) is the harmonic mean of Precision and Recall. Therefore, the F1 Score will be high only when both Precision and Recall are high. This property makes it well-suited for summarizing detection performance, especially in the case of class imbalance. It is defined

(9)

4) Intersection over Union (IoU) is a commonly used evaluation metric for computer vision tasks such as detection and segmentation. Traditionally, it is com- puted geometrically based on the overlap between the predicted region (for example, the bounding box) and the actual region. However, due to the characteristics of radar sensors, the shape of detected objects changes with distance and angle, and they have fewer geometric features due to low azimuth resolution. In addition, the actual area may also be erroneous and incomplete due to errors in the GT label. Therefore, in order to adapt
