Scientific Exploration of Challenging Planetary Analog

Environments With A Team Of Legged Robots

PHILIP ARM1,+,*, GABRIEL WAIBEL1,+, JAN PREISIG1, TURCAN TUNA1, RUYI ZHOU1,2, VALENTIN BICKEL3,4, GABRIELA LIGEZA5, TAKAHIRO MIKI1, FLORIAN KEHL6,7,8, HENDRIK KOLVENBACH1, AND MARCO HUTTER1 1Robotic Systems Lab, ETH Zurich, Zurich, Switzerland 2State Key Laboratory of Robotics and System, Harbin Institute of Technology, Harbin, China 3Laboratory of Hydraulics, Hydrology and Glaciology, ETH Zurich, Zurich, Switzerland +These authors contributed equally to this work.

Compiled July 20, 2023

The interest in exploring planetary bodies for scientific investigation and in-situ resource utilization is ever-rising. Yet, many sites of interest are inaccessible to state-of-the-art planetary exploration robots because of the robots’ inability to traverse steep slopes, unstructured terrain, and loose soil. Additionally, current single-robot approaches only allow a limited exploration speed and a single set of skills. Here, we present a team of legged robots with complementary skills for exploration missions in challenging planetary analog environments. We equipped the robots with an efficient locomotion controller, a mapping pipeline for online and post-mission visualization, instance segmentation to highlight scientific targets, and scientific instruments for remote and in-situ investigation.

Furthermore, we integrated a robotic arm on one of the robots to enable high-precision measurements. Legged robots can swiftly navigate representative terrains, such as granular slopes beyond 25 degrees, loose soil, and unstructured terrain, highlighting their advantages compared to wheeled rover systems. We successfully verified the approach in analog deployments at the BeyondGravity ExoMars rover testbed, in a quarry in Switzerland, and at the Space Resources Challenge in Luxembourg. Our results show that a team of legged robots with advanced locomotion, perception, and measurement skills, as well as task-level autonomy, can conduct successful, effective missions in a short time. Our approach enables the scientific exploration of planetary target sites that are currently out of human and robotic reach.

Introduction

Robotic planetary exploration is invaluable for advancing our under- standing of the solar system and enabling the prospection of potential resources. The recent commitment of national and commercial entities to return to the Moon - targeting a sustainable, long-term human pres- ence - boosted the development of robotic exploration technologies.

Many science-, exploration-, and resource extraction-relevant tar- gets across the lunar surface lie in hard-to-reach areas or areas with substantial potential to host unknown physical surface properties. Ex- amples include pyroclastic vents, volcanic rilles, caves, irregular mare patches, and fresh impact craters [1, 2]. Consequently, developing robotic exploration systems that can efficiently traverse challenging terrain without compromising their explorative, scientific, and resource prospection capabilities remains a top priority.

Notably, several lunar exploration efforts revolve around the Na- tional Aeronautics and Space Administration’s (NASA) Artemis pro- gram, which focuses on robotic and crewed science and exploration at the lunar south pole . One of the first Artemis program missions, the Volatiles Investigating Polar Exploration Rover (VIPER) , will venture into several permanently shadowed regions - cold, volatile-rich topographic depressions that have not been illuminated for millions of years . Ultimately, Artemis 3 will lead humans to the south pole in 2025 . All of those missions will need to navigate the challenging south-polar terrain, including steep slopes, impact ejecta and boulder fields, and potentially anomalous physical regolith properties [4, 9, 10].

One promising way to foster the development of lunar exploration and prospection technologies is challenge-driven innovation. The European Space Agency (ESA) and the European Space Resources

2

Innovation Centre (ESRIC) established the Space Resources Challenge (SRC) in 2021 to evaluate and advance the state of the art of robotic lu- nar prospecting technologies. The main technical goal of the challenge was prospecting a lunar analog environment for resource-enriched ar- eas (REAs), meaning areas that contain minerals suitable for In Situ Resource Utilization (ISRU), such as ilmenite, rutile, and titanium dioxide. The two rounds of the challenge took place in 2021 and 2022, with the final competition in a lunar analog terrain in Luxembourg. The competition involved adverse conditions found at the lunar south pole, including a previously unknown terrain, loose granular soil, high solar incidence angle illumination creating long, high-contrast shadows, and network communications with high latency 5.0 s round trip time (RTT)) and intermittent complete loss of signal. The SRC was an important inspiration in this work and was one of the two major field deployments of our robotic exploration team.

In this article, we propose a team of legged robots for quick, ef- ficient, and safe exploration and prospection of challenging plane- tary analog environments. The team approach allows us to cover a larger area, deploy a wider variety of scientific payloads, investigate more scientific targets, and gain more in-depth knowledge per target than possible with a single-robot approach or non-teamed multi-robot approaches. Additionally, the increased redundancy allows mission completion even if multiple robots fail. To control the robotic team, the operators send high-level navigation, remote measurement, and in-situ measurement tasks to the robots. The robots execute these tasks autonomously using their state-of-the-art mobility and navigation sys- tems, as well as a complementary and redundant set of payloads. The level of autonomy allows continued scientific data collection, even if communication becomes unreliable or during a complete loss of signal (LoS). Simultaneously, the scientists in the operations team can select and prioritize scientific targets during the mission.

Until now, most planetary exploration robots relied on wheeled locomotion. Their locomotion system did not fundamentally change since the first rover - Lunokhod 1 - touched down on the surface of the Moon in 1970 . Other prominent examples are the Lunar Roving Vehicle (LRV), Lunokhod 2, and Yutu 2 , or martian rovers such as the Sojourner Rover , Spirit, Opportunity , Curiosity , and Perseverance . Although these systems can build upon well-tested heritage technology and provide robustness in relatively flat terrain, wheeled rovers reach their limitations on steep slopes, on loose granular terrain, and in unstructured environments. On Mars, the Spirit rover was lost in anomalously loose soil and Opportunity got temporarily stuck in a dune . On the Moon, the Apollo 15 LRV was trapped in loose regolith and had to be manually retrieved by the astronauts . Similarly, Lunokhod 2 encountered excessive wheel sinkage (>20 cm) near Le Monnier crater . The Yutu-2 team reported that entering craters would be of great scientific interest.

However, they do not target craters because of the increased probability of locomotion failure . This locomotion limitation prevents current missions from investigating high-priority targets [1, 2, 21–23].

Meanwhile, terrestrial legged robots have reached a high level of robustness in exploring unknown environments. Their robust locomo- tion system allows them to traverse unstructured, challenging natural terrain, including mud, gravel, snow, vegetation, and sand [24, 25].

Several researchers have developed legged robots with the intent to use them in space in the past . Until now, we have focused on the usage of dynamically walking legged robots on steep, planetary soil analogs and low-gravity environments , showcasing the potential of the technology. However, for these robots to be useful in real-world scenarios, they need to be advanced beyond locomotion tasks. They have to interact with their environment in realistic analog missions, for example by deploying scientific instruments or taking samples. We advanced in this direction at the first field trial of the SRC, where we deployed a legged robot with base-mounted instruments .

Heterogeneous robotic teams have been used as a viable solution in terrestrial real-world missions. Notably, all top-ranking teams in the DARPA Subterranean Challenge 2021 used heterogeneous robotic teams with diverse skills . To succeed in the challenge, the teams developed robust solutions for locomotion, localization, multi- robot mapping, local planning, and exploration planning. In this work, we build upon these advances - specifically on the systems of our team CERBERUS - and address the unique challenges presented by analog space missions, including instrument deployment, efficient and robust locomotion with robotic arms, redundancy to component or system failures, and validation in realistic missions with high latency communication. Additionally, although the robotic teams in the Subter- ranean Challenge were diverse in their locomotion skills, we consider diversity in scientific investigation capabilities in this work.

Several robotic teams for planetary exploration have been devel- oped and tested in analog environments. For example, the German Aerospace Center (DLR) deployed a drone and two wheeled robots autonomously to set up a distributed radio telescope and perform ge- ological exploration on Mt. Etna . Although they showed a high level of autonomy, the wheeled rovers were limited in their locomotion capabilities. The German Research Centre for Artificial Intelligence (DFKI) developed a heterogeneous robotic team of a wheeled and a legged robot for sample collection in a lunar analog environment .

In , the authors demonstrate a teleoperated sample return mission using a robotic team in a martian analog environment. The operations team operated the robots via waypoints and tested capabilities such as sampling in isolated tests instead of the full mission deployment. More recently, NASA JPL built upon their NEBULA solution to explore ana- log martian caves with multiple Spot robots in the NASA BRAILLE project . One of the robots was equipped with a robotic arm to take close-up images and swab samples. However, the details of this work are not yet published. Lastly, the first heterogeneous robotic team for planetary exploration is currently operating on Mars: The Ingenuity helicopter supports the Mars 2020 mission by scouting potential tar- gets for the Perseverance rover and inspecting targets the rover cannot access . This actual Mars mission is a remarkable example of a heterogeneous robotic team for planetary exploration.

We present our teamed exploration approach with dynamically walking robots for planetary environments (Movie 1). We designed a team of legged robots with a diverse set of scientific investigation skills and redundancy measures and validated our system in three challenging analog environments: The ExoMars locomotion test facility, a quarry site, and the competition site of the SRC. We report our results and lessons learned from these deployments and identify opportunities for future developments.

To achieve effective analog mission deployments, we developed, improved and validated critical subsystems: We validated the baseline locomotion policy on planetary analog terrain and developed a locomotion policy with a focus on efficiency. Our policy includes arm observations, making it robust for legged robots with robotic arms for scientific investigation in challenging environments. Additionally, we built a two-pronged mapping approach for lightweight real-time online mapping and high-resolution, realistic post-mission visualization. Our instance segmentation pipeline highlights potential scientific targets to support online mission planning in previously unknown environ- ments. By distributing a balanced set of remote and close-up scientific instruments, we achieve effective and safe exploration missions.

We showcase the capabilities of our legged robots in martian and lunar analog environments, demonstrating that our technology can enable robots to investigate scientifically transformative targets on the Moon and Mars that are unreachable at present using wheeled rover systems.

3

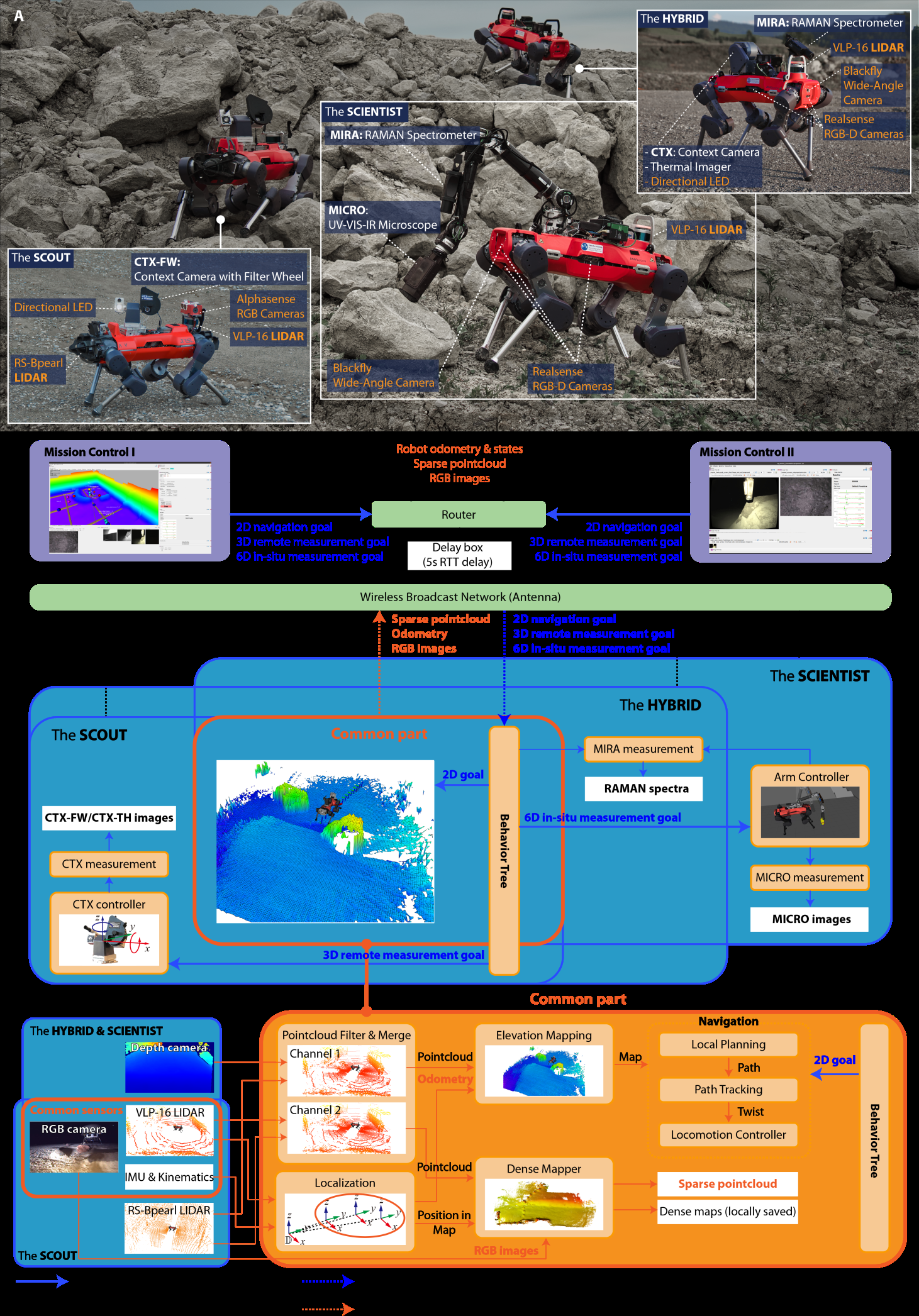

Fig. 1. System architecture of our team of legged robots. (A) Robotic and scientific payloads on the Scout, Scientist, and Hybrid. Robotic payloads and scientific payloads are labeled in orange and white, respectively. (B) High-level overview of the software architecture of our system. With a balanced combination of shared and specialized modules per robot, we designed a safe yet efficient multirobot system.

4

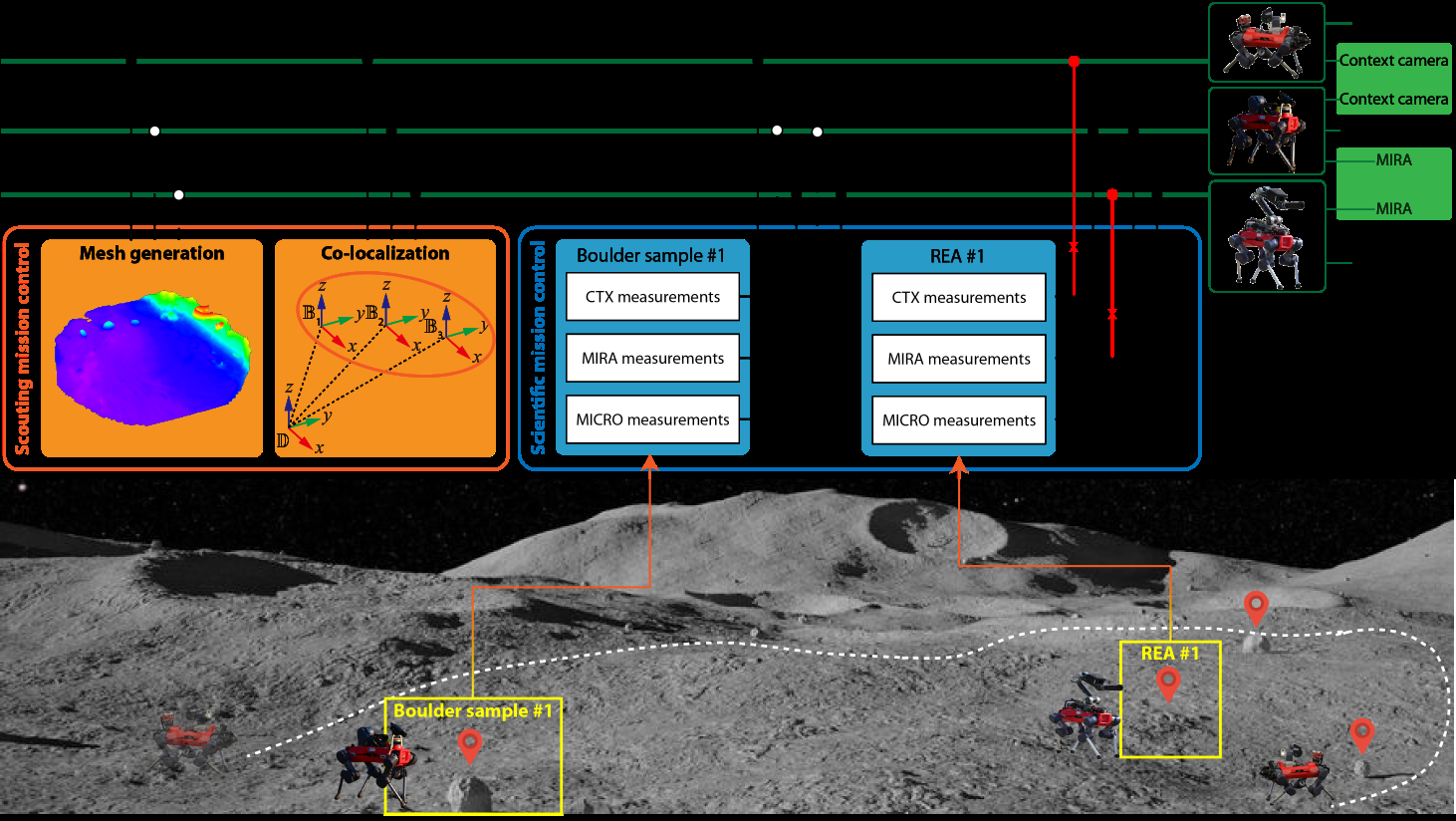

Fig. 2. Example of task allocations in our system. Task allocations are shown as solid lines. Alternative allocation paths are shown as dashed lines. When a task allocation becomes invalid, for example, because a payload or robot malfunctions (red lines), tasks can be reallocated accord- ing to our redundancy concept.

A Team Of Legged Robots For Planetary Exploration

The core of our system comprises a team of three four-legged robots. ANYmal serves as the base platform for all robots. Each of the three robots has a dedicated role and a unique set of payloads for exploration and scientific data collection. Fig. 1-A presents our team of legged robots: the Scout, the Hybrid, and the Scientist. The Scout’s primary task is rapidly exploring the environment using its additional LiDARs and RGB cameras. It provides the operations team, consisting of the robot operators and planetary scientists, with an overview of the previously unknown area and allows the team to identify potential scientific targets. Its secondary task is to capture images of potential scientific targets in various spectral bands using a pan-tilt context imager augmented with a custom-built filter wheel (CTX-FW) (Fig. S1).

The Hybrid’s main task is collecting scientific data of numerous targets using a pan-tilt context imager with an additional thermal camera (CTX-TH). Moreover, it is equipped with a base-mounted Metrohm Instant Raman Analyzer XTR DS (MIRA) with a zoom lens to acquire Raman spectra of targets of interest. The Scientist performs an in-depth scientific analysis of previously identified targets. It features a custom 6-degrees-of-freedom (DoF) robotic arm with a MIRA on the forearm and a custom microscopic imager (MICRO) on the wrist.

Fig. 1-B shows a system overview. Two operators on two mission control stations send high-level navigation, remote measurement, and in-situ measurement goals to the robots. "Remote measurement tasks" describe scientific tasks that the robot can conduct remotely using the CTX-FW and the CTX-TH payloads. "In-situ measurement tasks" describe close-up investigations, namely MIRA and MICRO measure- ments. All data packets between mission control and the robots are delayed with a round-trip-time (RTT) of 5.0 s to simulate lunar opera- tion. Navigation goals are handled by the same module on each robot.

3D remote measurement goals are only used by the CTX imagers on the Scout and the Hybrid. The 6D in-situ measurement targets are processed by the Hybrid and the Scientist. The robots send feedback about their state, navigation images, a sparse map representation, and scientific data of targets of interest to the mission control stations.

Although all robots have their designated role, they share many exploration capabilities and payloads, enabling a high redundancy level. If a robot fails, the operations team can reallocate tasks between the robots. Fig. 2 visualizes how tasks can be reallocated for examples of exploration and measurement tasks thanks to the payload redundancy concept. Table S1 summarizes which scientific measurement tasks can be executed under which failure conditions.

Experimental Setup On Analog Sites

We conducted end-to-end missions in two lunar analog environments and a locomotion validation test in a martian analog testbed. In both end-to-end analog missions, the operations team consisted of five peo- ple: A team of one robot operator and one planetary scientist each operated one of the two mission control stations. The robot operators sent tasks to the robots, and the planetary scientists selected and priori- tized targets based on the data received from the robots. Additionally, one supervisor overlooked the mission and ensured communication between the two control teams. Both mission control stations could be used to interact with any of the robots. However, the team ensured that each robot only received commands from one control team at any given time to prevent conflicting commands, where the newer com- mand would supersede the previous one. In the presented deployments, we used one mission control station to control the Scout and the Hybrid

5

and the second control station to control the Scientist.

Space Resources Challenge, Luxembourg

One field campaign occurred at the ESA/ESRIC Space Resources Challenge in Esch-sur-Alzette, Luxemburg (September 2022). The competition area measured 1800 m2, and the terrain was unknown before the challenge. The ground was covered in coarse, granular basalt with a substantial fine fraction (clay to silt). The light conditions closely resembled those at the lunar south pole because of a powerful illumination source at a high incidence angle in the corner of the area (Fig. 3-A). The analog scenario contained several locations of interest, such as resource-enriched areas, boulders, craters, and a lunar habitat prototype. The mission control room was separated from the competition area with a 5.0s RTT to communicate to all systems in the competition area. We summarize the most important objectives and rules of the SRC in Table S2.

Quarry Site, Switzerland

The quarry site is an active gravel quarry operated by KIBAG, situ- ated in Neuheim, Switzerland. The quarry consists of poorly sorted, fine and coarse sediments, including meter-sized boulders, leading to locomotion challenges such as sinkage and slippage, especially on steep inclines. The site includes a headwall with a maximum slope of about 20◦. We simulated realistic lighting conditions in a lunar south pole scenario. To this end, we conducted the test at night to minimize the influence of naturally occurring light and illuminated the test site with a 180 W LED lamp (Aputure LS 120D II) at a high illumination angle of roughly 87◦. As shown in Fig. 4-A, the illumination leads to characteristic long, high-contrast shadows as expected in the vicinity of the lunar south pole. Furthermore, all communication between mission control and the robots passed through a delay simulator, which created a round-trip-time of 5.0 s.

We selected distinct boulders on the site to simulate scientific targets of interest. Furthermore, we spread patches of basalt, ilmenite, rutile, and titanium dioxide in different mass fractions on the terrain to create realistic resource-enriched areas for a lunar prospecting mission.

Locomotion Validation Testbed, Beyond Gravity

We used the planetary soil testbed at Beyond Gravity (Fig. S2) to validate the Scout’s locomotion controller on steep, granular soil analogs. The testbed was initially designed to test the locomotion subsystem of the ExoMars rover Rosalind Franklin. It features a 6 m x 6 m tiltable container that can be filled with various analog soil simulants. We used ESA’s ES-4 martian soil simulant and a row of Jurassic limestone plates as martian bedrock analogs for our tests.

The testbed is tiltable up to 25◦at a 0.1◦resolution.

Analog Mission Results

This section provides an overview of our analog deployments: the end-to-end deployments at the SRC and in the quarry, as well as the locomotion validation tests.

Space Resources Challenge Mission Overview

During the SRC, the challenge’s core objectives provided by the or- ganizers were mapping the competition area, locating boulders and resource-enriched areas (REAs), and characterizing them. Based on that, we derived goals for the robotic system: These comprised of mapping the entire competition area, locating REA candidates and all boulders, and providing scientific data of the boulders and potential REAs to enable trained geologists to characterize them.

Fig.3-F shows the mission overview of the SRC deployment. We first deployed the Scout to map the area and use the navigation cameras and CTX-FW to help the operations team prioritize the targets of interest. After the first LoS, we decided that we had enough targets of interest to deploy the Scientist. The Scientist’s task was mainly to focus on potential REAs. After 76 min, we deployed the Hybrid to support the boulder characterization with the thermal imager and the

Mira.

We mapped 95% of the competition area, located seven out of eight boulders, and identified 18 potential REAs. We prioritized five boulders for closer investigation, taking CTX-FW images of all of them and MIRA measurements of three boulders. Additionally, we investigated six of the 18 potential REAs with MICRO and MIRA, taking several measurements per target when the data quality was insufficient.

The SRC deployment illustrates several advantages of the teamed exploration approach. Three robots operated simultaneously for 20 min, thanks to the two mission control stations that can be used inter- changeably to interact with all robots. During this time, the Scout was completing the map in yet unexplored areas, and the Hybrid and the Scientist were collecting scientific data to characterize the targets of interest. Our autonomy features and intuitive GUI further supported deploying three robots with two operator stations. Additionally, be- cause the environment was already known after the Scout deployment, the Scientist could deploy MICRO and MIRA every 3-5 min, which would be unfeasible with an approach where the same robot has to map and identify targets.

Quarry Mission Overview

To test all payloads on a number of targets with variability, we de- fined a minimum of five targets to investigate with each instrument. Furthermore, we intended to map a large area to test our localization and mapping systems on a relevant scale. We accordingly defined the following mission goals for the deployment at the quarry: Exploring and mapping an area of at least 1000 m2, and identifying at least five targets of interest, such as boulders or terrain patches. To test our instruments, we set the goal to acquire measurements of at least five targets with each instrument (CTX, filter wheel, thermal imager, MIRA, and MICRO).

Fig. 4-E shows the mission overview of the quarry deployment. We did not use the CTX-FW on the Scout and limited the use of the MIRA on the Scientist because the hardware malfunctioned. Thus, according to our redundancy concept, we deployed the Hybrid early to take over the CTX tasks of the Scout and the MIRA tasks of the Scientist. The Scientist deployed once the operations team had identified and priori- tized enough targets of interest to maximize the payload utilization on the Scientist.

In a total mission time of 68 min, we mapped an area of 1375 m2 and identified twelve targets of interest (ten boulders and two area patches). We collected 16 CTX and thermal images of seven rocks, MIRA spectra of six rocks, and MICRO images of three rocks and two area patches (two MICRO datasets of the same area patch). Using our two control stations, we could efficiently control the Hybrid and the Scientist in parallel during one-third of the mission. Thanks to the redundancy concept in our robotic team approach, we fulfilled all mission objectives except the acquisition of filter wheel images, despite the inactive payloads. A single-robot system or a system without a redundancy concept could not have achieved the objectives related to the CTX and the MIRA measurements under these circumstances.

Locomotion Results

In the validation test campaign at Beyond Gravity, the Scout could climb and descend slopes of up to 25◦- the maximum of the testbed - on ES-4 and bedrock using our existing locomotion control policy . On both grounds, we conducted three tests, both in ascent and descent, without a locomotion failure, which we define as either a fall or a failure to continue the traverse, for example due to slippage. Even on the maximum slope of the testbed, the robot reached a top speed

6

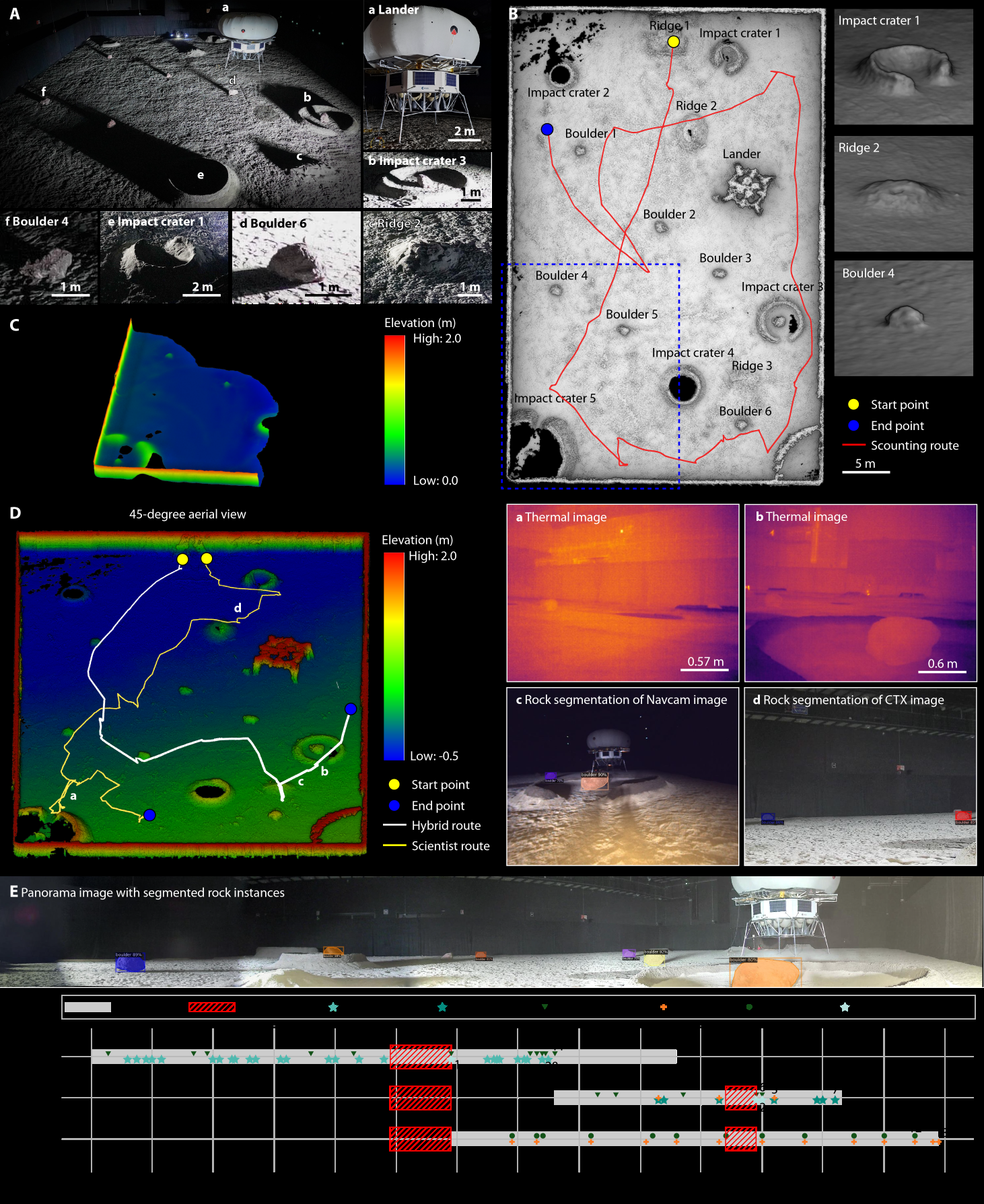

Fig. 3. Performance of our team of legged robots during the SRC. (A) Overview of the competition area. (B) Postprocessed high-resolution map of the exploration area and the associated path of the Scout. The region in the blue dotted box corresponds to (C). (C) Online mesh map of the Scout for target identification. (D) Postprocessed high-resolution height map and scientific acquisition paths of the Hybrid and the Scientist.

(a and b) Thermal images acquired during the SRC. (c) Example of the rock instance segmentation of a Navcam image. (d) Example of the rock instance segmentation of a CTX image. (E) Example of a panorama image with rock instance segmentation acquired during the SRC. (F) Mission summary of the SRC.

7

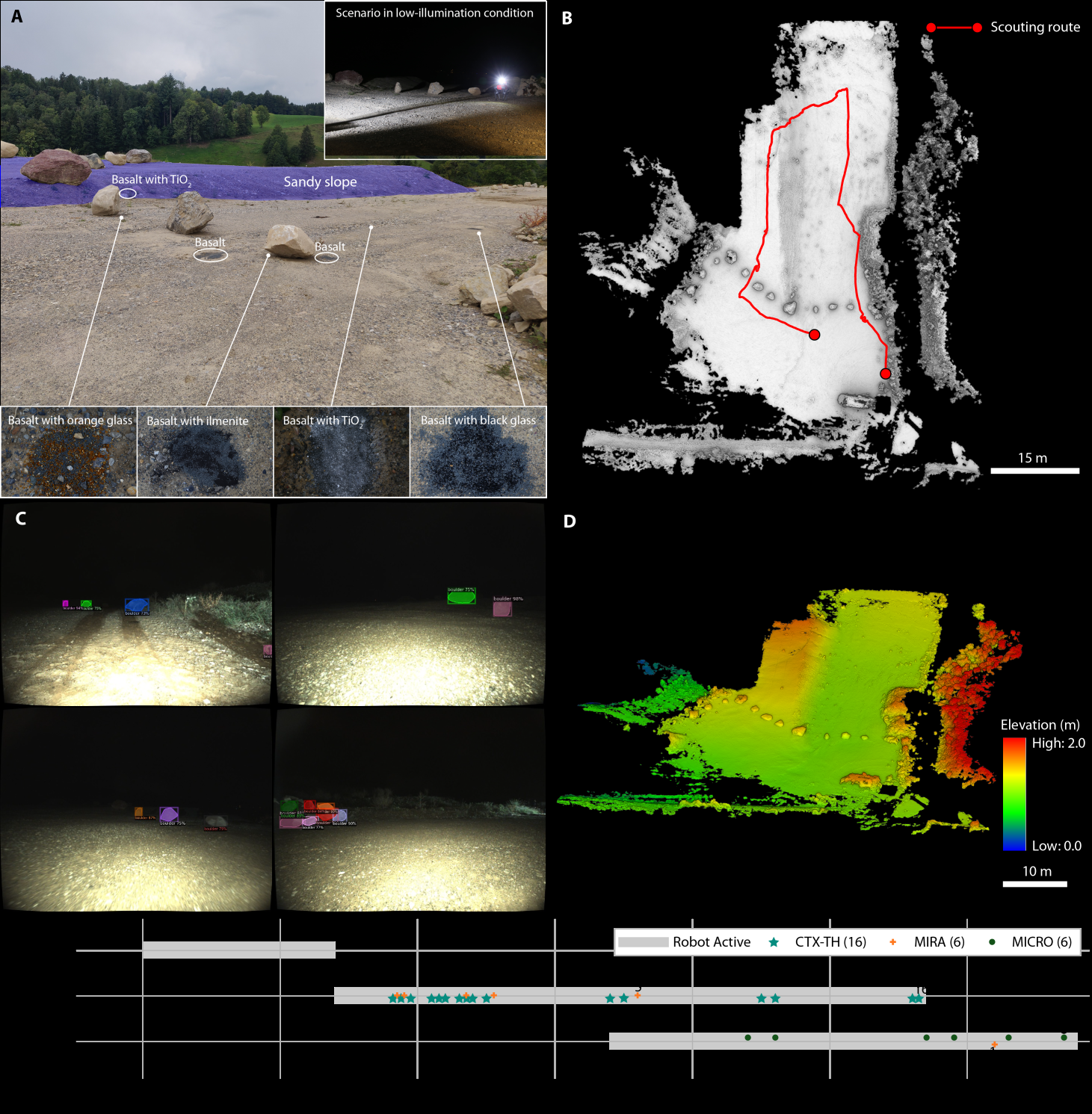

Fig. 4. Performance of our team of legged robots during the analog mission on the Neuheim quarry site. (A) Experimental test yard with a variety of scientific targets. (B) Postprocessed and shaded high-resolution map of the Neuheim quarry site with the path of the Scout. (C) Rock segmentation results under low-illumination conditions. (D) Postprocessed high-resolution elevation map of the Neuheim quarry test site. (E) Mission summary of the end-to-end analog deployments at the quarry. The Scout, the Hybrid, and the Scientist were all deployed sequentially with an overlap of the Hybrid and the Scientist. The whole mission duration was 68 min.

8

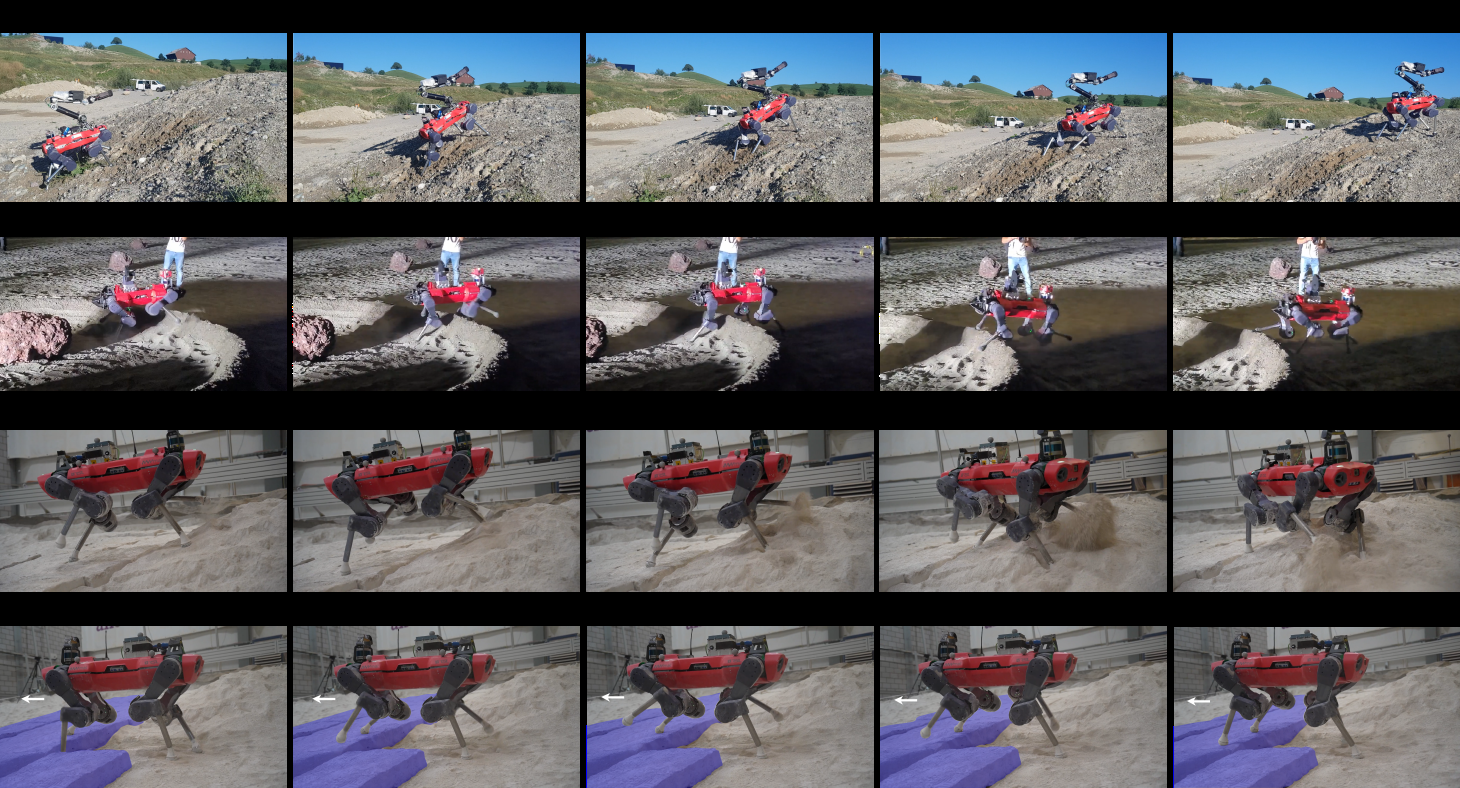

Fig. 5. Locomotion capability of our customized ANYmal over different challenging planetary analog terrains. (A) ANYmal climbs a steep sandy slope at around 20◦on the Neuheim quarry site. (B) ANYmal escapes from the analog lunar impact crater rim during the SRC. C) ANYmal escapes from deep foot sinkage in the locomotion validation test bed. D) ANYmal walks over a high bedrock step.

of 0.7 m/s, outperforming state-of-the-art systems that can climb such inclinations (Table S3). We conducted additional tests at a 10◦slope on ES-4 with steps of bedrock and very loose hills in all directions. The robot could negotiate the hills despite the high sinkage (Fig. 5-C) and seamlessly transition high steps between ES-4 and bedrock (Fig. 5-D).

Our developed controller for the Hybrid and Scientist enables simi- lar robustness as the existing baseline controller , but with added heavy payloads such as the robotic arm. The moving robotic arm did not impede the Scientist while walking on flat terrain (Fig. S3, Movie S1). Additionally, with a static arm, the robot consumed 15% less power in a mock mission on flat ground when using our controller compared to the baseline controller (see Supplementary Results).

During the mission deployments in the quarry and the SRC, the robots traversed steep granular slopes up to 20◦(Fig. 5-A), and a crater rim (Fig. 5-B). At the SRC, the robots covered a total distance of 358m of granular terrain (Fig. 3-B and Fig. 3-D). The Scientist, carrying the robotic arm, showed the same level of robustness as the Scout and the Hybrid. During all pre-tests and mission deployments, no single locomotion failure occurred on any of the robots.

Mapping And Target Identification

We used a lightweight mesh representation for online operations and a dense mapping framework for mission post-processing in both analog missions (Fig. 6). Furthermore, we ran an instance segmentation pipeline on our navigation cameras and CTX images to identify and highlight boulders as potential targets of interest for the operations team, substantially reducing the operational overhead. Fig. 3-C-E and Fig. 4-C-E show the mapping and perception results in the quarry and at the SRC, respectively.

The robot sent a downsampled point cloud in a nine-meter radius around the robot to mission control. The mission control PC generated the mesh and fused single mesh instances automatically to gradually build a mesh map of the covered area. Offloading the meshing operation to the mission control PC allowed us to transmit a small point cloud instead of a heavy map. Fig. 3-C shows a fraction of the mesh map of the SRC built with three mesh instances. Boulders 4 and 5 and impact craters 4 and 5 are distinguishable in the mesh. Together with the navigation cameras, the resolution of the mesh map allowed the operations team to identify and mark these targets of interest for further investigation. Therefore, the resolution was high enough to understand the robot’s environment, select targets on the mesh map, and make mission scheduling decisions while still allowing the map to be transferred over the network.

Fig. 3-D-c,d and Fig. 4-C show the instance segmentation output on the navigation cameras in the SRC and quarry missions, respec- tively. The images show that, even under difficult lighting conditions, the pipeline can identify and highlight boulders in the image, support- ing the operations team in the target identification. Additionally, we segmented selected panoramic images (Fig. 3-E).

Aside from the online mesh to guide operations, all robots main- tained a high-resolution point cloud map in both missions for post- mission visualization. Fig. 3-B shows the post-processed and shaded dense map of the complete SRC competition environment, with the path of the Scout overlaid. We explored 95% of the area with the Scout within 96 min, where most of the environment and the scientific targets were already identified after 50 min. Similarly, Fig. 4-B shows the dense map created during the quarry mission. Additionally, we colored the dense maps by elevation (Fig. 3-D and Fig. 4-D) to create a topographic overview of the environment. For example, the headwall in the quarry is visible in the top left part of the map. Furthermore, we created colored maps (Fig. S4 and Fig. S5) by projecting the navigation camera colors onto the point cloud.

9

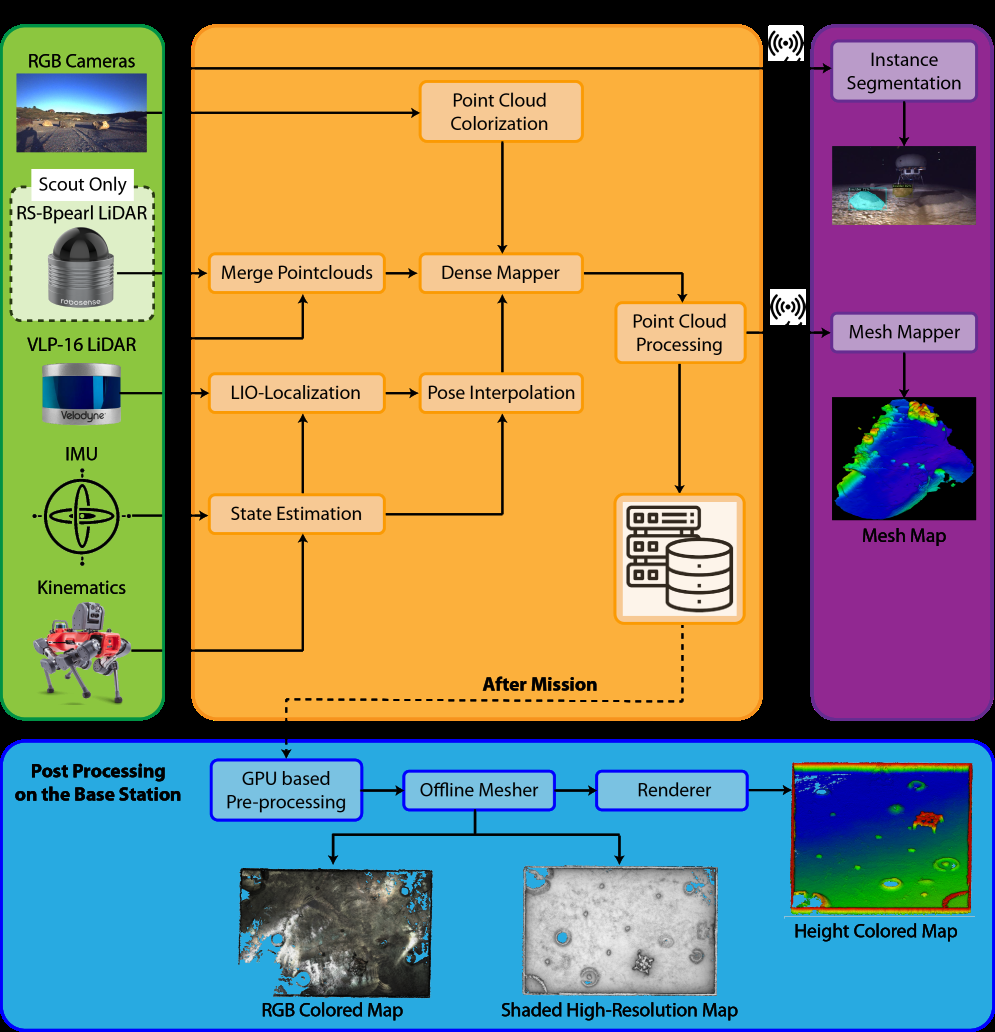

Fig. 6. Mission support mapping and localization modules. The blue area represents the postmission operations, whereas the other modules are active during the mission.

Scientific Data Of Targets Of Interest

Once the operations team identified and prioritized targets of interest, they could send remote measurement and in-situ measurement tasks to all robots (Fig. 7). Fig. 8 shows an example of the scientific data we could gather during the SRC. We acquired images in five visual spectral ranges at two zoom levels using CTX-FW (Fig. 8-A). The low-zoom image shows the target’s size, shape, and geomorphic context. The high-zoom image provides information on the target’s surface texture, including the presence of millimeter to centimeter-scale vesicles, the rock’s lithology, and the distribution of minerals. Both low-zoom and high-zoom images indicate that all boulders in the SRC were porous basalts with aphanitic (fine-grained) textures. The high-zoom images with the filter wheel enabled us to study the relative reflectance of each target and compute five-point spectra. We color-corrected selected RBG images with images from a robot-mounted color calibration card.

Fig. 8-B shows in-situ measurement results of a potentially resource- enriched area during the SRC. We collected microscopic images in six different spectral bands (white, red, green, blue, UV, IR), allowing us to compute the target’s five-point spectrum. The images show the coarse granular basalt regolith, which covered the whole competition area at the SRC. MICRO images enabled us to investigate the grain size distribution and presence of potential resources. The MIRA Raman spectrum of the basaltic regolith in Fig. 8-B shows, for example, a prominent peak at 952 cm−1.

Discussion

Using a team of legged robots with powerful locomotion capabilities, a mapping pipeline for online and offline visualization, and segmentation tools for target identification allowed us to collect a substantial amount of scientific data in planetary analog missions with limited mission time.

Compared to the single-robot approach we deployed at the first Space Resources Challenge field trial , we could drastically increase the quality and quantity of scientific data products. The specialization of our robots allowed a high payload utilization, as proven at the SRC, where the Scientist robot deployed the MIRA and MICRO instruments every 3-5 min. In a multi-robot approach without specialization, for example without a dedicated scout robot, every robot would invest a substantial part of the mission time in mapping and target identification, limiting the high-return instruments’ payload utilization.

The quarry deployment showed the importance of the redundancy concept. We could still fulfill six out of seven mission goals despite two malfunctioning payloads. Although we did not experience a robot failure in the deployments, our redundancy concept would allow us to still accomplish most mission goals.

Our payload selection features a balanced mix of remote and in- situ science, but it was subject to budget and time constraints. Other instruments, for example X-ray fluorescence spectrometers (XRF), as used by other teams at the SRC, performed better at identifying REAs. Further expanding our scientific instrument suite, for example, with an XRF or laser-induced breakdown spectrometer (LIBS), would increase the quality and diversity of the mission’s science outputs.

Additionally, adapting our system to allow sample return to a lander with more capable scientific instruments would be a valuable expansion to increase the mission’s scientific output.

One learning from our field deployments is that a round-trip-time of 5s in the communication between mission control and the robot notably affects operations. Standard, reliable protocols such as TCP are not suitable in this setting. When using UDP, we had to reduce the data size of products, such as point clouds and images, to decrease the probability of a single packet loss occurring within the transfer of a data product. Furthermore, every operator interaction costs valuable mission time. We tackled this issue by providing lightweight, expressive data to the operators, such as the mesh map, and employing task-level autonomy. Hence, every task execution only requires one operator interaction. However, a more in-depth analysis of suitable protocols and compression technologies could further alleviate this problem.

A key learning in our deployments was the importance of the human aspect: The robots could execute single tasks autonomously, but the human operators still had to prioritize and allocate tasks. This decision- making can be time-consuming and difficult, especially since the oper- ators must balance the time required for the decision-making process with the mission time. An algorithmic approach to decision-making and task allocation could improve the mission return. The algorithm could either aid the operations team or, ideally, be implemented in an autonomy module on the robots to allow longer-term or even full mission autonomy. However, besides semantic scene understanding, this requires automatic interpretation of scientific data products such as images and spectra, which is an open challenge. Furthermore, more robot-to-robot communication is needed to build collaborative maps, allocate tasks without mission control in the loop and allow for more involved interaction and collaboration between multiple robots.

A higher level of autonomy will additionally improve the system’s scalability to applications with even more challenging communication, such as Mars exploration. Moreover, it will allow scaling the approach to a higher number of robots without increasing the workload on the operations team. Required modules to increase the level of autonomy are a safe, multi-goal planner to visit identified targets, automatic target identification and prioritization as stated above, and automatic task allocation to the robots based on the robot-specific skillset.

In this work, we used legged robots with different scientific in- vestigation skills but almost identical locomotion skills. In future deployments, a more heterogeneous approach could be advantageous.

Drones would enable fast terrain mapping, and wheeled robots, with limited mobility but higher battery life, could investigate easy-to-reach targets while the legged robots focus on hard-to-access areas.

Lastly, a relevant research stream is the scalability of such proto- types from analog deployments to actual space missions . Chal- lenges specific to legged robots mainly concern the power concept and thermal management. Preliminary results show that these as- pects are feasible [45, 46]. However, there are currently no powerful space-graded processors to run the mapping, navigation, and loco- motion algorithms in real-time. Additionally, our localization and mapping pipelines heavily rely on LiDARs, which are currently not space-qualified. However, solid-state LiDARs could pave the way for LiDAR-based localization and mapping in space applications.

Although there remains substantial room for future research and several open challenges in scaling the presented system to actual space missions, this work is an important step towards teams of legged robots for planetary exploration that provide value in both scientific and commercial missions.

Hardware Description

All described robots in this report are based on ANYmal by ANYbotics. The Scout is an ANYmal C (2019), whereas the Hybrid and the Scien- tist are based on ANYmal D (2021). Additionally, the Scientist carries a DynaArm, a custom 6DoF robotic arm. ANYmal weighs 50 kg, has a payload capacity of 15 kg, and a nominal operation time of 90 min while continuously walking. We show an overview of the on-board computers in Table S4.

Robotic Payloads

In the factory configuration, the ANYmals are equipped with a VLP16 Puck LITE LiDAR by Velodyne for mapping and localization, four

11

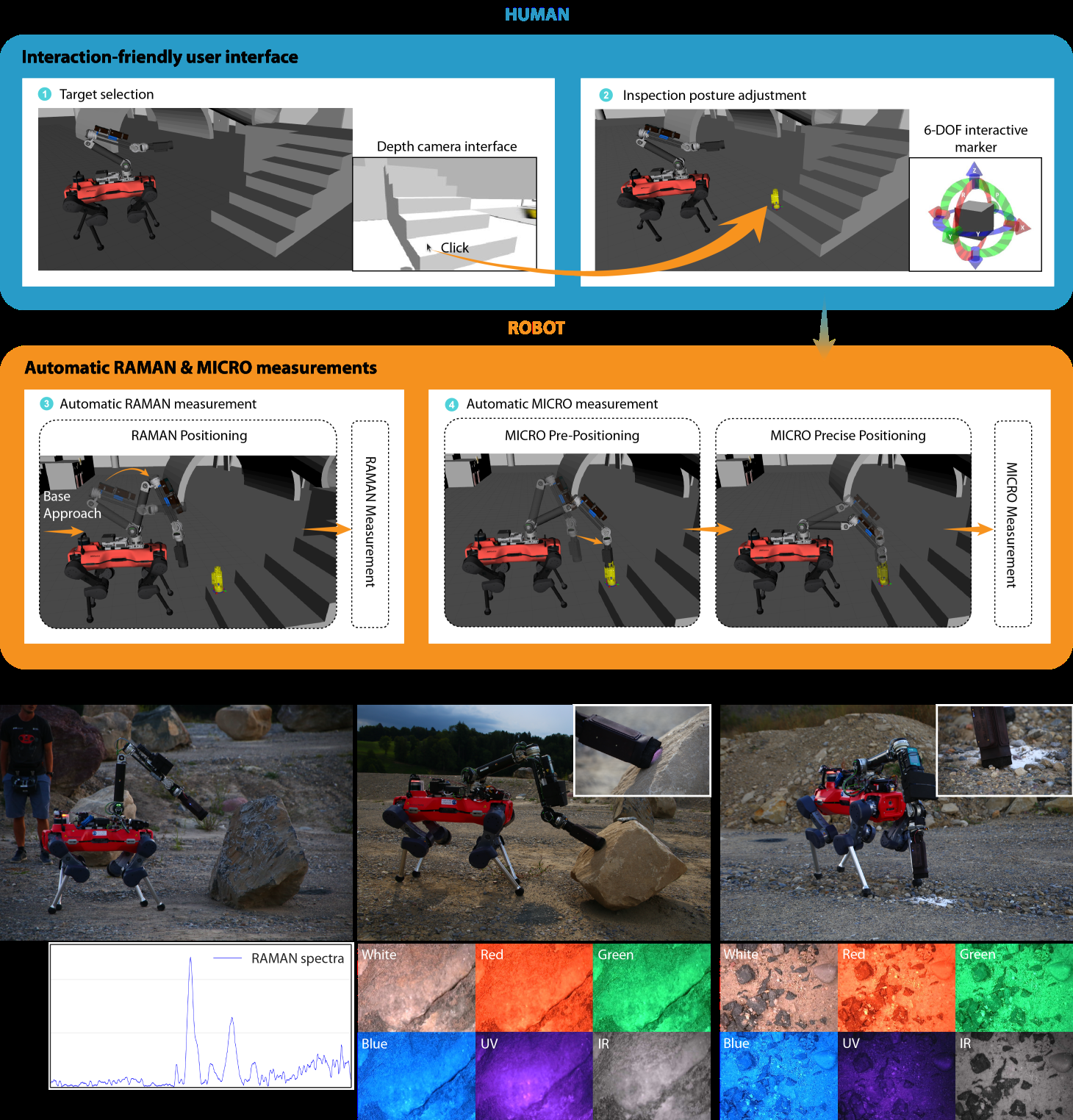

Fig. 7. In situ measurement task workflow. (A) The operator selects the desired target in the depth camera interface to define the instrument pose. The pose can be adjusted using a 6-DoF interactive marker. The robot receives the 6-DoF goal and uses it to deploy the scientific instru- ments at the desired location. (B) Boulder measurement using the MIRA Raman spectrometer and associated data products. (C) Boulder mea- surement using MICRO and associated data products. (D) Ground patch measurement using MICRO and associated data products.

12

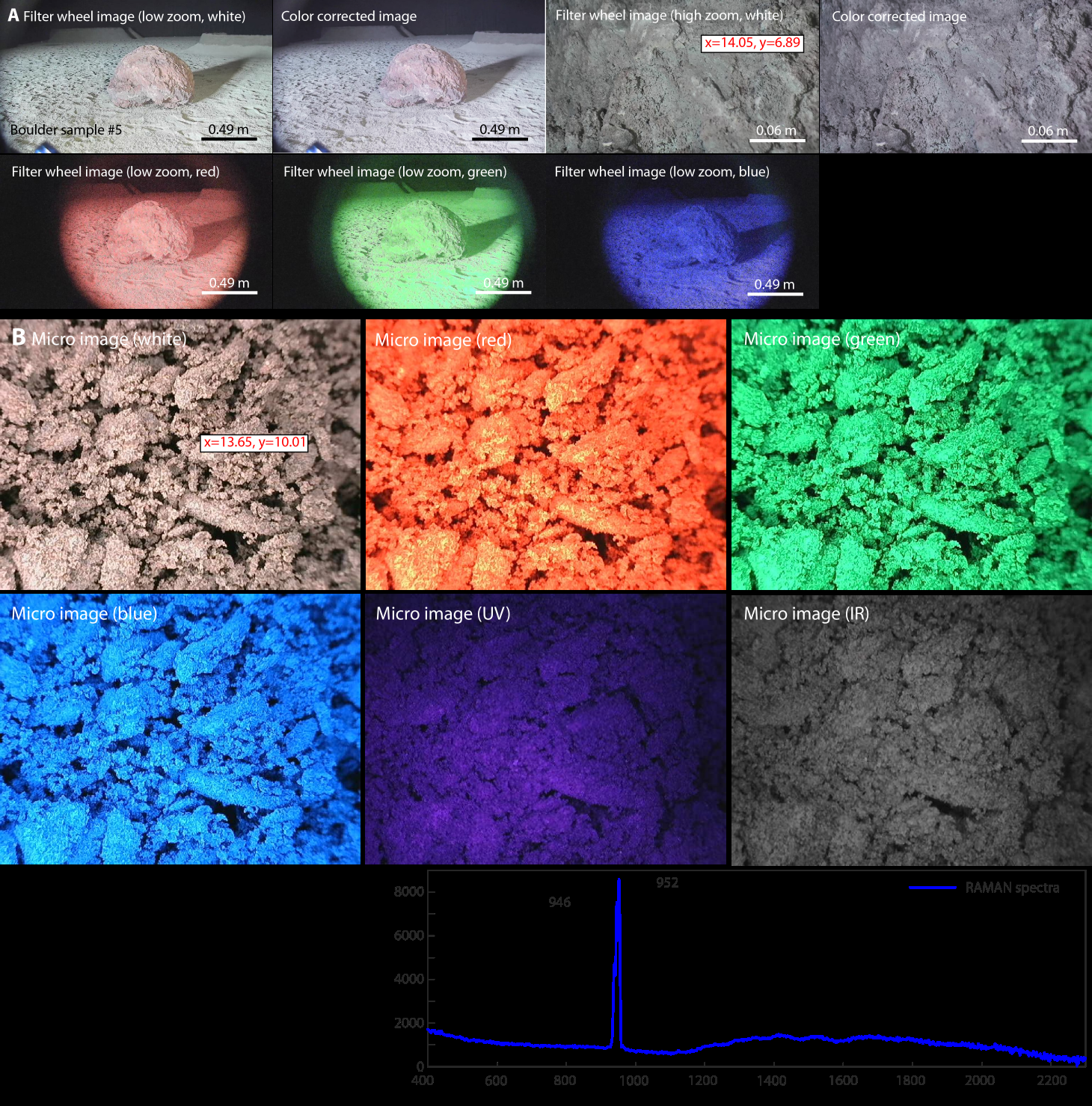

Fig. 8. Examples of scientific data products at the SRC. (A) Multispectral visual data acquired by the CTX-FW of boulder 5. The images show a vesicular basaltic boulder. (B) MICRO and Raman data products of a REA candidate. The images and spectra show the basaltic soil of the competition area. The relative reflectance has an arbitrary scale.

13

(ANYmal C) or six (ANYmal D) RealSense D435 active stereo sensors by Intel (front, left, right, rear) for elevation mapping (Sec. Elevation Mapping), and two FLIR Blackfly wide-angle cameras (front and rear) to provide RGB image streams. We customized all robots with two high-power, air-cooled LEDs at the front and rear to illuminate dark environments. Since the Scout is the desired mapping robot, we exchanged the four RealSense D435 with two Robosense RS-Bpearl LiDARs (front and rear) for more accurate elevation mapping (Sec.

Elevation Mapping) and dense point cloud mapping (Sec. Dense Point Cloud Mapping). Additionally, we added Sevensense’s Alphasense Core visual-inertial sensor as a high-performance navigation camera array on the Scout. It features three monochrome and four color cameras (front, left, right, and top). Each camera has 0.4 MP and a field of view of 126◦x 92.4◦(HxV). In addition, four high-power, air- cooled LEDs are encapsulated in the same housing. The Alphasense Core allows the operator to quickly gain a first overview in an unknown environment and enables RGB-colored mapping (Sec.

Science Payloads

The Scout carries an ANYbotics inspection payload, comprising a 10x optical zoom camera and a spotlight on a pan-tilt unit. We augmented the zoom camera with a spectral filter wheel. The filter wheel contains five narrow band-pass filters (390 nm, 470 nm, 530 nm, 620 nm, and 940 nm) and one position with no filter. In this configuration, we refer to the payload as CTX-FW. We selected CTX-FW to obtain high-resolution images of the targets and their surroundings as well as multi-spectral information since lunar minerals are known to exhibit distinct reflective features at different wavelengths. On the back of the robot, we mounted a color calibration target with 24 color squares to color-calibrate CTX images.

The Hybrid carries a newer ANYbotics inspection payload for the ANYmal D. It consists of a 20x optical zoom camera, a thermal camera, and a spotlight on a pan-tilt unit. We refer to this payload as CTX-TH. Aside from high-resolution images, CTX-TH enables the thermophysical analysis of targets. Rocks and regolith have different thermal signatures depending on their composition. Additionally, we equipped the Hybrid with a Metrohm Instant Raman Analyzer XTR DS (MIRA), a ruggedized, portable Raman spectrometer . MIRA is equipped with an auto-focus attachment that enables measurements of targets from a distance of up to two meters. The MIRA allows compositional analysis of the target’s mineralogy, which provides a more in-depth investigation than the CTX-FW and CTX-TH imaging techniques.

The Scientist uses the DynaArm to deploy the instruments for in-situ measurements. The DynaArm has a total weight of 10 kg, including the 2.3 kg of the scientific payloads. It has a reach of 0.9 m without any tools attached and a nominal payload capacity of 8 kg at half of the reach with a maximum tool speed of up to 13.5 m/s. The forearm of the DynaArm carries a MIRA. Additionally, we mounted our custom- built UV-VIS-NIR microscopic imager (MICRO) as the end-effector (Fig. S1-B). It contains a USB microscope (Dinolite AD4113T-I2V) mounted on a linear actuator mechanism, a ring of 48 RGB LEDs, a time-of-flight sensor, and control electronics. The front of the casing is equipped with a foam ring, which ensures that no stray light enters the case when MICRO is in contact with a target. The internal UV and NIR LEDs of the Dino-Lite microscope and the RGB LED ring allow for acquiring multi-spectral microscopic images in the entire spectral range from UV to NIR at 395 nm, 470 nm, 525 nm, 620 nm, and 940 nm. The time-of-flight sensor determines the distance between the microscope and the target. The distance feedback allows the micro- scope, in combination with the linear actuator and an autofocus routine, to acquire sharp images of the samples, independent of the precise placement of the instrument. Using MICRO’s multi-spectral images, trained geologists can perform petrographic assessments which are more detailed than the analyses based on CTX-FW.

Legged Locomotion In Planetary Environments

We use a reinforcement learning (RL) approach to design our locomo- tion policy because RL approaches have shown robust performance in challenging environments [24, 25, 48]. We base our work on the perceptive locomotion pipeline originally published in , which has already been successfully used in other field deployments such as the DARPA SubT challenge . In this pipeline, the control policy is trained in two stages: First, we train a teacher policy with all ground truth information. Then, we train a student policy to output the same action as the teacher from noisy and limited information.

We use the existing controller from on the Scout. On the Hy- brid and the Scientist, however, the scientific payloads and the robotic arm can lead to big disturbances for the controller, resulting in reduced robustness and inefficient motion. Therefore, we developed an updated locomotion policy with explicit payload measurements: We add pay- load mass randomization during the training and explicitly give the mass information to the teacher policy. Secondly, we add arm position and velocity observations to allow the policy to actively counteract the wrench on the base caused by the arm’s motion. Additionally, we increased the joint torque reward to further improve energy efficiency.

During training, we gave a random arm initial position and random arm target position and controlled each arm joint via PD control to simulate the arm movements. We present more detail on our locomotion setup in the Supplementary Methods.

Localization, Mapping, And Perception

In this section, we describe our localization and mapping system, designed to globally localize the robots and generate an accurate rep- resentation of the environment during the mission. Furthermore, we describe the instance segmentation algorithm that helps the operations team understand the environment.

Robust Lidar-Based Localization

We rely on LiDAR-based SLAM because of the long range and large field of view of LiDARs. A core challenge of LiDAR-based SLAM in planetary analog missions is LiDAR degeneracy. To cope with degen- erate environments, we use a modified version of CompSLAM , which has shown to perform well under degeneracy through numer- ous deployments . CompSLAM is a complementary multi-modal SLAM system based on the Iterative Closest Point algorithm .

CompSLAM can use visual, thermal, or inertial data as a robust prior of the LiDAR mapping module. In this work, we rely only on the inertial data as a prior. If the environment degenerates, CompSLAM identifies degenerate directions and directly uses the prior to integrate the point cloud scan into the map.

Dense Point Cloud Mapping

CompSLAM maintains only a sparse map to keep the SLAM optimiza- tion problem tractable. We therefore require a separate module for dense mapping to create a high-resolution environment representation.

To this end, we maintain an octree-based map with a voxel size of 30 mm on the robots. Firstly, we merge and filter the point clouds of all LiDAR sensors on the robot. After registering the point cloud into the dense map using the pose estimate of the SLAM system, we clip the map at a two-meter height to remove unnecessary data. Furthermore, we apply an outlier filter by removing points that do not have at least five neighbors within a 200 mm radius. Lastly, we apply a multi-robot crop filter to reject points that lie on the other robots. The mapping pipeline additionally

14

maintains a colorized map by projecting the RGB information from the navigation cameras onto a copy of the point cloud. After the mission, we fetch the high-resolution point cloud map from the robot, simulating long-term data transmission. First, a GPU- based pre-processor calculates the surface normals at each point using the nearest 40 points. Subsequently, we use a statistical noise filter and a radius filter to filter the map. The statistical noise filter considers the nearest 10 points and filters out-of-distribution points (standard deviation > 2σ). After the pre-processing, we reconstruct a triangle mesh with a tree depth of 12 using the Poisson surface reconstruction method included in the open3D library to generate the high- resolution, continuous mesh representation. This process takes up to five minutes on a computer with an Intel i9 12700K CPU depending on the terrain complexity. Later, the generated high-resolution mesh is visualized with an eye dome lighting shader .

Lightweight Mesh Representation

Since an unreliable, high-latency network cannot transport the dense map in real-time, we periodically send a downsampled version of the dense map (voxel size of 150 mm) in a 9 m radius around the robot to mission control. Before transmission, we compress the point cloud using the Draco point cloud compression library . The mission control PC uses this downsampled and compressed point cloud to create a lightweight mesh representation (Fig. S6). With downsampling and compression, we reduce the size of the point cloud that is transported over the high-latency network from 3 MB to 250 kB. Furthermore, the robot only sends the point cloud if it contains substantial new information, for example when the robot moves, or when the user requests a mesh of a certain area in the user interface. The meshing operation on the mission control PC is limited to a maximum of 0.25 Hz.

The mission control PC calculates a triangle mesh using the Poisson surface reconstruction method with a depth parameter of eight. We recalculate the surface normals of the mesh to correct the orientation and smoothness of the mesh surfaces. Additionally, we filter out vertices and triangles with less than ten support points. This mesh is then merged into the mesh map by fusing the non-overlapped vertices and triangles and averaging the overlapping areas.

Elevation Mapping

The elevation map is a local robot-centric 2.5D grid representation where each cell indicates the terrain height. We use it as a terrain representation with a high update rate for the local planning module (Sec. Autonomous Local Navigation). The elevation map is 8 m x 8 m with a resolution of 40 mm. We use an elevation mapping pipeline run- ning on a GPU to integrate the point cloud data into the elevation map in parallel, based on the robot’s odometry.

Instance Segmentation

We apply a boulder instance segmentation network to autonomously identify each boulder instance in the RGB images to contextualize the scientific data. We built our approach upon Mask R-CNN . The network predicts each boulder instance’s bounding box, outline, and confidence. We finetuned the original model on a custom-built dataset containing hundreds of images collected in the first field trial of the SRC with instance labels. In this custom-built dataset, ANYmal ac- quired the images in a dark analog lunar terrain, similare to the setting in the final challenge. We deployed our rock instance segmentation network on the mission control PC to segment navigation and CTX im- ages. Fig. S7 shows several prediction results, indicating the network’s robust performance under variable light conditions and different input cameras.

Scientific Payload Integration And Deployment

The operator can send 3D remote measurement targets to request images from CTX-FW or CTX-TH. For CTX-FW, the operator can additionally specify which spectral filters to use. The operator marks a target on the map or uses an already-marked target to send a remote measurement task. When requesting RGB images, the operator can select between a high and a low zoom level, with an image width of 0.3 m and 3 m in the focal plane, respectively. The robot sends the images to mission control, which automatically saves them by the target identifier. Additionally, the operator can request panoramic images. The robot then takes nine images at a fixed zoom level, which are stitched in post-processing.

The MIRA communicates to the onboard PC of the robot through a USB interface. It is fully integrated into the software stack through a custom ROS wrapper that provides a ROS action interface to trigger a measurement. The measurement procedure is then fully automated: the auto-focus attachment measures the distance to the target, focuses on this distance, and then the MIRA initiates a measurement. The MIRA matches the received spectroscopic response against the custom-built library of 355 different spectra of relevant lunar minerals (for example oxides, olivines, pyroxenes, and feldspars) (Table S5). The robot sends the spectroscopic response and the corresponding match to mission control for the operations team to evaluate.

The MICRO has a USB interface and communicates to the onboard PC of the robot through rosserial. As for the MIRA, its measurement sequence is fully automated. On a measurement request, the device focuses on the target automatically, records an image sequence at all available spectral bands (UV, R, G, B, NIR), and returns a complete measurement data package.

Payload Deployment With The Robotic Arm

To deploy the MIRA, the arm aligns the Raman laser with the target at the desired distance of 0.7 m. The deployment of MICRO happens in two stages: Firstly, the arm aligns the MICRO with the target pose at a predefined offset of 100 mm in the inverse heading direction of the target pose. In the second stage, a PID controller moves MICRO along the heading axis of the target pose to bring the front foam piece (Fig. S1) in contact with the target surface using the ToF distance measurement as feedback. The two-stage approach allows MICRO to accurately make contact with the target surface, even if the original 6D in-situ measurement target is not precisely on the surface. We provide information on the arm controller in the Supplementary Methods.

Autonomy

We use behavior trees (BT) to handle the autonomous task execu- tion on the robots. The modularity of BTs allows us to reuse modules across the different robots. The BT on the robot processes all operator interactions and starts, monitors, and stops the requested task. In this way, the operator sets high-level objectives while retaining the ability to stop or change the task easily. We show more details of our behavior trees in the Supplementary Methods.

Autonomous Local Navigation

The operators guide the robots via high-level navigation goals. We specifically avoided a fully autonomous approach because we preferred the operations team to select and prioritize scientific targets during the mission in unknown environments.

To allow the operator to safely operate the robots via waypoints, we use a sampling-based local planner that operates on the local elevation map. Unlike most state-of-the-art navigation planners, it does not assign traversability values to discrete terrain patches. Instead, the robot morphology is approximated by reachability volumes for the feet and a collision volume for the torso, which makes the planner more

15

suitable for legged robots. Using a PID controller, a path-tracking mod- ule converts the traversable path to twist commands for the locomotion controller.

Autonomous In-Situ Measurement Acquisition

Once the Scientist is close to a target, the operator can select the in- situ measurement point on the grey-scale infrared image stream of the Realsense camera. We use the grey-scale infrared image from the Realsense camera because it does not provide an RGB image stream and the infrared image provides good output in bad lighting conditions.

The user interface spawns a 6-DoF interactive marker, which can be adjusted if necessary. The operator can specify the exact measurement task, that is, a MIRA measurement, a MICRO measurement, or both.

Once the robot receives the measurement task, it approaches the target and aligns the base at a predefined offset of 1 m to the target. Then, the robot deploys the instruments and triggers a measurement automatically. Depending on the task definition, the robot takes a MIRA measurement, a MICRO measurement, or both. If an error occurs during the measurement process, the arm will move back to the default position, and the robot will notify the operator.

Loss Of Signal Operation

If a LoS occurs, the robots finish their currently allocated task and then switch to a dedicated LoS behavior. The Scout and the Hybrid perform an autonomous measurement routine. First, they record a panoramic image of their environment. Second, they image their own footprints, which provide information about soil mechanics. Third, the robots acquire images of each other and the Scientist to assess the status of the hardware. Fourth, the Scout takes an image of the color calibration card. This image is used in post-processing to perform color correction. The robots send the acquired data to mission control once communication is restored. The Scientist remains in a nominal standing configuration since the system currently does not autonomously detect new measurement targets.

Resilient Communication For High-Latency Networks

Resilient communication in high-latency networks is crucial to ensure data transmission between mission control and the robots. We use commercial off-the-shelf radio devices by Rajant to create a re- liable mesh network. The mesh setup includes the base station and the robots, each acting as a mesh node. The robots are equipped with a BreadCrumb DX2 and the base station consists of a BreadCrumb ES1 with a panel antenna. All radios operate at 5.8 GHz. The base station and the mission control PCs are connected by wire via a delay simulator that ensures a 5.0 s RTT delay.

We use the Robot Operating System (ROS1) on all robots and mission control stations to manage onboard communications. Each robot and mission control station had a separate rosmaster. However, ROS1 is not designed to communicate over high latency networks, as a TCP handshake is required to establish a connection, even if the data is transmitted over UDP. Therefore, we use Nimbro Network to estab- lish communication between different rosmasters [62, 63]. Nimbro Network was specifically designed to work in unreliable high-latency networks and used in the SpaceBot cup, a robot competition for lunar exploration .

Using the predominant Internet protocol TCP is problematic be- cause of the RTT delay and high bandwidth. Consequently, we transmit all data via UDP. UDP does not provide congestion control, and there is no guarantee that data will arrive. Therefore, mission control and the robots only exchange essential data. We show the network usage of mission control 1 at the SRC in Fig. S8. The robot-to-robot com- munication, however, runs on TCP because the delay is in the low millisecond range.

Acknowledgments: We would like to thank the implementation (HSLU), ANYbotics AG, and the maxon SpaceLab. A special thanks to Samuel Tenisch, Alex Brandes, Gerhard Székely, and Nico Steinert for developing the filter wheel, Fabio Mast, Lars Horvath, Hugo Um- bers, and Marco Trentini for supporting the MICRO development, and Daria Larcher and Julian Bernasconi for supporting the scientific data analysis. We would like to thank Metrohm Schweiz AG for providing the Raman spectrometer. We acknowledge the ETH Earth Sciences rock and mineral samples for our experiments. We thank KIBAG Kies Neuheim AG for making the quarry available. This work has been conducted as part of ANYmal Research, a community to advance legged robotics. Funding: This research was supported by the Swiss National Science Foundation (SNF) through the National Centre of Competence in Research Robotics (NCCR Robotics), through the Na- tional Centre of Competence in Digital Fabrication (NCCR dfab), and received funding from the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation programme grant agreements No 852044 and No 101016970. This project has and 4000135310/21/NL/PA/pt. Author contributions All authors con- tributed to the system design and wrote the paper. PA, GW, JP, TT, RZ, VB, GL, FK and HK participated in the field deployments and evaluated the respective data. PA, GW, JP and TM conducted the additional locomotion tests. TT and RZ developed the mapping and perception pipelines. JP developed the arm controller. TM developed the locomotion controller. VB, GL and FK selected and designed the scientific payloads and evaluated the respective data. Competing inter- ests: The authors declare no competing interest. Data and materials availability: All data needed to evaluate the conclusions in the paper are present in the paper or the Supplementary Material. Other material
