Rich Screen Reader Experiences for Accessible Data Visualization

Abstract

Current web accessibility guidelines ask visualization designers to support screen readers via basic non-visual alternatives like textual descriptions and access to raw data tables. But charts do more than summarize data or reproduce tables; they afford interactive data exploration at varying levels of granularity — from fine-grained datum-by-datum reading to skimming and surfacing high-level trends. In response to the lack of comparable non-visual affordances, we present a set of rich screen reader experiences for accessible data visualization and exploration. Through an iterative co-design process, we identify three key design dimensions for expressive screen reader accessibility: structure, or how chart entities should be organized for a screen reader to traverse; navigation, or the structural, spatial, and targeted operations a user might perform to step through the structure; and, description, or the semantic content, composition, and verbosity of the screen reader’s narration. We op- erationalize these dimensions to prototype screen-reader-accessible visualizations that cover a diverse range of chart types and combinations of our design dimensions. We evaluate a subset of these prototypes in a mixed-methods study with 13 blind and low vision readers. Our findings demonstrate that these designs help users conceptualize data spatially, selectively attend to data of interest at different levels of granularity, and experience control and agency over their data analysis process. An accessible HTML version of this paper is available at: http://vis.csail.mit.edu/pubs/rich-screen-reader-vis-experiences.

Ccs Concepts

• Human-centered computing →Visualization design and evaluation methods; Accessibility design and evaluation methods;

1. Introduction

Despite decades of visualization research and recent legal require- ments to make web-based content accessible [W3C18b; Hig19], web-based visualizations remain largely inaccessible to people with visual disabilities. Charts on mainstream publications are of- ten completely invisible to screen readers (an assistive technology that transforms text and visual media into speech) or are rendered as incomprehensible strings of “graphic graphic graphic” [SCWR21; Sar20]. Current accessibility guidelines ask visualization designers to provide textual descriptions of their graphics via alt text (short for alternative text) and link to underlying data tables [GOF08; W3C19]. However, these recommendations do not provide modes of information-seeking comparable to what sighted readers enjoy with interactive visualizations. For instance, well-written alt text can provide a high-level takeaway of what the visualization shows, but it does not allow readers to drill down into the data to explore specific sections. While tables provide readers with the ability to hone in on specific data points, reading data line-by-line quickly becomes tedious and makes it difficult to identify overall trends.

Developing rich non-visual screen reader experiences for data visualizations poses several unique challenges. Although visuomo- tor interactions (like hovering, pointing, clicking, and dragging) have been core to visualization research [DP20], screen readers redefine what interaction is for visualization. Rather than primar- ily manipulating aspects of the visualization or its backing data

∗Equal Contribution

pipeline [YKSJ07; HS12; DP20], screen readers make reading a visualization an interactive operation as well — users must inten- tionally perform actions with their input devices in order to cognize visualized elements. Moreover, as screen readers narrate elements one-at-a-time, they explicitly linearize reading a visualization. As a result, in contrast to sighted readers who can choose to selectively attend to specific elements and have access to the entire visual- ization during the reading process, screen reader users are limited to the linear steps made available by the visualization author and must remember (or note down) prior output conveyed by the screen reader. Despite these modality differences, studies have found that screen reader users share the same information-seeking goals as sighted readers: an initial holistic overview followed by comparing data points [SCWR21], akin to the information-seeking mantra of “overview first, zoom and filter, and details on demand” [Shn03].

In this paper, we begin to bridge this divide by conducting an iterative co-design process (co-author Hajas is a blind researcher with relevant experience) prototyping rich and usable screen reader experiences for web-based visualizations. We identify three design dimensions for enabling an expressive space of experiences: struc- ture, or how the different elements of a chart should be organized for a screen reader to traverse; navigation, which describes the op- erations a user may perform to move through this structure; and, description, which specifies the semantic content, composition, and verbosity of text conveyed at each step. We demonstrate how to operationalize these design dimensions through diverse accessible reading experiences across a variety of chart types.

© 2022 The Author(S)

Computer Graphics Forum © 2022 The Eurographics Association and John Wiley & Sons Ltd. Published by John Wiley & Sons Ltd.

Arxiv:2205.04917V1 [Cs.Hc] 10 May 2022

J. Zong, C. Lee, & A. Lundgard et al. / Rich Screen Reader Experiences for Accessible Data Visualization To evaluate our contribution, we conduct an exploratory mixed- methods study with a subset of our prototypes and 13 blind or low vision screen reader users. We identify specific features that make visualizations more useful for screen reader users (e.g., hier- archical and segmented approaches to presenting data, cursors and roadmaps for spatial navigation) and identify behavior patterns that screen reader users follow as they read a visualization (e.g., con- stant hypothesis testing and validating their mental models).

2. Background And Related Work

Screen Reader Assistive Technology. A screen reader is an assis- tive technology that conveys digital text or images as synthesized speech or braille output. Screen readers are available as standalone third-party software or can be built-in features of desktop and mo- bile operating systems. A screen reader allows a user to navigate content linearly with input methods native to a given platform (e.g., touch on smartphones, mouse/keyboard input on desktop). Content authors must generate and attach alt text to their visual content like images or charts in order for them to be accessible to screen reader users. Functionality and user experience differs across platforms and screen readers. In this paper, however, we focus on interacting with web-based visualizations with the most widely used desktop screen readers (JAWS/NVDA for Windows, VoiceOver for Mac).

Web Accessibility Standards. In 2014, the World Wide Web Consortium (W3C) adopted the Web Accessibility Initiative’s Ac- cessible Rich Internet Applications protocol (WAI-ARIA) which introduced a range of semantically-meaningful HTML attributes to allow screen readers to better parse HTML elements [MDN21].

In particular, these attributes allow a screen reader to convey the state of dynamic widgets (e.g., autocomplete is available for text entry), alert users to live content updates, and identify common sec- tions of a web page for rapid navigation (e.g., banners or the main content). In 2018, the W3C published the WAI-ARIA Graphics Module [W3C18a] with additional attributes to support marking up structured graphics such as charts, maps, and diagrams. These at- tributes allow designers to annotate individual and groups of graph- ical elements as well as surface data values and labels for a screen reader to read aloud.

Accessible Visualization Design. In a recent survey, Kim et al. [KJRK21] describe the rich body of work that has explored multi-sensory approaches to visualization for multiple disabili- ties [YRB01; HMM*11; KWT99; BK99; WPA*21; LLS19]. Here, we focus on screen reader output native to web-based interfaces for blind users (namely via speech). Sharif et al. [SCWR21] find that many web-based charts are intentionally designed to cause screen readers to skip over them. For charts that a screen reader does de- tect, blind or low vision users nevertheless experience significant difficulties: these users spend 211% more time interacting with the charts and are 61% less accurate in extracting information com- pared to non-screen-reader users [SCWR21]. Despite the availabil- ity of ARIA, alt text and data tables remain the most commonly used and recommended methods for making web-based charts ac- cessible to screen readers [GOF08; W3C19; CJP*19]. However, each of these three approaches comes with its own limitations.

Static alt text requires blind readers to accept the author’s inter- pretation of the data; by not affording exploratory and interactive modes, alt text robs readers of the necessary time and space to in- terpret the numbers for themselves [LS21]. Recent research also suggests that blind people have nuanced preferences for the kinds of visual semantic content conveyed via text [PGFM21; LS21], and desire more interactive and exploratory representations of pictorial images [MJBC18]. Data tables, on the other hand, undo the ben- efits of abstraction that visualizations enable — they force readers to step sequentially through data values making it difficult to iden- tify larger-scale patterns or trends, and do not leverage the structure inherent to web-based grammars of graphics [BOH11; SMWH17].

Finally, ARIA labels are not a panacea; even when they are used judiciously — a non-trivial task which often results in careless de- signs that cause screen readers to simply read out long sequences of numbers without any other identifiable information [Sar20] — they present a fairly low expressive ceiling. The current ARIA specifica- tion does not afford rich and nuanced information-seeking oppor- tunities equivalent to those available to sighted readers.

There has been some promising progress for improving sup- port for accessibility within visualization toolkits, and vice-versa for improving native support for charts in screen reader technolo- gies. For instance, Vega-Lite [SMWH17] and Highcharts [Hig21] are beginning to provide ARIA support out-of-the-box. Apple’s VoiceOver Data Comprehension feature [DE19] affords more gran- ular screen reader navigation within the chart, beyond textual sum- maries and data tables, via four categories of selectable interactions for charts appearing in Apple’s Stocks or Health apps. These inter- actions include Describe Chart, which describes properties of the chart’s construction, such as its encodings, axis labels, and ranges; Summarize Numerical Data, which reports min and max data val- ues, and summary statistics like mean and standard deviation; De- scribe Data Series, which reports the rate-of-change/growth of a curve, trends, and outliers; and Play Audiograph, which plays a tonal representation of the graph’s ascending/descending trend over time [DE19]. While Apple’s features are presently limited to single-line charts, SAS’ Graphics Accelerator [Acc18] supports a similar featureset (including sonification, textual descriptions, and data tables) but for a broader range of statistical charts including bar charts, box plots, contour plots, and scatter plot matrices. Our work follows in the spirit of these tools but focuses on web-based visu- alizations rather than standalone- or platform-integrated software.

We go beyond what ARIA supports today to enable high-level and fine-grained screen reader interactions, and hope that our work will help inform ongoing discussions on improving web accessibility standards (e.g., via an Accessibility Object Model [BCMS22]).

3. Design Dimensions for Rich Screen Reader Experiences Currently, the most common ways of making a visualization ac- cessible to screen readers include adding a single high-level textual description (via alt text), providing access to low-level data via a table, or tagging visualization elements with ARIA labels to allow screen readers to step through them linearly (e.g., as with High- charts [Hig21]). While promising, these approaches do not afford rich information-seeking behaviors akin to what sighted readers en- joy with interactive visualizations. To support systematic thinking about accessible visualization design, we introduce three design di- mensions that support rich, accessible reading experiences: struc-

© 2022 The Author(S)

Computer Graphics Forum © 2022 The Eurographics Association and John Wiley & Sons Ltd. J. Zong, C. Lee, & A. Lundgard et al. / Rich Screen Reader Experiences for Accessible Data Visualization ture, or how elements of the visualization should be organized for a screen reader to traverse; navigation, or the mechanisms by which a screen reader user can move from one element to another; and description, or what semantic content the screen reader conveys.

Methods. We began by studying the development of multi- sensory graphical systems, covering work in critical cartogra- phy [WG69; Koc12], blind education [AS01; GL15], tactile graph- ics [FFTI18; HMM*11; dGMB21; AC97; BHR*21], and multi- sensory visualization [MTS19; CPR*21; BTOJ10; BMD*16].

Drawing on conventions and literature on crip, reflective, and par- ticipatory design [Ham13; SBDK05; Cos20], all authors began an iterative co-design process with Hajas, who is a blind researcher with relevant expertise. Hajas is a screen reader user with a PhD in HCI and accessible science communication, but he is not an ex- pert in visualization research. Co-design — particularly as encapsu- lated in the disability activism slogan, “Nothing about us, without us” [Cos20] — is important because it can eliminate prototypes that replicate existing tools, solve imaginary problems (i.e., by creat- ing disability dongles [Jac19]) or unintentionally produce harmful technology [She20]. To balance engaging disabled users while ac- knowledging academia’s traditionally extractive relationship with marginalized populations [CJ95], we intentionally acknowledge Hajas as both co-designer and co-author. We believe that the dis- tinction between co-designer — a phrase that often discounts lived experience as insufficiently academic — and researcher is minimal; technical, qualitative, and experiential expertise are all important components of this research. Hajas’ profile is a perfect example of the intersection between lived experience of existing challenges and solutions, academic experience of research procedures, and an interest in the science of visualization. While he does not represent all screen reader users, his academic expertise and lived experience uniquely qualify him to be both researcher and co-designer. Never- theless, to incorporate a diverse range of perspectives, we recruited additional participants as part of an evaluative study (§ 5).

Our work unfolded over 6 months and yielded 15 prototypes. All authors met weekly for hour-long video conferences. In each ses- sion, we would discuss the structure and affordances of the proto- types, often by observing and recording Hajas’ screen as he worked through them. We would also use these meetings to reflect on how the prototypes have evolved, compare their similarities and differ- ences, and whiteboard potential design dimensions to capture these insights. Following these meetings, Hajas wrote memos detailing the motivations for each prototype, tagging its most salient features, summarizing the types of interactions that were available, enumer- ating questions that the prototype raises, and finally providing high- level feedback about its usefulness and usability. In the following section, we liberally quote these memos to provide evidence and additional context for our design dimensions.

3.1. Structure

We define structure to mean an underlying representation of a vi- sualization that organizes its data and visual elements into a format that can be traversed by a screen reader. Through our co-design process, we identified two components important to analyzing ac- cessible structures: their form, or the shape they organize informa- tion into; and entities, or which parts of the visualization specifica- tion are used to translate a chart into a non-visual structure. Design decisions about form and entities are guided by considerations of information granularity, or how many levels comprise the range between a high-level overview and individual data values.

Form. Accessible structures organize information about the vi- sualization into different forms, including lists, tables, and trees. Consider existing best practices and common approaches. A ras- terized chart with alt text is represented to a screen reader as a single node. SVG-based visualizations can additionally be tagged with ARIA labels to describe the axes, legends, and individual data points. Despite SVG’s nesting, screen readers linearize these ARIA labels into a list structure so that the user can step through them se- quentially. Data tables, on the other hand, provide a grid structure for screen readers to traverse. At each cell of the grid, the screen reader reads out a different textual description, allowing the user to explore a space by traversing the grid spatially (up, down, left, and right) instead of merely linearly. Accessible visualization re- search has begun to explore the use of tree structures for storing chart metadata [WOH*15], but they remain relatively rare in prac- tice. Our prototypes primarily use trees as their branching and hier- archical organization allows users to browse different components of a visualization and traverse them at different levels of detail.

Entities. Where form refers to how nodes in a structure are ar- ranged, entities instead refers to what aspects of the visualization

The Nodes Represent. These Aspects Can Include:

• Data, where nodes in the structure represent individual data val- ues or different slices of the data cube (e.g., by field, bins, cat- egories, or interval ranges). For example, in a data table, every node (i.e. cell) represents a data value designated by the row and column coordinates. Depending on the form, data entities can be presented at different levels of detail. For example, one proto- type we explored represents a line chart as a binary tree structure (Fig. 2e): the root node represents the entire x-axis domain, and each left and right child node recursively splits the domain in half. Users can traverse the tree downward to binary search for specific values or understand the data distribution.

• Encodings, where nodes in the structure correspond to visual channels (e.g., position, color, size) that data fields map to. For instance, consider Figure 1a which depicts the encoding struc- ture of a Vega-Lite scatterplot. The visualization is specified as mappings from data fields to three visual encoding channels: x, y, and color. Thus, the encoding structure, which here takes the form of a tree, comprises a root node that represents the en- tire visualization and then branches for each encoding channel as well as the data rectangle (x-y grid). Descending into these branches yields nodes that select different categories or interval regions, determined by the visual affordances of the channel. For instance, descending into axis branches yields nodes for each in- terval between major ticks; x-y grid nodes represent cells in the data rectangle as determined by intersections of the axes grid- lines; and legend nodes reflect the categories or intervals of the encoding channel (i.e., for nominal or quantitative data respec- tively). Finally, the leaves of these branches represent individual data values that fall within the selected interval or category.

• Annotations, where nodes in the structure represent the rhetori- cal devices a visualization author may use to to shape a visual

© 2022 The Author(S)

Computer Graphics Forum © 2022 The Eurographics Association and John Wiley & Sons Ltd. J. Zong, C. Lee, & A. Lundgard et al. / Rich Screen Reader Experiences for Accessible Data Visualization Figure 1: (a) An accessible visualization structure in the form of a tree and comprised of encoding entities. Solid magenta outlines indicate the location of the screen reader cursor. Solid blue arrows between labels indicate available next steps via keyboard navigability (up, down, left, right). (b) Three ways of navigating accessible visualization structures: structural, spatial, and targeted.

narrative or guide reader interpretation of data (e.g., by draw- ing attention to specific data points or visual regions). Surfacing annotations in the visualization structure allows screen reader users to also benefit from and be guided by the author’s narra- tive intent. For example, Figure 2d illustrates an annotation tree structure derived from an example line chart with two annota- tions highlighting intervals in the temporal x-axis. The root of the tree has two children representing the two annotated regions.

The these two annotation nodes have a child node for each data point that is highlighted within the region of interest. Considerations: Information Granularity. When might users prefer nested structures (i.e. trees) over flat structures (i.e., lists and tables)? Like sighted users, screen reader users seek information by looking for an overview before identifying subsets to view in more detail [SCWR21]. Trees allow users to read summary infor- mation at the top of the structure, and traverse deeper into branches to acquire details-on-demand. Kim et al. use the term information granularity to refer to the different levels of detail at which an ac- cessible visualization might reveal information [KJRK21]. They organize granularity into three levels: existence, overview, and de- tail. Existence includes information that a chart is present, but no information about underlying data. Overview includes summary in- formation about data — e.g. axes, legends, and summary statistics like min, max, or mean — but not individual data points. Detail in- cludes information about precise data values.

We use the root node to signal the existence of the tree, and deeper nodes in the tree reflect finer levels of granularity. Branch nodes give an overview summary about the data underneath, pro- viding information scent [PC99], while leaf nodes map to individ- ual data points. In his feedback about the prototype shown in Fig- ure 1, Hajas wrote “considering how difficult reading a scatterplot with a screen reader is due to its sequential reading nature, the tree structure makes the huge number of data points fairly readable”.

Entities are not mutually exclusive, and a structure might opt to surface different entities in parallel branches. We prototyped a ver- sion of Figure 2d which placed an encoding tree and annotation tree as sibling branches under the root node. Users could descend down a given branch, and switch to the equivalent location in the other branch at will. These design decisions are motivated by find- ings in prior work: by placing encodings and annotations as co- equal branches, we produce a structure that preserves the agency of screen reader users either to start with the narrative arc of an- notations, or follow it after having the chance to interpret the data for themselves [LS21]. As Hajas confirms “Depending on my task, either the encoding or annotation tree could be more important. If my task involved checking population growth in the last 100 years, I would start with the encodings. If I were to look for sudden changes in population numbers, such war-time mortality effects, I would start exploring the annotations, then tunnel back to the other tree.”

3.2. Navigation

Screen reader users need ways to traverse accessible structures to explore data or locate specific points. When browsing a webpage, screen readers provide a cursor that represents the current loca- tion in the page. Users use keyboard commands to step the cursor backward and forward in a sequential list of selectable items on the page, or jump to important locations such as headers and links.

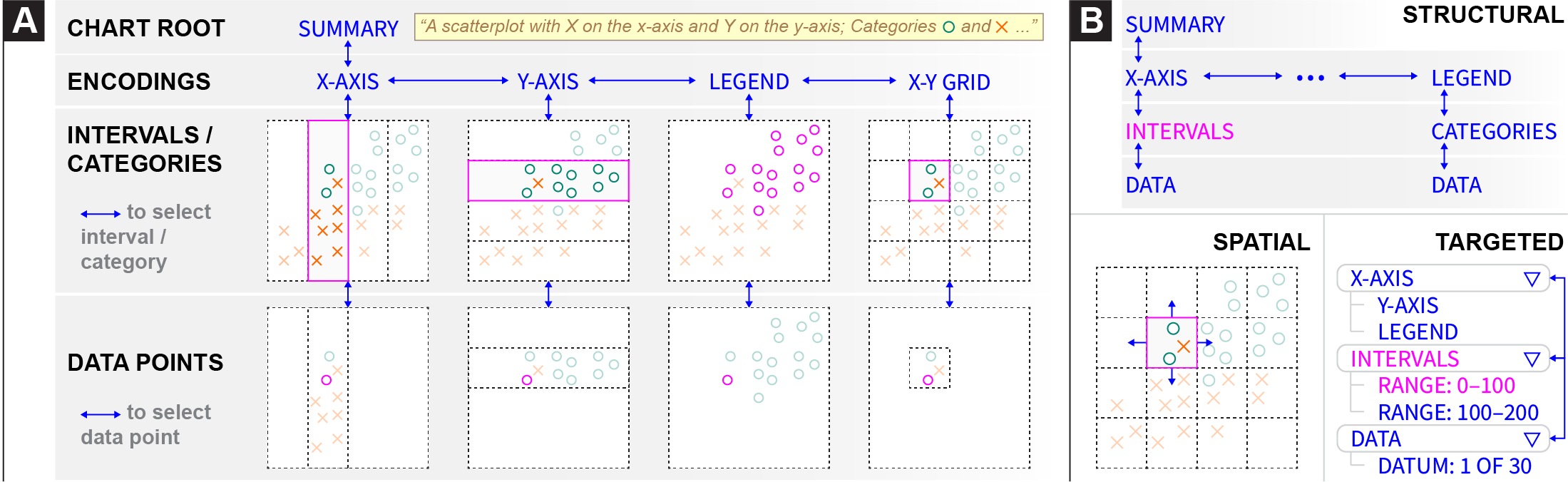

Through our prototyping process, we developed three ways of nav- igating through an accessible structure: structural navigation, spa- tial navigation, and targeted navigation (Fig. 1b). A key concern across these navigation schemes is reducing a user’s cognitive load by affording a sense of the boundaries of the structure.

Structural Navigation. Structural navigation refers to ways users move within the accessible structure. We identify two types of structural navigation. Local navigation refers to step-by-step movements between adjacent nodes in the structure. This includes moving up and down levels of a hierarchy, or moving side to side between sibling elements. Lateral navigation refers to movement between equivalent nodes in adjacent sub-structures. For example, Fig. 2a depicts a multi-view visualization with six facets. When the cursor is on a Y-axis interval for the first facet, directly moving to the same Y-axis interval on the second facet is a lateral move.

Spatial Navigation. Sometimes users want to traverse the visu- alization according to directions in the screen coordinate system. We refer to this as spatial navigation. For example, when travers-

© 2022 The Author(S)

Computer Graphics Forum © 2022 The Eurographics Association and John Wiley & Sons Ltd. J. Zong, C. Lee, & A. Lundgard et al. / Rich Screen Reader Experiences for Accessible Data Visualization ing part of an encoding structure that represents the visualization’s X-Y grid, a downward structural navigation would go down a level into the currently selected cell of the grid, showing the data points inside the cell. A downward spatial navigation, in contrast, would move to the grid cell below the current one — i.e. towards the bot- tom of the Y-axis. Spatial navigation is also useful when navigating lists of data points, which may not be sorted by X or Y value in the encoding structure. Where a leftward structural navigation would move to the previous data point in the structure, a leftward spatial navigation would move to the point with the next lowest X value.

Targeted Navigation. Navigating structurally and spatially re- quires a user to maintain a mental map of where their cursor is relative to where they want to go. If the user has a specific target location in mind, maintaining this mental map in order to find the correct path in the structure to their target can create unnecessary cognitive load. We use targeted navigation to refer to methods that only require the user to specify a target location, without needing to specify a path to get there. For example, the user might open a list of locations in the structure and select one to jump directly there. Screen readers including JAWS and VoiceOver implement an analogous form of navigation within webpages. Instead of man- ually stepping through the page to find a specific piece of content, users can open a menu with a list of locations in the page. These locations are defined in HTML using ARIA landmark roles, which can designate parts of the DOM as distinct sections when read by a screen reader. When a screen reader user open the list of landmarks and selects a landmark, their cursor moves directly to that element.

Considerations: Boundaries & Cognitive Load. Screen reader users only read part of the visualization at a time, akin to a sighted user reading a map through a small tube [HMM*11]. How do they keep track of where they are? In our co-design process, we found it easiest for a user to remember their location relative to a known starting point, which is corroborated by literature on developing spatial awareness for blind people [WG69; LKM*19; CPR*21].

Hajas noted the prevalence of the Home and End shortcuts across applications for returning to a known position in a bounded space (e.g. the start/end of a line in a text editor). We also found that grouping data by category or interval was helpful for maintaining position. Hajas noted that exploring data within a bounded region was like entering a room in a house. In his analogy, a house with many smaller rooms with doors is better than a house with one big room and no doors. Bounded spaces alleviate cognitive load by al- lowing a user to maintain their position relative to entry points.

Comparing navigation techniques, Hajas noted that spatial felt “shallow but broad” while targeted felt “deep but narrow.” While he expressed a personal preference for deep-narrow structures, he nevertheless “would not give up [spatial navigation] because it makes me believe I’m actually interacting with a visualization.” This insight demonstrates the value of offering multiple comple- mentary navigation techniques. Moreover, while targeted naviga- tion facilitates quick searching and doesn’t require the user to main- tain a mental map to find specific data points, structural and spatial exploration enable more open-ended data exploration. It also pro- vides a mechanism for establishing common ground with sighted readers (e.g., allowing both blind and sighted readers to understand a line segment as being “above” or “higher” than another).

3.3. Description

When a user navigates to a node in a structure, the screen reader narrates a description associated with that node. For example, when navigating to the chart’s legend, the screen reader output might ar- ticulate visual properties of the chart’s encoding: “Category O has color encoding green; X has color encoding orange” (Figure 1).

Or, if that visual semantic content isn’t relevant to understanding the data, it might ignore the color: “each datum belongs to either Category O or X.” The content, composition, and verbosity of the description can affect a user’s comprehension of the data. Design- ers must consider context & customization when describing charts.

Content. Semantic content is the meaningful information con- veyed not only through natural language utterances, but also through the visualization (a graphical language [Ber83]). Because graphics convey myriad different kinds of content, the challenge of natural language description is to convey information that is not only commensurate with what the chart expresses via graphical language, but also useful to its readers. Accessible chart descrip- tion guidelines from WGBH [GOF08], W3C [W3C19], and oth- ers [JMK*21] offer prescriptions for conveying specific content for blind readers (such as the chart’s title, axis encodings, and notewor- thy trends). Lundgard and Satyanarayan expand the scope of these guidelines with a more general conceptual model of four levels of semantic content: chart construction properties (e.g., axes, encod- ings, marks, title); statistical concepts and relations (e.g., outliers, correlations, descriptive statistics); perceptual and cognitive phe- nomena (e.g., complex trends, patterns); and domain-specific in- sights (e.g., socio-political context relevant to the data) [LS21].

Decoupling a chart’s semantic content from its visual represen- tation helps us better understand what data representations afford for different readers. For instance, Lundgard and Satyanarayan find that what blind readers report as most useful in a chart description is not a straightforward translation of the visual data representa- tion. Specifically, simply listing the chart’s encodings is much less useful to blind readers than conveying summary statistics and over- all trends in the data [LS21]. As Hajas noted, “I want to see the global trend, which is why sighted people rely on visualization.” For instance, for a stock market chart the reader “might see the overview from first to last data points, and then zoom into an out- lier in the middle.” These findings suggest opportunities interleave different kinds of content at different levels of a hierarchical struc- ture to yield richer, more useful screen reader navigation. For ex- ample, injecting summary statistics (say, the existence of outliers within a particular subcategory of the data) higher up in the chart’s tree structure (e.g., at the legend encoding node) might afford “scent” for “information foraging” [PC99], or further exploration down a particular branch (data subcategory) of the tree. Or, if nav- igating in a targeted fashion, the user might be afforded the option to directly navigate to outliers without traversing the tree.

Composition. The usefulness of a description depends not only on the content conveyed by its constituent sentences, but also on its composition: how those sentences are ordered in relation to each other. For example, during our co-design process, Hajas found that when navigating a chart’s tree structure, the screen reader output could quickly become redundant, affecting how quickly and effi- ciently he could pick out the meaningful information at each node.

© 2022 The Author(S)

Computer Graphics Forum © 2022 The Eurographics Association and John Wiley & Sons Ltd. J. Zong, C. Lee, & A. Lundgard et al. / Rich Screen Reader Experiences for Accessible Data Visualization For instance, the utterance “Category: O, Point 3 of 15, x = 5, y = 12” and the utterance “x = 5, y = 12, Category: O, Point 3 of 15” afford significantly different experiences for a user who wishes to quickly scan through individual data points. In the first utterance, the reader immediately receives content that helps to situate them in a broader data context, namely data labeled as “Category: O” at the legend node. In the second utterance, the reader immediately re- ceives datum-specific content that helps to rapidly explore the fine- grained details within that data context. Whether a reader prefers one compositional ordering to another will depend on the task they are attempting to accomplish. As Hajas noted “I like the label at the beginning of the information, saying at which level of the tree I am at. It is important for knowing where I am. It is also great that this information is only spoken out when I change level, but not when I navigate laterally.” These compositional choices are highly consequential for readers’ experience, when they must repeatedly read nearly-identical utterances while navigating a structure.

Verbosity. Whereas composition refers to the ordering of con- tent, verbosity refers to how much content the screen reader con- veys. More content is not always better. As Hajas noted of Apple’s Data Comprehension feature [DE19]: “It can sometimes be too much information all at once, if it starts reading out all of the data.

This is very difficult if you’re interested in some data points that are in the middle. It is very play-or-stop.” Depending on the screen reader software, a user may be afforded control over how much content is conveyed. For instance, JAWS offers high, medium, and low verbosity levels [Sci21]. At higher verbosity the screen reader announces more structural, wayfinding content (e.g. the start and end of regions). For data tables, verbosity configurations can affect whether the table size is read as part of the description, and whether row and column labels are repeated for every cell. Descriptions of nodes in an encoding structure might analogously include infor- mation about the path from the root — for example, by reminding the user that they are reading Y-axis intervals. These repetitions can help users remember their location within a structure, but additional verbosity is less efficient for comprehending the data quickly.

Considerations: Context & Customization. Apart from its constituent parts (content, composition, verbosity), a description’s usefulness also depends on the context in which it is read: namely, the reader’s task or intent, and familiarity with the data interface.

The same description might be useful in some situations, but rel- atively useless in others. A reader’s information needs are fun- damentally context-sensitive. For example, as Hajas noted, when reading a news article, it may be satisfactory to accept a journalist’s description of the data on good faith. But, when reviewing scientific research, “I don’t necessarily want to just believe what is said in the text, I want to check and double-check the authors’ claims. Go down to the smallest numbers in the analysis. I want to be able to look at the confusion matrix and see if they made a mistake or not.” This targeted verification requires a description to afford users with precise look-up capabilities, in contrast to descriptions that may be generated when browsing or exploring the data.

This context-sensitivity reveals an important aspect of usabil- ity: a user’s familiarity (or lack thereof) with the data interface. Wayfinding content (e.g., “Legend. Category: O.”) can help a user remember their location in a structure, and may be useful while they assemble a mental map of the visualization. But, as they become ac- customed to the interface and visualization, such descriptions may prove cumbersome. Because user needs depend on their task, pref- erences, and familiarity, interfaces might afford personalization and customization to facilitate context-sensitive description.

4. Example Gallery

Our co-design process yielded prototypes that demonstrate a breadth of ways to operationalize our design dimensions. Figure 2 excerpts some of our highest-fidelity prototypes, implemented on top of Vega-Lite [SMWH17]. As deeply nested structures and dy- namic content are not well-supported by ARIA, we implemented our designs as in-memory data structures. Event listeners update the user’s position in the structure on keypress, and write text de- scriptions to an ARIA-Live region (an ARIA role typically used for temporary notifications). To establish common ground with sighted users, we also render the visualization graphically. The user’s po- sition in the tree drives a Vega-Lite selection that highlights points when the screen reader user is attending to them.

For every prototype, the up, down, left, and right arrow keys enable structural navigation (moving up or down a level, or stepping through siblings respectively). For example, within the facet level of Fig. 2(a), the user can press left or right keys to move between the six subplots of the multiview chart. On charts that contain a node representing the x-y grid, users can also use the WASD keys to spatially navigate the grid and data points within that branch (mimicking an interaction found in video games).

These prototypes highlight different compositions of structures and navigation schemes. Fig. 2(a) includes shift+left and shift+right for lateral navigation across facets: pressing these keys at any node within a facet branch will navigate to the same location under an adjacent branch (subplot). With the chloropleth (Fig. 2(b)), we group data in the encoding structure by U.S. state; users can then drill down into counties across either this branch or the legend one. 2(c) offers two different paths for drilling down: month first, or weather first. 2(d) structures the tree by annotations rather than encoding: users can descend into the time intervals designated by the orange and blue rectangles, and view points within those intervals. Finally, Fig. 2(e) organizes its tree in terms of data, offering a binary search structure through the years.

5. Evaluation

To evaluate our contribution, we conducted 90-minute Zoom stud- ies with 13 blind and low vision participants. Participants were asked to explore three prototype accessible screen reader expe- riences, shown one after another each with a different dataset.

The goal of our evaluation was not to determine which particu- lar combination of design elements was “best,” but rather to be exploratory — to compare the relative strengths and advantages of instantiations of our design dimensions, and understand how they afford different modes of accessible data exploration.

5.1. Evaluation Setup & Design

Following Frøkjær and Hornbæk’s Cooperative Usability Testing (CUT) method [FH05], Zong and Lee conducted each session by

© 2022 The Author(S)
