Title: Prediction of soil fertility parameters using USB-microscope imagery and portable

X-Ray Fluorescence Spectrometry

Authors: Shubhadip Dasguptaa,b, Satwik Patea, Divya Rathorea, L.G. Divyanthc, Ayan Dasd, Anshuman Nayaka, Subhadip Deya, Asim Biswase, David C. Weindorff,*, Bin Lig, Sérgio Henrique Godinho Silvah, Bruno Teixeira Ribeiroh, Sanjay Srivastavai, Somsubhra Chakrabortya

Viswavidyalaya, West Bengal 741252, India

d Space Applications Centre, Indian Space Research Organisation (ISRO), Ahmedabad 380015,

Usa

i Indian Council of Agricultural Research (ICAR)-Indian Institute of Soil Science, Bhopal,

Corresponding Author:

David C Weindorf, Ph.D. Professor and Vice President for Research and Economic Development

Abstract

This study investigated the use of portable X-ray fluorescence (PXRF) spectrometry and soil image analysis for rapid soil fertility assessment, with a focus on key indicators such as available boron (B), organic carbon (OC), available manganese (Mn), available sulfur (S), and the sulfur availability index (SAI). A total of 1,133 soil samples from diverse agro-climatic zones in Eastern India were analyzed. The research integrated color and texture features from microscopic soil images, PXRF data, and auxiliary soil variables (AVs) using a Random Forest model.

Results showed that combining image features (IFs) with AVs significantly improved prediction accuracy for available B (R2 = 0.80) and OC (R2 = 0.88). A data fusion approach, incorporating IFs, AVs, and PXRF data, further enhanced predictions for available Mn and SAI, with R2 values of 0.72 and 0.70, respectively. The study highlights the potential of integrating these technologies to offer rapid, cost-effective soil testing methods, paving the way for more advanced predictive models and a deeper understanding of soil fertility. Future work should explore the application of deep learning models on a larger dataset, incorporating soils from a wider range of agro-climatic zones under field conditions.

Keywords: Microscope; Organic carbon; Soil nutrients; Image processing; PXRF; Random

1. Introduction

Understanding the variability of soil properties is paramount for enhancing agricultural productivity and sustainability. In the context of India, particular attention to specific micronutrients and organic carbon (OC) is crucial due to their significant impact on crop yields and soil health. Notably, available B, organic carbon (OC), available Mn, available S, and sulfur availability index (SAI) are essential for plant growth, affecting various physiological and biochemical processes (Minasny and McBratney, 2016; Moinuddin et al., 2017; Zenda et al., 2021). However, Indian soils are notably deficient in these key micronutrients, with alarming deficiencies reported in Mn, B, and S (Dasgupta et al., 2023; Saha et al., 2019; Singh, 2008; Behera et al., 2009; Majumdar et al., 2014; Shukla et al., 2021). This situation underscores the importance of accurately assessing and managing these soil properties to improve crop productivity. Custom fertilization strategies enhance crop yields and reduce costs, promoting soil health. However, the scarcity of soil testing facilities, particularly in developing nations, hinders precise nutrient management. As a result, there is a need for affordable soil fertility assessment tools (Dasgupta et al., 2021; Goswami et al., 2023, Choudhury et al., 2023).

To address the challenges of soil variability and nutrient management, three distinct methods have emerged as promising alternative tools for predicting soil properties: traditional soil color assessment, digital image analysis, and portable X-ray fluorescence (PXRF) spectrometry. Traditional soil color assessment, using the Munsell soil color chart (MSCC), has long been a qualitative indicator of pedogenic and chemical processes within the soil (Rowe,

3

2005). However, the subjective nature of this method limits its precision and repeatability (Mouazen et al., 2007; Swetha et al., 2022). Conversely, digital image analysis offers a quantitative approach, leveraging smartphone-captured images analyzed through machine learning (ML) and deep learning (DL) algorithms. This method enables the extraction of features such as color, texture, and morphology, offering a more efficient and cost-effective means of soil testing (Aitkenhead et al., 2016a; Fu et al., 2020; Gorthi et al., 2021; Qi et al., 2019; Swetha et al., 2020; Taneja et al., 2021; Viscarra Rossel et al., 2008). PXRF spectrometry adds another layer of analysis, providing rapid, accurate readings of elemental composition, nutrient levels, and heavy metal contamination, beneficial for in-field applications (Chakraborty et al., 2016; Dasgupta et al., 2022). Additionally, the integration of computer vision-based image analysis with a universal serial bass (USB) microscopy offers a microscopic perspective that has proven beneficial for interpreting soil features (Sudarsan et al., 2018; Sudarsan et al., 2016). Yet, the application of a USB microscope as a proximal soil sensor for assessing soil fertility parameters needs further exploration.

While each method offers distinct advantages, they also come with limitations. Subjective assessment of soil color can result in inconsistencies, digital image analysis requires specific conditions for image capture, and PXRF, though precise, is unable to measure soil OC and available nutrient fractions directly. Recognizing these challenges, there is a growing interest in the fusion of these technologies to enhance soil property prediction. Integrating outputs from multiple sensing technologies, known as sensor fusion, has shown potential in improving predictions by combining data from different sensors (Aldabaa et al., 2015; Duda et al., 2017; Swetha and Chakraborty, 2021; Wang et al., 2015). However, the accuracy and reliability of this integrated approach across diverse soil types and environmental conditions warrant further exploration (Andrade et al., 2022).

Given these considerations, our study aims to predict available B, OC, available Mn, available S, and SAI across five Indian states and in the Indo-Gangetic Plain (IGP) using various approaches, either alone or in combination of color and image texture features from USB microscope-based soil images (IFs), auxiliary variables (AVs) such as soil agro-climatic and physiographic information, and PXRF elemental data. We hypothesize that combining USB microscope-based soil image and PXRF data with AVs enhances soil fertility predictions compared to using USB microscope images or PXRF data in isolation. Through this work, we aim to contribute to the advancement of precision agriculture and sustainable soil management practices.

2.1. Study Area

Conducted in the IGP, spanning five Indian states and characterized by rivers forming a vast floodplain (Shukla et al., 2021), the study area covers over 45,000 km2. Divided into six Agro-Climatic Zones (ACZs) across nine districts—Gangetic Alluvial Zone (GAZ), Coastal Saline Zone (CSZ), Vindhyachal Alluvial Zone (VAZ), Terai-Teesta Alluvial Zone (TAZ), Northern Hilly Zone (NHZ), and Red and Laterite Zone (RLZ)—the region varies in elevation (- 1 to 980 meters above sea level) and climate (Fig. 1). The geographical coordinates range from 24° 48' 27" N to 21° 41' N latitude and 86°06' 50’’E to 89° 25' 38’’E longitude, encompassing distinct Köppen climatic classes (Aw, Cwa, and Cwb). The CSZ, marked by periodic saline tidal water intrusion through rivers (Sarkar et al., 2022), covers half of West Bengal state. Known as India's rice-bowl, West Bengal faces challenges with a rice-based mono-cropping system and limited micronutrient fertilizer use, leading to deficiencies. Besides rice, the region cultivates winter vegetables, pulses, potatoes, and groundnuts (Dasgupta et al., 2022).

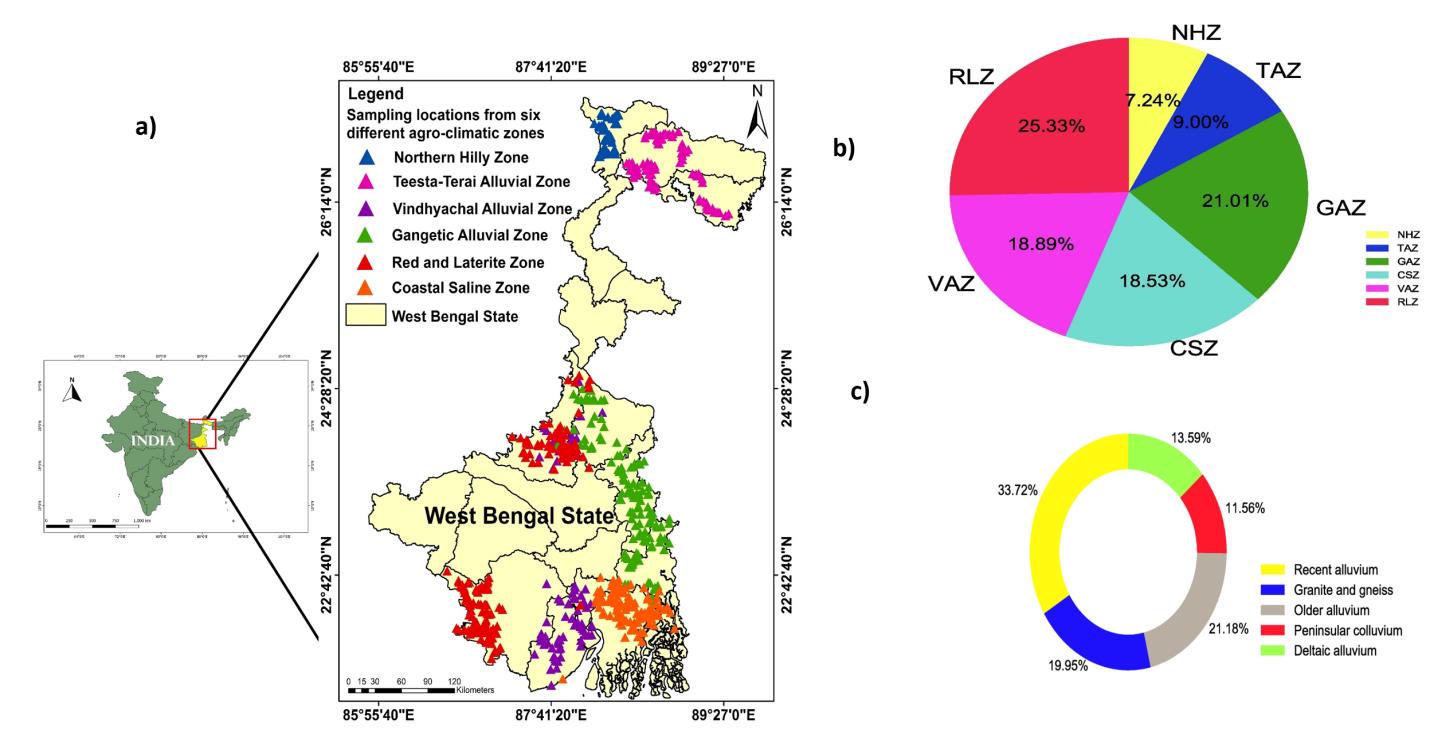

Figure 1: a) Map of the study region in the West Bengal state, India b) % distribution of soil samples collected from the six agro-climatic zones of the study region. c) % distribution of soil samples collected from the five soil parent materials of the study region.

2.2. Soil Sampling And Laboratory Analysis

Between 2017 and 2018, about 1,133 surface soil samples (0-30cm depth) were collected from rice fields in November to December, covering rainfed and irrigated agricultural lands of

5

various sizes (Table 1). Using stratified random sampling, soils were obtained from 68 distinct soil series, representing the variability across four ACZs with three soil orders and four parent materials. Maintaining consistency, about 20-25 soil samples were collected from each series, spaced approximately 3 km apart. These samples were carefully sealed in plastic bags and geolocated with a Garmin handheld GPS (Garmin Ltd., KS, USA) for precision. Categorized by locations—GAZ (n=238), CSZ (n=210), VAZ (n=214), NHZ (n=82), TAZ (n=102), and RLZ (n=287)—the soil library comprised 419 Inceptisols, 269 Entisols, and 445 Alfisols samples.

Reflecting three productivity potentials (low, medium, and high), the samples underwent air- drying, grinding, and sieving (2 mm). Table 1: Description of parent-materials, soil order, land use, and productivity potential along with the number of samples collected from six agro-climatic zones of West Bengal, India.

Rice, Maize,

vegetables.

Tobacco, And

vegetables.

6

In the laboratory, OC analysis followed the Walkley and Black (1934) chromic acid digestion method. Available B was determined using hot water and azomethine-H colorimetry following the method described by Berger and Truog (1940). Available S was measured using Calcium chloride (CaCl2) extraction, with turbidity readings taken at 440 nm using a UV-Vis spectrophotometer. Plant-available Mn was extracted with Diethylenetriamine pentaacetate (DTPA) and quantified via atomic absorption spectrophotometer (Lindsay and Norvell, 1978).

The SAI, crucial for tropical soils, was calculated according to the method proposed by Donahue et al. (1977) and following protocols outlined by Padhan et al. (2016) and Dasgupta et al. (2022).

2.3. Soil Image Acquisition

For capturing soil images, air-dried and finely ground soil samples were evenly spread in petri dishes, with approximately 25 g of soil placed in each dish at a thickness of 10 mm. To ensure accurate imaging without shading effects from microtopography, the soil was flattened using a rubber mallet. A compact and cost-effective Koolertron 5MP 20-300X USB-microscope with 300x magnification was utilized, featuring sturdy construction suitable for outdoor use and adjustable LED lights for optimal illumination. Micro Capture Pro software was used for image acquisition, offering controlled illuminations to ensure accurate soil analyses. The LED intensity was set at 75%, preventing overheating while maintaining ample brightness. A custom microscope holder isolated the field of view (FOV) for each soil sample, with a precise FOV of 2 × 1.7 mm. Images were captured at 90° angle to ensure comprehensive coverage, with three replicated shots for each soil sample, rotated 45° each time (Fig. 2). The resulting images had dimensions of 4000 × 3000 pixels and were saved in JPEG format, with an average size of around 5 megabytes.

7

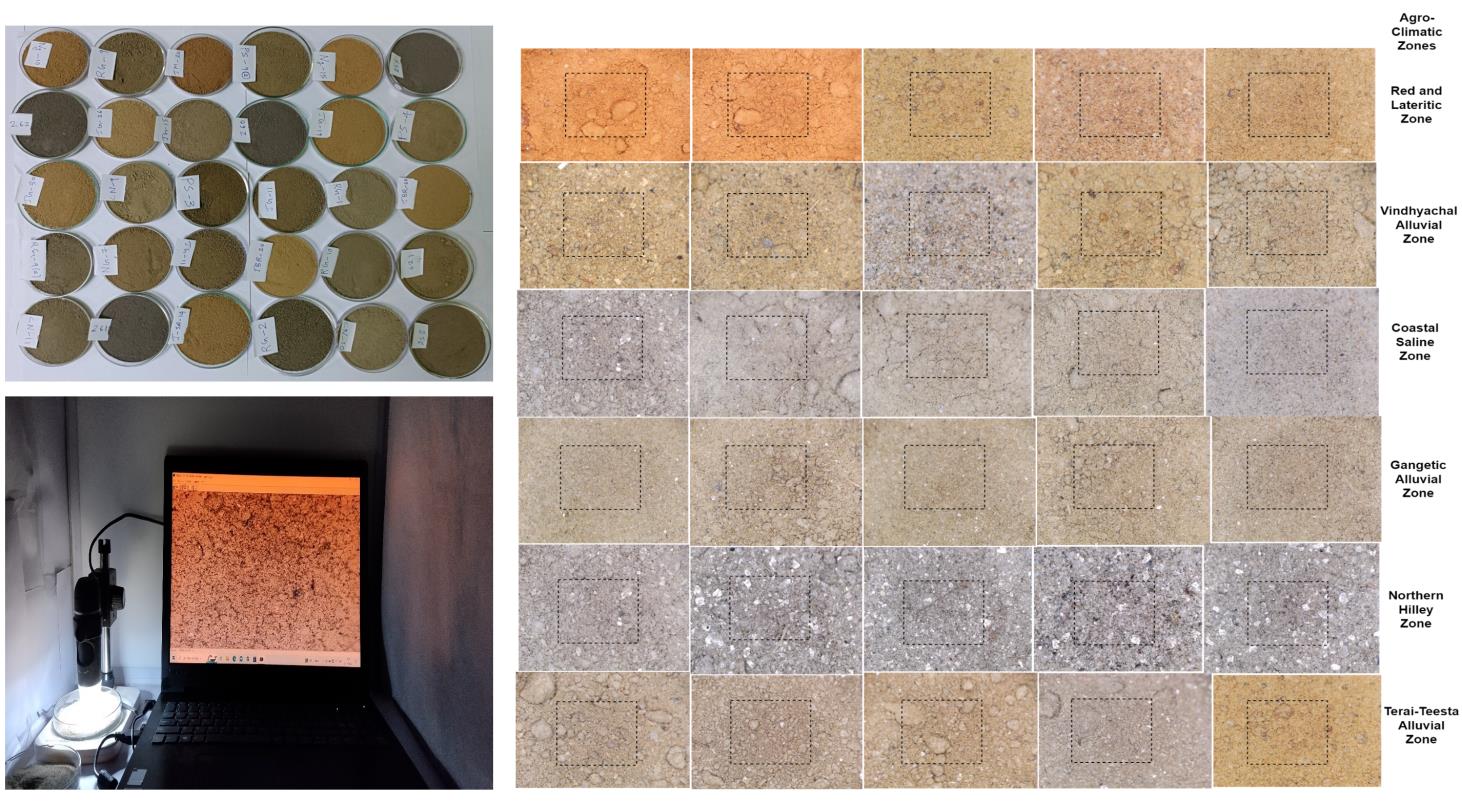

Figure 2: Universal Serial Bus (USB) microscope-based soil image acquisition setup showing representative samples from different agro-climatic zones of West Bengal, India.

2.4. Scanning Via Pxrf

Following the methods outlined by Weindorf and Chakraborty (2020), an Elvatech ProSpector LE PXRF spectrometer was utilized to scan finely ground, air-dried soil samples (<2 mm). The instrument was operated in "Soil Mode" and calibrated with a factory calibration stainless-steel shutter, enabling detection of multi-elemental composition in mg kg−1. A total of 19 elements (Ca, K, Fe, Mn, Rb, Zr, Zn, Ti, Ba, Cr, Cu, Pb, Ni, Ag, Sn, V, Sr, Sb, and Ga) were measured in their total elemental content, serving as predictors for targeted soil fertility parameters. To validate the PXRF elemental values, four National Institute of Standards and Technology (NIST) certified reference material (CRM) soil samples underwent scanning. The validation process involved calculating the percentage recovery (% of recovery = 100 × PXRF reported content/certified content) and determining the correction factor following Dasgupta et al. (2022). An element-wise average correction factor (ACF) was computed from the results and applied to the entire set of Compton-normalized PXRF elemental data, following the procedure by Chakraborty et al. (2019). For 15 out of the 19 elements, specific ACFs were utilized, and these were then multiplied with the raw PXRF data for further statistical analysis. For this study, the ACFs used for 15 elements out of 19 from PXRF were as follows: K (1.01/1.54/0.91/1.30/1.19); Ca (0.79/1.25/0.88/1.34/1.06); Fe (0.96/1.26/0.87/1.19/1.07); Mn

Cu

(1.41/1.29/1.01/1.15/1.22); Cr (0.87/1.52/0.36/1.25/1.00); Ti (1.03/1.45/3.25/1.28/1.75); Ni

V

(0.80/0.29/0.47/0.20/0.44); Ga (0/0/1.51/1.72/1.62); and Pb (1.24/1.16/0.68/0/1.03).

2.5. Soil Image Analysis And Feature Extraction

A total of 1,133 soil microscope images were utilized to build the prediction models, with a focus on image texture and color attributes as primary features. All analyses were performed using Matlab (R2022a, Mathworks Inc., Waltham, MA) software, with its statistics and machine learning, image processing, and deep learning toolboxes. Several previous studies have successfully employed image texture features derived from the Gray Level Co-occurrence Matrix (GLCM) and Gray Level Run-Length Matrix (GLRLM) in pattern recognition research (Aygun and Gunes, 2017; Divyanth et al., 2023; Mathew et al., 2022; Nadimi et al., 2023).

Herein, textural features were extracted from the GLCM and GLRLM of the individual color channels (R, G, and B) (Fig. 3). The GLCM measures the frequency of pixel value (or gray levels) combinations in grayscale images, providing insights into spatial relationships between pixels. GLRLM, on the other hand, analyzes the lengths and frequencies of consecutive runs of pixels with similar intensities that are aligned in the same direction within the image. Texture feature calculations utilize the information from the GLCM and GLRLM to quantify variations in image texture (pixel values) at the point of interest. Before computing the matrices, the image was quantized into 16 gray levels (Fig. 3), which was determined after experimenting with levels of 8, 16, 32, and 64. After quantization, four GLCMs and four GLRLMs were computed for each color channel, corresponding to the orientations Θj ∈ [0°, 45°, 90°, 135°]. Additionally, four statistics were extracted from the GLCMs and eleven statistics from the GLRLMs, which served as the textural features of the image (see Table 2 for the list of features). The mathematical formulas for these statistical measures are detailed in Divyanth et al. (2023) and can be easily implemented using built-in functions (graycomatrix; graycoprops) available in MATLAB’s Image Processing Toolbox. Color features were derived from the individual channels of the image in HSV and L*a*b* color spaces, along with RGB images, yielding mean, median, and standard deviation values. Hence, in total, 231 IFs were extracted, comprising 204 textural and 27 color features (Table 2).

Table 2: Image features (IFs) extracted from the microscope images of soil samples collected from six agro-climatic zones of West Bengal, India.

10

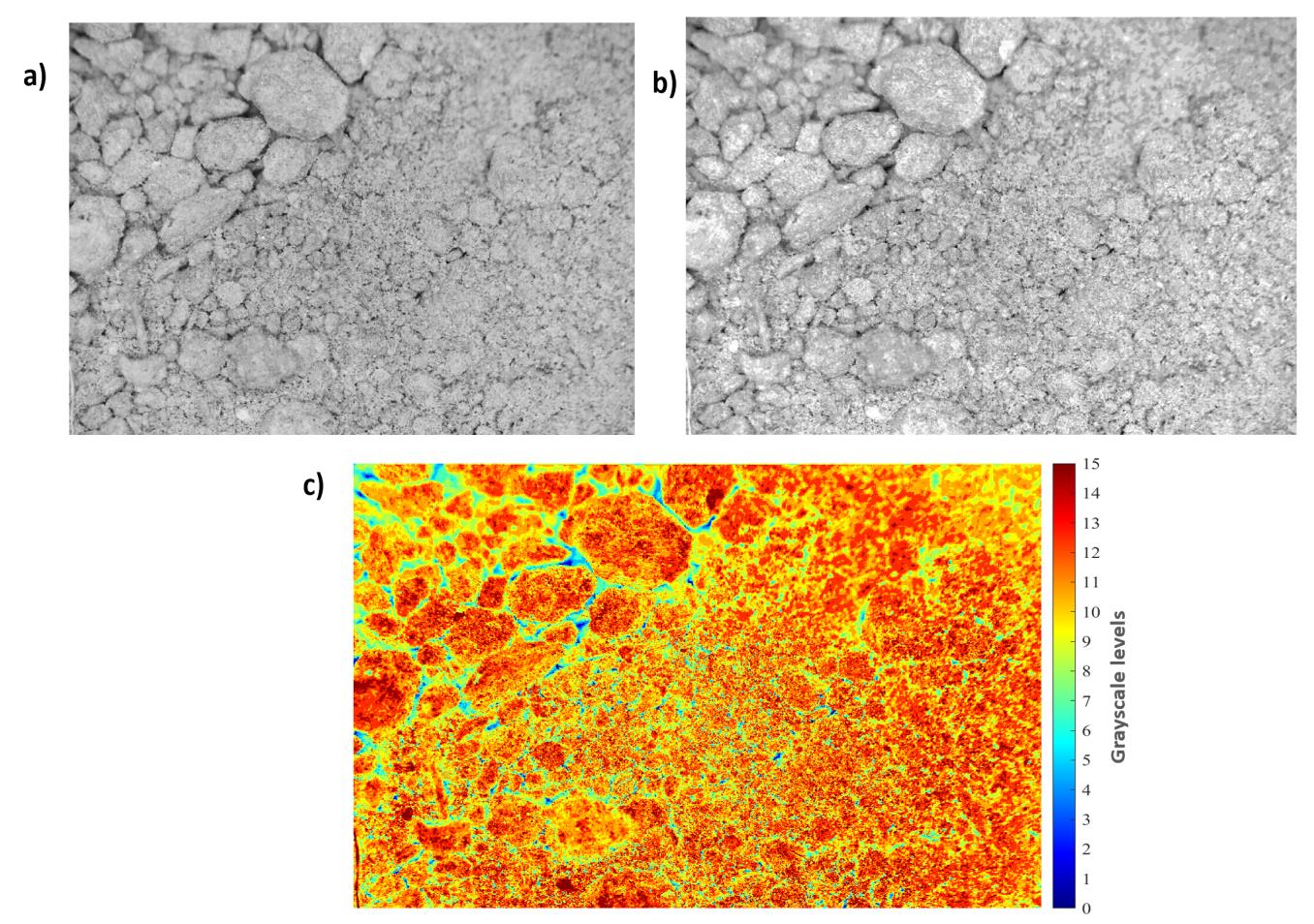

Figure 3: Illustration of the image quantization process before computing the gray level co- occurrence matrix (GLCM) and gray level run-length matrix (GLRLM): a) original greyscale (individual channel) image of a soil microscope image, b) image after quantizing the pixel values into 16 levels, and c) the 16 grayscale levels of the image represented on a color map.

2.6. Statistical Analysis

The soil image data (n = 1,133) was divided into calibration (80%) and test (20%) sub- datasets. The performance of USB-microscope-based IFs alone, PXRF alone, IFs in conjunction with AVs (IFs + AVs), and IFs and AVs combined with PXRF data (IFs + AVs + PXRF) was assessed for the prediction of OC, available B, available S, available Mn, and SAI. The prediction models employed the random forest (RF) algorithm in Matlab (The Mathworks Inc., Natick, MA), utilizing 300 trees, a minimum leaf size of 8, and a learning rate of 0.1. RF is a ML algorithm that leverages an ensemble of decision trees for predicting continuous values (Breiman, 2001). It builds diverse trees on random subsets of input data, preventing overfitting and enhancing generalization. The algorithm is robust, versatile, and effective for complex regression problems with nonlinear relationships between input and output variables. Its simplicity and minimal hyperparameter tuning make it widely adopted in data science and ML.

The RF models were trained with the calibration set (~80%, n = 907 samples) using a 5-fold

11

cross-validation and assessed on the test set (~20%, n = 226 samples). For models predicting B and SAI, a few samples with missing values were excluded. Model performance was assessed using the coefficient of determination (R2), root mean square error (RMSE) (Eq. 1), concordance correlation coefficient (ρc) (Eq. 2), model bias (Eq. 3), and ratio of performance to inter-quartile distance (RPIQ) (Eq. 4) metrics.

2.𝜌.𝜎𝑦.𝜎𝑚

𝜎𝑦2+𝜎𝑚2+(𝜇𝑦−𝜇𝑚)2 (2)

𝑄3−𝑄1

𝑅𝑀𝑆𝐸 (4) where, 𝑦𝑖 and 𝑚𝑖 are the actual and predicted values for the i-th observation, n is the total number of samples, ρ is the Pearson correlation coefficient between y and m, σy and σm are the standard deviations of y and m, respectively, μy and μm are the means of y and m, respectively, and Q1 and Q3 are the first and third quartile of the observed values, respectively.

Principal Component Analysis (PCA) stands as a key dimensionality reduction technique in data analysis and ML (Jolliffe, 2014). Its objective is to transform a dataset into a new coordinate system, where data points are represented by a condensed set of uncorrelated variables known as principal components (PCs). These PCs, sorted by decreasing variance, are linear combinations of the original features. The first PC captures the highest variance, followed by the second PC, and so on. By retaining solely the top few PCs, typically capturing the majority of the variance, PCA enables dimensionality reduction while preserving crucial information. This simplifies data visualization and interpretation and also addresses issues related to high-dimensional data, multicollinearity, and computational complexity. In this study, PCA was conducted to cluster six ACZs using nine IFs (R, G, B, H, S, V, L*, a*, and b*) and combining soil fertility parameters and AVs (OC, available S, available B, SAI, Mn, parent material, and soil order) separately through the ‘prcomp’ function in R 4.1.2 (R Development Core Team, 2022). Additionally, two more categorical variables (parent material and soil order) were included in PCA. The Filmer-Pritchett procedure, a straightforward approach that breaks down categories into 0/1 dummy variables (Filmer and Pritchett, 2001), was used. This procedure, imposing no additional assumptions on the data, utilized four dummy variables for parent material and three for soil order.

3. Results And Discussion

3.1. Descriptive statistics for tested soil parameters

12

Table 3 summarizes the soil fertility properties across different ACZs, including available B, OC, available Mn, available S, and SAI. The wide variability in these properties indicates the influence of various factors like parent material, vegetation, geology, topography, soil biota, climate, and land use management in each ACZ (Chakraborty et al., 2019; Swetha et al., 2022).

Table 3: Descriptive statistics for laboratory measured soil parameters for soils collected from six different agro-climatic zones of West Bengal, India.

13

Among the laboratory-measured properties, available S in the NHZ showed a high coefficient of variation (CV > 50%). The VHZ exhibited high CV values for three properties, and CSZ and RLZ showed high CV values for four properties. Conversely, all five properties in the GAZ displayed high CV values. According to Pimentel-Gomes and Garcia (2002), CV values for available S and SAI indicated significant variability (>30%) across all ACZs, while available Mn and available B also demonstrated considerable variability in five ACZs. Soil OC content ranged widely (0.15 to 4.94%) across ACZs due to variations in soil, climate, and parent materials. The CV of OC varied substantially from 22% to 85.51% across ACZs. Most OC values were below 0.90%, confirming the inherent OC deficiency in Indian soils. The VAZ and RLZ exhibited low mean OC values attributed to their nutrient-poor and gravelly nature. In contrast, NHZ and TAZ displayed very high OC levels. Available B content followed the order TAZ > NHZ > CSZ > GAZ = RLZ > VAZ. NHZ and TAZ exhibited very high B availability (>1.00 mg kg-1), attributed to high soil OC content. Three ACZs showed low mean B availability, indicating widespread B deficiency caused by high-yielding varieties, high cropping intensity, inadequate B fertilization, and gradual depletion of native soil mineral sources of B (Saha et al., 2018). Moist sub-humid GAZ and CSZ exhibited high plant-available S content, with GAZ showing a higher range and mean. SAI values varied widely across ACZs, with CSZ having the highest mean SAI value.

RLZ exhibited the lowest mean SAI due to leaching loss and low soil organic matter content. For available Mn content, RLZ showed the highest mean value, attributed to metal toxicities and nutrient imbalances. The mean available Mn content in all zones exceeded critical threshold levels. Tropical soils globally reported excess available Mn levels and lower values for available Zn, available B, OC, and cation exchange capacity.

Parent material-wise variation in soil fertility properties was observed (Fig. 4). Different parent materials significantly influenced microbial activity, decomposition rates, and vegetation cover, impacting the distribution and content of SOM. NHZ, with peninsular colluvium, showed higher mean soil OC content, while RLZ, with Granite-Gneiss parent material, showed lower mean OC. Deltaic alluvium parent material exhibited elevated average levels of available B and available S. The correlation plot between PXRF-reported elements and soil fertility parameters

14

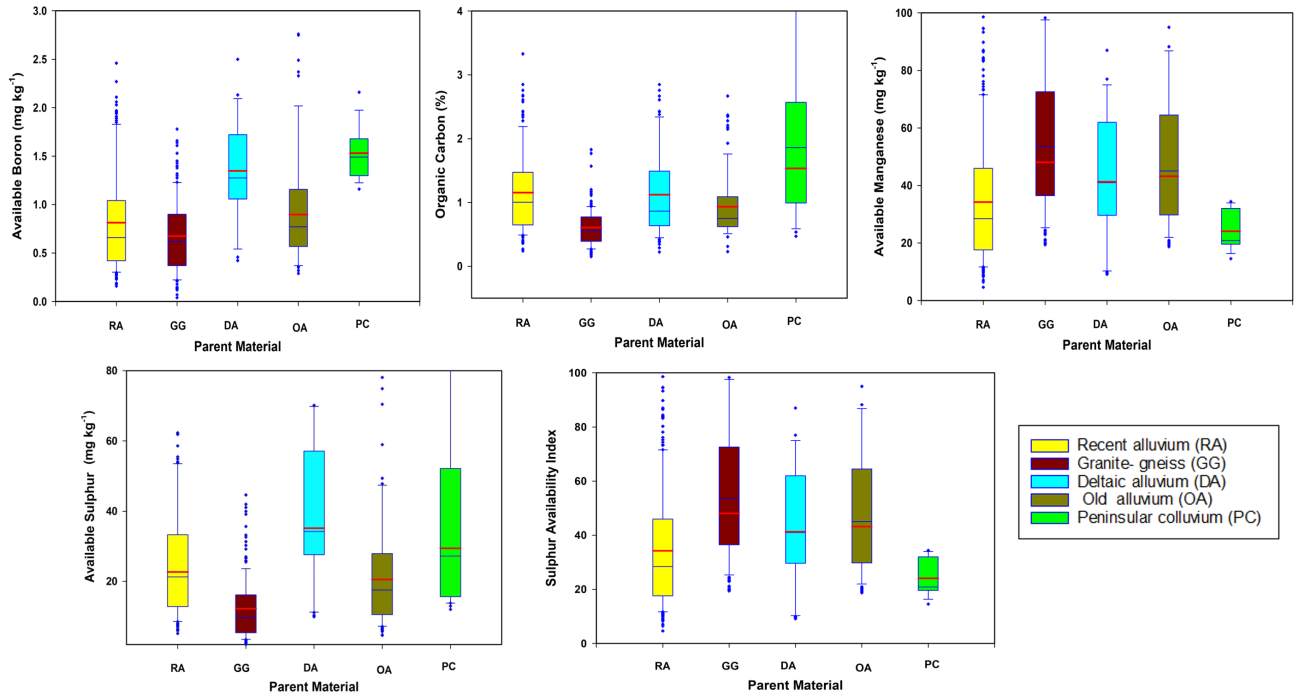

highlighted the influence of soil parent material and climate on soil properties and elemental distribution (Fig. 5). Figure 4: Box plots showing distribution of laboratory measured soil parameters among soils representing five soil parent materials of the study region.

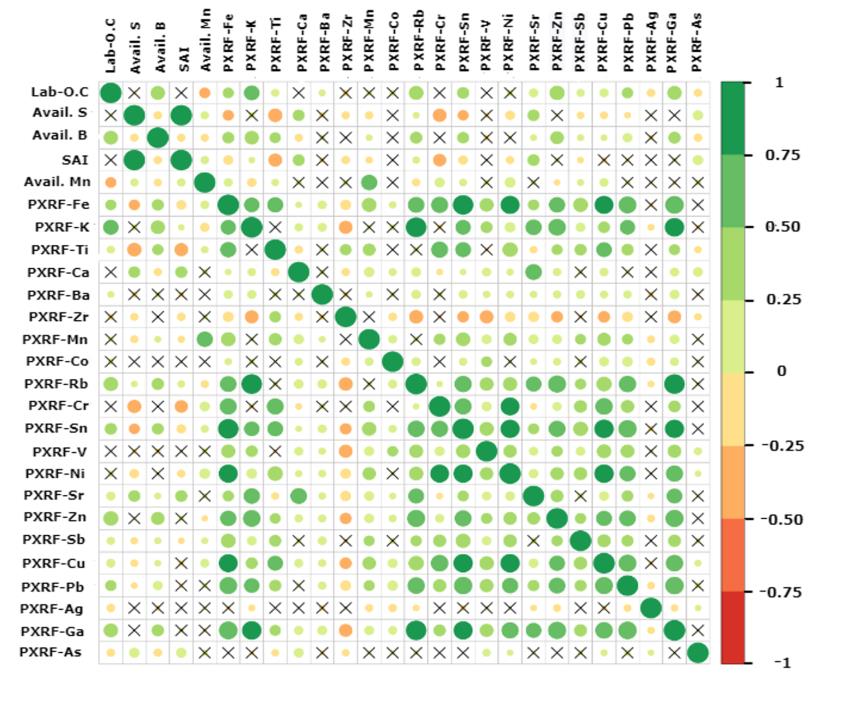

Figure 5: Correlations between laboratory measured soil fertility parameters and PXRF elemetal data for soils of West Bengal, India.
