Received January 11, 2020, accepted January 25, 2020, date of publication January 28, 2020, date of current version February 5, 2020. Digital Object Identifier 10.1109/ACCESS.2020.2970143

2,4

ABSTRACT Digital twin can be defined as a virtual representation of a physical asset enabled through data and simulators for real-time prediction, optimization, monitoring, controlling, and improved decision making. Recent advances in computational pipelines, multiphysics solvers, artificial intelligence, big data cybernetics, data processing and management tools bring the promise of digital twins and their impact on society closer to reality. Digital twinning is now an important and emerging trend in many applications. Also referred to as a computational megamodel, device shadow, mirrored system, avatar or a synchronized virtual prototype, there can be no doubt that a digital twin plays a transformative role not only in how we design and operate cyber-physical intelligent systems, but also in how we advance the modularity of multi-disciplinary systems to tackle fundamental barriers not addressed by the current, evolutionary modeling practices. In this work, we review the recent status of methodologies and techniques related to the construction of digital twins mostly from a modeling perspective. Our aim is to provide a detailed coverage of the current challenges and enabling technologies along with recommendations and reflections for various stakeholders.

INDEX TERMS Digital twin, artificial intelligence, machine learning, big data cybernetics, hybrid analysis and modeling.

I. Introduction

With the recent wave of digitalization, the latest trend in every industry is to build systems and approaches that will help it not only during the conceptualization, prototyping, testing and design optimization phase but also during the operation phase with the ultimate aim to use them throughout the whole product life cycle and perhaps much beyond. While in the first phase, the importance of numerical simulation tools and lab-scale experiments is not deniable, in the operational phase, the potential of real-time availability of data is opening up new avenues for monitoring and improving operations throughout the life cycle of a product. Grieves in his whitepaper named the presence of this virtual representation as ‘‘Digital Twin’’.

Since its presence among the most promising technology trends in Gartner’s recent report , the Digital Twin concept has become more popular in both academia and industry (e.g., see for a non-exhaustive glimpse at the major patented The associate editor coordinating the review of this manuscript and

Approving It For Publication Was Zijian Zhang

. developments), apparently with many different attributes to include or exclude in its definition. For example, Hicks differentiates a digital twin from a virtual prototype and redefines the concept as an appropriately synchronized body of useful information (structure, function, and behaviour) of a physical entity in virtual space, with flows of information that enable convergence between the physical and virtual states.

According to the authors in , digital twins represent real objects or subjects with their data, functions, and communi- cation capabilities in the digital world.

Although the first mention of the word digital twin can be traced back to only the year 2000 when Grieves mentioned it in the context of manufacturing, without a formal mention, several industries and organizations had been exploiting the idea at varying levels of sophistication. Some examples of these are the log of patients health information and his- tory tracking, online operation monitoring of process plants, traffic and logistics management, dynamic data assimilation enabled weather forecasting, real-time monitoring systems to detect leakages in oil and water pipelines, and remote control and maintenance of satellites or space-stations.

21980

This work is licensed under a Creative Commons Attribution 4.0 License. For more information, see http://creativecommons.org/licenses/by/4.0/

Volume 8, 2020

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective FIGURE 1. A working digital twin of an offshore oil platform. Screenshot from Kongsberg Digital’s Dynamical Digital Twin for oil and gas, demonstrating interlinked 2D process diagrams and 3D visualizations of an oil and gas production facility enriched with real-time data from the asset. The color on the pipes shown in the 3D rendering can be used to show data such as flow rates, water / gas / oil fractions etc. The Dynamical Digital Twin can also run and explore what-if scenarios generated by process simulators in which case it will be more appropriately called a Digital Sibling. Copyright Kongsberg Digital 2019.

More recently, the necessity to formalize and utilize the full potential of digital twin concepts arises from a combination of technology push and market pull. While the need for online monitoring, flexibility in operation, better inventory management and personalization of services are the most obvious market pull, availability of cheap sensors and com- munication technologies, phenomenal success of Machine Learning (ML) and Artificial Intelligence (AI), in particular, Deep Learning (DL), new developments in the computational hardware (Graphics Processing Unit (GPU) and Tensor Pro- cessing Unit (TPU)), cloud and edge computing are certainly the major technology push. In this regard, it will not be an overstatement to say that the digital twin concept is going to bring revolution across several industry sectors. The topic of digital twin is so diverse and complicated such that it is almost impossible to cover all its aspects in a single article. The current paper, therefore, is an effort to present a reasonably comprehensive overview of the concept from a purely mod- eling perspective. In doing so we plan to answer the following

• What Is A Digital Twin?

• Is digital twin a new concept or has it existed with

Different Names In The Past?

• What values are expected out of the digital twin

Concepts?

• What are the major challenges in building digital twins? • What are the existing and emerging enabling technolo-

Gies To Facilitate Its Adoption?

• What will be the social implications of this technology? • What is expected from relevant stakeholders to extract

Maximum Benefits From The Digital Twin Technology?

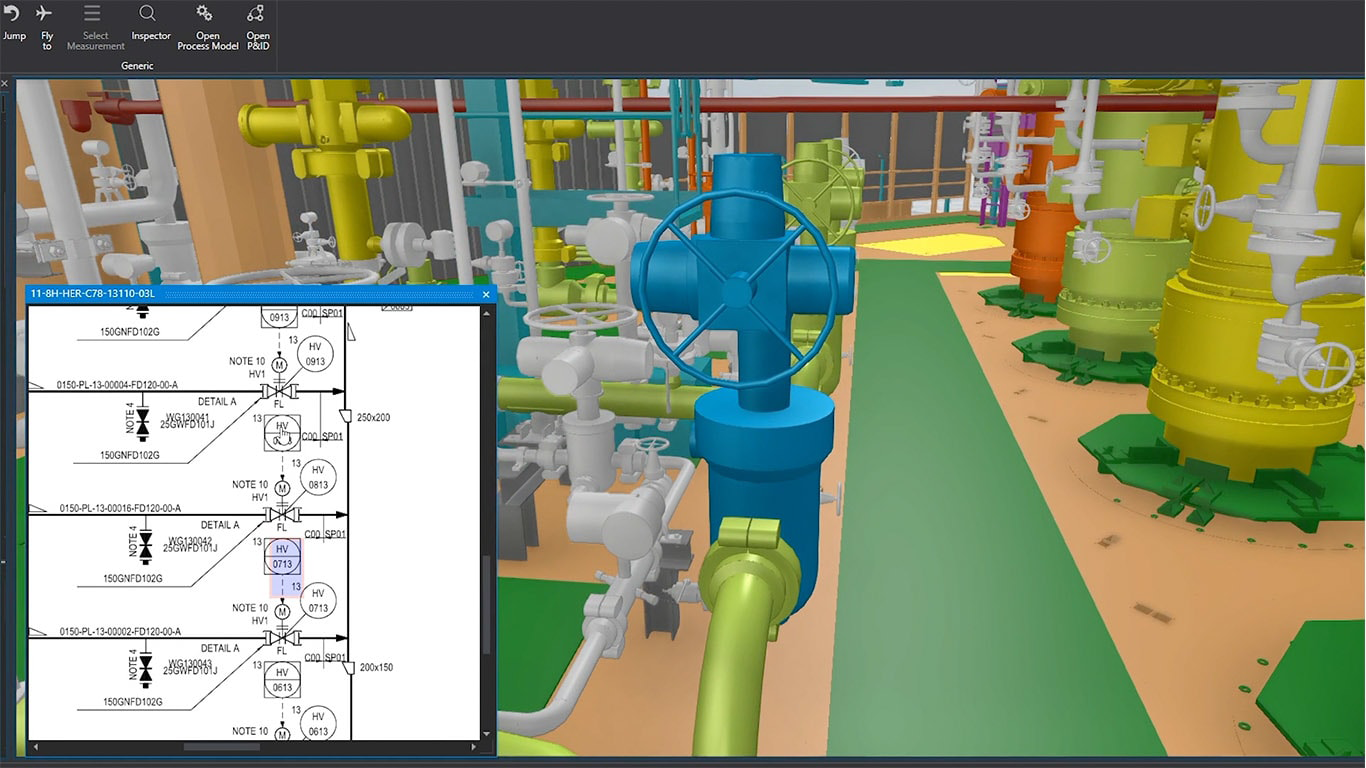

In Fig. 1, we give a taste of what a state-of-the art digital twin of an offshore oil platform looks like. The digital twin is continuously updated with sensor data in near real-time. The sensor data can be augmented with synthetic data generated from simulators which bring physical realism at high spatio- temporal resolutions. The digital twin does not only give real- time information for more informed decision making but can also make predictions about how the asset will evolve or behave in the future. In an ideal setting, a digital twin will be indistinguishable from the physical asset both in terms of appearance and behaviour with the added advantage of making future predictions. In fact the digital twin shown in Fig. 1 also gives the possibility for humans to interact physically with the asset using an avatar. Based on our lit- erature survey we also came across the term digital siblings.

Digital siblings can be considered as copies of the physical asset which need not necessarily run in real-time but can be used to test out hypothetical scenarios for ‘‘what if ?’’ analysis and risk assessment.

We now start this paper with a brief description of eight values (Section II) that any digital twin is capable of

21981

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective generating followed by a presentation of the state-of-the- art technology in five diverse application areas (Section III).

Common challenges across these application areas are iden- tified in Section IV. To address these challenges, certain enabling technologies are required. Some of these tech- nologies already exist but most of them are at different stages of development. A comprehensive overview of the enabling technologies is presented in Section V followed by a section on the socio-economic impacts of the technol- ogy (Section VI). Finally, the paper concludes with reflec- tion and recommendations targeted towards five distinct stakeholders.

Ii. Value Of Digital Twin

Building up on a report from Oracle , the following eight

Value Additions Of Digital Twin Are Identified:

1) Real-time remote monitoring and control: Generally, it is almost impossible to gain an in-depth view of a very large system physically in real-time. A digital twin owing to its very nature can be accessible any- where. The performance of the system can not only be monitored but also controlled remotely using feedback mechanisms.

2) Greater efficiency and safety: It is envisioned that digi- tal twinning will enable greater autonomy with humans in the loop as and when required. This will ensure that the dangerous, dull and dirty jobs are allocated to robots with humans controlling them remotely. This way humans will be able to focus on more creative and innovative jobs.

3) Predictive maintenance and scheduling: A comprehen- sive digital twinning will ensure that multiple sensors monitoring the physical assets will be generating big data in real-time. Through a smart analysis of data, faults in the system can be detected much in advance.

This will enable better scheduling of maintenance. 4) Scenario and risk assessment: A digital twin or to be more precise a digital sibling of the system will enable what-if analyses resulting in better risk assessment.

It will be possible to perturb the system to synthesize unexpected scenarios and study the response of the sys- tem as well as the corresponding mitigation strategies.

This kind of analysis without jeopardizing the real asset is only possible via a digital twin. 5) Better intra- and inter-team synergy and collabora- tions: With greater autonomy and all the information at a finger tip, teams can better utilize their time in improving synergies and collaborations leading to greater productivity.

6) More efficient and informed decision support system: Availability of quantitative data and advanced analytics in real-time will assist in more informed and faster decision makings.

7) Personalization of products and services: With detailed historical requirements, preferences of various stake- holders and evolving market trends and competitions, the demand of customized products and services are bound to increase. A digital twin in the context of factories of the future will enable faster and smoother gear shifts to account for changing needs.

8) Better documentation and communication: Readily available information in real-time combined with auto-

Mated Reporting Will Help Keep Stakeholders Well

informed thereby improving transparency.

Iii. Diverse Applications Of Digital Twin

Five diverse applications of a digital twin are selected to get an in-depth understanding of the state-of-the-art, common challenges, corresponding solutions and future needs to bring more physical realism into it.

A. Health

Health care is one of the sectors which is going to benefit the most from the concept of digital twin. The emergence of smart wearable devices, organized storage of health data of individuals and societies, need for personalized and targeted medication and inter-weaving of engineering and medical disciplines are the major driving forces for the realm of smart and connected health.

Psychologists have begun to use physical activity levels using actigraphs to predict the onset of different episodes of bipolar disorder . Fernández-Ruiz suggests combining computational simulations with tissue engineering for more reliable, successful and predictable clinical outcomes. In , the authors give insight into how a digital twin framework for remote surgery might look like. Bruynseels et al.

projects digital twin as an emerging technology building sil- ico representations of an individual that dynamically reflects molecular status, physiological status and life style over time. Zhang et al. gives an overview of the latest devel- opments in organ-on-a-chip (OOC) engineering. OOC syn- thesized from the tissues of a patient offers an alternative to conventional preclinical models for drug screening. The chip can replicate key aspects of human physiology crucial for the understanding of drug effects. By combining several such OOC one can generate a full body-on-a-chip (BOC).

Skardal et al. gives the progress made in this direction. Although both OOC and BOC are seen as disruptive tech- nologies in the context of digital twin (or digital sibling to be more precise), in the more near future a digital twin of human body can be worked out using most of the technologies and data already available. To begin with, the health care system in developed countries already has recorded health history of its inhabitants. However, one issue is that this monitoring is not regular and a big chunk of the young population is left out because they visit physicians only when sick. To this end, the data collected by smart wearables might hold huge value since it can help balance the database enabling longitudinal studies. Furthermore, in the presence of a digital twin of the human body of a patient, a surgeon can already train himself even before physically conducting the surgery. However, for the digital twin to be a reality there are many technical,

Volume 8, 2020

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective ethical and privacy issues that should be resolved. Physical models for biochemistry, fluid and nutrient transport, and other mechanistic models are required to better simulate the internal working of a human body (organs, blood flow, signal transmission etc). The authors in explained a ‘‘compu- tational man’’ vision, which is a dynamic fast-running com- putational model of major physiological systems, such as the circulatory, respiratory or excretory system in a human body.

In the prototype for remote surgery , the authors high- lighted the importance of low latency, high level of security and reliability hinting at how important roles communication technologies (like 5G) and cybersecurity (encryption tech- nologies) are going to play. Efficient Computer Aided Model- ing (CAM) and Virtual Reality (VR) will also be instrumental in this context. Jimenez et al. also advocated building digital twin technologies in medicine (see, for example, , for a detailed description of medical cyber-physical systems). Kocabas et al. detailed such medical cyber- physical system considering the layers of data acquisition, data preprocessing, cloud system and action module. The secure integration of wireless body area networks (WBAN) with cloud computing platforms and Internet of Things (IoT) networks has been considered as another major challenge in healtcare applications .

B. Meteorology

The meteorological institutes all over the world have been using the concepts of digital twin extensively. They utilize solid models of a region (terrain, buildings), high fidelity physics simulators and big data coming from multiple sources to provide both long and short term weather prediction which are ultimately communicated using stunning rendering of the numerical results via web browser, television or mobile appli- cations (see, for example, –). The big data (terrain data, satellites, masts, radar, radiosonde, sea buoy, drones, LIDAR) handled in meteorology is characterized by the high 4Vs (volume, velocity, variety and veracity). In this applica- tion area, one can find some of the most advanced methods for big data assimilation in massively parallelized numerical simulators capable of operating in real-time, and excellent long-term and well documented data archival and retrieval mechanisms.

One of the reasons for the immense success of the digital twin concept within the field of meteorology is a relatively much lower bar regarding privacy and confidentiality of the data. There is a lot to be learned from this field. While it will not be an exaggeration to term weather forecasting as the most matured digital twin concept, there is still enough scope for improvements with relative ease. The meteorolog- ical services have poor quality in those locations throughout the world where there are not enough weather stations or observation data. The precision meteorology aims to improve weather forecasting by updating predictions through numer- ical modeling, data collection, data analytics, and technol- ogy adoption enhancement. A greater than ever penetration of smartphones in almost all societies has remained an underutilized technology. By 2020 there will be more than 6 billion smartphones in the world. Compared to the paltry 10,000 official weather stations this number is huge. Each smartphone is equipped to measure raw data such as atmo- spheric pressure, temperature and humidity to access atmo- spheric conditions. While the analysis of data from only a few phones might not yield much, analysis of data from billions of phones will certainly be game changer. In fact Price et al.

has already demonstrated the use of smartphones for monitor- ing atmospheric tides. Nipen et al. has recently shown the value of crowd sourced data in improving operational weather forecasts.

In weather and climate centers, large volume and large variety observational data streams have been used to improve our knowledge of the current state of the atmosphere and ocean, that provide an initial condition for forecasts of future states. As an integrated approach, observing system simula- tion experiment (OSSE) systems mimic the procedures used to analyze such satellite, balloon, or surface tower obser- vations for specifying states of the atmosphere –.

An OSSE can be considered as a digital twin to use com- putational models to test new systems before their physical prototype is actually built or deployed. It is anticipated that in the future such OSSE techniques will be applied to diverse domains with the use of increasingly advanced and sophisti- cated simulations of nature and observations .

A near real-time weather forecast is a must for environ- mental situational awareness for improved decision-making scenarios . Examples include, but are not limited to, air traffic management, severe-weather watch, wind-turbines adaptation, and so on. To achieve so, an increasing number of observations should be assimilated instantaneously since the lifespan of many weather phenomena can be less than a few minutes. Solving a purely physics based model with the required resolution while being compatible with the time- scales of natural phenomena might be prohibitive. Therefore, a parallel accelerated digital twin, capable of duplicating the physical system with acceptable accuracy, could offer a real- istic solution to assimilate these short-time observations. The role of this twin is to give quick guidelines whether or not a decision needs to be taken. This is specifically important with the intrinsic stochastic characteristics of weather systems, and hence the model should be able to monitor those seemingly- random sequential observations –. Data-driven tools do an excellent job in terms of online time-cost, however relying only on data and disregarding the known and well- established physics is not a wise step. Hybridization tech- niques have been demonstrated to give superior performance to either of the individual components alone. Therefore, a dig- ital assimilation twin can be built to provide nature-informed indicators for near-time events.

Besides, to test new models and assimilation tools before adopting them into current operational platforms, they need to be tested with some synthetic observations simulated from realistic nature runs (NR) . To maintain a realistic bench- mark, these NR should mimic the natural phenomena with

21983

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective their respective time-scales and provide timely observations. ML and AI tools have shown extraordinary performance learning from available data. Supplying a digital twin with sufficient amount of real (noisy) data and posing the well- established physical constraints can provide a trained and informed nature replica with realistic stochastic behavior.

In particular, this stochasticity is important for testing the predictability of extreme events that usually occur without previous long-term indicators –.

C. Manufacturing And Process Technology

Manufacturing and process technology industries have a his- tory of exploiting the digital twin concepts without explicitly mentioning it. However, with the current trend of digitaliza- tion and demand for customized, high quality products in highly variable batches with short delivery times, the indus- tries are forced to adapt their production and manufacturing style. In this regard, even these industries are reevaluating the digital twin concepts and are trying to include latest enabling technologies (discussed later in Section V) in their workflow. According to a report by BCG , Industry 4.0 is seen as the convergence of nine digital technologies: big data and analytics, cybersecurity, industrial IoT, simulation, aug- mented reality, additive manufacturing, advanced robotics, cloud services, horizontal and vertical system integration.

Borangiu et al. stresses the importance of cloud services in the context of resource virtualization as an enabler for Factory of the Future (FoF) known by different initiatives Industry 4.0 (Germany), Advanced Manufacturing (USA), e-factory (Japan) and Intelligent Manufacturing (China) but similar goals.

Mukherjee And Debroy And Knapp Et Al. Pro-

posed a conceptual framework of a digital twin for 3D printing. In their models, the computationally demanding mechanistic models (for heat transfer, fluid flow and material deposition and transformation) are certainly the bottleneck.

By providing an overview of the historical perspective on

The Data Lifecycle In Manufacturing, In And The

authors highlighted the role of big data in supporting smart manufacturing. The state-of-the-art of digital twin applica- tions in industrial settings has been studied systematically in , where the authors concluded that the most popu- lar digital twin application area is developing the advanced prognostics and health management (PHM) systems. A five- level cyber-physical system structure has been proposed specifically for PHM in manufacturing applications .

In determining the major concepts and key methodolo- gies, the authors in reviewed intelligent manufacturing systems.

A functional mock-up interface has been offered as a tool independent standard to improve model-based design between the manufacturers and suppliers . Such a plat- form independent co-simulation framework can be found in . In , the authors detailed the use of functional mock-up units for the digital twin applications. A digi- tal twin approach has been also highlighted in as a real-time control and optimization tool towards individual- ized production systems.

D. Education

Massive Open Online Courses (MOOCs), which make uni- versity courses available for free or at a very nominal cost is a disruptive technology challenging traditional classroom teaching. In this paradigm change in pedagogy, we are under- going a plethora of opportunities in personalizing education for a more effective teaching. Different students based on their natural talent, interest and backgrounds have different needs. Although universities and schools are recording more and more data about the students, the feedback loop is not complete. A digital twin for students will help counter this shortfall. With the emergence of artificial intelligence driving bots, personalized education and counseling will be more and more available at no additional cost. In fact, a brief discussion on the power of artificial intelligence-powered personaliza- tion in MOOC learning can be found in . A personalized adaptive learning frameworks has been also constructed in using a smart learning environment. In , the authors developed a smart education concept incorporating data min- ing tools. The role of IoT in constructing a smart educational process can be found in . The authors in explained the gradual progress from e-learning to m-learning (mobile learning), u-learning (ubiquitous learning), and s-learning (smart learning). In , the authors demonstrated a digital data management framework for accreditation purposes in order to help assessment process considering data collection, characterization, analysis and implementation. This might also help to map program’s educational objectives to stu- dent outcomes . The authors in discussed a set of demanding skills that are critically important for the emerg- ing digital twin paradigm and highlighted relevant business model changes to accommodate with the Industry 4.0 digital revolution. The growing gap between industry and academia has been highlighted in , where the authors drew attention to tremendous opportunities from a data science perspective.

Combining the digital twin of the education sector with that of other industrial sectors, it would be more efficient in grooming targeted talents.

E. Cities, Transportation And Energy Sector

The digital twin relevant technologies become more mature to offer smart solutions in construction, transportation and energy sectors. In , the authors studied a digital twin concept to engage citizens with city planning with an idea of pairing physical objects with their digital counterparts.

The authors in discussed the requirements of the scal- able cloud model that can be used for smart cities. A col- lection of essays about Singapore, arguably considered the smartest city in the world, can be found in . In his editorial note, Batty discussed the progress towards digital twins concerning urban planning and city science.

A smart city paradigm that can enable increased visibility into cities’ human-infrastructure-technology interactions has

Volume 8, 2020

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective been explained in , in which spatio-temporal city dynam- ics was integrated into a data analytics platform at the real- time intersection of reality and virtuality.

Smart grids use sensors and digital communications tech- nologies to detect and react to local changes in power usage. A cyber-physical system perspective to the smart grid tech- nologies can be found in . The adaptation of the digital twin technology for applications in power system control centers has been recently studied in . In , the authors used a faster than real-time digital twin in predicting dynamic behaviour of smart grid systems.

In , The Authors Outlined A Cyber-Physical System

approach to control large scale road freight transporta- tion problems including minimized fuel consumption with integrated routing and transport planning. An integration approach between vehicles and mobile cloud computing has been discussed in . A vision for the integration of cyberspace and physical space has been discussed in to tackle some challenges in aviation industry. In , the authors provided a hybrid artifact solution for air traf- fic control, in which paper and digital media are identical and have equal importance, by suggesting tangible interac- tion and augmented reality. A discussion on digital artifacts related to simple examples of structural engineering can be found in .

The recent technologies related to the Industry 4.0 have been recently reviewed for oil and gas sector . Highlight- ing the digital shift, the authors in discussed the integra- tion of such technologies for improving energy efficiency in smart factories with the aim of reducing both production costs and greenhouse gas emissions. Fault detection and diagnos- tics issues in built environment can be found in towards improved Building Information Modeling (BIM) systems.

As discussed in , BIMs constructed from a CAD model do not often capture details of a facility as it was actually built. In , the authors introduced BIM digital twins for better assessment and development of the design, construction and performance of residential buildings. A full scale digital twin of a district heating and cooling network aligned with the visions of Industry 4.0 can be found in .

Iv. Common Challenges

As seen in the previous section, the concept of digital twin is already in use in several application areas, however, in order to make digital twins completely indistinguishable from their physical counterparts, many challenges have to be addressed.

Digital twins should consider application-specific issues in terms of time critical, safety critical and mission critical services –. The feasibility and challenges of using a digital twin to perform functionality and cyber-security analysis is discussed in . In a similar context, the authors in provided a compound table that touches on the impor- tance of major cyber-physical system challenges for various application domains. Their discussion includes detailed def- inition for interoperability (composability, scalability, het- erogeneity), security (integrity, confidentiality, availability),

Availability,

safety), sustainability (adaptability, resilience, reconfigura- bility, efficiency), reliability (robustness, predictability, main- tainability), and predictability (accuracy, compositionality).

In , the authors discussed various signal processing related challenges in digital twin technologies. Strict require- ments for explainability and the resulting data protection laws now require that the decisions that are made for human should be explainable to humans . For example, human factor perspectives on auto driving systems can be found in a recent study . With the rapid development of the AI technologies in mind, the moral machine experiment provides many insights how machines might make moral decisions. In the context of the current paper we stress on challenges belonging to four categories that the modelling community should focus on. Firstly, the success of digital twin technology depends on a real-time two way connection between the physical asset and its digital twin to bring in physical realism without any compromises. Major challenges in ensuring this relates to spatio-temporal resolution of sensor data, latency in communication, large data volume, large data generation rate, large variety of data, large veracity of data and fast archival retrieval and online processing of data.

Secondly, as the physical asset evolves in time it requires a corresponding evolution of the models while still maintaining backward compatibility. Thirdly, as most of the physical assets for which one can envision digital twins will require high level of safety and security, there will be a need for greater transparency and interpretability of the decisions taken based on digital twins. This will require models which are interpretable and physically consistent. Finally, the digital twin needs to be presented to the end user in a way that it appears indistinguishable from the physical asset and easier and intuitive to operate. All these challenges which require the immediate attention of the modellers are summarized in Table 1. In the next section we focus on enabling tech- nologies that can have maximum impact on addressing these challenges irrespective of the application areas.

V. Enabling Technologies

It is quiet evident from the preceding section on com- mon challenges that we need to develop technologies that will address those challenges. In this section we attempt to cover the enabling technologies under five major cate- gories: physics-based modeling, data-driven modeling, big data cybernetics, infrastructure and platforms, and human- machine interface. The section is structured in way to address the challenges using various enabling technologies (see Table 1 for an overview).

A. Physics-Based Modeling

So far, the engineering community has been driven mostly by a physics-based modeling approach (e.g., see Fig. 2 for broader hierarchical stages). This approach consists of observing a physical phenomenon of interest, developing a partial understanding of it, putting the understanding in

21985

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective

Table 1.

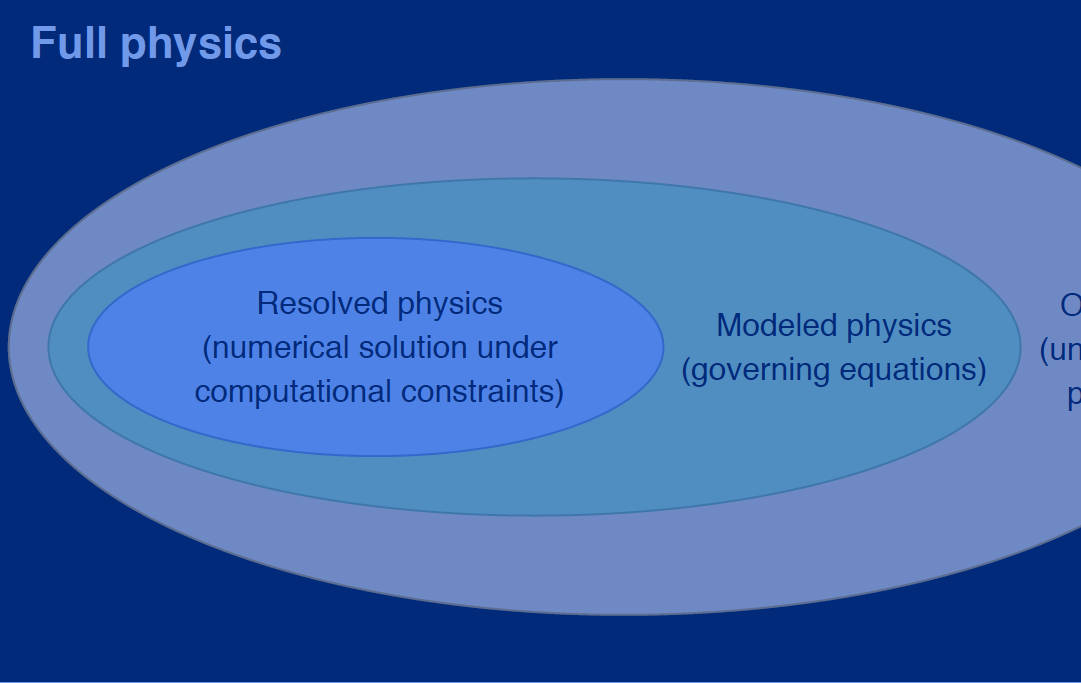

Mapping between common challenges and enabling technologies. FIGURE 2. Physics based modeling: Based on first principles but can only model part of known physics due to assumptions at different stages.

the form of mathematical equations and ultimately solving them. Due to partial understanding and numerous assump- tions along the line from observation of a phenomenon to solution of the equations, one ends up ignoring a big chunk of the physics. The physics based approach can be subdivided broadly into experimental and numerical modeling.

1) Experimental Modeling

This approach consists of doing a lab or full scale experi- ment or surveys to understand a process or a phenomenon, developing correlations or models of quantities that can not be directly measured (or is expensive to measure) that can later be used in the the context of a digital twin. Hunt exper-

Iment To Collect Health Data, Bubble Experiment

to collect urban boundary layer measurements, wind tunnel experiments to understand the physics of fluid flows are some of the examples that have been used to develop simplified parameterizations which are now widely used in the respec- tive fields. Laboratory scale experiments are conducted on reduced scale of the problem under investigation. While it is possible to work with a reduced scale model, the scaling laws based on physics are almost always impossible to satisfy and hence limit their utility. Furthermore, both lab scale as well as field experiments can be extremely expensive, and they are therefore conducted for very coarse spatio-temporal resolutions.

2) Three-Dimensional (3D) Modeling

The first step towards numerical modeling is 3D modeling. It is the process of developing a mathematical representation of any surface of an object. In most of the digital twins, 3D models are the starting point. The 3D models can either be constructed by a 3D scan of the object or through specialized software using equations and finally represented in terms of curves and surfaces. Almost all 3D models can be categorized into solid or shell models. In the context of digital twin, the 3D model goes as input to the physical simulators and hence its quality is of utmost importance. In this regard the representation of 3D finite element models using splines (denoted isogeometric analysis) is interesting since it enables streamlining the whole workflow from 3D modeling to sim- ulation and visualization of results, see .

During the last decade great progress towards adaptive refinement of isogeometric 3D models has been achieved. One popular method for local refinement is the Locally

Refined B-Splines (Lr B-Splines), See And . In

and LR B-Splines have been proposed for achieving more compact representation of the object geometry. In fact

Volume 8, 2020

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective LR B-Splines approach appears to be very efficient in achiev- ing high data compression ratios, which is very advantageous in a digital twin context. These new developments facilitate real-time geometry modifications (e.g., in simulating surg- eries, deformation of structures) and associated simulations (e.g., fluid-structure simulations).

3) High Fidelity Numerical Simulators

In order to add physical realism to any digital twin, the gov- erning equations derived through physical modeling need to be solved. For simplified equations, sometimes analytical solutions are possible to derive but most of the time due to complexities, the equations need to be solved numerically on computers. Various discretization techniques over time have been developed for this. Some of the commonly used methods belong to one of the following categories: Finite Difference Method (FDM), Finite Element Method (FEM), Finite Volume Method (FVM) and Discrete Element Method (DEM). A detailed history of these methods can be found in . They have been extensively used in many open- source and commercial multi-physics simulation packages (e.g., OpenFOAM, FEniCS, Elmer, ANSYS, Comsol, STAR- CCM+ etc).

A Great Advantage Of Any Physics Based Modeling

approaches is that they are generally less biased than data- driven models since they are governed by the laws of nature. However, the choices of which governing equation (e.g. tur- bulence model in fluid flows) should be applied for a given physical system might be biased in the sense that different scientists/engineers have different preferences (e.g. due to different educational background), but this kind of bias is transparent as long as the governing equations are stated.

Furthermore, physics based models are highly interpretable along with their generalizability to seemingly very different problems governed by the same physics. At the same time, however, these models can be prone to numerical instability, can be too computationally demanding, can have huge errors owing to uncertainty in modeling and inputs, and lack of robust mechanisms to assimilate long term historical data.

Another problem associated with numerical modeling of man made objects is the incompatibility between the way 3D geometries are modeled in CAD-systems and the way the equations are solved in numerical simulators. It is estimated that 80% of the total time goes into cleaning the geometries and pre-processing, if not more, and only the remaining 20% for actual simulation and analysis. To alleviate this problem Hughes et al. in 2005 came up with a novel method for analysis known as the Isogemetric Analysis. The approach offers the possibility of integrating finite element analysis with any conventional NURBS-based CAD design tools.

Since 2005, there has been an explosion of publication in this field. The method has been utilized to solve a large array of

Problems Ranging From Fluid Mechanics , , To Solid

mechanics to fluid-structure interaction , as well as adaptive computational mechanics based on a posteriori error estimates and .

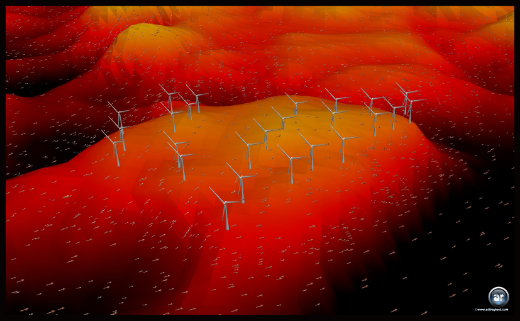

FIGURE 3. Data-driven modeling: Data is seen as a manifestation of both known and unknown physics. Today advanced numerical simulators are e.g. used to improve surgical procedures and develop patient-specific models that enable predictive treatment of cardiovascular diseases. High-performing simulators capable of handling a billion degrees of freedom are opening new vistas in simulation-based science and engineering and combined with multiscale modeling techniques have improved significantly the predictive capabilities. Thus, the dream of establishing numerical laboratories (e.g. numerical wind tunnels) can now be realized for many interesting real world systems. Despite their immense success, the use of high-fidelity simulator has so far been limited to the design phase of man made engineer- ing objects/systems. Unless their computational efficiency is improved by several orders of magnitude their full potential will remain under-utilized in a digital twin context. However, the great advances of the high-performance simulators during the last two decades qualify (many of) them to be denoted ‘‘high-fidelity’’ models that can serve to develop ‘‘Reduced Order Models’’ (ROM), see below, which may be used to establish predictive digital twins.

B. Data-Driven Modeling

While physics based models are the workhorse at the design phase, with the abundant supply of data in a digital twin context, opensource cutting edge and easy-to-use libraries (tensorflow, torch, openAI), cheap computational infrastruc- ture (CPU, GPU and TPU) and high quality, readily available training resources, data-driven modeling is becoming very popular. Compared to the physics based modeling approach, as illustrated in Fig. 3, this approach is based on the assump- tion that since data is a manifestation of both known and unknown physics, by developing a data-driven model, one can account for the full physics. In this section we present the state-of-the-art starting from data generation and safety to advanced data driven modeling techniques.

1) Data Generation

One of the main reasons for the recent popularity of digital twins is the availability of cheap and miniaturized sensors which are capable of recording all possible kinds of imag- inable data: text, audio, RGB images, hyperspectral images

21987

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective and videos. These miniaturized sensors can be installed on moving vehicles, drones, small satellites and underwater vehicles to quickly span all the four dimensions (three in space and one in time). Crowd sourcing of data because of the popularity of smart phones is also contributing mas- sively towards data generation. It has been used to build up comprehensive databases of urban landcover World Urban Database and Access Portal Tools (WUDAPT ) database

And Local Weather Using Netatmo Stations . Online

surveys and activities on social networking sites have created huge databases which are being used for training advanced ML models that are now being widely used for analyzing data.

Ownership

With huge amount of data comes the problem of quality, man- agement and ownership resolution of the data. For a correct working of digital twin there will be a need to improve the quality of data and compress them on the fly. Algorithms are required for automatic outlier detection and filling of missing data. At the moment very simplistic models like Principal Component and multidimensional interpolation techniques are utilized to fix these issues. However, more advanced methods like Restricted Boltzman Machine and Generative Adversarial Networks can be employed. Martens has developed IDLE (Intensity observed = Displacement model of (Local intensity model) + Error) methods for on the fly learning from big data stream. As mentioned earlier LRB-S representations can be used for achieving massive compres- sion ratios. The problem of ownership will be a tough nut to crack. The issue of data ownership can be complicated due to the involvement of different stakeholders who participated in the generation, processing, value addition or analysis of data.

This can jeopardize the smooth working of any digital twin concept.

3) Data Privacy And Ethical Issues

For successful implementation of digital twins, trust in infor- mation system is extremely critical especially when stringent privacy laws are getting shaped, digital twin will be used more and more in safety critical applications. In this context, Nakamoto presented two game changing concepts. The first one is bitcoins and the other is blockchain. Blockchain is a distributed, secured and verifiable record of information (e.g., data, transactions) linked together in a single chain. The information is stored inside cryprographic blocks connected in a sequential order in a chain. The validity of each new block is verified by a peer-to-peer network before it is linked to the blockchain using a crytographic hash generated from the contents of the previous block. This ensures that the chain is never broken and each block is permanently recorded. This provides maximum security, traceability and transparency in applications where blockchains can be employed. In the con- text of digital twin where traceability and security of informa- tion is of utmost importance, blockchain is foreseen to play an important role.It will ensure secured archival and retrieval of data facilitated through advanced cryptography. It will be practically impossible to loose data since due to its inherent decentralized nature the data is always retrievalable. It will remove the risk of malicious attacks. All of this will come with greater transparency and hence greater accountability.

The businesses will also be able to put pre-set condition on the blockchain to control automation. Mandolla et al. gives a nice insight into the exploitation of blockchain technology in building a digital twin for additive manufacturing with focus on aircraft industry, and Li et al. introduces an extended socio-technical framework for the implementation of blockchain into the construction industry. The authors in propose a blockchain based searchable encryption for electronic health record sharing. Reyna et al. gives a detailed overview of integration of the blockchain technology with IoT, its challenges (related to scalability, privacy, secu- rity and a total dearth of censorship) and latest research work to alleviate the associated shortcomings.

4) Machine Learning And Artificial Intelligence

Smart data analysis using ML and AI is expected to play a major role in the context of digital twin. ML is the scientific study of algorithms and statistical models that computer sys- tems use in order to perform tasks effectively without being explicitly programmed to do so and instead relies on learning from data alone. Although the term was coined in 1959 by Arthur Samuel, an American pioneer in the field of computer gaming and artificial intelligence, its real potential is being realized only recently when computers have begun to out- perform humans in even creative tasks like art generation, script writing, text summarization, language translation and language interpretation and cross modal retreival . Any ML can be broadly categorized into supervised, unsupervised and reinforcement learning.

Supervised learning is aimed at learning a mapping from independent variables to dependent variables. The mapping tasks can be either regression or classification. Most of the commonly used supervised algorithms are Linear Regres- sion, Logistic Regression, Support Vector Machine, Decision Trees, Random Forest and Artificial Neural Networks. The recent success of ML in outperforming humans in image

Classification , , ) And Games Like Go Is

attributed to Deep Learning (DL) or Deep Neural Net-

Work (Dnn). Restricted Boltzmann Machines (Rbm)

can be seen as stochastic neural networks that learn the input probability distribution in supervised as well as unsuper- vised manner and hence can be a powerful tools in detecting anomalies. In the context of digital twin, temporal RBM can be used to model multivariate timeseries, convolutional RBM is used to understand structure in timeseries, mean co-variance RBM to understand the covariance structure of the data and for dimensionality reduction . Shallow Autoencoders which are neural networks whose input and output layers are exactly the same and sandwich a layer with comparatively much reduced number of nodes have been in

Volume 8, 2020

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective use for efficient linear data compression (similar to Princi- pal Component Analysis (PCA)). However, just by stacking many more layers result in Deep Autoencoder. These have been used for very diverse applications like diabetes detection , action detection for surveillance , feature learning for process pattern recognition , denoising for speech

Enhancement , Fault Diagnosis , Social Image

understanding , low light image enhancement . Convolutional Neural Network (CNN) is another DL method which although has achieved unprecedented success mainly in image classification (ImageNet, AlexNet, VGG, YOLO, ResNet, DenseNet etc.) exceeding human level accuracy, have also been extensively used in textual analysis. More

Recently Generative Adversarial Networks (Gans)

where two networks called generators and discriminators are trained to outperform each other resulting in generators which can create data which are indistinguishable from real ones has achieved huge success. The method has huge potential in improving the data quality like upscaling image resolution

, Denoising , Filling Missing Data All Of Which

are relevant in the context of digital twins. As a powerful Recurrent Neural Network (RNN), Long Short Term Mem- ory (LSTM) network has demonstrated phenomenal success in modeling data involving time. Karim et al. demon- strated the use of LSTM in timeseries classification. In LSTM was used to forecast petroleum production. By com-

Bining Cnn And Lstm, Kim Et Al. In Demonstrated

its value in making predictions of the energy consumption in residential areas. The predictive capability of LSTM in particular will be instrumental in creating future scenarios in the context of digital siblings when direct observation data will be unavailable. The supervised algorithm in a digital twin context will be used for making predictions / projections or for conducting sensitivity / what-if analysis.

One of the shortfalls of supervised algorithms is the need of dependent variables (labeled data) which might not always be available as in the case of anomaly. Unbalanced or skewed data rarely results in reliable prediction models. Anomaly detection which is extremely important for online health mon- itoring of any system, the labeled data is rarely available in abundance to train a supervised algorithms. In such a situation unsupervised algorithms like self organized maps (SOM)

And Clustering Analysis (K-Mean, T-Sne )

have better utility. Another important application of unsu- pervised algorithms like PCA and Deep Autoencoder can be for on-the-fly data compression for real-time processing, communication and control of the system under operation.

While supervised and unsupervised learning ML algo- rithms have been the most commonly employed algorithms in real applications, they are not of much use in the absence of enough data. Reinforcement Learning , though in its infancy has the potential to aid in such a data-deprived situation. Reinforcement learning is an area of ML in which instead of learning directly from the data, an agent figures out an optimal policy to maximize its long term cumulative gain.

It can be a key enabler for smart decision making systems in the technologies related to the Industry 4.0 (see also for a nice discussion of the anatomy of a decision). For example, in , the authors illustrated how a reinforce- ment learning framework might support operation and main- tenance of power grid applications. The algorithms without any prior knowledge and starting to play random gains, in 24 hours, achieved super-human level performance in chess, shogi as well as Go and convincingly defeated a work-champion program in each case. Since then the algo- rithm has been applied to solve more engineering problems like advanced planning of autonomous vehicles , lung cancer detection in medical treatment , smart agriculture

, Uav Cluster Task Scheduling , Chatbots ,

autonomous building energy assessment . Some advantages of the data-driven models is that they keep on improving as more and more data (experiences) are fed into them. The training part of the data-driven modeling might experience issues associated with instabilities. How- ever, once trained the models are stable for making predic- tions. At the same time the data-driven models have some downsides too. Most complicated models of this class spe- cially the ones based on DNN are uninterpretable. In safety critical applications like automatic drug injection in humans, guidance and navigation of autonomous vehicles or oil well drilling, a black-box approach will be unacceptable. In fact the vulnerability of DNN have been been exposed beyond

Doubt In Several Recent Works , , . These

models can also be extremely biased depending upon the data they were trained on.

C. Big Data Cybernetics: The Art Of Steering

Norbert Wiener defined cybernetics in 1948 as ‘‘the scien- tific study of control and communication in the animal and the machine,’’ which can be easily linked to digital twins.

The objective of cybernetics is to steer a system towards a reference point. To achieve this, the output of the system is continuously monitored and compared against a reference point. The difference, called the error signal is then applied as feedback to the controller which in turn generates a system input that can direct the system towards the reference point.

At times the quantity of interest that is required to compare against the reference can not be measured directly and hence has to be inferred from other quantities that are easier and cheaper to measure. With an increase in computational power and availability of big data, there are two major improvement possible within the cybernetics framework. Firstly, the con- trollers can be improved by increasing its complexity to incor- porate more physics. Secondly, the big data can be utilized for a better estimation of the quantity of interest. In order to address these two issues a new field of big data cybernetics shown in Fig. 4 is proposed. It is an adaptation of the concept first conceived in at the Norwegian Univeristy of Science and Technology. In the figure, the first step is par- tial interpretation of big data using well understood physics- based models. The uninterpretable observation at this stage is termed interpretable residual and in a second step is modeled

21989

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective FIGURE 4. Big Data Cybernetics: The model starts as a physics based model that is based on first principles but as time progresses the model is continuously updated using knowledge generated from data.

using an explainable data-driven approach. After the second step, again an uninterpretable residual remains which is mod- eled using more complex and black-box models preferably with some inbuilt sanity check mechanism. The remaining residual is generally noise which can be discarded. The three steps result in a better understanding of the data and hence improved models, provided, new approach can be developed to combine physics based modeling and data-driven modeling with big data. The steps are continuously looped with the availability of new streams of data (i.e., see Fig. 4). The new approach should be intended towards removing the shortfalls of pure physics-based or pure data driven modeling approach (see Table 2 for a summary). We call this new approach Hybrid Analysis and Modeling (HAM) and define it as a modeling approach that combines the interpretability, robust foundation and understanding of a physics based modeling approach with the accuracy, efficiency, and automatic pattern- identification capabilities of advanced data-driven ML and AI algorithms. It is possible to place HAM approaches at the intersections of big data, physics based modeling and data driven modeling as shown in Fig. 5.

1) Data Assimilation

Data assimilation (represented by the intersection of big data and physics-based high fidelity simulations in Fig. 5) FIGURE 5. Hybrid analysis and modeling: Hybridization happens at the intersection of the three cricles.

is a well-established mathematical discipline that com- bines computational models with observations. It is a geo- science terminology and refers to the estimation of the state of a physical system given a model and measurements.

Volume 8, 2020

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective

Table 2.

Physics based modeling vs data-driven modeling. In other words, it is the process of fitting models to data. In engineering fields the terms filtering, estimation, smooth-

Ing, Prediction Are Often Used –. Filtering And

smoothing are very closely related concepts and differ by causality of the estimation problem. However, both terms refer to inference based on some data, and often used inter- changeably. The term smoothing is generally used to correct predictive model before the current time by incorporating observations from its past and future. However, the term fil- tering is used to incorporate available observations to update the model at the current time. In practice, many techniques in data assimilation can be derived both from a determinis- tic and stochastic point of view. There are many presenta- tions of the topic in books, review and tutorial articles (e.g.,

We Refer To – For Detailed Mathematical Descrip-

tions). Although data assimilation approaches initially gained

Popularity In Numerical Weather Forecasting –,

they are now routinely used in fields as diverse as finance, medical physics, signal processing, computer vision, robotics

And Navigation –, And These Techniques Offer A

great promise in many digital twin applications. In an operational atmospheric forecast, data assimilation deals with very large-scale state space systems and typically enables initialization of models by statistically combining information from short-range model forecasts and observa- tions, based on the estimated uncertainty of each . Data assimilation methods differ primarily in their treatment of the model background error and the methods for solving the anal- ysis equations . Both variational (adjoint methods) and sequential methods (Kalman filters) have been successfully used in operational weather centers to minimize the error between forecasting trajectory and noisy observation data.

Dedicated comparisons of four-dimensional variational data assimilation (4D-VAR) and ensemble Kalman filter (EnKF)

Approaches Can Be Found In –. Their Variants As

well as hybridized approaches have been also introduced in atmospheric science and numerical weather predictions

, . We Refer To Recent Studies On The Use Of The

Kalman filter and particle filter in the digital twin applications.

2) Reduced Order Modeling

There are a great number of high-dimensional problems in the field of science (like atmospheric flows) that can be efficiently modeled based on embedded low-dimensional structures or reduced order models (ROMs). This fam- ily of model can be best described at the intersection of physics-based high fidelity simulations and data-drive mod- els as shown in the Fig. 5. These ROMs often trade a level of accuracy for much greater computational speed.

This ROM concept (also called surrogate modeling or metamodeling) allows one to emulate complex full-order models or processes, and lies at the interface of data and domain specific sciences. It has been systematically explored for decades in many different areas including com-

Cesses –, As Well As Systems And Control Theories

– in order to provide computational feasible surro- gate models. Although the concept can be traced back to the works done by Fourier (1768-1830), there exist many recent monographs – and review articles –.

In practice, ROMs (i.e., emulators) have great promise for applications especially when multiple forward full-order numerical simulations are required (e.g., data assimilation

Trol –). These Models Can Quickly Capture The

essential features of the phenomena taking place, and we often might not need to calculate all full order modeling details to meet real-time constraints. Another advantage can be realized for developing surrogate models stationary parameterized systems, where full order models typically require many pseudo-iterations to converge to a steady-state

At Each Control Parameter –. Therefore, Reduced

order modeling has been considered as a key enabler to compress high fidelity models into much lower dimen- sions to alleviate heavy computational demand in digital twin technologies . ROM enables reusing simulation

21991

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective models from the early phases of product development in later product lifetime phases, especially during the product operation phase .

Most of the conventional ROMs require the exact form of the underlying partial differential equations (PDEs) involved to explain the physics phenomena (hence called intrusive).

This is sometimes impractical due to Intellectual Property Rights or issues related to an incomplete understanding of the underlying processes. Alternatively, nonintrusive data- driven models (lying at the intersection of big data and data-driven models in Fig. 5) have emerged recently with the democratization of computational power, explosion of archival data, and advances in ML algorithms –.

These approaches mostly involve matrix operations, which can be very efficiently parallelized on affordable GPU and TPU giving several orders of magnitude speedup as required in real-time applications. One of the main advantages of a nonintrusive approach is its portability, which results from the fact that it does not necessarily require the exact form of the equations and the operators or methods used to solve them.

This makes the approach applicable to experimental data where the equations are often not well established or have huge uncertainties involved in their parameters. Together with their modularity and simplicity, nonintrusive models offer a unique advantage in multidisciplinary collaborative environments. It is often necessary to share the data or the model without revealing the proprietary or sensitive infor- exchange data (with standardized I/O) or executables, secur- ing their intangible assets and intellectual property rights.

Furthermore, nonintrusive approaches are particularly use- ful when the detailed governing equations of the problem are unknown. This modeling approach can benefit from the enormous amount of data collected from experiments, sensor measurements, and large-scale simulations to build a robust and accurate ROM technology.

Once ROMs are constructed its operational execution cost is usually negligible in PDE constrained optimization prob- lems. Besides, another advantage can be viewed in such a way that the optimization task may be separated from the gener- ation of data for a ROM via a design of experiments (DOE) approach or other interpolation approaches , . The statistical approach proposed by Krige has become highly popular in such multidimensional interpolation prob- lems (known as Kriging or Gaussian Process Regression ). Of course, we have to take into account the cost of creating an initial database requiring large-scale high- fidelity simulations within complex domains discretized by finite volumes or finite elements. The authors, in their recent

Studies –, Make Rom Inter-Operatable Between

different discretization techniques. In addition, the use of radial basis functions (RBF) in finite elements can be found in for nonlinear structural analysis. A description of radial basis approximation in PDE systems can be found in

. A Hybrid Reduced Basis And Finite Element Method

has been proposed as a component-to-system model order reduction approach, which is considered as one of the key enablers in digital twin technologies . An application of RBF to construct a noninstrusive ROM for data assimilation applications can be found in .

3) Hardware And Software In The Loop

Hardware-in-the-loop (HIL) simulation approach, a well- established concept of using a physical object during sys-

Tem Development Phase In Control Engineering –,

can be also considered as a promising approach towards near real-time predictions within digital twin platforms (e.g., see also software-in-the-loop (SIL) simulation studies for

Early Design Processes –). For Example, A Real-

time co-simulation concept for HIL simulations has been presented in considering the virtual commissioning of production systems.

4) Other Hybridization Techniques

As the constructive criticism of Albert Einstein and many oth- ers had helped to develop a better understanding of quantum

Mechanics –, We Believe The Valuable Criticisms

coming from domain scientists might help to develop more interpretable ML methodologies for scientific applications. For example, we refer to recent surveys of ML in domain- specific areas of molecular and material science and fluid mechanics .

Complete replacement of equations with ML algorithms for gaining computational efficiency when generalization is not a necessity (e.g., we refer to – and references cited therein for speeding up numerical solvers for real- time applications), and can be used in the context of digital twin when the same process is to be monitored time and again. However, this approach will fail in unexpected situ- ation because the model only learns to interpolate and not extrapolate.

A better approach on the integration of ML to physical pro- cesses has been demonstrated intuitively in where the known physics is modeled using the established governing equations while the unknown physics is modeled using black- box DNN or LSTM networks. When combined, the black-box part improves the overall accuracy of the combined model and the equation based part puts an inbuilt sanity check mechanism to detect unexpected behavior of the black-box part. In their perspective , the authors, considering an Earth system model, charted a comprehensive integration scheme that can be done through (i) improving parameteriza- tion, (ii) replacing physical submodel with machine learning, (iii) analysis of model-observation mismatch, (iv) constrain- ing submodels, and (v) developing surrogates. It has been concluded that a joint modeling approach offers viable solu- tions to tackle challenges such as interpretability, physical consistency, noise, limited data, and computational demand, when these theory-driven physical process models combined with the versatility of data-driven ML.

Another approach to improving the interpretability of any ML algorithm is to reduce the complexity of the algorithm.

Volume 8, 2020

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective One way of doing this is to engineer new features based on domain knowledge and informing the ML about it. Since, the algorithm is relieved of the additional task of rediscov- ering these features, one can work with simpler algorithms with far better accuracy. This approach was demonstrated in the context of material discovery in , .

More work on hybrid analytics or hybrid physics-AI mod-

The Works Done In , Using Such Hybrid Approaches

combining deterministic and ML components in general cir- culation models (GCMs) for applications to climate modeling and weather predictions. The processes in GCMs can be split into two parts referring to model dynamics (i.e., set of 3D equations of motion governed by PDEs for mass, momen- tum, energy etc) and model physics (i.e., source terms for parameterizing atmospheric radiation, turbulence, precipita- tion, clouds, chemistry, etc). The hybrid approach has a good motivation for emulating model physics, since this part often dominates the total model computation time. Similar gray- box approaches have been gaining popularity in various other

Bioprocess , Built Environment , Petroleum ,

reactor design and quantum chemistry ). Another interesting way of combining physics based mod- eling and big data is the approach advocated by Soize and Farhat and . They exploit available data to adapt the subspace in which the solution of the problem formu- lated using the computational model is searched. The method is innovative as it discover some form of the information or knowledge encapsulated in data, instead of the common approach to adapt model parameters. The resulting nonpara- metric probalistic reduced order method enables a sound mathematical/statistical based combination of physics based model and data highly relevant in a digital twin context.

5) Physics-Informed Ml

When it comes to utilizing ML algorithms in cases where the underlying physical process of high dimension, some of the challenges include incorporating physical laws within the learning framework, producing solutions that are inter- pretable, addressing nonlinearities, conservation properties, and dealing with the massive amount of data needed for training. For example, in mathematical models governed

By Pdes, The Authors In Demonstrated A Different

approach of programming physics directly into the DL algo- rithm. They did so by using the residual of the govern- ing equations to regularize the cost function that can be

Optimized In Any Ml Algorithm. In , The Pdes Are

reformulated as backward stochastic differential equations and the gradient of unknown solution is approximated using neural networks. This is inspired from the deep reinforce- ment learning with gradient acting as the policy function.

Physics-informed ML ideas have also been utilized in various areas including inorganic scintillator discovery , fluid

Applications . In , The Authors Have Presented A

comprehensive review on the taxonomy of explicit integra- tion of knowledge into ML. As generously highlighted by Martens in his perspective paper , most domain-specific software tools can be improved by fresh impulses from the developments in computer and cognitive sciences, and in return, many specific disciplines have a lot to give to these sciences as well as to other fields. Therefore, the concept of Physics/Knowledge/Science-informed ML might offer a powerful transformation to combine practice and theory (e.g.,

Please See – For Promoting Theory-Guided Ml In

various disciplines). For example, a symmetry enforcing approach to learn salient features from a sparse data set has been introduced using a knowledge injection concept , that might be a key enabler in developing digital twin technologies.

6) Compressed Sensing And Symbolic Regression

Compressed sensing (CS) has been applied to signal process-

Ing In Seeking The Sparsest Solution –. Sparsity-

promoting optimization techniques (e.g., least absolute shrinkage and selection operator (LASSO) and its general- izations) often perform feature selection through L1 penalty added to recover sparse solutions –. Ridge regres- sion is another regularized variant where L2 penalty is added

To Objective Function –. Elastic Nets Combine The

strengths of the LASSO and ridge approaches –. Sequentially thresholded ridge regression (STRidge) can be also used in more complex systems with correlated basis functions .

In recent years, the use of ML methods has complemented the need for formulating mathematical models, and allowed accurate estimation of observed dynamics by learning auto- matically from the given observations and building models.

For example, sparse regression has been applied for recov- ering several nonlinear canonical PDEs . These sparse optimization techniques have been used to recover the under- lying basis from many candidate featuring terms. The compu- tational time of these approaches are small and in general they can handle large datasets. One of the key concern with these techniques are that they perform poorly on data corrupted with noise. In addition, evolutionary approaches are proposed at another end of spectrum to leverage randomness as virtue in recovering models. Symbolic regression (SR) methods explore a function space, which is generally bounded by a preselected set of mathematical operators and operands, using a population of randomly generated candidate solu-

Tions. A Seminal Work By Schmidt And Lipson Has

demonstrated that the SR approach can be used to determine the underlying structure of a nonlinear dynamical system from data. This approach is crucial where data is abundant (e.g., geophysical flows, finance, neuroscience) but the accu- rate physical law/model is not available. When it comes to large-scale datasets, gene expression programming (GEP), for example, has been applied to recover turbulence closures

21993

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective to handle tensor regression and recover complex func- tional forms. Recently, a mixed approach was proposed by Both et al. where the feed forward neural networks and sparse regression techniques were combined to handle noisy data. These tools can be exploited as a potential data-driven tool for recovering hidden physical structures or parameter- izations representing high-dimensional systems from data in digital twin applications.

1) Big Data Technologies

The infrastructure for storing and processing high volume data has been advanced considerably over the last decades. Many available platforms are available to handle big data projects in terms of blending, integration, storage, central- ized management, interactive analysis, visualization, acces- sibility and security. Many IT vendors benefit from Hadoop

Technology –, Which Allows Us To Execute Tasks

directly from its hosting place without copying to local mem- ory. Indeed, there are many survey articles to discuss var- ious aspects of big data including not only state-of-the-art technology and platforms, but also algorithms, applications

And Challenges –. More Recently, Kaufmann

introduced a big data management concept to address the critical needs of digital twin applications.

2) Iot Technologies

The IoT is becoming increasingly popular to develop smart technologies in several sectors ranging from healthcare to agriculture, from transportation to energy. The availability of high-speed Wi-Fi internet connection, digital machines, low- cost sensors along with the development of ML algorithms to perform real-time analysis has contributed to enabling

Iot , . The Leading Iot Vendors Provide Reliable

and innovative platforms to set up IoT devices for various applications . Amazon Web Services (AWS) offers various IoT solu-

Tions . For Example, Aws Iot Finds Its Application

in biomedical research to identify biological insights which were not known before . The high volume of complex biomedical data is being generated using the state-of-the-art high-throughput machines and this data can be processed and stored efficiently using cloud computing. In their work , the cloud computing framework was applied to genome map- ping which uses a large amount of next-generation sequenc- ing (NGS) data. This task can be easily distributed over a computer cluster and cloud computing is an ideal platform for this, as it does not have limitations of high-performance com- puting (HPC) systems such as job queues and unsupported software. Another application of IoT is in sensor network technologies which are used extensively in environmental monitoring and industrial automation. Cloud computing often provides a flexible computational model that is perfectly suitable for unpredictable demands generated by environ- mental sensor networks. For example, in , Amazon’s elastic compute cloud (EC2) was applied for processing dynamic data collected by sensor networks in environmental applications.

IoT has also been used in developing smart home tech- nologies in which the operating conditions such as humidity, temperature, luminosity, etc are controlled with minimum user’s intervention. In , IoT concepts and cloud comput- ing were integrated to facilitate smart home implementations.

Their architecture uses microcontroller-enabled sensors to monitor home conditions, actuators for performing required actions, and Google App Engine platform for creating and setting up their web application. In , the authors used Twitter application to collect data, and presented Google App Engine as a possible solution for mining and analyzing the large amount of data.

Microsoft launched Azure IoT Suite, a platform that enables end-users to communicate with their IoT services and devices, exchange data, and process it in a convenient way . Many other specified platforms have been built on top of Azure for different applications. Forsström and Jennehag investigated a system built by combining Azure IoT hub and the open plant communication universal architec- ture (OPCUA) for a realistic industrial situation tracking an industrial component with 1500 sensors. For agricultural purposes, Vasisht et al. presented FarmBeats, an end- to-end IoT platform for data-driven agriculture which uses Microsoft Azure IoT Suite for cloud services and passing data summaries to storage. FarmBeats is capable of handling data from various sensor types with different bandwidths. Also, it is sufficiently reliable even in cases of power and inter- net outages from bad weather. For healthcare applications, Manashty et al. proposed a healthcare event aggrega- tion lab (HEAL) model in order to detect health anomalies as accurately and fast as possible. A prototype of HEAL was implemented and tested on Azure. Das et al. proposed a cloud based approach to make users aware of probable health risks of the flickering of surrounding artificial light.

A small-length video is recorded using phone’s camera. It is then uploaded to Azure cloud storage, where it can be further processed and analyzed to give informed instructions.

SAP cloud platform helps to implement IoT applications.

Koduru Et Al. Proposed A Framework Based On Sap

cloud for implementing a smart irrigation system taking water supply from borewells and weather conditions into account.

Tsokov And Petrova-Antonova Proposed Ecologic,

a solution for real-time monitoring of running vehicles and their respective emissions’ levels, in order to keep the carbon emissions within acceptable limits through smart notifica- tions and management of vehicle’s power. The system com- bines hardware module that collects data related to vehicles’ emissions with cloud-based applications for data processing, and analysis using SAP cloud platform.

Salesforce IoT which is based on software delivery paradigm where users access the software through per- sonal web browsers and vendors host the business soft- ware. This software delivery paradigm is categorized under

Volume 8, 2020

A. Rasheed et al.: Digital Twin: Values, Challenges and Enablers From a Modeling Perspective software-as-a-service (SaaS) built on cloud computing . This paradigm helps in scalability, efficient maintenance, efficient management and lower resource costs. Salesforce IoT platform is designed to take in the massive amount of data generated by devices, sensors, websites and applications and initiate actions for real-time responses. Some real-time applications might include wind turbines that automatically adjusts its parameters based on live weather data, passen- gers whose connecting flights are delayed could be rebooked

Before They Have Landed –. Salesforce Customer

relationship management (CRM) software package was used by organizations to anticipate customer needs based on their past requirements and choices . Such platforms have been also deployed in governmental organizations .

Oracle IoT is a cloud-based service for business implemen- tations and uses software delivery paradigm called platform-

As-A-Service (Paas) , . Among Many Applications,

Oracle IoT has been used for analyzing data regarding user’s venue recommendations such as user’s current geographical location, weather and traffic conditions, cost, service or dis- tance of the venues, as well as social network user reviews of venues .

Cisco is one of the early business groups to realize the birth and potential of IoT based platforms –. Okafor et al. used Cisco Nexus platform to develop a scalable IoT datacenter management (cost-effective process- ing, storing, and analysis of large volumes of data) for fog computing. In , the authors summarize the opportunities and challenges of fog computing in the networking context of IoT. A fog assisted IoT system has been considered as a health monitoring system in smart homes . In their recent work, Bakhshi et al. discussed industrial security threats and concerns for both Cisco and Microsoft Azure IoT architectural models (for data accumulation and abstrac- tion layers of those model architectures) and then suggested some security considerations. In fact, the security and privacy concerns are the major challenges of implementing any IoT devices .

Bosch IoT suite provides not only services through cloud connections but also the on-premise services with no

Third Party Access To The Local Data , . In ,

the authors introduced an architectural model to successfully establish such IoT ecosystem through platform interoperabil- ity. An example of integrating IoT devices provided by Bosch IoT suite into a business process has been discussed in details in .

Using the IBM BlueMix cloud computing platform, an IoT technology has been applied to build a smart car system that monitors and the car’s activity and informs the owner or technician about the routine maintenance to ensure safe

And Efficient Driving . In , Real-Time Air Quality

parameters such as humidity, temperature, and particulate matter were measured using different sensors. Data storage, data management, and data analysis were performed using the IBM Bluemix cloud to inform about the necessary decisions promptly.

3) Communication Technologies

A reliable working of any digital twin will require informa- tion arising from different components to reach its intended target on time. For example, during a robotic surgery, the action of a surgeon in a digital operation theater should manifest into action in reality without any latency. With so many sensors comes the problem of fast data communication.

The state-of-the-art communication technology like 4G will run into problems as more and more devices will start sharing the limited radio-frequency spectrum. 5G technology with a wider frequency range might accommodate many more devices but that requires communication at much higher frequencies (30-300GHz) compared to the currently used frequencies by our mobile network. Such high frequencies waves called Millimeter Waves can not penetrate obsta- cles readily and hence more and more miniaturized base stations called Small Cells operating on low power will be placed spanning the whole relevant area. These base stations can also support hundreds of ports for many more antennas.

The technology is called Massive MIMO. The large number of antennas mean more signal interference which will be corrected using the Beamforming technology which is a traffic-signaling system for the cellular base station which optimizes the data-delivery route to a particular user. Finally, for multiple communication at the frequency full duplexing is being looked into. The 5G technology will form the back- bone of any digital twin owing to their ultralow latency and unprecedented speed and is already being used in the world’s first 5G cinema in Oslo.

Long Range Wide Area Network (Lorawan) Technology

has been gaining a great attention for IoT applications, while keeping network structures and management simple –

. Unmanned Aerial Systems (Uas) Cooperations Have

also recently attracted considerable attention to assist ground base stations in the case of crowded public events, natural dis- asters, or other temporal emergencies that require additional

Needs For Network Resources –. For Example, Uas

based sensing systems have demonstrated value for flexible in-situ atmospheric boundary layer observations to improve weather forecasting –.

4) Computational Infrastructures

According to Moore’s Law, the performance and functional- ity of computers/processors can be expected to double every two years due to the advances in digital electronics. There- fore, in scientific computing applications, the speeds of both computation and communication have substantially increased over the years. However, the communication becomes more challenging as the number of processing elements increases and/or the number of grid points decreases within a process- ing elements, which constitutes a major bottleneck at upcom-

Ing Exascale Computing Systems –. Unless We Face

up to a new transistor technology (e.g., see ) to replace current metal-oxide semiconductor transistor technologies, this doubling trend saturates as chip manufacturing sector

Related Journal Articles & DOI Links

Selected peer-reviewed publications relevant to 12 Lead ECG Acquisition. Click the DOI to access the full paper (may require institutional access).

Why Choose Us?

Bangalore guidance for robotics, Spectre and autonomous systems projects.
