A. Makhort, R. Gumeniuk, J.-F. Dayen, P. Dunne, U. Burkhardt, M. Viret, B. Doudin, B. Kundys* Photovoltaic-Ferroelectric Materials for the Realization of

A Photoferroelectric Optical Transistor

Optical transistor, Photonic transistor, all-optical memory Optical transistor, Photonic transistor, all-optical memory Optical transistor, Photonic transistor, all-optical memory Optical transistor, Photonic transistor, all-optical memory

2102353Qbgf (1 Of 7)

0 QUJDBM USBOTJTUPS   1IPUPOJD USBOTJTUPS   BMMPQUJDBM N FN PSPhotovoltaic-Ferroelectric Materials for the Realization

Of All-Optical Devices

A. Makhort, R. Gumeniuk, J.-F. Dayen, P. Dunne, U. Burkhardt, M. Viret, B. Doudin, B. Kundys*

Restoration, Etc. Thus, New Simple And

inexpensive device paradigms demonstrating efficient optical gating under ambient conditions are highly required. Because the mechanism by which a material interacts with light depends on its microscopic building blocks, an optical transistor can be realized based on a system that changes its intrinsic environ- ment under illumination. Here we demonstrate the realization of this hypothesis in a cavity-free approach that does not need to operate coherently. The demonstration is realized using a ferro electric (FE) crystal, possessing also photovoltaic (PV) prop- erties. The photoferroelectric compounds are remarkable mate- rials having potential for an increased multi-functionality.

hemoglobin-sensor-optical Diagram
Figure: System Model & Simulation Flow for Hemoglobin Sensor Optical

The photovoltaic properties in some FE compounds offer an efficient interplay between light induced photo-carrier gen- eration and non-zero intrinsic electric field in the sample. Such interplay can lead to nonlinear optical response required for changing the light propagation. Herein we report that a light transmission through a photovoltaic-ferroelectric crystal can be modulated optically via the amount of charges generated and distributed during the bulk photovoltaic effect (BPVE).

hemoglobin-sensor-optical Diagram
Figure: System Model & Simulation Flow for Hemoglobin Sensor Optical

2.1. Optical Gating

The appropriate crystal of Pb[(Mg1/3Nb2/3)0.70Ti0.30]O3 was selected from the well-know family of the PMN–xPT com- plex optimized for piezoelectricity. These compounds exhibit a rich phase diagram and exceptional optical prop- erties reaching ∼70% transparency across a broad spectral Following how the electrical transistor revolutionized the field of electronics, the realization of an optical transistor in which the flow of light is controlled optically should open the long-sought era of optical computing and new data processing possibilities. However, such function requires photons to influ- ence each other, an effect which is unnatural in free space. Here it is shown that a ferroelectric and photovoltaic crystal gated optically at the onset of its bandgap energy can act as an optical transistor. The light-induced charge generation and distribution processes alter the internal electric field and therefore impact the optical transmission with a memory effect and pro- nounced nonlinearity. The latter results in an optical computing possibility, which does not need to operate coherently. These findings advance efficient room temperature optical transistors, memristors, modulators and all-optical logic circuits.

hemoglobin-sensor-optical Diagram
Figure: System Model & Simulation Flow for Hemoglobin Sensor Optical

A. Makhort, J.-F. Dayen, P. Dunne, B. Doudin, B. Kundys

Université De StrasbourgCnrs

Institut de Physique et Chimie des Matériaux de Strasbourg UMR 7504, 23 rue du Loess, Strasbourg F-67000, FranceE-

U. Burkhardt

Max Planck Institut für Chemische Physik fester Stoffe

1. Introduction

The electrical transistor is the fundamental building block of modern electronics which uses voltage gate control over the flow of electrical charges. In particular, electric gain in current with respect to the ground state is a technologically desired property. In the optical counterpart of this function, it must be possible to increase a photon flow or modulate its transmis- sion by purely optical means. Such a property under ambient

0QujdbmUsbotjtups 1IpupojdUsbotjtups BmmPqujdbmNfnpsz

0 QUJDBM USBOTJTUPS   1IPUPOJD USBOTJTUPS   BMMPQUJDBM N FN PS

2102353 Qbgf (2 Of 7)

range spanning from 0.4 to 6 microns. Depending on the exact phase diagram region, some of these crystals were reported to be photovoltaic or become such after doping.

hemoglobin-sensor-optical Diagram
Figure: System Model & Simulation Flow for Hemoglobin Sensor Optical

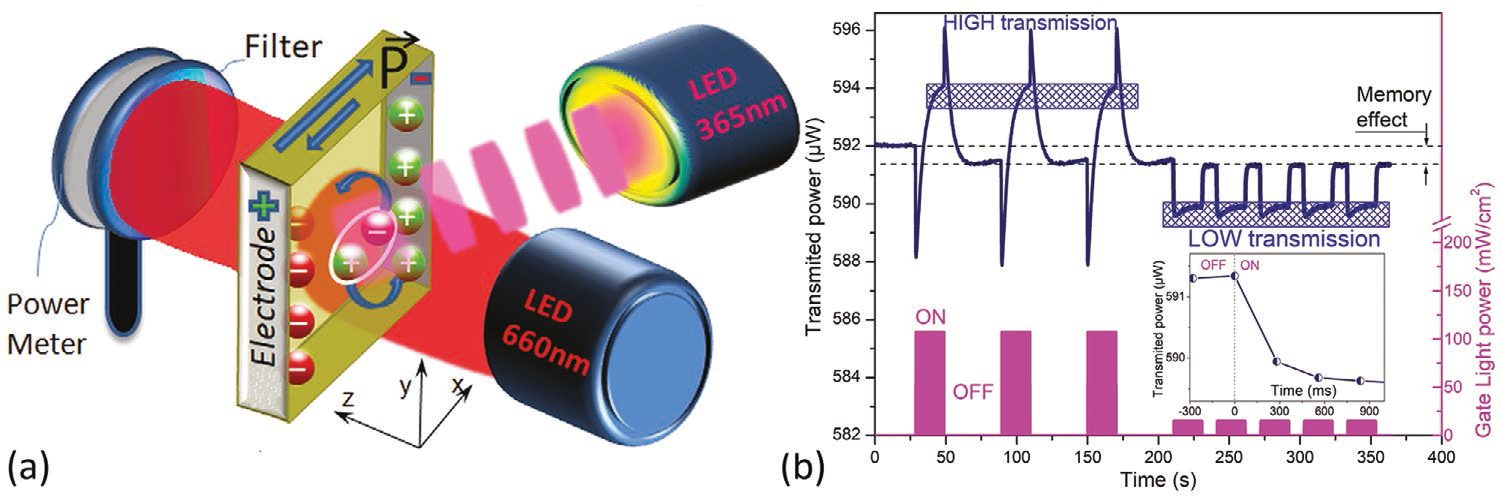

Figure 1a illustrates the schematics of the experiment where a Pb[(Mg1/3Nb2/3)0.70Ti0.30]O3 single crystal with a structure at the border of the morphotropic phase boundary acts as a red light ¾ÀµÆ½ÅÀà when subjected to UV optical gating (365 nm (3.4 eV)).

hemoglobin-sensor-optical Diagram
Figure: System Model & Simulation Flow for Hemoglobin Sensor Optical

First the sample was electrically poled and its FE loop was recorded in darkness to ensure overcoming the ferroelectric coercive voltage. This action creates a homogeneous intrinsic electric field and forms a monodomain FE state known to

Improve Light Transmission And Pv Properties. The

660 nm light from a light emitting diode (LED) was then irradiated along the direction and its transmission was measured as function of time while pulsing the UV light gate on the sample at 45° (Figure  1a). The propagation of the red light is successfully modulated with strongly irregular response involving both gain and loss in transmission signal with respect to the initial poled state. When the UV light gate is ON Figure 1. Optical control of light propagation. a) Schematic of the experimental setup with respect to the crystalline axis. b) Time dependence of the 660 nm beam transmission during periodic optical gating of 365 nm light. The inset shows a zoomed response of the depolarization regime limited by the LED response time (see text).

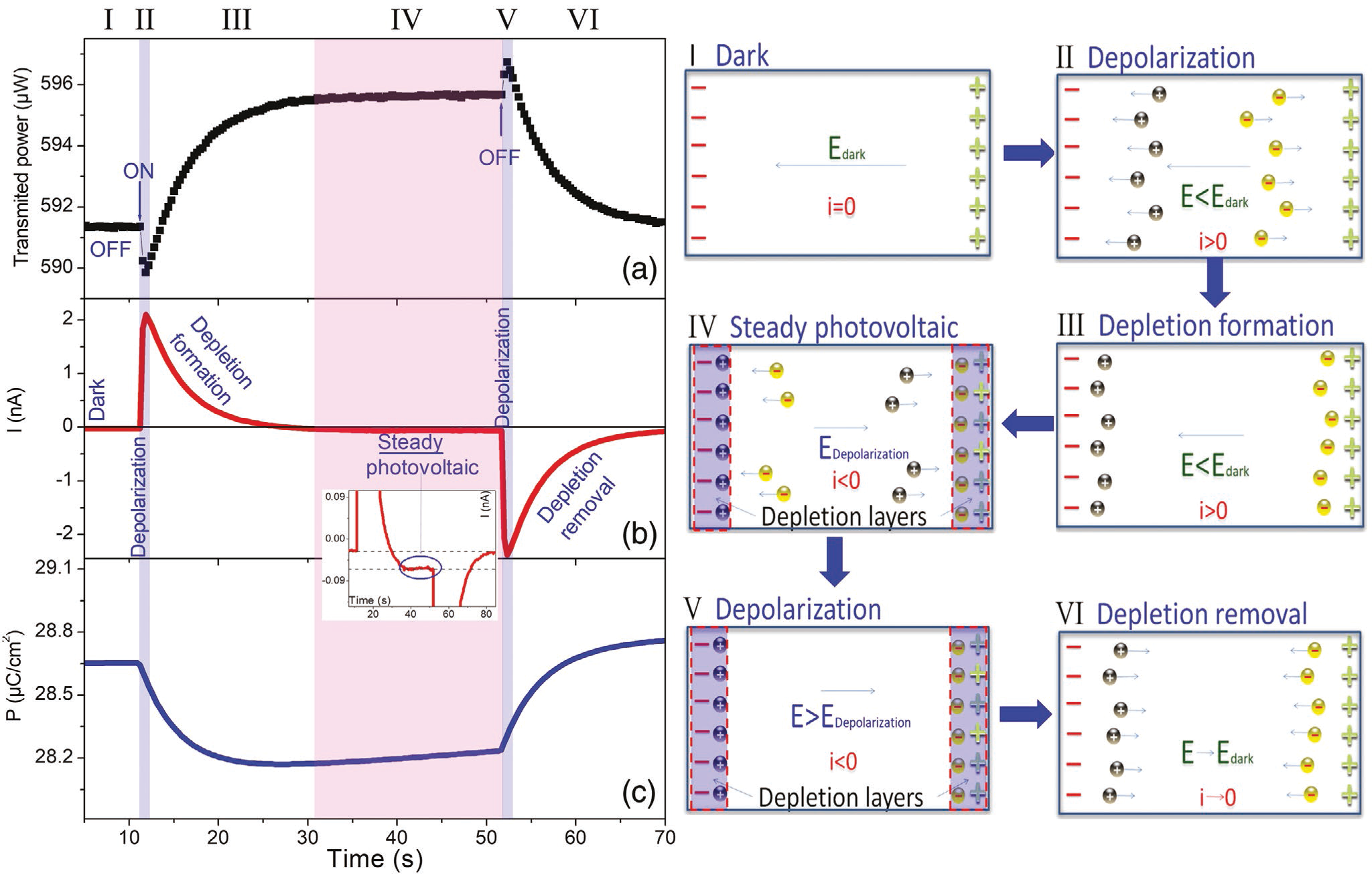

Figure 2. In-situ electro-optic measurements and modeling. a) transmission, b) photo-current and c) polarization. Regions I to VI are explained in the right part (see text).

2102353Qbgf (3 Of 7)

the transmission first decreases rapidly (Figure 1b (inset)) and then slowly increases following a saturation tendency. When switching off the gating light, the response reverses: the trans- mission increases rapidly and then relaxes more gradually to its equilibrium level. Moreover, for the first exposure to UV gating light a notable memory effect in transmission is observed (Figure  1b). For subsequent gating pulses the modulation of light transmission becomes reversible. Interestingly, the pulses with the same duration, but with different intensity, can trigger opposite transmission modulation. For the first three pulses (Figure 1b) of maximal intensity an increase in transmission is observed, while for the smaller intensities the transmission is globally reduced. This behavior occurs on a whole spectral range measured from 500 to 1000 nm (Figure S1, Supporting Infor- mation). The observed nonlinear response is also incompatible with dominant sample warming due to light absorption. More- over, a light induced warming below 1.8 K was detected using Therm-app® infrared camera, which has a negligible effect on the light transmission (Figure S2, Supporting Information). In order to get more insight into the origin and dynamics of this complex photo-response, the sample was subjected to longer irradiation pulses and the electric current was monitored along with transmission and electric polarization (Figure 2). In the absence of gating light, the red illumination already causes a small background PV current of ∼-15 pA flowing along the measured direction. However, the situation changes drastically when gating light is ON. Large singularities occurring on dif- ferent time scales are observed in the electric current measured along the previously poled direction (Figure 2b). A large spike-like increase in the current over one order of magnitude is observed followed by a slower relaxation to the steady PV current level of ∼-65 pA (Figure 2b, inset). When gate light is off, this process is reversed. The transmission clearly correlates with the PV current. In the simplest picture, transmitted light can be scattered on free charges (elastic Thomson scattering) or electrons in the excited state can absorb light of a different energy than in the ground state (photochromic effect). How- ever, these effects should be linear with light intensity and inde- pendent on the direction of the current, which is not the case here. The observed charge dynamics clearly reveals the six spe- cific regions marked as I, II, III, IV,V and VI on Figure 2.

In the ideal case in the previously poled FE there are no free charges in darkness (see “I” in Figure 2). When turning ON the UV light, free charges appear (see “II” in Figure 2) and reduce the stored electric field in agreement with the observed decrease of sample polarization (Figure 2c). The elec- tric field attracts the charges to the edges forming the deple- tion layers. The latter create a depolarization field of opposite direction (see model “III” in Figure 2). Therefore, the newly generated charges inverse their flow direction, in agreement with a sign change of the current in the steady PV region “IV”.

When light is off, there are no more charges to feed the PV current and the process reverses passing via depolarization “V” and depletion layers removal “VI” stages. It is also clear that the initial state may not be fully recovered explaining the observed remanent effect (Figure 1b). Therefore, the transmission modu- lation effect can be of electro-optic (Pockels effect) origin were the UV gate light induces modifications in an

Depolarization And ¶··¶´Åäʇ

Indeed, the transmission response was confirmed to be

Butterfly-Like

hysteresis with a clear voltage effect on the optical gating (Figures S3 and S4, Supporting Information). Both the irreg- ular form of transmission response to regular square-like gate pulses and the intensity dependence of the effect (Figure 1 b) strongly hint at large optical nonlinearity. Further insight can be gained by measuring the transmission as a function of gate light intensity (Figure 3).

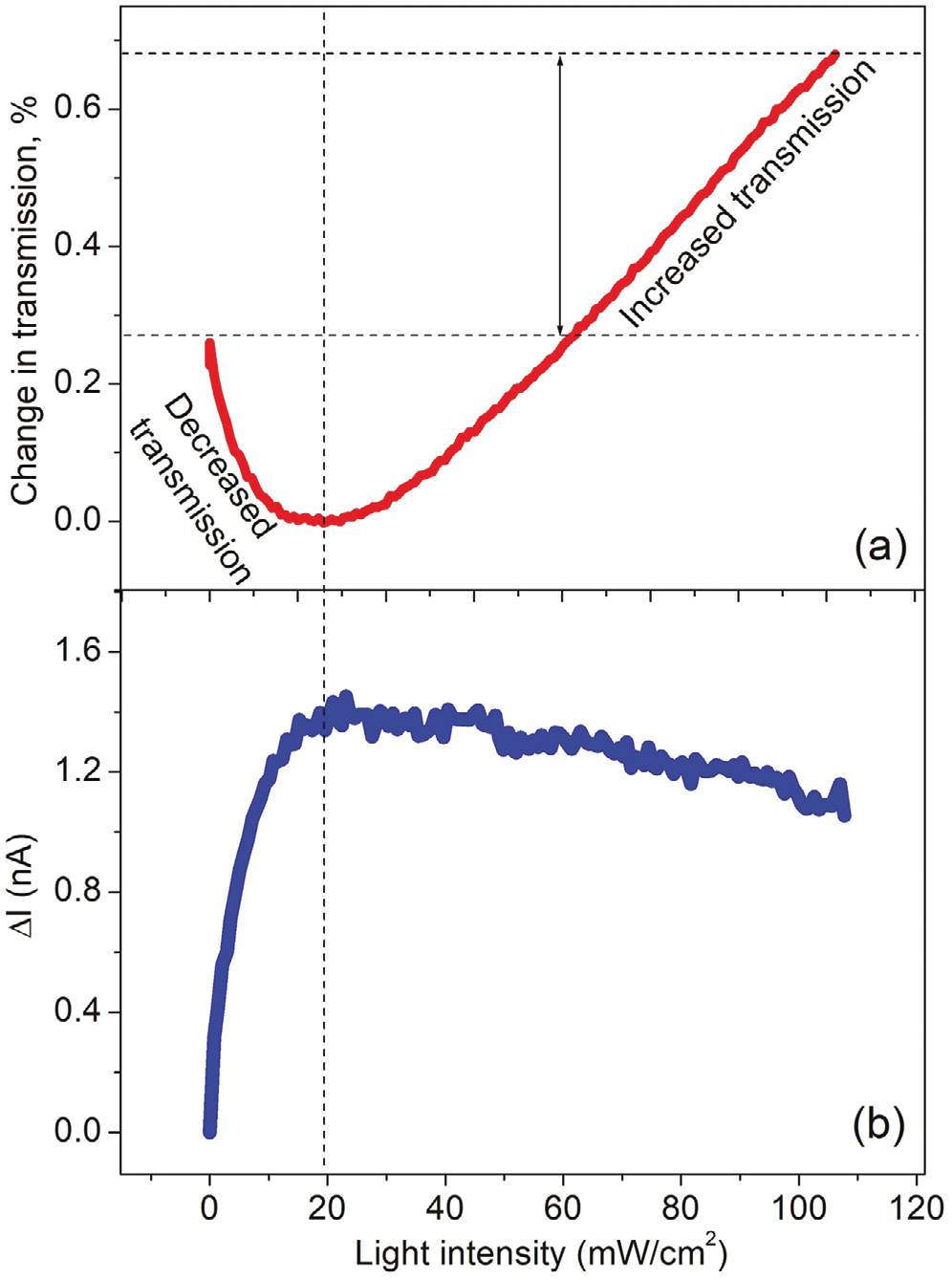

The red light transmission presents a significant nonlinear response consisting of low transmission and high transmis- sion regimes in agreement with Figure  1b. The transmis- sion first decreases rapidly versus gating UV light intensity and then increases more slowly finally reaching a more than two times improvement with respect to the initial state. This effect correlates well with the photocurrent monitored across the direction during the optical gating (Figure  2b). In fact, the two opposite contributions to the photocurrent are observed: the transient part (corresponding to depolatization) results in transmission decrease, and the steady photovoltaic component with relaxation has the opposite effect. The compe- tition between these two mechanisms which occur at different time scales is likely responsible for the observed nonlinear response.

Figure 3. Intensity dependence. a) Red light (660 nm)  transmis- sion as a function of gate light intensity. b) In-situ measurements of elec- trical current along the direction (Figure 1a). Light intensity sweeps, with a step of 2.36 mW cm−2, taken at a rate of 200 ms.

2.2. Optical Logic Operation

Because nonlinear dynamics is essential for general infor- mation processing, we can take advantage of the observed pronounced nonlinearity to implement an optical logic operation as demonstrated in Figure 4. An additional optical transistor element was added in series to the transmission line, including its own optical gating LED element “gate 2” (Figure 4a). To illustrate a logic operation, the implementation of the Boolean logic function called “AND” is performed in Figure 4b. For this logic function the two binary inputs must be simultaneously ON (with state “1”), to result in the output being also ON (higher transmission state “1”). All other combinations of the input gate signals should result in a lower transmission (sate “0”). A complete logic operation consists of initialization, computation, and readout. The initialization involves stabiliza- tion of the transmission signal via the 2 crystals with previously adjusted intensities of each gate beams.

For demonstration purpose of the binary performance we selected the intensities of gate 1 and gate 2 to have a similar impact on the transmission signal, although multistate opera- tion is also possible in agreement with Figure  1b. Next, the computing stage consists of inputting a combination of the two gate light pulses. Only when both gates 1 and 2 are ON, the increased transmission signal level is observed (state “1”) which exceeds all other gating combinations (Table 1).

Adv. Optical Mater. 2021, 2102353

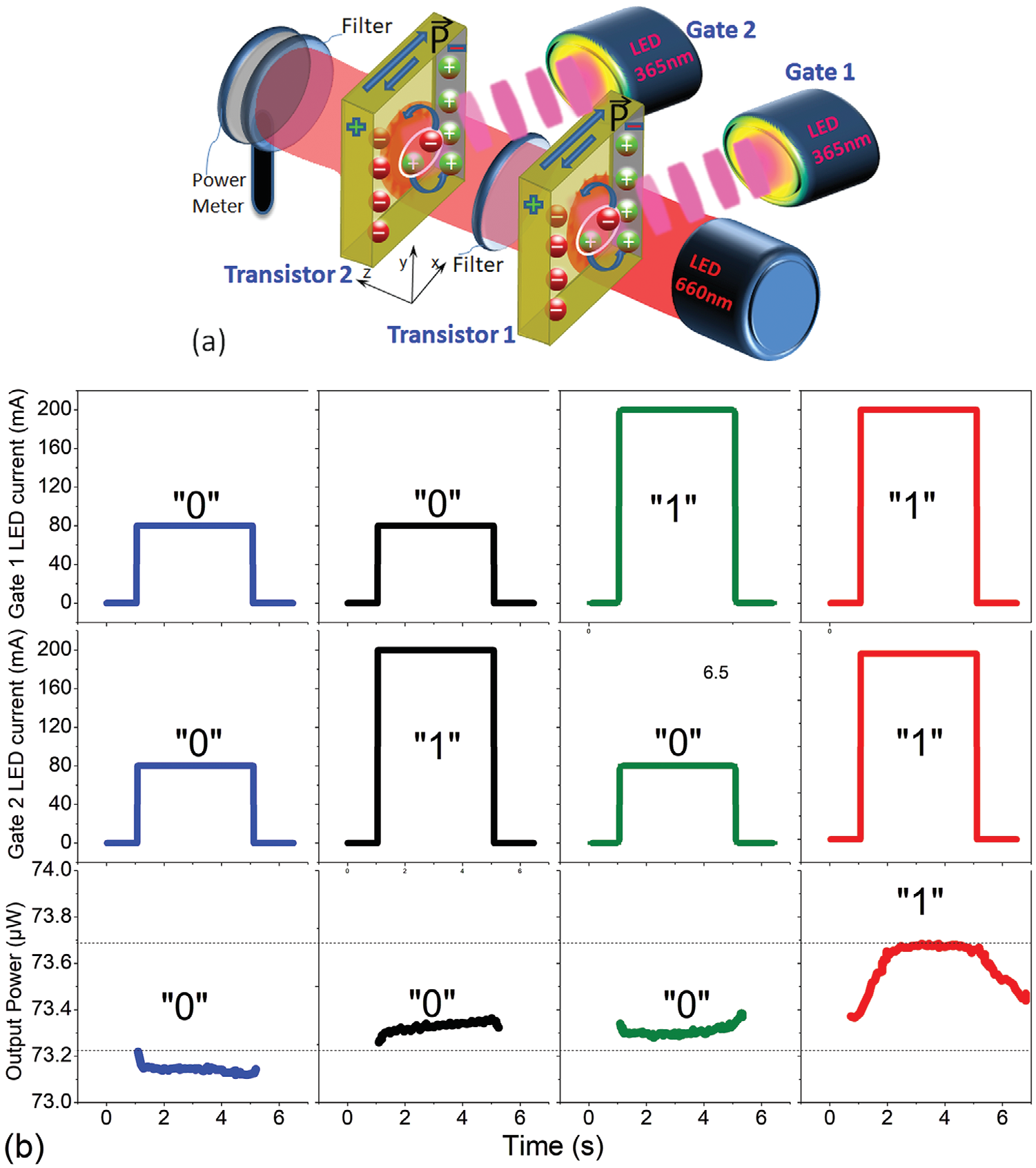

Figure 4. Demonstration of optical logic. a) Schematics of the experiment. The 660 nm light transmission is gated twice by 356 nm LEDs. b) Logic “AND” operation. Table 1.  Truth table for “AND” logic.

2.3. Optical Logic Level Restoration

As the system is based on FE property, the remanent effects related to polarization state change due to charge trapping, spontaneous discharge or temperature drift may become a drawback. Luckily the FE state can be reset not only electrically, but also optically allowing us to achieve all-optical control of the device (Figure 5). This possibility can be realized optically if one takes advantage of the on-demand ability to increase or decrease the transmission (Figures 1b and 3). By adjusting the excitation energy and duration of the gating pulses, i.e., the amount of photo-carriers involved in the depolarization, we can indepen- dently increase or decrease the transmission of each element.

Thus stable logical “1” states can be written with longer pulses (15 s), and reliably erased using short 650 ms pulses with opti- mized intensities, therefore demonstrating purely optical logic level control.

It should be noted that the response time is faster than the rise time of the LEDs used for illumination(∼450 ms), and that long time scales are shown to demonstrate stability. Using external modulation of the gating light, we observe an oper- ating speed at least of 2 kHz (Figure S5, Supporting Informa- tion). Furthermore, by analogy to the FE polarization related photostrictive effect the photoresponse should be faster in the materials with lower dielectric permittivity. Indeed, in the BiFeO3 with much lower dielectric permittivity the photoresponse can reach the THz regime. In this regard other FE compounds with photopolarization properties may become interesting candidates.

3. Conclusions

The potential impact and significance of the reported here new type of optical transistor effect can be assessed from the viewpoint of achieving light controlled operation of logic elements, meant to open the long awaited era of optical computing. In this regard, an optical transistor is a key ele- ment to make all-optical computing possible. Therefore, an alternative, straightforward and low-power device concept operating at ambient conditions is of primary importance.

Moreover, the occurrence of a rewritable remanent trans- mission effect a l so d e monstrates a n a t tractive p o ssibility t o realize all-optical memory – a serious obstacle to the devel- opment of optical computing. Our approach obviously satisfies many device maturity criteria including logic functionality and logic-level restoration. Thanks to the large transparency of the crystals, the signal light should be able to provide enough power to drive at least three sequential transistors. The presented device concept also provides input- output insulation, as the gate light can be easily filtered

Different

wavelengths. The reported optical gating effect can be understood through the competion between light-induced depolarization and a steady photovoltaic effect, which alter the transmission of light through the ferroelectric crystal.

Our findings therefore open a new avenue to photonic control of optical devices based on photo-ferroelectric crystals for all-optical modulators, memories and variety of optical logics, possibly extendable even to quantum effects and 2D structures.

4. Experimental Section

The single crystals of Pb[(Mg1/3Nb2/3)0.70Ti0.30]O3 were from Crystal GmbH (Germany) and the exact composition of PMN-PT compounds was independently verified by energy-dispersive X-ray spectroscopy. The scan was performed under the electron beam accelerating voltage of 15 kV and take-off angle of 30°. The EDS spectrum confirmed the absence of significant amounts of impurities and the exact content was found to be in correspondence with the data of the supplier. The samples of 0.3 mm  in thickness had (001) orientation with the edges’ cut along and to form plates typically 1.8 mm × 3.5 mm.

For FE poling both electrodes were formed with the silver paste covering the edges in the plane parallel to ZY plane. The PV properties (Figure S6, Supporting Information) were measured using a Keithley 6517B electrometer. Before transmission measurements the samples were electrically poled in darkness by sweeping the electric field from zero to −7 kV cm−1  followed by −7  to +7 kV cm−1  sweep and then back to zero. The signal illumination for transmission experiments was generated by a light emitting diode of 660 nm  with 18  nm bandwidth.

The optical gating were performed by fibered LEDs of 365 nm selected to be above to the bandgap of the crystal (3.23 eV). These LEDs had a rise time of 450  ms in a constant current mode and bandwidths of 9 nm (max. power 126 mW)  and 7.5  nm (max. power 54.7  mW) for gate 1 and gate 2 respectively. The signal beam was filtered after each gate by the corresponding red light optical filters. The 520–1100  nm transmission spectra were measured using a Halogen lamp from an AvaLight-DH-S-BAL source, whose emission spectrum lies above 500  nm, and an AvaSpec-ULS2048XL-RS-EVO-US spectrometer with a 300 lines mm−1 grating and 25 µm sized slit. A 4 mm diameter sample area was illuminated using a 400 µm diameter broadband fibre coupled to a confocal lens. The transmitted light was collected using a second lens and fibre. Drift correction was performed before and after using bifurcated fibres and a multiplexer to switch between the sample path and a direct light source-to-detector path. Dark and reference spectra were acquired for 1.8  ms integration time with 1000 averages between 520 to 1100  nm, while time-dependent spectra were acquired every 42 ms and were averaged 10 times. The sample was irradiated with UV light using a Thorlabs M365FP1 LED at a power density of 110 mW cm–2 for 30 s.

Adv. Optical Mater. 2021, 2102353

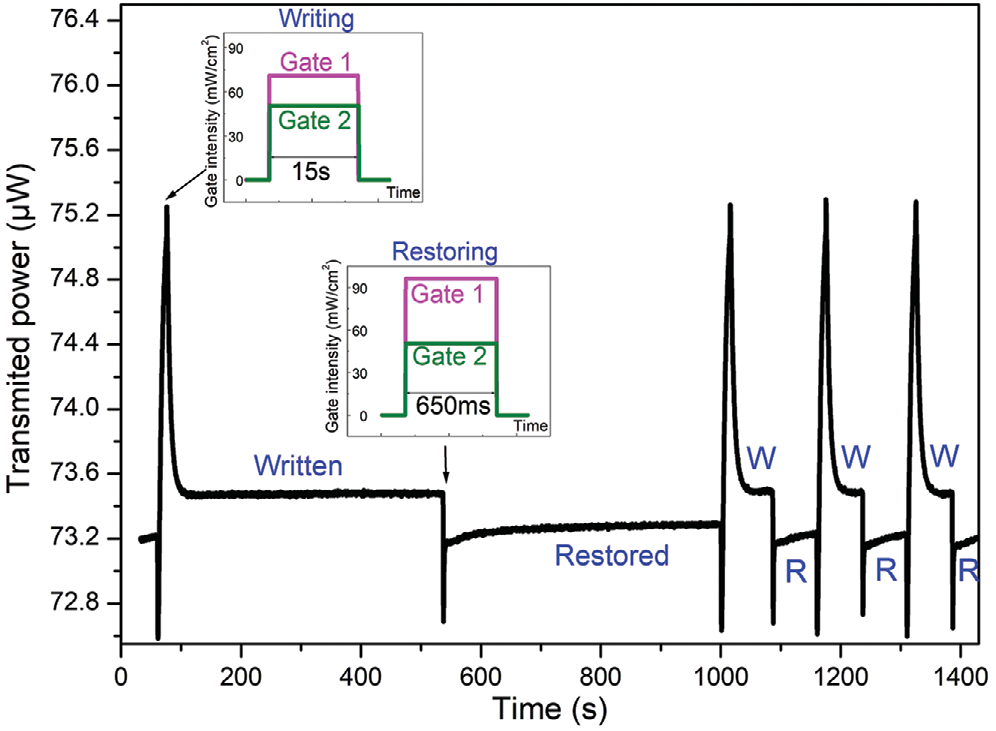

Figure 5.  Optical logic level restoration. The long term 15 s exposure of the gates 1 and 2 induces a stable remanent effect that can be restored by shorter pulses of 650 ms duration. Insets show corresponding time profiles of the gating pulses.
