Comsol Delamination Simulation

Abstract

Carbon fiber reinforced polymer (CFRP) has been widely used in modern industry due to its excellent properties. However, due to its strong anisotropy, it is easy to produce delamination defect which seriously affect the performance of the material.

Therefore, for CFRP composites, how to effectively and accurately detect and identify internal defect have become a hot and difficult research field. In this paper, a new tomography method called thermal-wave radar tomography (TWRT) is introduced, and it is applied to the visualization detection of CFRP delamination defect. Firstly, the time delay correlation dual orthogonal demodulation (DOD) algorithm is used to extract the frequency domain and time domain characteristic sequence of the thermal-wave signal of the pulse radar, and the TWRT method is established, the applicability of the method is analyzed by the COMSOL simulation. Then, the correctness of the simulation analysis is verified by the experiment of detecting the flat bottom holes which used to replace the delamination defect of CFRP composites by TWRT, and the accuracy of the shape and position (depth) of the defect detected by TWRT is determined. Finally, the ultrasonic C-scan imaging method and TWRT are used to compare and analyze the delamination defect of CFRP composites, which proved the superiority of TWRT. The experimental results illustrate that TWRT technique can achieve high-quality 3D geometric reconstruction of delamination defect, which provides a new method and idea for nondestructive testing and tomography of CFRP composites.

Keywords: Carbon fiber reinforced polymer (CFRP), delamination defect, thermal-

Ntroduction

Carbon fiber reinforced polymer (CFRP) has the advantages of light weight, high strength, high specific stiffness, corrosion resistance and adjustable anisotropy, which makes it widely used in aerospace, nuclear civil and renewable energy fields. However, such materials show strong anisotropy and internal interface effect. In the process of production or use, defects such as delamination and invisible impact damage are easy to occur between layers, which seriously affect the performance of materials or structures . Therefore, for CFRP composites, how to effectively and accurately detect and identify internal delamination defects has become a hot and difficult research field.

In order to ensure the quality of CFRP composites, it is necessary to carry out effective non-destructive testing & Evaluation (NDT & E) in the process of processing or using CFRP composites. The traditional inspection methods include ultrasonic testing , eddy current testing and X-ray testing . Although These methods can detect delamination defects accurately, there are still some problems such as high cost, low efficiency and unable to be detected online.

Infrared thermal-wave imaging detection technology is a new interdisciplinary infrared detection technology. The technology uses external excitation heat source to carry out active thermal loading on the object, uses infrared thermal imager to collect the thermal radiation signal (or thermal-wave signal) on the surface of the object, and realizes the defect judgment and analysis by analyzing the characteristics of the thermal signal. At present, the infrared pulse thermal-wave imaging detection and infrared phase-locked thermal-wave imaging detection are the most mature infrared thermal- wave detection technology and widely used. Infrared pulse thermal-wave imaging testing technology is the most researched and most mature infrared detection method, and is also the most widely used infrared detection technology . It has been widely used in nondestructive testing and evaluation of small thickness specimens. However, due to the limited instantaneous energy injection, this method is not suitable for the specimen with larger thickness due to its small detection depth. Infrared phase-locked thermal-wave imaging detection technology is a new infrared thermal-wave imaging detection technology based on phase-locked characteristic extraction proposed by Busse G. in the 1990s. It is used for noise suppression and weak signal extraction in electronic circuits. The application of this technology in infrared thermal-wave imaging greatly improves the signal-to-noise ratio of defect detection, and overcomes the disadvantage of infrared thermal-wave detection technology which only relies on

/Qirt.2020.054

intensity characteristics (amplitude). However, in order to avoid the "blind frequency" phenomenon, the infrared phase-locked thermal wave imaging detection technology needs to select multiple modulation frequencies to test the specimen. At present, most of the detection methods based on infrared thermal-wave imaging are to obtain the integral signal within the whole thermal diffusion length range, which can only obtain the two-dimensional (2D) plane information of CFRP composites, and can not carry out the three-dimensional (3D) quantitative visual evaluation of materials. However, it is urgent to obtain the internal information of materials in the actual detection. In order to solve this problem, researchers have carried out in-depth exploration and research.

Dynamic thermal tomography (DTT) is the first tomography method using infrared thermal imaging to reconstruct 3D specimen . It was first proposed and preliminarily analyzed by Vavilov V.P. and Maldague X.P. in 1990. In 2009, Swiderski W.

conduct tomography of CFRP composites. The experimental results illustrated that this method greatly improved the signal-to-noise ratio of defect detection, and explored the efficiency of data processing. In 2012, Melnyk S.I. improved the dynamic thermal tomography method, which overcame the temperature disturbance caused by the nonuniformity of the traditional thermal tomography method, and effectively improved the imaging quality by using the 3D thermal reconstruction algorithm. In 2015, Vavilov V.P. proposed an improved image processing algorithm for dynamic thermal tomography. This algorithm abandons the step that the reference point must be selected in the traditional processing algorithm, and improves the extraction ability of material geometric characteristics. In 2010, Tian Yupeng built an experimental system based on the principle of dynamic thermal tomography. The system was used to carry out imaging experimental research on different excitation conditions and defect types.

Image noise filtering and image segmentation algorithm based on mathematical morphology were used to process infrared thermal-wave images, and a projection reconstruction algorithm based on isosurface was proposed. This algorithm can well reconstruct the structure information under the surface of the object.

The thermal-wave radar tomography (TWRT) studied in this paper is a kind of infrared thermal-wave imaging non-destructive testing method with frequency modulation heat flow as the main excitation which based on the traditional active infrared imaging detection technology. The TWRT uses the pulse radar with large time and wide product characteristics to excite the specimen with heat flow to improve the signal-to-noise ratio and imaging quality of defect detection. At the same time, the

/Qirt.2020.054

technology can realize the 3D tomography and characteristics evaluation of the tested specimen, which provides a new method for effective and reliable detection of delamination defects in CFRP composite materials.

Theories Of Twrt

TWRT is a nondestructive testing method which combines pulse excitation, pulse compression matching filtering and other technologies . This technology is a new thermal-wave tomography method proposed in recent years which has achieved good detection depth resolution and detection effect. The excitation heat flow signal of TWRT contains multiple frequency components. According to the different types and sizes of defects detected, the heat flow loading mode in the form of pulse radar can be used.

At present, TWRT realizes tomography mainly by the pulse-radar heat flow excitation method. Pulse-radar signal is a signal form obtained by convolution operation of continuous linear frequency modulation radar signal and pulse signal. The pulse-radar signal combines the both to ensure that the signal has greater compressibility and more energy injection, which ensures that the method has high signal-to-noise ratio from the excitation signal source.

The principle of TWRT is to realize the tomography by changing the pulse width and delay characteristics of the reference signal to achieve energy location at different depths when extracting the characteristics of pulse-radar thermal-wave signals. Because the diffusion length (depth) of the thermal-wave is related to the pulse width, the thermal-wave characteristics of the pulse-radar have the depth dynamic resolution, which provides an important basis for the detection of the defects in composite materials.

Time Delay Correlation Dod Algorithm

The idea of dual orthogonal demodulation (DOD) is derived from the infrared phase- locked thermal-wave imaging detection technology. The algorithm uses the in-phase signal and orthogonal signal with the same frequency as the excitation heat flow signal to extract the amplitude and phase information of the thermal-wave signal . The phase information obtained by the two-way orthogonal demodulation algorithm is not sensitive to the influence of uneven heating, external environment disturbance and surface emissivity, which is the main reason why the algorithm is widely used in phase- locked thermal-wave imaging detection. The application of DOD to characteristics extraction of thermal-wave radar signal can significantly improve the ability of noise

/Qirt.2020.054

suppression. In this paper, the time-domain and frequency-domain characteristics of the depth correlation of pulse-radar thermal-wave signal are extracted by using delay correlation DOD algorithm.

Since the actual temperature signal is discrete data, the sampling frame number of temperature signal is N and the temperature signal is T(n) to obtain the characteristic amplitude and phase of DOD, the in-phase correlation function and orthogonal correlation function of thermal-wave signal should be obtained through Eq. (1).

(1.B)

where Q(n) is in-phase signal of excitation signal, R(n) is orthogonal signal of excitation signal which is obtained by Hilbert transform , τ is delay time. Thermal diffusion is a process in which heat flow is transferred gradually with time.

The change of thermal characteristic parameters in material will inevitably affect the change of surface thermal wave. Since the thermal-wave diffusion length (depth) is related to the pulse width, the time-lapse reference signal can be used to extract the thermal-wave response related to the thermal diffusion length (depth). Fig. 1 shows the implementation process of the time delay correlation DOD algorithm.

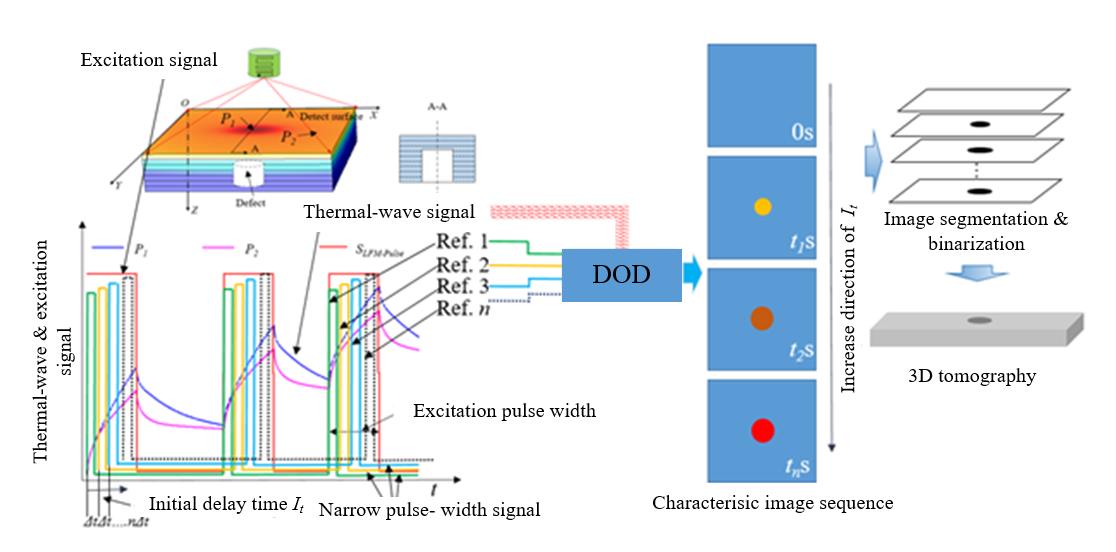

Fig. 1 Time Delay Correlation Dod Algorithm

The time delay correlation DOD algorithm can directly extract the response characteristics of different delay pulse-radar thermal-wave, especially for the narrow pulse width reference signal, it can realize the high resolution recognition of depth direction. The characteristics image sequence in depth direction is obtained by equal interval delay pulse of initial delay time of reference signal, and 3D tomography

/Qirt.2020.054

reconstruction is realized by using the image sequence. The in-phase and orthogonal delay reference pulse sequence signals of time delay correlation DOD algorithm can be

(2.C)

where It(t) is initial delay time, H(t) is Helvetius unit function, p is the number of pulses in a cycle, tp is reference signal pulse width, δ is Dirac function, M is the number of initial time delays, Δt is the single delay time and k=(ω2-ω1)/T is scanning rate, where ω1 is initial angular frequency and ω2 is end angular frequency. According to the empirical formula of thermal diffusion , the relationship between initial delay time

(3)

where α is thermal diffusion coefficient. According to the principle of the algorithm, the single delay time Δt determines the depth resolution. The smaller Δt, the higher the resolution. In other words, the maximum frame frequency of focal plane infrared thermal imager determines its maximum sampling interval, and then determines the minimum value of Δt. When the delay time It(t) is 0, the characteristics obtained is the surface characteristics of the specimen. When the delay time increases, the deeper characteristics information can be obtained, and the relationship between delay time and depth is related to the material of the specimen. Based on the principle of DOD algorithm, the in-phase and orthogonal correlation functions corresponding to the surface temperature signal T(t) when the delay time is It(t) can be obtained,

(4.B)

where R_TD0 is in-phase correlation function, R_TD 90 is orthogonal correlation function. In order to ensure the operation integrity, the maximum delay time It(t) should not exceed the interval between the last pulse of the in-phase reference signal and the cut-off time. The amplitude and phase characteristics of delay time It(t) can be obtained by using in-phase and orthogonal correlation functions,

/Qirt.2020.054

where TD_Am is amplitude characteristics, TD_Ph is phase characteristics. Different delay time DOD amplitude or phase of pulse-radar thermal-wave related to thermal diffusion length (depth) is obtained for tomography. For TWRT, the modulation parameters corresponding to different external excitation heat flow signals affect the results of characteristic parameters. Therefore, the finite element simulation method is needed to study the influence of different heat flux excitation modulation parameters and defect size on the thermal-wave signal.

Simulation

In this section, the finite element analysis software COMSOL will be used to simulate the TWRT of CFRP flat bottom holes. This paper studies the influence of depth correlation characteristics extraction algorithm on tomography, determines the reasonable characteristics of radar thermal-wave suitable for delamination defect tomography, and studies the influence and law of sampling frequency on tomography results, which lays the foundation for the follow-up experimental research.

Finite Element Simulation

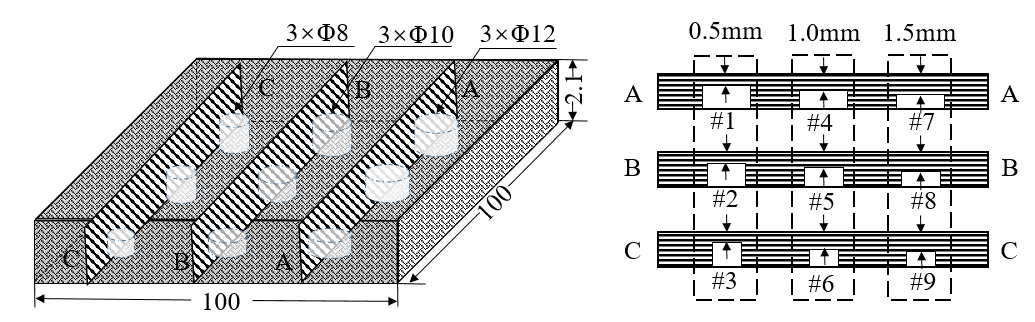

Fig. 2 shows the geometric structure model of CFRP flat bottom hole defect sample for simulation analysis. The thermal physical properties of CFRP material are as follows: the thermal conductivity in parallel direction λ∥ is 4.18W / (m∙℃), the thermal conductivity in vertical direction λ⊥ is 0.71W/(m∙℃), the density ρ is 1760 Kg/m3, and the specific heat capacity c is 795.12J/(Kg∙℃). The material size is set as 100mm×100mm×2.1mm, the laying direction is [0, 45, 90, 0, 90, 45, 0], and the thickness of single layer is 0.30 mm. In the process of TWRT, it is necessary to capture the surface temperature changes as quickly as possible, so it is necessary to increase the data sampling frequency in the simulation process.

Fig. 2 CFRP simulation flat bottom hole defects structure In order to improve the calculation efficiency, it is necessary to select the heat flow excitation parameters reasonably. The scanning period of pulse-radar signal should be at least the whole period corresponding to the lowest frequency component. If the

/Qirt.2020.054

frequency is too low, the scanning period of pulse-radar excitation signal will increase, and the longer scanning cycle time will inevitably produce large amount of data, which improves the operation efficiency of tomography. Therefore, in order to realize the TWRT, it is necessary to consider the material and internal defect characteristics, data acquisition and calculation, and pulse-radar excitation parameters. According to the thermal properties of the material, the pulse-radar excitation parameters are 0.1Hz- 0.5Hz-10s-0.1s, the data sampling frequency is 100Hz, the peak power density is 1000W/m2, and the size resolution is 100×100 pixel. Fig. 3 shows the finite element mesh model of flat bottom hole defect sample and the simulation results of surface temperature at different time points.

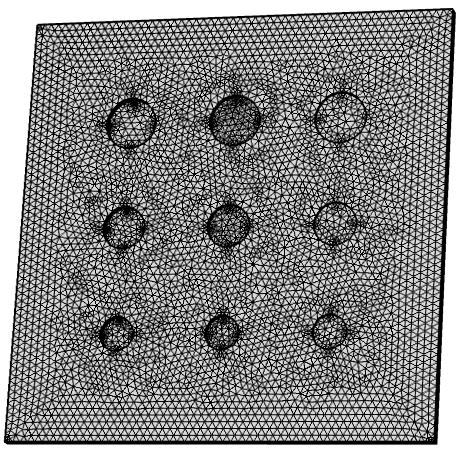

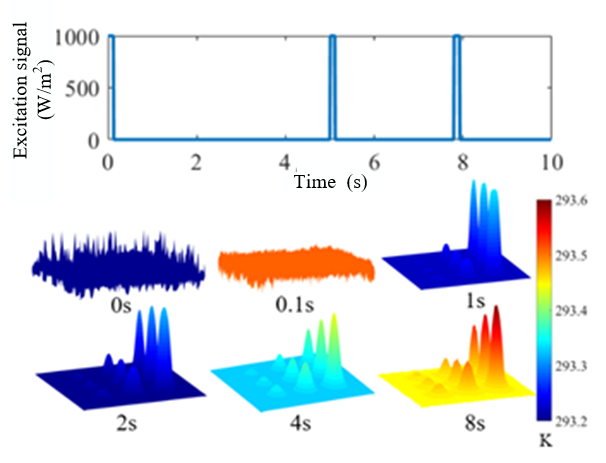

a) Finite element mesh b) Temperature field distribution at different times Fig. 3 Finite element mesh and surface temperature simulation results It can be seen from Fig. 3 that with the increase of time, the defects of different scales can be detected through the surface temperature sequence. During the first pulse heat source excitation time, the flat bottom hole defect can not be detected, and the temperature difference corresponding to the defect location is small. In practical detection, due to the small range of temperature variation and low signal-to-noise ratio (SNR) of defects based on thermal image sequence, it is difficult to directly use thermal image sequence for internal defect tomography detection.

When the time delay correlation DOD algorithm is used to extract the amplitude and phase characteristics of the pulse-radar thermal-wave signal, the pulse width, total delay time and time step of the reference signal should be determined first. Since the data sampling frequency is 100Hz, the optional time step and pulse width are both 0.01s, and the total delay time can be determined according to the characteristics of the reference signal. Fig. 4 shows the in-phase and orthogonal reference signals calculated by the time delay correlation DOD.

/Qirt.2020.054

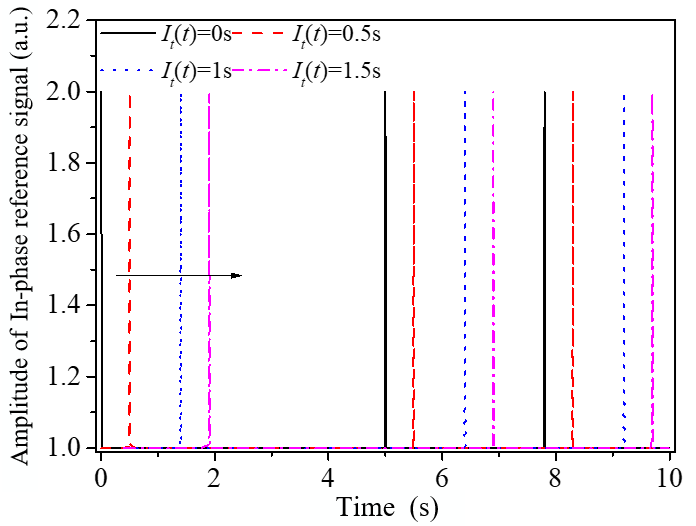

a) In-phase reference signal b) Orthogonal reference signal

Fig. 4 Dual Orthogonal Reference Signals

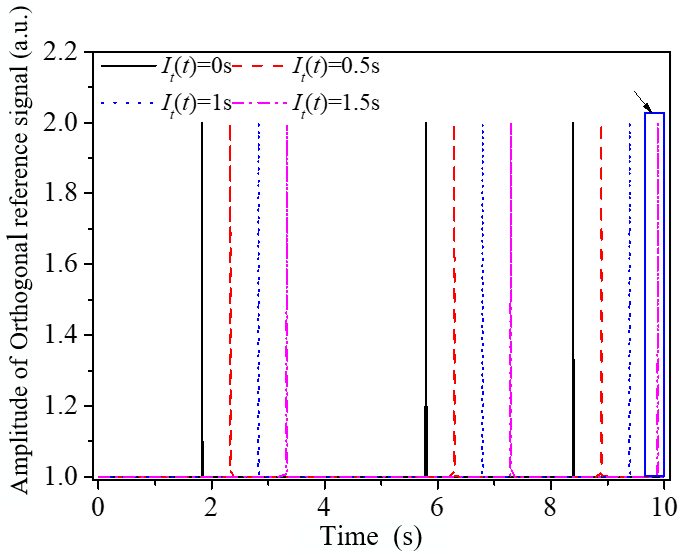

It can be seen from Fig. 4 that the thermal-wave transfer of pulse-radar can be located by using the dual reference signals with different initial delay times. When the initial delay time is 1.5 s, the last pulse of in-phase and orthogonal reference signals will end.

If the initial delay time is increased, the last pulse in the in-phase and orthogonal reference signals will be lost, which makes it difficult to perform the DOD cross- correlation matching filtering operation. Therefore, the total initial delay time should be strictly controlled.

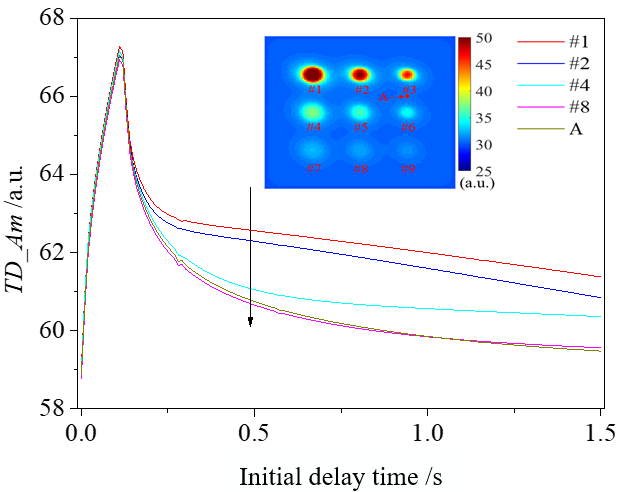

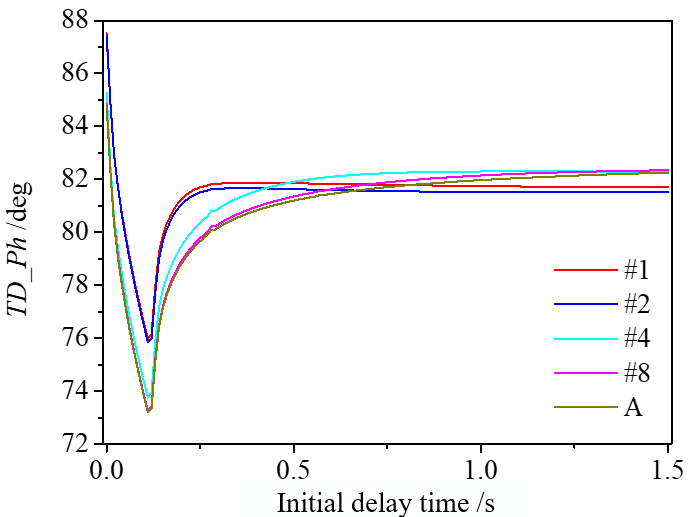

Fig. 5 shows the DOD amplitude and phase characteristics of pulse-radar thermal- wave signal corresponding to the center position of defect #1, #2, #4, #8 and position a without defect under different initial delay time.

a) TD_Am curve b) TD_Ph curve Fig. 5 DOD characteristics under different initial delay times From Fig. 5a) it can be seen that when the initial delay time is less than 0.15s, there is almost no difference between the amplitude characteristics of DOD with and without defects; When the initial delay time is greater than 0.15s, with the increase of initial delay time, the amplitude characteristics of DOD corresponding to the position with or without defects gradually differ, which indicates that with the increase of initial delay
