Comsol Multiphysics Composite

Research Article

Electric and Magnetic Field Analysis for a 34.5 kV Transformer Under Composite Voltage Conditions: COMSOL Multiphysics

Abstract

Transformers are one of the basic components of electrical power systems and play a critical role in energy conversion. However, overvoltages and environmental stresses can cause failures in transformer systems and can lead to serious losses in power transmission. Moreover, sudden failures increase dry-type distribution transformer was modeled using COMSOL Multiphysics software. Based on IEC 60076-3 and IEC 60060-1:2010 standards, a lightning impulse voltage with an amplitude of 170 kV and nominal operating voltage were simultaneously applied to the modeled transformer. Electric field strength, magnetic flux density, and electric potential distributions were analyzed under composite voltage conditions. Under these conditions, the effects of electrical stress on the insulation strength are discussed in detail. The results obtained show the negative effects of composite voltage signal components on the insulation performance of the transformer and potential areas for improvement.

Keywords: Composite voltage, electric field analysis, magnetic flux density, COMSOL Multiphysics,

Lightning Impulse Voltage

Kompozit Gerilim Koşulları Altında 34,5 kV’ luk Transformatörün Elektrik ve Manyetik Alan Analizi: COMSOL Multiphysics

Öz

Transformatörler, elektrik güç sistemlerinin temel bileşenlerinden biri olup enerji dönüşümünde kritik bir rol oynamaktadır. Ancak, aşırı gerilimler ve çevresel zorlanmalar, transformatörlerin yalıtım sistemlerinde arızalara yol açabilmektedir. Bu arızalar, yalıtım sistemlerinin ömrünü kısaltarak güvenilirliği olumsuz yönde etkileyebilir ve enerji iletiminde ciddi kayıplara yol açabilir. Ayrıca, ani arızalar ekonomik maliyetleri artırırken, güç sistemlerinin genel verimliliğini de düşürmektedir. Bu sebeple, çalışma kapsamında 3 MVA gücünde, 34,5 kV’luk kuru tip bir dağıtım transformatörü, COMSOL Multiphysics yazılımı kullanılarak modellenmiştir. IEC 60076-3 ve IEC 60060-1:2010 standartları temel alınarak, modellenen transformatöre genliği 170 kV olan yıldırım darbe gerilimi ile Received: 21/01/2025, Revised: 02/05/2025, Accepted: 07/05/2025

Journal Of Science & Technology

nominal işletme gerilimi eş zamanlı olarak uygulanmıştır. Karma gerilim koşulları altında elektrik alan şiddeti, manyetik akı yoğunluğu ve elektrik potansiyeli dağılımları analiz edilmiştir. Bu koşullar altında yalıtım sistemlerinde meydana gelen elektriksel zorlanmanın yalıtım dayanımı üzerindeki etkileri ayrıntılı olarak ele alınmıştır. Elde edilen sonuçlar, karma gerilim işareti bileşenlerinin transformatörün yalıtım performansı üzerindeki olumsuz etkilerini ve potansiyel iyileştirme alanlarını ortaya koymaktadır.

Anahtar Kelimeler: Karma gerilim, elektrik alan analizi, manyetik akı yoğunluğu, COMSOL

Ntroduction

Transformers are critical devices to ensure energy conversion in electrical power systems and to realize the transmission of electrical energy efficiently. Transformers, which play a critical role in the generation, transmission, and distribution stages of electrical energy, are among the main components of the electrical power system. Efficient operation of transformers is of great importance to reduce energy losses and increase system reliability. However, these devices are subjected to various electrical and mechanical stresses during their operational life, which increases the probability of failure [1, 2].

Surge overvoltages caused by lightning discharges, switching events, and insulation failures are some of the most common conditions that can cause faults in electrical power systems . Overvoltages damage the insulation of devices, causing arcing and short-circuit currents . The insulation of energy transmission systems is especially stressed due to transient overvoltages . Switching-induced overvoltages can cause inter-phase faults in electrical equipment and degradation of insulation systems . Lightning discharges can cause economic losses and equipment failures in power systems . In transformers, which are widely used in electrical power systems, one of the main causes of failures is degradation in the insulation system. Insulation failures are caused by various factors such as high electric field intensity, moisture accumulation, thermal aging, and dielectric breakdowns in the insulation material. Such failures negatively affect energy conversion processes and reduce system reliability . In addition to insulation failures, other problems such as partial discharges and arcing are among the main factors that negatively affect the performance of transformers.

The effects of harmonic voltages on the insulation material are associated with partial discharge behaviors in transformers . These partial discharges usually occur at micro-gaps, surfaces, or geometrical irregularities in the insulation material. This process can result in irreversible damage to the insulation structure and severely reduce the transformer's lifetime. Electrical stress due to ionization increases the risk of failure by straining the dielectric strength of the insulation, especially in high voltage applications [9, 10].

The IEC 60076-3 standard includes the testing of transformers under a lightning impulse voltage with a characteristic of 1.2/50 µs and the evaluation of the effects of this impulse voltage on the transformer . The effects of overvoltages on the electric field and potential distribution within windings is a topic that continues to be extensively researched today. Electric field concentrations cause localized weakening of the insulating material and hence the initiation of partial discharges. This process weakens the dielectric strength of the insulating material, threatening the performance and safety of the device .

The short-term but high amplitude effects of lightning impulses can cause permanent deformations and overvoltages combined with the operating voltage forces the dielectric strength limits of the insulation material and increases failure rates. The costly repairs and power outages caused by such events require Although there are studies in the literature on electric field and magnetic field analysis of transformers, transformer analysis under composite voltage is a subject that needs to be researched in the literature. In recent years, there has been a growing number of studies focusing on the modeling of the electromagnetic characteristics of transformers using various analytical methods. In the study conducted by Özüpak et al. , magnetic behaviors were evaluated through the combined use of the Finite Element Method (FEM) and Artificial Neural Networks (ANN). These approaches highlight the increasing significance of numerical analyses in accurately modeling transformer performance. In another study , the effects of subharmonics on electromagnetic behavior and losses in transformers were investigated using the FEM, and the importance of numerical analyses in transformer performance modeling was emphasized.

In the literature, electromagnetic analyses of transformers are generally carried out using FEM-based software such as ANSYS Maxwell and COMSOL. In the study by Özüpak , the effects of lightning impulse voltage on the winding insulation of a 15 MVA dry-type transformer were analyzed using ANSYS Maxwell. Similarly, Hu et al. conducted an electric field distribution analysis of a 110 kV transformer using COMSOL. Unlike previous works, this study investigates the behavior of a 34.5 kV transformer under composite voltage (AC + impulse) conditions, which have been studied to a limited extent in the literature, and analyzes both magnetic flux density and electric field distribution simultaneously.

In addition to these studies that examine the effect of impulse voltage on transformers, there are other studies in the literature on electric field analysis under composite voltage. Ispirli et al. analyzed the electric field distribution of silicone rubber insulators used at 66 kV and 110 kV voltage levels by the finite element method. The study was carried out under composite voltage consisting of AC and DC. Yazıcı et al. investigated the effect of composite voltages on the disconnector in terms of electrical stress. In Comsol Multiphysics software, the electric field and electric potential distribution of a 170 kV disconnector under composite voltage consisting of AC and impulse voltage components were analyzed.

In addition to the aforementioned electromagnetic analysis studies, the importance of accurate thermal modeling in transformer design has also been emphasized in the literature. Seddik et al. performed a comprehensive 2D and 3D thermal analysis of power transformers using the Finite Element Method, emphasizing the significance of temperature distribution on transformer reliability. Likewise, Tsili et al.

conducted a coupled 3D thermal-fluid analysis of power transformers to evaluate internal cooling mechanisms and their effects on hot spot temperatures. These studies emphasize that combining electromagnetic and thermal field analyses is essential for designing reliable and efficient transformers.

The effects of composite voltages on transformers, especially electrical stress and potential distribution, have been discussed in a limited way in the literature. Therefore, the electric field distribution and potential effects of composite voltages on the transformer need to be studied in more detail. This study aims to comprehensively investigate the electric and magnetic field effects of composite voltages on transformers. In particular, the electrical stress and potential changes in transformer insulation systems caused by composite voltages consisting of AC and impulse voltage components have been investigated.

The results of the COMSOL Multiphysics-based analysis contribute to the development of reliable and durable insulation solutions in transformer design. This study is expected to provide a better understanding of the effects of composite voltages on transformers and provide benefits to improve the isolation, this study provides a unified analysis under composite voltage conditions by combining both waveform components simultaneously. The developed model not only includes realistic time-domain waveform definitions, but also incorporates the nonlinear B-H characteristics of the transformer core, providing a more accurate estimation of the electromagnetic behavior under real-world conditions.

Furthermore, the voltage profiles used in the simulations are based on IEC 60076-3 and IEC 60060- 1:2010 standards, enhancing the reliability and applicability of the model [11, 19]. These aspects distinguish this work from prior studies and underline its novelty in the context of transformer insulation evaluation.

Omposite Voltages

Electrical power system components can be exposed not only to the operating voltage but also to different voltage components . Composite voltages consisting of AC and DC [20, 21] or AC and impulse voltage [16, 22] can stress the insulation performance of the devices in the electrical power system different from the nominal operating conditions. If the insulation performance of the devices in the power system is stressed differently from the nominal operating conditions, it may increase the risk of failure. Therefore, testing of electrical power system components under composite voltages is critical for both verifying design criteria and determining the limits of insulation systems [16, 23].

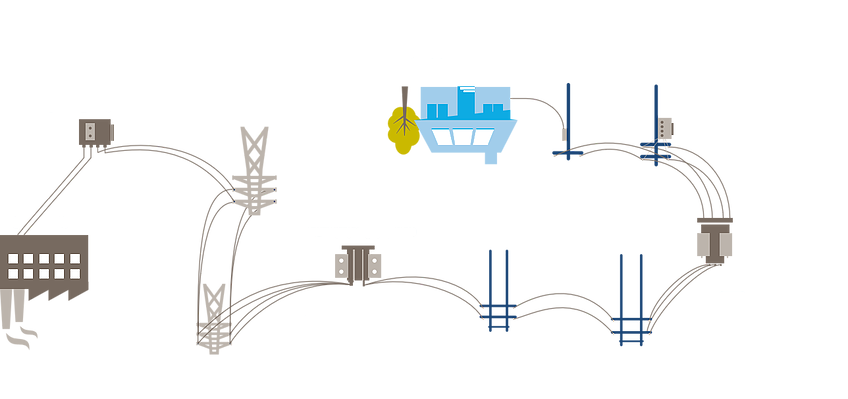

Residential Consumers

Figure 1. Lightning impulse voltage caused by external overvoltage in an electrical power system. The IEC 60060-1:2010 standard specifies the basic methods and criteria for testing under composite voltages . According to this standard, the voltage components that constitute the composite voltage should be characterized by the voltage value and time delay parameters. Figure 2 shows the voltage and time delay parameters of the composite voltage components according to IEC 60060-1:2010. In Figure 2, ∆t is the time delay parameter and U+ and U- are the amplitude of the voltage components.

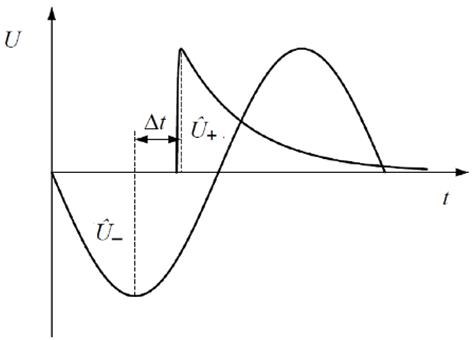

Figure 2. Voltage and time delay parameters of composite voltage components according to IEC 60060-1:2010 standard . Lightning impulse voltages are used to test the insulation performance of power systems and to assess the reliability of equipment [24, 25]. The IEC 60060-1:2010 standard defines in detail the characteristics and application methods of the lightning impulse voltage signal. The standard lightning impulse voltage is defined by four parameters, Um peak value, T1 front time, T2 tail time, and polarity [26, 27]. Figure 3 shows the standard lightning impulse voltage signal with these parameters.

For a standard lightning impulse voltage with 1.2/50 µs characteristic, the value of 1.2 µs refers to the front time of the waveform and 50 µs refers to the time to 50% of the peak value. According to these values, the amplitude of the impulse voltage increases rapidly and decreases slowly with time.

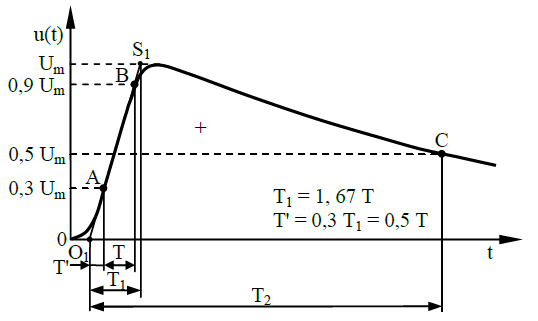

Figure 3. Lightning impulse voltage signal according to IEC 60060-1:2010 standards .

Simulation Study

This section presents a simulation study to investigate the behavior of transformer insulation systems under lightning impulse voltages and composite voltages. In the study, the electric field distribution, potential concentrations, and magnetic flux density in the insulation system were analyzed in detail using COMSOL Multiphysics software. The Magnetic Fields module (AC/DC Module) was employed for magnetic flux density analysis, while the Electrostatics module was used for electric field distribution studies.

In the present study, a 3 MVA dry-type distribution transformer with a mantel core structure was modeled and analyzed under composite voltage. The transformer geometry was created based on a shell- type core structure using the built-in CAD tools of COMSOL. Key components such as the core, primary and secondary windings, and surrounding air domain were modeled in 3D. The dimensions were selected based on typical design values for medium-voltage dry-type distribution transformers. The structural features and geometrical dimensions of the model are presented in Figure 4. The parameter values of the designed transformer are given in Table 1. Tetrahedral elements were used for meshing the model, with a maximum element size of 5 mm.

(C)

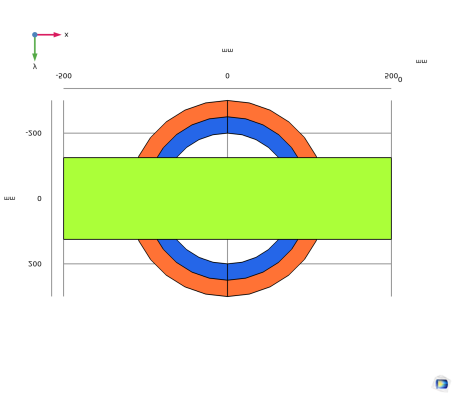

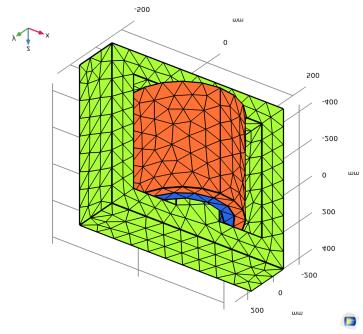

Figure 4. The designed transformer; (a) front view, (b) top view, (c) mesh model. The magnetic core was modeled using a nonlinear B-H curve to accurately represent the saturation behavior of the laminated core steel. The core of the transformer was modeled in the software environment by considering the B-H curve and sheet metal properties of the magnetic material.

Insulating regions were modeled using dielectric constants of εᵣ = 4, corresponding to epoxy resin-based insulation. Copper was used for the winding material with standard conductivity and relative permeability values. The magnetic B-H curve of the core material used in the design is presented in Figure 5.

Table 1. Parameter values of the designed transformer

Hz

The analysis of the modeled transformer was carried out under nominal operating conditions and lightning impulse voltage. For this purpose, AC and lightning impulse voltage were applied simultaneously to the high voltage windings of the transformer in COMSOL Multiphysics software.

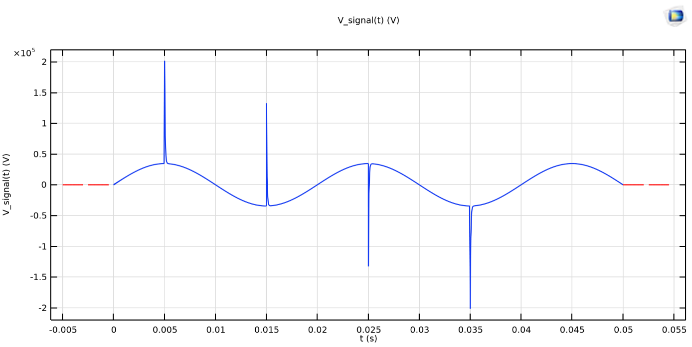

Figure 6 (a) illustrates the time variation of the nominal operating voltage applied to the transformer windings. The frequency of the nominal operating voltage is 50 Hz and the amplitude is 34.5 kV. The lightning impulse voltage required to analyze the transformer under composite voltage in the COMSOL Multiphysics software was generated in the MATLAB/Simulink environment and imported into COMSOL Multiphysics. The time dependent variation of the lightning impulse voltage signal generated in MATLAB/Simulink environment is given in Figure 6 (b). The impulse voltage in Figure 6 (b) has a front time of 1.2 µs and a tail time of 50 µs. The transient behavior of the composite voltage signal was analyzed using a time-dependent solver; considering the IEC 60060-1:2010 standard , the total simulation time was set to 50 ms and the time step to 0.1 µs in order to accurately resolve the fast-rising front of the impulse voltage component. In the COMSOL Multiphysics environment, a relative tolerance of 10−4 was selected to ensure numerical accuracy during the transient analysis. To confirm the reliability of the simulation, sensitivity analyses were conducted by varying the time step and mesh resolution. The observed variation in peak field values was found to be less than 2%, ensuring statistical consistency in the obtained data.

B (T)

Figure 5. B-H curve of the core used in transformer design. Figure 6. Applied to the windings of the transformer; (a) nominal operating voltage, (b) lightning impulse voltage with 1.2/50 µs standard.

For the analysis of the designed transformer under composite voltage, a positive impulse at positive half-cycle, positive impulse at negative half-cycle, negative impulse at positive half-cycle, and negative impulse at negative half-cycle signals are generated. Figure 7 presents the AC (nominal operating voltage) signal as well as the positive and negative impulse voltage signals.

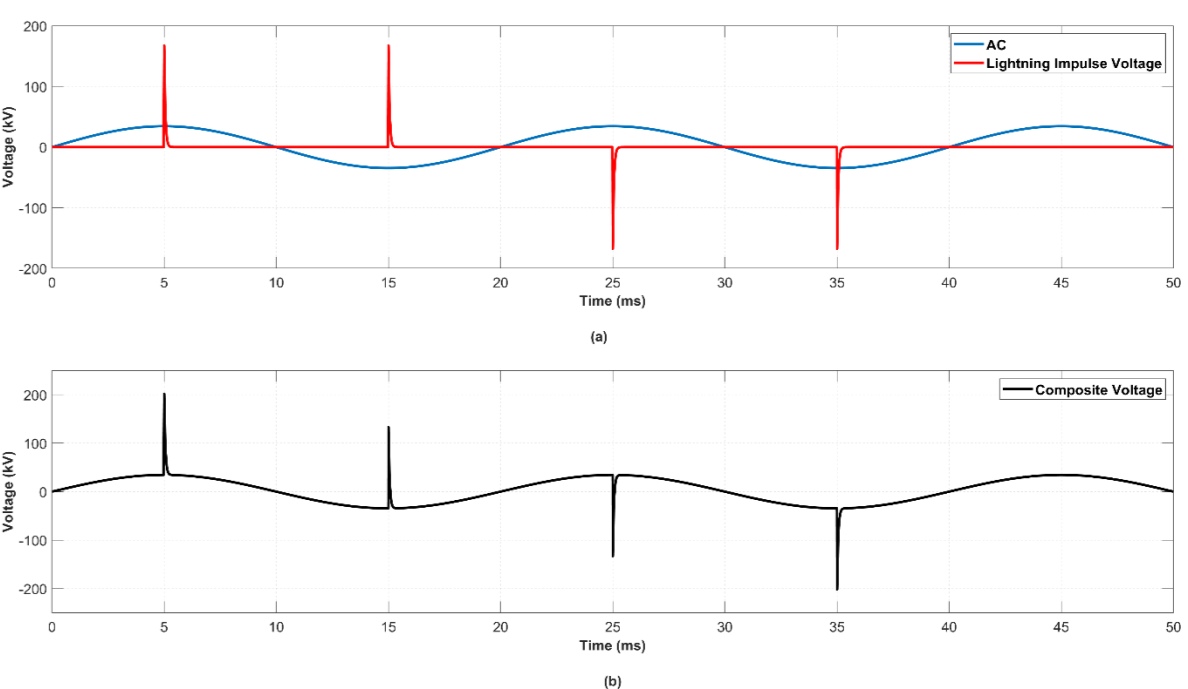

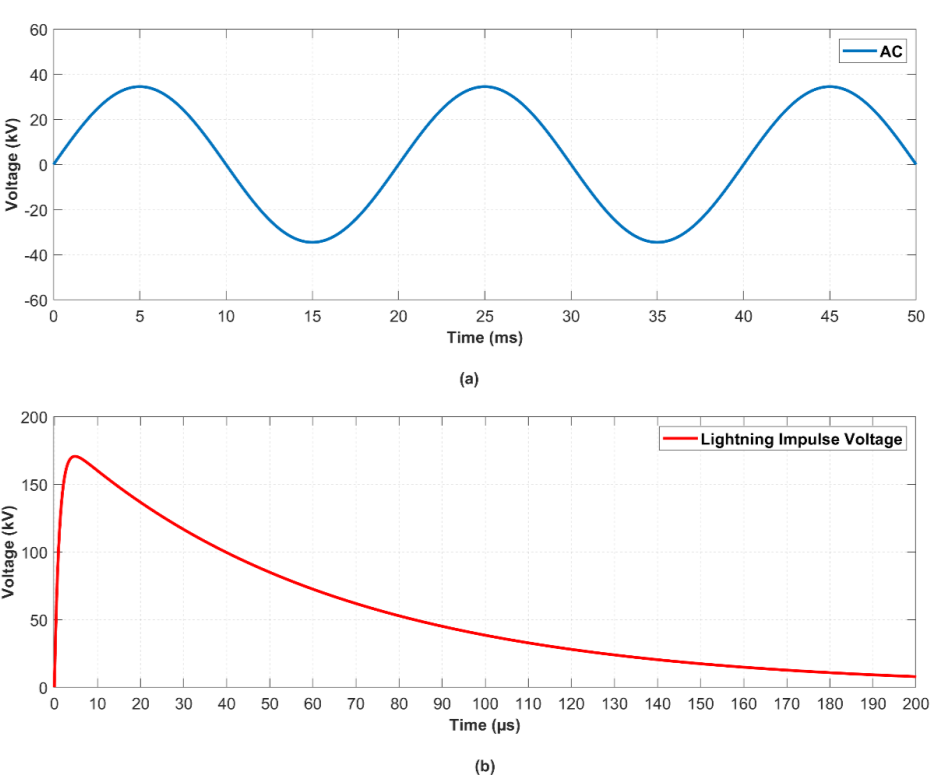

Figure 7. Generated in MATLAB/Simulink environment; (a) AC and lightning impulse voltage, (b) composite voltage. Faults caused by lightning impulse voltages in electrical power systems vary depending on the timing of the impulse application and the amplitude of the operating voltage. Such voltages can impact the power system at any phase of the operating voltage, leading to faults of varying severity. To evaluate the most critical scenarios, this study examines the application of positive and negative lightning impulse voltages at the positive and negative peaks of the AC waveform. Positive impulse voltages with a peak value of 170 kV, as specified in the IEC 60076-3 standard, were applied to the designed transformer at 4.9988 ms and 14.9988 ms, as shown in Figure 7 (a) . Similarly, negative impulse voltages with a peak value of 170 kV were applied at 24.9988 ms and 34.9988 ms, respectively.

The AC and lightning impulse voltage signals in Figure 7 (a) are superimposed to obtain a composite voltage for the analysis of the transformer. For the analysis of the transformer, the lightning impulse was applied at the positive half-cycle (t=4998.8 µs and t=24998.8 µs) and negative half-cycle (t=14998.8 and t=34998.8 µs) of the AC. The composite voltage signal generated in MATLAB/Simulink to be applied to the transformer for analysis in COMSOL Multiphysics is given in Figure 7 (b).

A. Simulation Study Results

In this section, the results of the magnetic and electric field analysis of the transformer designed using COMSOL Multiphysics software under composite voltage are presented. The transformer is analyzed under nominal operating voltage and impulse voltage; magnetic flux density, electric field distribution, and electric potential distribution are analyzed in detail.

The composite voltage signal shown in Figure 8 was applied to the high voltage windings of the modeled transformer in COMSOL Multiphysics software. Figure 8. Composite voltage signal applied to the high voltage windings of the transformer in COMSOL Multiphysics software.

The magnetic flux density distribution obtained for t=5 ms of the composite voltage signal applied to the high voltage windings of the designed transformer is given in Figure 9. The maximum value of the magnetic flux density is obtained as 1.82353 T for this moment when the positive impulse voltage reaches its peak value at the positive half-cycle of the nominal operating voltage.

The distribution of the electric field and electric potential at t=5 ms are shown in Figure 10. At the peak of the positive lightning impulse voltage, the maximum electric field strength was determined to be 78436.2 V/m. The electric potential distribution in the transformer volume increased on the windings as can be seen in Figure 10 (c).

(C)

Figure 9. Magnetic flux density obtained at t=5ms: (a) in the cross-section, (b) in the volume, (c) on the surface.
