Abstract

When manufacturing parts using material extrusion additive manufacturing and anisotropic polymers, the mechanical properties of a manufactured component are strongly dependent on the print trajectory orientation. We conduct non-planar slicing and optimize the print trajectories to maximize the alignment between the material deposition direction and the stress flow induced by a predefined load case. The trajectory optimization framework considers manufacturability constraints in the form of uniform layer height and line spacing. We demonstrate the method by manufacturing a load bearing mechanical bracket using a 5-axis 3D printer and a liquid crystal polymer material. The failure strength and stiffness of the optimized bracket are improved by a factor of 44 and 6 respectively when compared with conventional printing.

Keywords: Material Extrusion, Fused Filament Fabrication, Trajectory Optimization, Non-Planar Printing, Stress Alignment

Ntroduction

In most 3D-printing applications, the material is formed in 2D layers via the printing technology of interest (e.g. material extrusion, laser power, or lithography). By forming subsequent layers on top of the previous ones, a 3D object is obtained.

Material extrusion additive manufacturing , also known as fused filament fabrication (FFF), or fused deposition modeling (FDM), is one of the most common 3D printing processes .

Traditionally, in FFF, a thermoplastic material is deposited in predefined paths via a numerically controlled heated extruder to create a part in a layer-wise fashion. The design geometry is sliced into planar layers that are parallel to the print bed (in the X-Y plane, see Fig. 1a). As the final solid part is obtained by superposition of planar layers in the Z-axis, the conventional FFF approach is often referred to as 2.5D printing .

Based on the printing material, design geometry, printing machine, and other parameters, the design geometry is often oriented to maximize mechanical properties of interest, which may be dimensional requirements, or mechanical strength con- ditions [4, 5, 6, 7]. While 2.5D FFF provides material and ge- ometry flexibility as a manufacturing process, the layer-wise processing of the parts in a fixed horizontal plane may limit the mechanical performance of the printed parts [8, 9], as the inter- layer interfaces are prone to failures [10, 11]. For example, if there is oblique loading, or if the printed part does not follow a simple planar surface, the stress flow often crosses through the inter-layer bonding locations creating premature failures. De- spite the existence of methods to characterize part failure under loading , the planar layer constraint in 2.5D FFF remains a limit to the applicability of the technology in mechanically demanding use cases.

Here instead, we study a non-planar FFF process where lay- ers are defined by arbitrary curves and surfaces in a 3D space (see Fig. 1b). Non-planar FFF printing approaches commonly use a 5-axis printer to deposit material along non-planar trajec- tories, such that the stress flow on the designed geometry aligns with the beads deposition direction within layers, improving mechanical properties [13, 14, 15]. While there are methods in the literature to optimize print trajectories for non-planar layers, ensuring manufacturability constraints under various geometri- cal features (e.g. holes) is often a challenge . Moreover, constraining the print paths to meet conditions required by the material (e.g. uniform line spacing, or constant layer height) has not been addressed. The printability constraints are particularly tight for anisotropic materials. Anisotropy is however needed to exploit the potential of optimized non-planar printing .

In this work, we utilize novel anisotropic polymer materials and design and manufacture non-planar print trajectories that are aligned with the stress flow induced by the loading condi- tions. Section 1.1 discusses the existing literature and the short- comings that are addressed by our method. In Section 2, we introduce the anisotropic polymer we utilized and the details of our print optimization method. In Section 3, the method is applied to several demonstrator and benchmarking geometries.

Section 4 details the experimental results produced by manufac-

(B) Non-Planar Process

Figure 1: Simplified representation of the 2.5D and non-planar fused filament

Fabrication Processes

turing and testing one of the geometries. Finally, in Section 5, we discuss the results and compare them to the 2.5D approach.

Background

Multiple works have investigated the field of non-planar printing . In conformal printing, extrusion is conducted along non-planar trajectories to produce a thin shell over a non- planar substrate. This technique has been used in to fin- ish a piece by removing the stair artifacts produced by conven- tional 2.5D printing. Further extending into non-planar com- plexity, presents algorithms for printing complex geome- tries with a 5-axis printer, but the results are not demonstrated on a real system. Similarly, print trajectory planning for non- planar robotic deposition is studied in and in ; how- ever both works ignore stress flow alignment and manufactura- bility constraints.

End-To-End Implementation Of Non-Planar

FFF optimization requires knowledge of the extrusion dynam- ics [21, 22], machine kinematics , and efficient trajectory optimization formulations that consider process constraints , material, printed geometry [25, 26, 27], and stress flow field .

Recent work has explored the deposition of fiber-reinforced filaments in the stress flow directions [28, 29]. Such applica- tions are limited due to the continuity constraints on the de- posited fibers and result in restricted flexibility as fibers need to be cut at the end of each individual deposition path. Other works on fiber-reinforced materials avoid the cutting problem by producing continuous trajectories , however without op- timizing for the stress flow. Finally, stress-orientation in 2.5D has been studied in , but only for planar stress.

In recent research, a Liquid Crystal Polymer (LCP) mate- rial for 3D printing has been developed, patented, and adopted by NematX AG1. LCPs are composed of aromatic thermotropic polyesters that self-assemble into nematic domains (i.e. the long axes of the molecules are arranged in parallel, but not in well defined planes) when heated above their melting temperature.

Alignment of different domains is achieved by extrusion through the heated nozzle of a FFF machine: the elongation and shear forces produced when the material traverses the nozzle reori- ent the nematic domains in the extrusion direction. The ma- terial alignment in the direction of extrusion greatly improves the mechanical properties and results in anisotropic material properties . By leveraging such materials, it is possible to improve the mechanical properties of the FFF printed parts, using non-planar printing methods. While this possibility has been demonstrated in customized applications, currently there exists no rigorous framework that exploits the anisotropic mate- rial properties to improve mechanical strength of FFF through non-planar printing. The quality of LCP printed parts largely depends on a) the quality of slicing in the desired layer thick- ness across all layers and how each layer supports a subsequent one (see for 2.5D printing), and b) the quality of trajec- tory generation in each layer and the homogeneous spacing of

Https://Nematx.Com/

the deposited lines (see for 2.5D printing). Previous ap- proaches have successfully tackled the optimization prob- lem for isotropic materials such as polylactic acid (PLA), ne- glecting the practical constraints of high-quality FFF printing.

This resulted, for example, in toolpaths containing large vari- ations in line spacing (±50%) or layer height (±30%). With anisotropic polymers like LCPs that require small nozzles, low layer heights and minimal line spacing changes, these varia- tions are too large to print a part successfully. Additionally, the application of the method from to common load bear- ing brackets often resulted in print paths that are physically not printable due to their orientation.

Our novel approach aims to improve the mechanical prop- erties of non-planar FFF printed parts by utilizing anisotropic materials such as LCPs or fiber-reinforced filaments [17, 34].

We formulate an optimization framework that includes the part properties (load case, material anisotropy) and the manufactura- bility constraints (extrusion and machine dynamics). The main

Contributions Of This Work Are

• A novel stress-aligned non-planar print optimization method considering manufacturability constraints to generate tra- jectories that quantitatively outperform existing methods

By Reducing Layer And Line Spacing Deviations;

• A non-planar FFF printing framework suitable for me- chanical design geometries with a complex stress distri- bution generated by holes or elaborate mechanical fea-

Tures;

• The experimental application of stress-aligned non-planar FFF printing with anisotropic polymers to achieve 44× improvement in mechanical strength over baseline ap- proaches.

To demonstrate the slicing and print trajectory optimization methods that we propose, we will use a load bearing mechan- ical piece, that we refer to as the fork for simplicity. Figure 2 shows the fork together with its load case. The loads cre- ate a non-obvious stress flow through the main body and the two arms, which makes stress-aligned filament deposition chal- lenging. The fork is particularly challenging for the classical 2.5D approach. Irrespective of the orientation of the piece on the print bed (with or without support), slicing in planar paral- lel layers will not yield unbroken print lines traveling through the entire part, with an adverse impact mechanical properties.

Moreover, as the main body splits in two arms, and as the dif- ferent sections of the fork have different widths, it is difficult to find print trajectories leading to constantly-spaced, long, un- broken lines.

Aterial

The print trajectory optimization method we propose has been developed to exploit the properties of anisotropic mate- rials for FFF. A notable example are LCP filaments , de- veloped, used for high-end applications and supplied by Ne- matX AG. Studies conducted on the mechanical properties of

Fixed

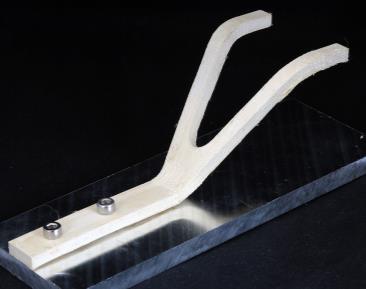

Figure 2: Fork demonstrator geometry and loads. The part is fixed in position via screws in the holes. The maximum dimensions of the part are 140 mm in the X direction, 51 mm in the Y direction, and 60 mm in the Z direction.

LCP parts printed with unidirectional deposition of the fila- ments have shown that properties are strongly dependent on the printing orientation. Comparison between tensile samples printed 90◦(i.e. load perpendicular to the planar print layers surfaces) and 0◦(i.e. filaments aligned to the load) to the load- ing direction has shown that 0◦printing produces a 7.0× in- crease in the Young’s modulus and a 3.6× increase in the ulti- mate tensile strength, when compared to 90◦printing (see Fig.

3 of ). The material is very sensitive to the parameters of the FFF deposition process . The best mechanical proper- ties can be achieved when the layer height and line spacing are kept as constant as possible. Additionally, during the deposition of tightly packed lines, the drag created by the nozzle printing the next line causes misalignment in the previously deposited monomers, further reducing performance .

Ethods

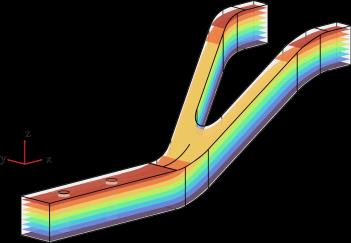

Figure 3 provides a graphical overview of the proposed method for stress-aligned trajectory optimization. For a given geometry and load case, the first step is to compute the stress in the part using Finite Element Analysis (FEA) (Section 2.2.1). We then divide the geometry in constantly spaced non-planar slices. The orientation of the slices is selected to reduce inter-layer stress, allow long and unbroken fibers across the entire geometry, and maximize print quality through uniform layer height (Section 2.2.2). The third step is to fill each non-planar layer with opti- mized print trajectories. We first project the stress computed in FEA on the slice surface, and pre-process it so that it matches the structure required by the optimization problem. Solving the problem corresponds to computing a trajectory-generating scalar field in each layer. The isostatic lines (isolines) of this field – which we post-process for manufacturability – are the stress-aligned and homogeneously spaced print trajectories that

Generating Scalar Field

Figure 3: Graphical flowchart of the stress-aligned trajectory optimization method, demonstrated on the fork geometry form the layer (Section 2.2.3). Once each layer has been op- timized, we join all the trajectories in an ordered sequence of points that is sent to a 5-axis FFF machine to manufacture the part. In the next sections, we explain each step of the method in detail.

Finite Element Analysis

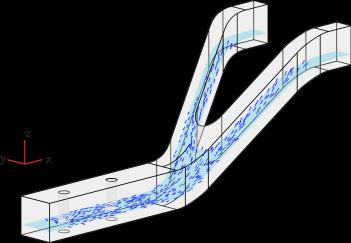

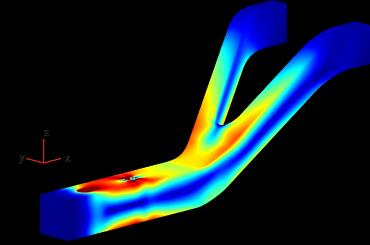

To generate stress-aligned print trajectories, we must first compute the stress in the parts we intend to manufacture. This is achieved using FEA to simulate the specific load case for which a piece is going to be optimized . We begin by sub- dividing the 3D representation of a part in a tetrahedral mesh.

After having applied the boundary conditions corresponding to the forces on the part and having assigned to the part isotropic properties (i.e. an arbitrary Young’s modulus and a Poisson’s ratio ν = 0.3), we solve the resulting discretized problem lead- ing to the Cauchy stress tensor σ for each node in the mesh. A general stress tensor is typically decomposed using eigenvalue decomposition to obtain the principal stresses and principal di- rections . In a reference frame oriented along the principal directions, the stress tensor can be represented as a diagonal matrix where the diagonal entries σ1, σ2 and σ3 are ordered so that |σ1| ≥|σ2| ≥|σ3|. We call σ1 the maximum principal stress and σ3 the minimum principal stress and the correspond- ing normalized eigenvectors maximum principal stress direc- tion and minimum principal stress direction. They represent the direction in which the principal stresses act. The maximum and minimum principal stress directions are orthogonal. We will call principal stress vectors the vectors obtained by multiplying a principal stress with the corresponding principal stress direc- tion and stress flow the vector field that regroups the principal stress vectors computed at all the nodes.

Offset Slicing

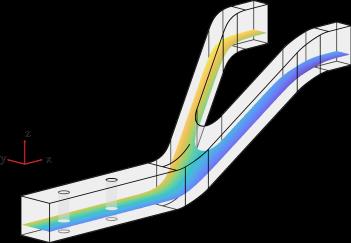

Conventionally, in 2.5D printing the desired component is sliced in evenly spaced layers that are parallel to the print bed. The homogeneity of the layers allows one to obtain high-quality prints with excellent layer adhesion, producing mechanically strong pieces. We adapt this slicing scheme to the non-planar context, where high-degrees-of-freedom machines can extrude along curved layers. As in 2.5D printing, we choose as our first slice the contact surface between the part and its (curved) sup- port. Then, we generate the following slices so that each one has a constant distance from the one below. Given a desired ge- ometry and having chosen which one of its faces will be resting on a support piece, we select this entire face as our first slice.

Then, we follow the geodesic heat method (Alg. 1) proposed in to compute the geodesic distance of a domain (the desired geometry) from a subset (the first slice).

The practitioner must first select the orientation of the piece on the print bed or support. Clearly, when working with the ob- jective to maximize the alignment between the deposited fibers and the maximum principal stress flow, we would like the nor- mals to the print layers to be aligned with the minimum prin- cipal stress flow. Existing methods that generate slices maximizing the alignment between layer normals and mini- mum principal stress vectors simply push the orientation prob- lem downstream, forcing the practitioner to look for ways to

Algorithm 1: The Geodesic Heat Method

1 Compute the flow of heat u from a contact surface, by integrating the heat flow ˙u = ∆u for a fixed small time

Normalized And Negated Vector Field X = −∇U/|∇U|;

3 Recover the final distance ϕ, whose gradient follows X, by solving the Poisson equation ∆ϕ = ∇· X. manufacture irregularly oriented layers whose complexity leads to poor prints. Often, this results in twisted or intertwined lay- ers which cannot be physically manufactured. As our method focuses on manufacturability, the initial choice of orientation is actually an advantage, as it allows one to select the orientation producing the best print quality. Additionally, when printing mechanical pieces designed for a well defined load case, we noticed it is fairly easy and intuitive to find an initial orienta- tion generating a satisfactory layer alignment. We support this claim empirically in Section 3.1.

Print Trajectory Optimization

The starting point of our approach to print trajectory op- timization is the work of Fang et al. , that we embellish with numerous refinement steps which we discuss in detail. We first note that irrespective of the slicing method, there will be regions where the maximum principal stress vector is not tan- gent to the surface of the slice. Thus, we begin by projecting the maximum principal stress flow field onto the slice. Because of the structure of the print path optimization problem, we then need to rotate the projected vectors around each surface normal to obtain their orthogonal vectors f⊥. For a vector f (belonging to the stress flow F) and the corresponding surface normal n,

(1)

We regroup all calculated f⊥in the projected, orthogonal and normalized maximum principal stress flow F⊥. The heterogeneous stress orientations produced by the FEA, coupled with the fact that surface normals can lie on both side of the slice, can create ambiguities in the stress flow F⊥. This undesired effect occurs in regions where the vectors compos- ing the stress flow are aligned (approximately) in the same di- rection, but have opposite orientations. As the toolpath opti- mization problem that we pose is sensitive to vector orientation ambiguity, we propose to pre-process the stress flow. We first analyze all the vectors in F⊥to determine their main Cartesian

(2)

where id represents the Cartesian component to which the vec- tors in F⊥have the best alignment and ei, i = 1, 2, 3 are the unit axes of a Cartesian reference frame in R3. Now, we can rectify

(3)

for all vectors in F⊥. We then regroup the resulting fr in the rectified stress flow Fr. Figure 5 includes an example of stress flow rectification. Intuitively, the rectification consists in flip- ping the vectors that do not lie in main stress flow orientation.

The rectification ensures that the print trajectories that we then generate are homogeneous and easily manufacturable. We point out that our method requires the stress flow to be rectified, but is not sensitive to the rectified vectors orientation. This is be- cause the extruded material should simply align with the main traction/compression direction, making the problem invariant to 180◦rotations of the stress flow.

Next we distinguish critical stress regions from uncritical ones. We consider a node as critical if the stress is both suffi- ciently anisotropic and sufficiently large. The former condition

(4)

where θa is the anisotropy threshold; the latter to

(5)

where θs is the stress significance threshold. The idea behind this classification is that some regions of the desired geometry undergo large and quasi unidirectional stresses: in these regions the alignment between deposited material and the stress flow is crucial. Other regions are subject to low or isotropic stresses and the material alignment is not important. In uncritical re- gions, we can print in the most convenient direction, which is typically the continuation of the print direction used in the crit- ical regions. This allows us to deposit long unbroken fibers in our manufactured piece, fully exploiting LCPs properties. Fig- ure 4 illustrates on an example geometry the critical regions corresponding to different choices of the stress anisotropy and significance parameters.

It is now possible to extrapolate the stress flow fr of the nodes at the critical region boundary to the neighboring un- critical nodes. We propagate the critical stress flow, until all the uncritical nodes have their original stress vector replaced by an extrapolated (and normalized) critical stress vector. The extrapolation is conducted by solving an optimization problem that minimizes the Dirichlet energy of the stress flow in the un- critical region, constrained by the boundary conditions with the critical region. The optimal extrapolated stress flow is the min-

(6)

where Fuc regroups all the stress flow vectors fuc of the uncrit- ical regions and G is the numerical gradient over the triangular

(D) Θa = 15 , Θs = 0.2

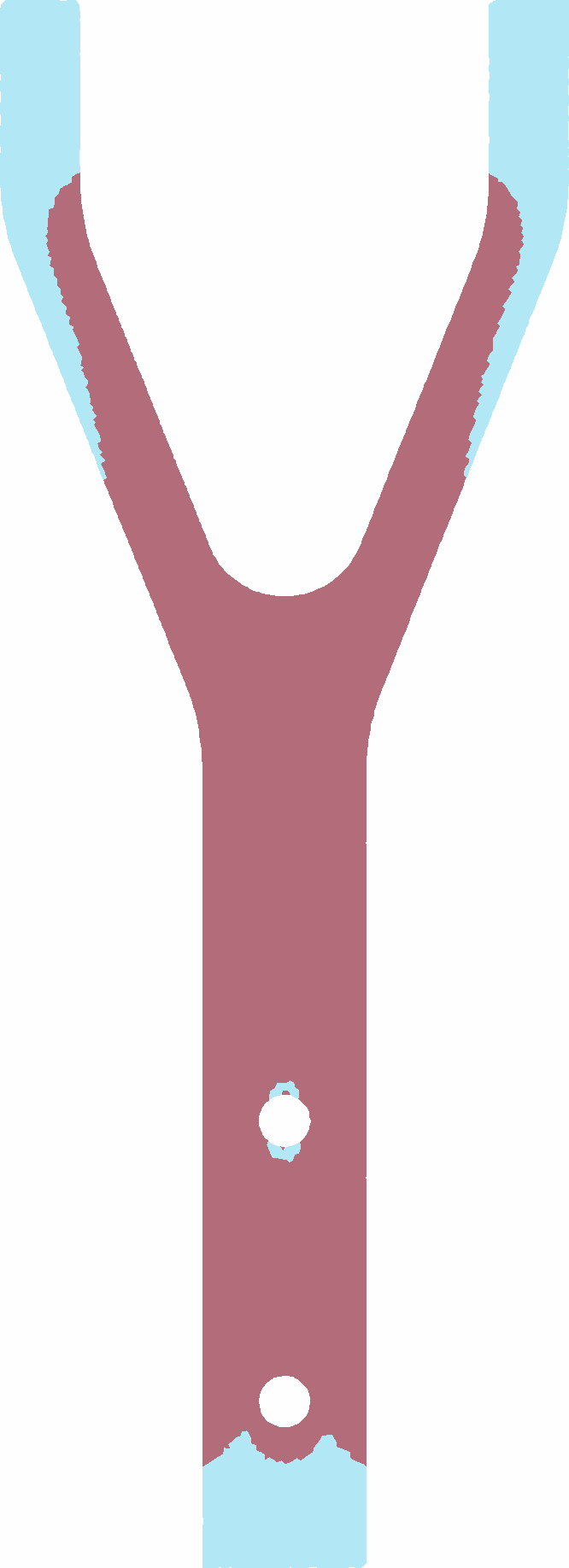

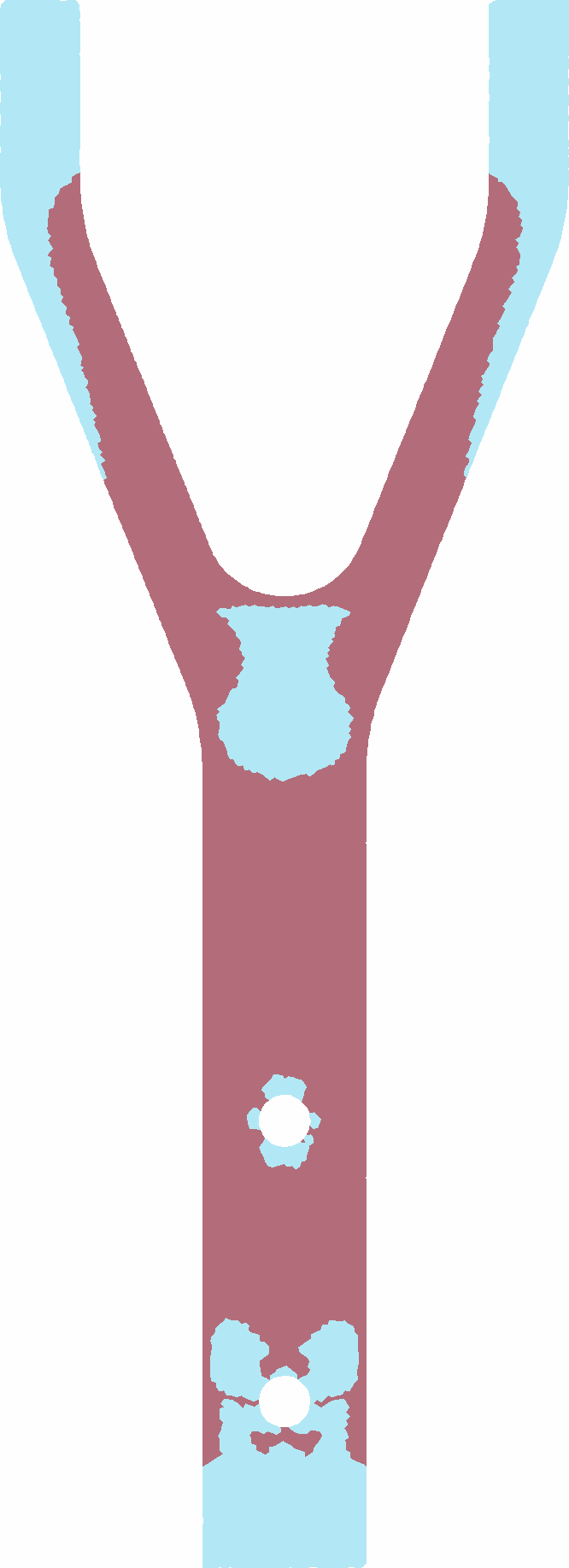

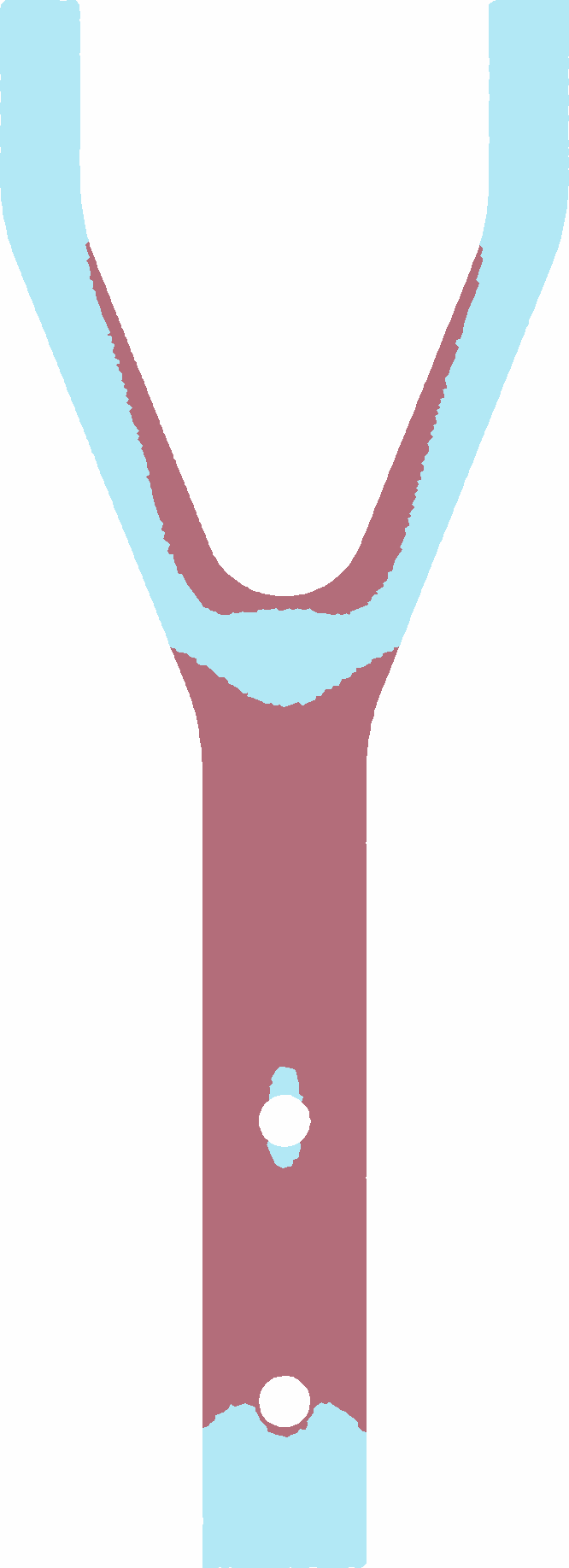

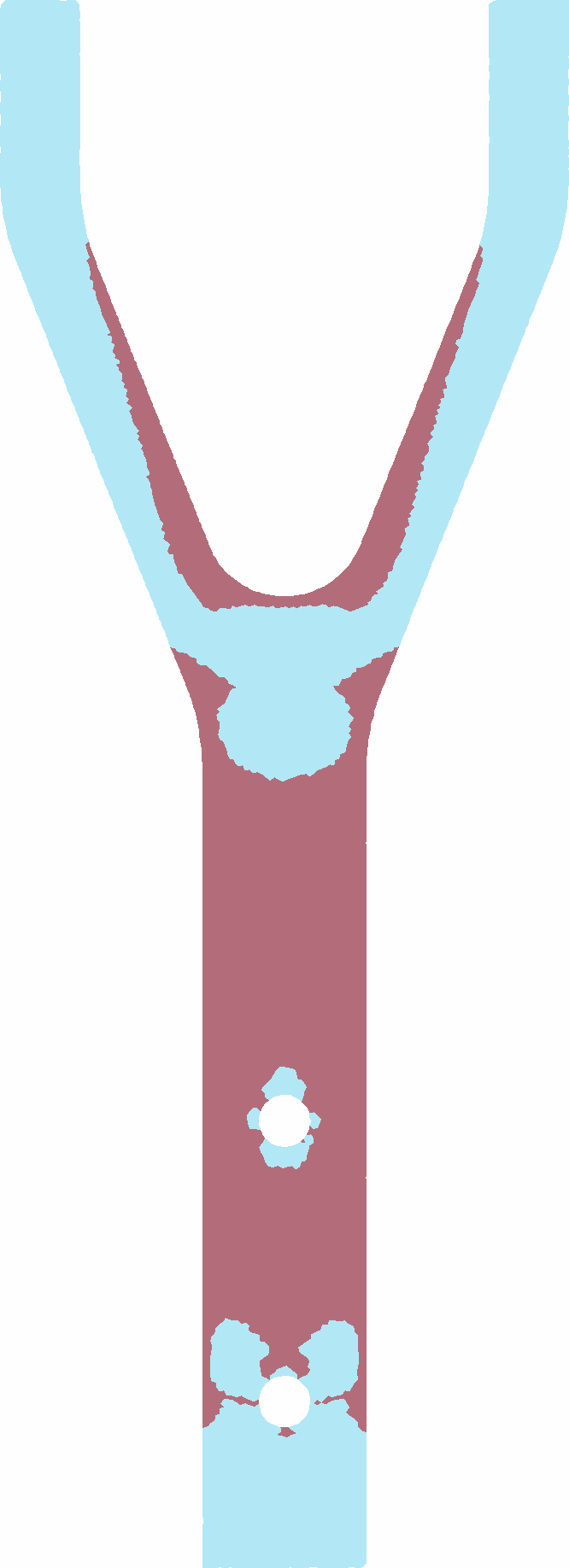

Figure 4: Critical region shape (in red) as a function of the stress anisotropy and significance parameters θa and θs, shown on a slice of the fork demonstrator geometry for the load case that will be discussed in Sec. 3. The same example slice will be used in all other figures. Experimentation suggests that the method produces better trajectories when selecting parameters that produce a simply connected critical region, which in this scenario corresponds to case (a).

mesh of the uncritical region. Solving (6) corresponds to find- ing the nodal vectors that minimize the orientation variability in the entire vector field. The two constraints enforce the require- ment that the vectors at the critical-uncritical boundary are fixed and that the solutions found in the uncritical region are tangent to the surface. The solution ˆFuc replaces the stress flow of the uncritical nodes. Figure 5 includes an example of the propaga- tion process.

Having applied all the previous steps to the results of the FEA simulation, to each node in the slice corresponds a pre- processed orthogonal stress vector fp. We regroup all fp in Fp.

We are ultimately interested in solving the problem

(7)

to find a scalar field ˆϕ whose gradient matches as closely as possible the orthogonal stress flow Fp on the slice S . Given the discretized nature of our problem, we reformulate the opti- mization problem (7) as the following regularized optimization

(8)

where G is the numerical gradient over the triangular mesh of the slice and ϵ is the coefficient of the regularizer. There exists

(9)

We can now produce the optimized print trajectories, which are isolines of the scalar field ˆϕ that we just obtained. Calculating the isolines is a straightforward operation that just requires ex- tracting equally spaced isolines on the slice mesh, based on ˆϕ . The isolines spacing will correspond to the distance between two print trajectories. We conduct a final post-processing on the print trajectories by cubic spline re-sampling . We first fit a cubic smoothing spline interpolation, which produces a quasi- identical trajectory, but reduces major roughness. The spline is then sampled at even distances to produce a sequence of points that represent the print trajectory. This final smoothing step im- proves manufacturability and ensures that the mechanical prop- erties of the part will not be limited by a poor quality print.

Alculation

In the following sections, we apply the slicing and trajec- tory optimization methods that we have just described to the fork demonstrator geometry. The entire implementation is con- ducted using MATLAB. We first mesh the part, apply the loads shown in Fig. 2 and conduct FEA to compute the Cauchy stress tensors that will be used in slicing and trajectory optimization.

Offset Slicing

For each node of the FEA mesh, we compare the the maxi- mum principal stress vectors with the slicing surfaces normals. Following Sec. 2.2.3, the ideal slicing is obtained when each maximum principal stress is perpendicular to the corresponding

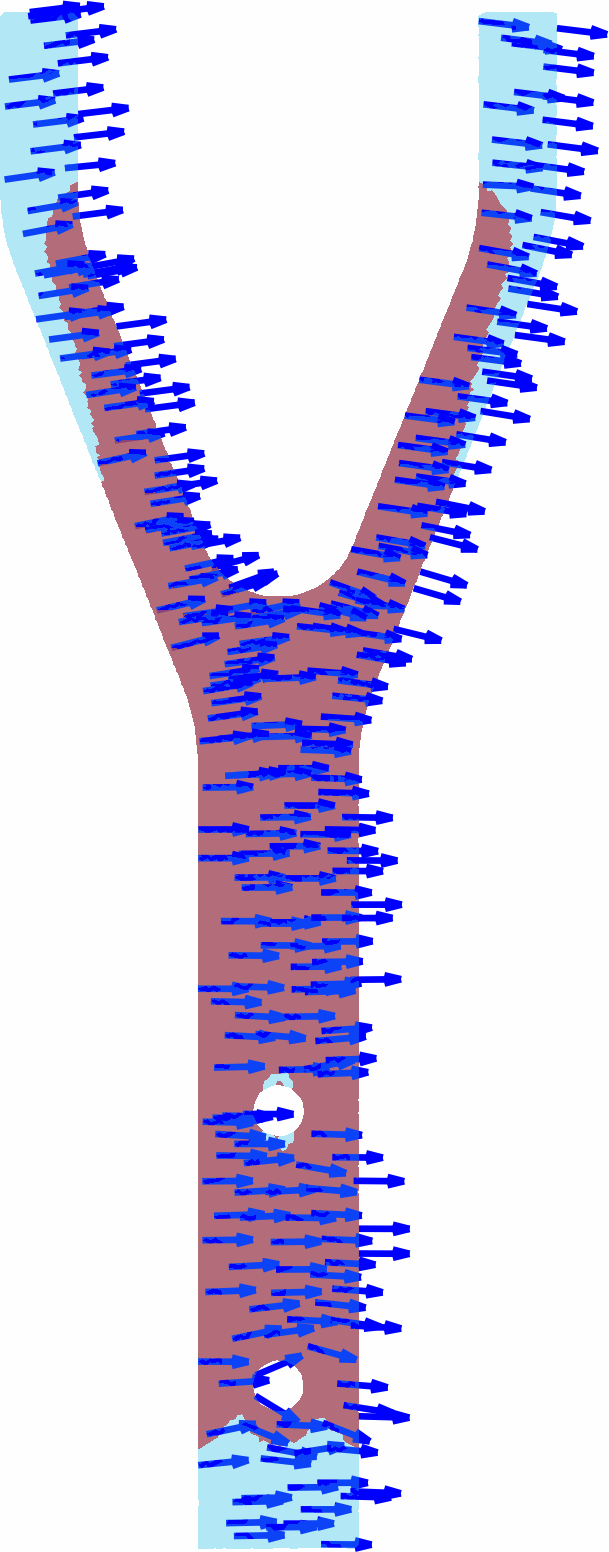

(C) After Stress Flow Propagation

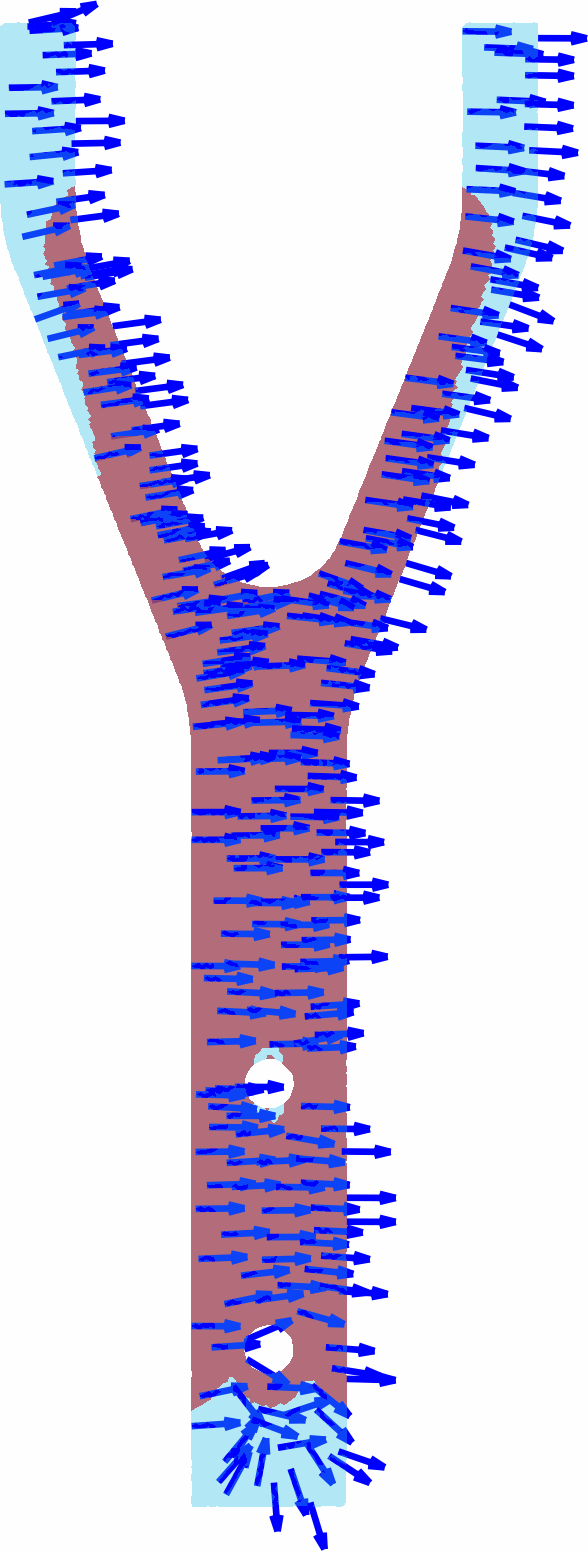

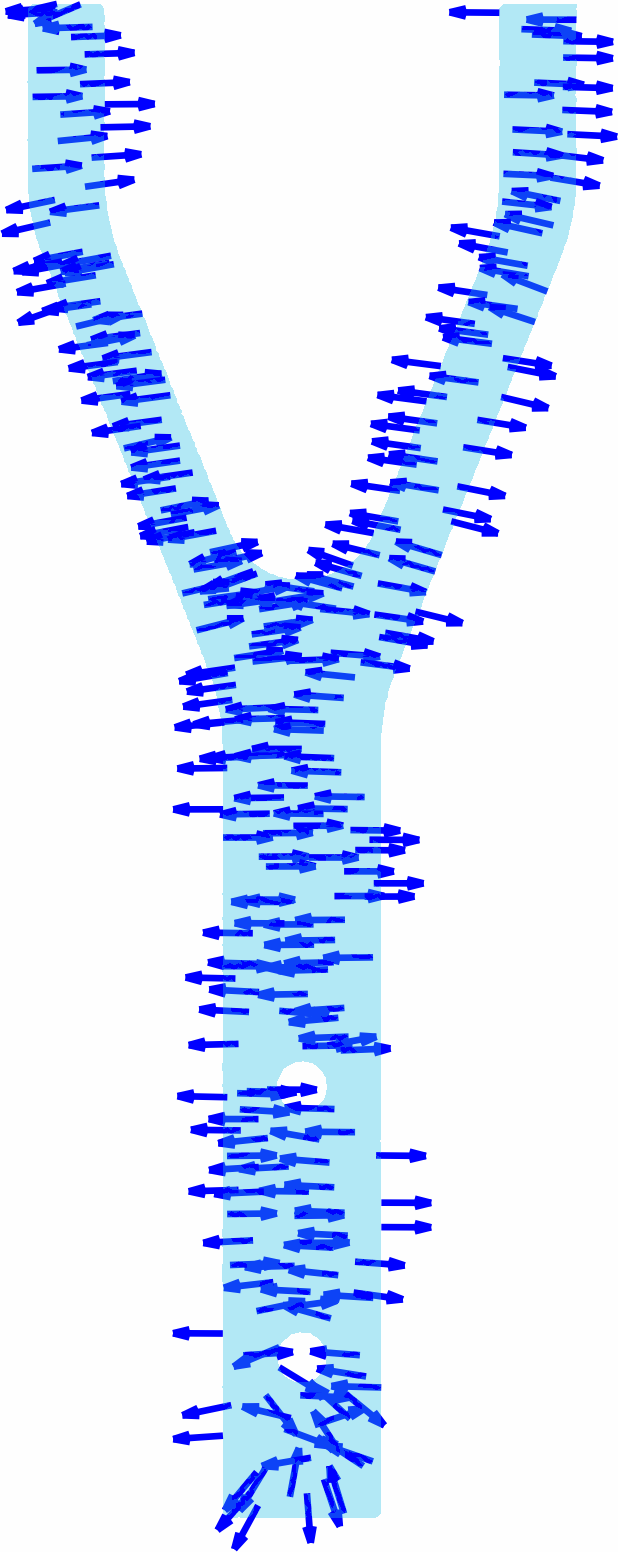

Figure 5: Rectification and propagation of the stress flow, shown on a slice of the fork demonstrator geometry for the load case that will be discussed in Sec. 3. Note the agreement in the vectors orientation after rectification and the change of stress flow direction in the uncritical region after rectification. slice normal. Given the maximum principal stress vector f and the slicing surface normal n (both assumed to be normalized) at the node j, we compute the nodal slicing stress-alignment as γ j = ∥f × n∥.

(10)

We calculate the average slicing stress-alignment over the entire piece by considering the critical regions only. For a meshed

(11)

The proposed metric will produce ¯γ ∈[0, 1], where ¯γ = 1 cor- responds to a perfectly aligned slicing and ¯γ = 0 to ta case where the maximum principal stress vector is perpendicular to the slices. A comparison of our method (Fig. 6a) with standard planar slicing along the X, Y, and Z axes of the demonstrator bracket reference frame is quantified in Table 1. Both the off- Table 1: Average slicing stress-alignment for different slicing methods (evalu- ated in the critical regions only), with identical layers distance

¯Γ

set slicing method we propose and the planar slicing along the Y-axis have very high alignment scores ¯γ. The Y-axis planar slicing, however, produces a large fraction of slices that belong tured part would be more prone to inter-layer fractures in the on layers that span the entire piece, significantly increasing the strength of the printed part and making offset slicing superior to all planar slicing methods. Figure 6b shows one of the slices obtained using offset slicing, together with the critical maxi- mum principal stress directions that were used to compute γ on the depicted slice.

Print Trajectory Optimization

Next, we generate the print trajectories for each slice indi- vidually. We first project and rectify the stress flow on a slice, and then determine the critical regions. We set the parameters of Equations (4) and (5) to θa = 3 and θs = 0.1, to produce a simply connected critical region that covers most of each slice.

The following step consists in solving Eq. (9) to compute the values of the trajectory-generating scalar field over the nodes of each meshed slice. We show the critical region and the scalar field corresponding to the example slice in Fig. 6c and 6d. Fi- nally, it is possible to extract the isolines of the scalar field that was just calculated. The isolines spacing corresponds to the distance between two neighboring print trajectories, and can be easily selected to match the material and printer requirements.

Figure 6e shows the isolines that were obtained from the scalar field of Fig. 6d. In order to maximize the quality of the print, we post-process the isolines. These are first interpolated us- ing a cubic spline with a smoothing parameter p = 0.95, to smoothen the small-scale wiggles that can be caused by mesh- ing and numerical approximation. Then we add contour lines to each slice and trim the smoothed isolines to avoid overlap with the contours during printing. We finally connect sequen- tially the adjacent print lines and generate travel moves where required. Figure 7 shows the final print trajectory that will be sent to the printer to manufacture one layer.

Figures 8 and 9 illustrate the application of our method to two benchmarking geometries taken from the literature, which are commonly known as bunny head and topology optimization .

In Eq. (11), we defined the metric ¯γ to quantify slicing stress-alignment. Now, we are interested in trajectory stress- alignment, for which we define a new metric. We first compute
