Abstract

Fiber reinforced polymer composite (FRPC) materials are extensively used in lightweight applications due to their high specific strength and other favorable properties including enhanced endurance and corrosion resistance. However, these materials are inevitably exposed to moisture, which is known to drastically reduce their mechanical properties caused by moisture absorption and often accompanied with plasticization, weight gain, hygrothermal swelling, and de-bonding between fiber and matrix.

Hence, it is important to understand the mechanics of moisture diffusion into FRPCs. The presence of fibers, especially impermeable like Carbon fibers, introduce tortuous moisture diffusion pathways through polymer matrix. In this paper, we elucidate the impact of fiber packing and morphology on moisture diffusion in FRPC materials. Computational models are developed within a finite element framework to evaluate moisture kinetics in impermeable FRPCs. We introduce a tortuosity factor for calculating the extent of deviation in moisture diffusion pathways due to impermeable fiber reinforcements. Two-dimensional micromechanical models are analyzed with varying fiber volume fractions, spatial distributions and morphology to elucidate the influence of internal microscale fiber architectures on tortuous diffusion pathways and corresponding diffusivities. Finally, a relationship between tortuosity and diffusivity is established such that diffusivity can be calculated using tortuosity for a given micro-architecture. Tortuosity can be easily calculated for a given architecture by solving steady state diffusion governing equations, whereas time-dependent transient diffusion equations need to be solved for calculating moisture diffusivity. Hence, tortuosity, instead of diffusivity, can be used in future composites designs, multi-scale analyses, and optimization for enabling robust structures in extreme moisture environments.

Keywords Moisture Diffusion · Diffusivity · Tortuosity · Finite Element Analysis · Micromechanics

Ntroduction

Fiber reinforced polymer composite (FRPC) materials are widely used in structural applications within the aerospace, automotive, civil and marine industries due to their high specific strength, improved durability and corrosion resistance. When used in such applications, FRPCs are inevitably exposed to extreme conditions: moisture, low and high temperatures, pH, UV radiation and salinity, among others. Moisture, in particular, is a key environmental factor due to 1) its prevalence, although to different extents; 2) polymer matrices having a relatively high polarity when compared to reinforcing fibers and therefore a high affinity for absorbing moisture in humid environments; 3) the drastic reduction of FRPC properties caused by moisture absorption and often accompanied with plasticization, weight gain, hygrothermal swelling, and de-bonding between fiber and matrix [1, 2]. This necessitates an in-depth study of the mechanisms and avenues of moisture ingression through FRPCs.

Most prior experimental research conducted on FRPCs for establishing the effect of moisture diffusion involves measuring the weight gain response with various reinforcing fiber types (continuous or textile) and materials (Carbon, Glass, Kevlar) . In most studies, FRPC samples are subjected to moisture (chamber, submerged in water/seawater) and their weight gain is measured periodically, and further plotted as weight gain vs. time graphs. Key information

A Preprint - Subramaniyan, Imam & Prabhakar

obtained are the effective diffusivity and moisture saturation for specific FRPCs. Such studies are very important for identifying the overall effect of moisture diffusion and the extent of moisture absorption, although they only provide a global understanding of moisture diffusion and the local mechanisms are poorly understood or rarely captured. To moisture diffusion through FRPCs . These frameworks have focused on predicting experimentally measured moisture diffusivities and global weight gain curves of FRPCs considering independent parameters like fiber volume fraction, fiber distribution and diffusivities of individual components (fiber and matrix). However, gaining a fundamental understanding of micro-scale moisture diffusion in terms of the effective fiber architecture has seldom been the focus.

Bond et al. investigated the influence of fiber spatial distribution on moisture diffusivity computationally and stated that diffusion coefficient is unaffected between regular and random fiber distribution. Hence, they suggested that the regular fiber model is adequate for estimating diffusion coefficients for composites. However, Joliff et al.

showed that fiber arrangement has a significant impact on moisture diffusion when the fibers are in contact with each other, thereby, forming an effective barrier against diffusion. The results also showed that the rate of diffusion is greatly modified during initial (short) exposure times because of fiber arrangement, where the diffusivity of randomly distributed array is lower compared to that of a regular array of fibers. Aditya et al. showed that moisture diffusivity is influenced by the cross-sectional shape of fibers. They computationally showed that the effective diffusivity is minimum for circular fibers, and it increases as the eccentricity of circular cross-section increases to become an elliptical cross-section. In their consecutive work , they considered computational models with many irregular shapes of fiber cross-section and determined that the percentage change in diffusivity when compared with circular fibers varies between -15.19% to 10.56%. In summary, prior research has shown that moisture diffusivity of fiber reinforced composites depends on fiber packing, fiber volume fraction, fiber cross-sectional shape and diffusion properties. Although these parameters are studied individually, further investigation is necessary to study the combined effect of these microscale fiber architecture on moisture diffusivity.

In this paper, we propose to capture the combined effect of fiber micro-architecture by introducing a tortuosity factor. Such a factor has previously been considered for capturing diffusive flow in porous electrodes . In this paper, we will numerically determine the effective diffusivity and compare that with the tortuosity factor to account for the influence of fiber architecture on moisture diffusion in FRPCs. Particularly, we used Finite Element Method (FEM) for studying the moisture ingression in impermeable fiber reinforced polymer composites. First, we developed two-dimensional micromechanical models with different fiber volume fractions and fiber distributions to establish the influence of fiber distribution and volume fraction on the effective moisture diffusivity and to determine the tortuosity factor for these composites. Then, we studied the influence of fiber morphology (shapes) on tortuosity. Finally, we established a relationship between tortuosity that captures the fiber architecture (combined effect of fiber volume fraction, fiber distribution and fiber shape) and diffusivity. This relationship was validated for a set of test fiber micro-architectures.

Otivation And Significance

The main objective of this paper is to study how moisture diffusion occurs in FRPC composites. In particular, our model system is Carbon fiber reinforced polymer matrix (CFRP) composites, where Carbon fibers are considered to be impermeable to moisture diffusion. Hence, they typically act as barriers that make moisture diffusion pathways tortuous, thereby, delaying moisture ingression and consequently reducing moisture diffusivity. Fiber spatial distribution and morphology induced hindrance to moisture diffusion is quantified using a tortuosity factor, where an increase in tortuosity implies greater resistance to moisture diffusion. The tortuosity is obtained by solving steady state diffusion governing equation, which is computationally less expensive compared to transient diffusion equation that is solved for obtaining moisture diffusivity. Hence, by establishing a relationship between tortuosity and diffusivity, we can directly obtain diffusivity from tortuosity values for a large range of fiber architecture without having to perform diffusion Further in this study, we consider one dimensional diffusion while modelling moisture kinetics. This is because FRPCs are typically used as large thin sheets or plates where thickness is very negligible compared to the in-plane dimensions.

When used in structures, the faces are exposed to moisture which results in primary moisture flow direction occurring along the through-thickness direction, as explained in Figure 1.

N Summary, The Novelty Of This Paper Is Twofold:

• We present a novel tortuosity factor within the realm of FRPCs that can capture the collective influence of fiber architecture. Although presented for 2D micromechanics models in this paper, the concept can be extended to 3D space and multiscale architectures. For example, our work can be extended to multi-scale analysis of 2D and 3D textile composites where the effect of weave patterns, tow cross-sections, tow waviness, etc. on moisture diffusion can be captured effectively by relating diffusivity and tortuosity.

A Preprint - Subramaniyan, Imam & Prabhakar

• By establishing a relationship between tortuosity and diffusivity, diffusivity can be readily estimated using tortuosity. Further, we can use tortuosity as a design parameter for FRPCs composites, within multi-scale analysis, and optimization problems instead of diffusivity. Such tortuosity factors can also be developed for calculating effective electrical and thermal properties.

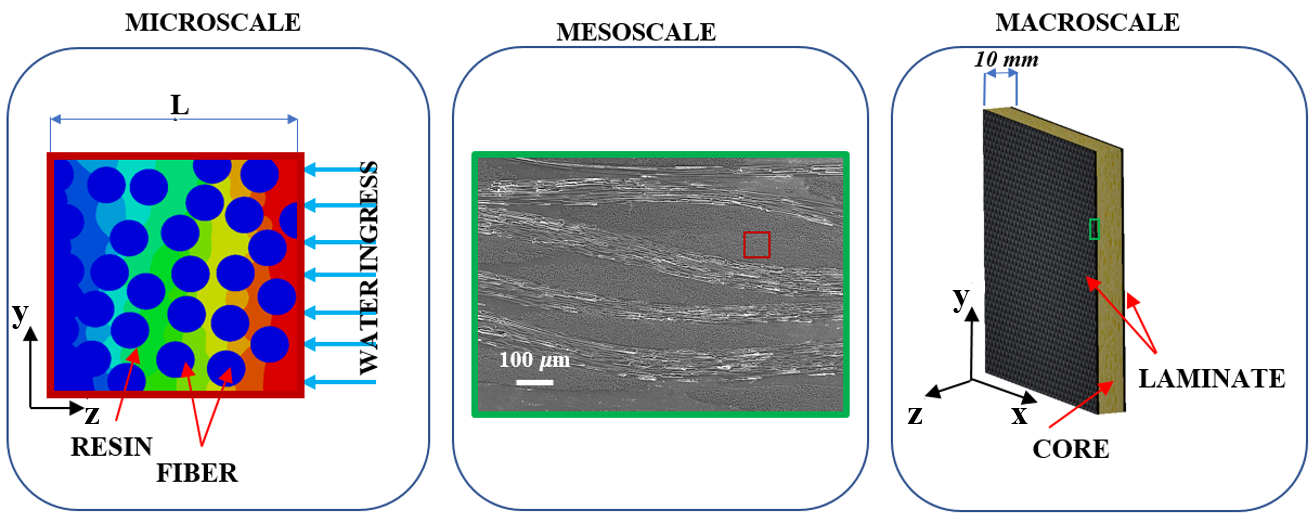

Figure 1: Macroscale image (right) consists of a sandwich structure composed of Carbon fiber reinforced plain weave polymer composite facings with foam core. Mesoscale image (center) shows a Scanning Electron Microscopy image of the cross-section of one of the facings. Microscale image (left) shows the representative volume element model of a fiber bundle present within a facing. Exposure to moisture occurs on either of the facings along to the thickness direction. As a result, at the microscale, moisture diffusion occurs primarily in the direction perpendicular to the fiber direction.

Omputational Models

Finite element method is used here for studying moisture diffusion in FRPCs. Two-dimensional representative volume element (RVE) micromechanical models are developed for understanding the effect of fiber distribution and fiber volume fraction on moisture diffusivity and tortuosity. These models consist of different spatial distribution of fibers in polymer matrix with a range of fiber volume fractions. Then, the influence of fiber morphology/shape on moisture diffusion is elucidated using a unit cell model. Finally, the combined effect of fiber architecture on moisture diffusivity and tortuosity is studied by modelling RVEs of real microstructures of FRPCs. Although the interphase between fibers and matrix could impact moisture diffusion, we have only considered two-phase (fiber and matrix) models in this paper due to lack of sufficient characterization of interphase chemistry in the literature. Having said that, the approach and models can be easily extended to three-phase models to include fiber-matrix interphases.

In this paper, the influence of fiber architecture on moisture diffusion and tortuosity is investigated first in two steps: 1) fiber volume fraction and spatial distribution, and 2) fiber morphology. Next, real microstructures from FRPCs are considered to capture the combined effect of fiber architecture on moisture diffusion and tortuosity.

Fiber volume fraction and spatial distribution: 2D micromechanical finite element models of RVEs with spatially distributed fibers are considered as shown in Figure 2(a). Figure 2(b)shows a representative cross-sectional image of a carbon fiber-reinforced polymer laminate with five plies where the dimensions along the y-axis are larger than dimensions along the z-axis. Here, A-D shows possible RVE types. In general, RVEs like A and C are not considered while modeling the effective elastic properties due to the boundary effect, and only RVEs like B and D which are in the bulk of the material are considered . In our case, since the interest is in modeling the moisture diffusion from the boundary to the interior of the material, we consider RVEs like A and C that are at the boundary. In this work, only the moisture ingression that occurs along the thickness direction is considered since the composite’s length and width are orders of magnitude larger than the thickness. Therefore, the material periodicity in our 2D models is considered only in the y-direction for numerical simulations. Although, geometric periodicity is considered along the y-axis, we have not considered periodic boundary conditions in our models. Typically, there are three types of boundary conditions used for numerical homogenization in diffusion (conduction) problems, which are uniform concentration gradient boundary condition, uniform flux boundary condition, and periodic boundary condition. In this work, we have considered uniform concentration gradient boundary condition to calculate the tortuosity, which is the average flux along the z-axis, while the other surfaces are insulated. This process needs to be repeated depending upon the direction of interest. Further, these three boundary conditions converge to the same effective properties when the model is sufficiently large . In our model, the size of the RVE is large enough such that the influence of either of the three types of boundary conditions

A Preprint - Subramaniyan, Imam & Prabhakar

mentioned above on the effective properties are minimal. Next, we discuss how we determined the converged size for our RVE.

(B)

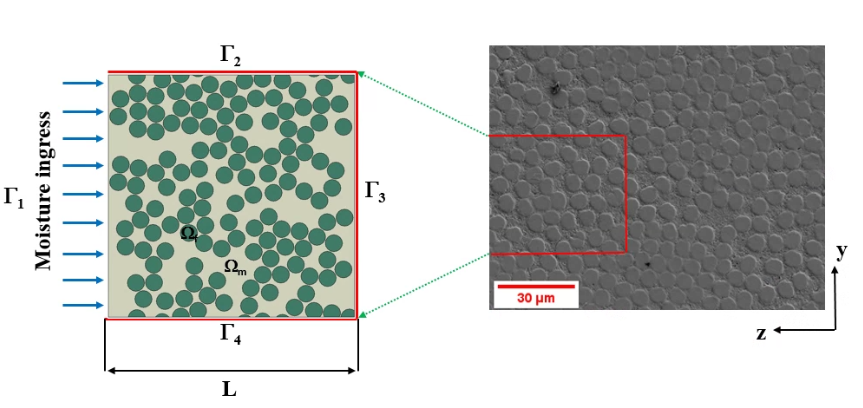

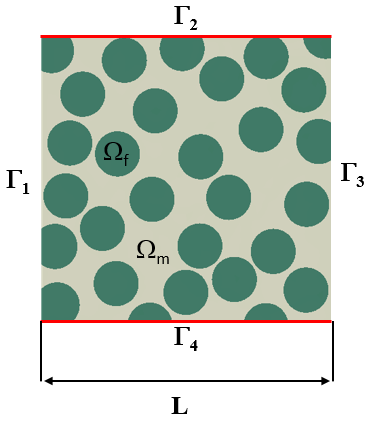

Figure 2: (a) Illustration of a 2D micromechanical model (left) with material domains and boundaries highlighted. Cross-sectional view of a real microstructure (right) within a CFRP composite at the microscale, and (b) Representation of different types of RVEs with (A, C) and without (B, D) boundary effect.

The overall domain of the models, Ω, is the union of fibers and matrix regions given by Ωf + Ωm. The dimensions of the entire domain, Ω, is 100µm x 100 µm and the fiber diameter is 7µm. The exterior boundaries of the domain are Γi, where i = 1 −4. We used a numerical statistical approach to determine the size of the RVE, where 2D square models with edge (characteristic) length of 25, 45, 70, 100, and 200 µm are first considered. For every RVE size mentioned above, five random fiber distributions each are generated for three fixed fiber volume fractions (30, 50 and 70 %). We then determined the effective diffusion properties in terms of tortuosity as described later in section 4.3. The mean value and standard deviation for all the RVEs for each volume fractions considered are calculated and plotted in Figure 3. We notice that the mean value of tortuosity converges to a plateau as the sample size increases. From this approach, RVE sample size of 100 µm x 100 µm is considered, which has less than 3% error compared to the largest RVE size.

A Preprint - Subramaniyan, Imam & Prabhakar

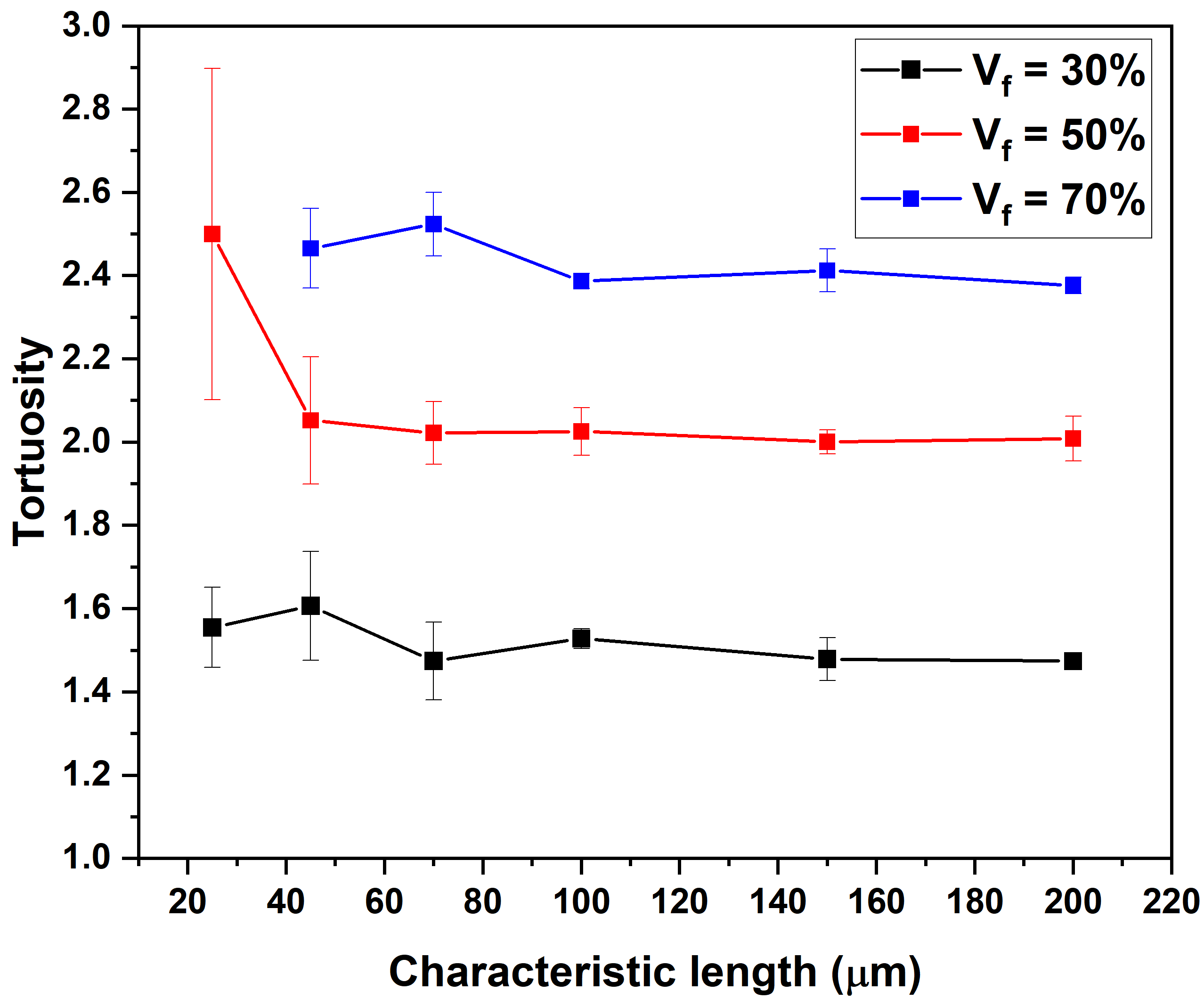

Figure 3: Convergence study to determine the RVE size with five realizations for each characteristic length and three different volume fractions. Extensive prior research has been performed using regular arrays of fiber distribution or by considering a unit cell in a 2D micromechanical model to determine the effective diffusivity of composites. In this paper, our model comprises of random fiber distribution and different volume fractions that closely captures the essence of the microstructure of a real composite shown in Figure 2(a) (right). One of the primary reasons for choosing such a representation is to emphasize the vital role of volume fraction, fiber distribution and associated tortuosity on moisture ingression in composite materials reinforced with fibers. We hypothesize that the tortuosity is enhanced by higher fiber volume fractions and more disorderliness in fiber arrangement, which reduces the effective diffusivity of moisture ingression into composites, thus, increasing the time needed for complete degradation of the material. Therefore, 2D models with different fiber distributions and volume fractions are created as shown in Figures 4(a), 4(b) and 4(c). Randomly distributed models with high fiber volume fractions like 60, 65 and 70% are created using a microstructure generation tool - VIPER . These models are then imported into finite element framework for further analysis. A transient moisture diffusion boundary value problem is solved within the finite element framework in ABAQUS to determine the effective diffusivity of each composite model considered. This time-dependent moisture diffusion is based on Fick’s second law, which will be discussed later in Section 4.

(C)

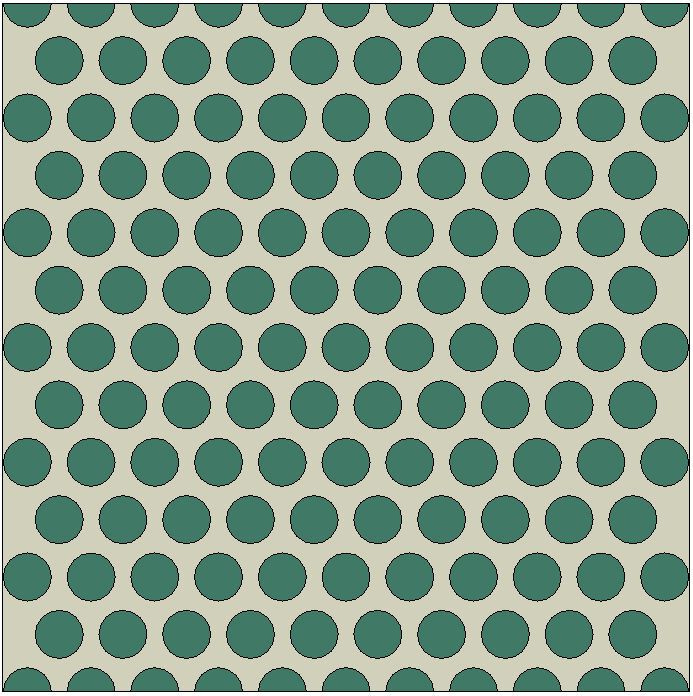

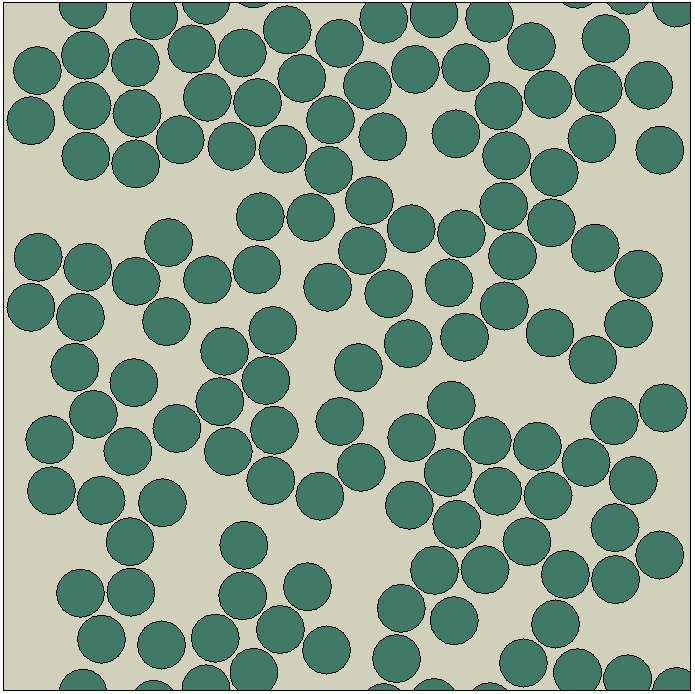

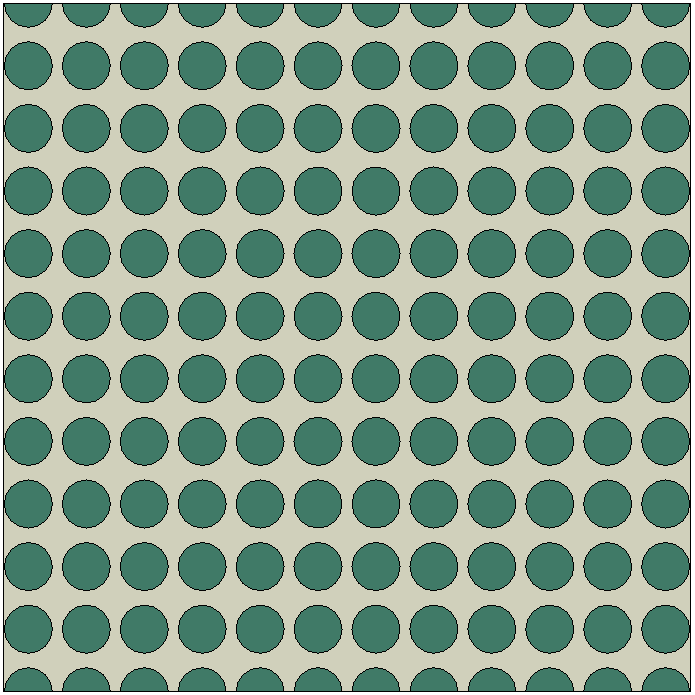

Figure 4: Spatial distribution of fibers (green) in matrix (cream): (a) Random array; (b) Square array; (c) Hexagonal

Array

Fiber morphology: The morphology of fiber cross-section in FRPCs can play an important role on moisture diffusivity and tortuosity[37, 38]. In order to gain an in-depth understanding of the influence of fiber morphology on tortuosity, the morphological features have been further subdivided into 1) fiber cross-sectional perimeter (2D) or fiber cross-sectional surface area (3D) and 2) fiber orientation. For the fiber perimeter study, different fiber shapes like square, asteroid, octagon and circle are chosen such that the tortuosity is the same along the x and y directions. Then, to study the influence of fiber cross-section angle, an elliptical cross-section is chosen and the tortuosity is determined for different fiber cross-sectional angle starting at 0 degrees to 90 degrees of the major axis to the x axis. However, since the real

A Preprint - Subramaniyan, Imam & Prabhakar

microstructure is a combination of circular and deformed shapes, different bean curved cross-sectional shapes are considered using the following parametric equations:

(1)

where, r is the radius, a and b are morphology parameters. Few unit cell models with deformed fiber cross-sections having constant cross-sectional area and different morphology parameters are shown in Figure 5.

(D)

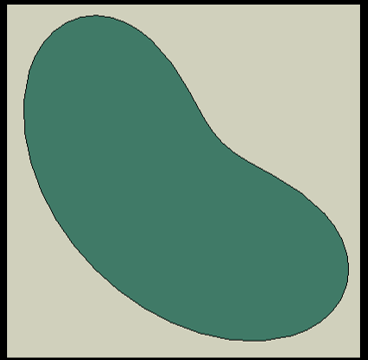

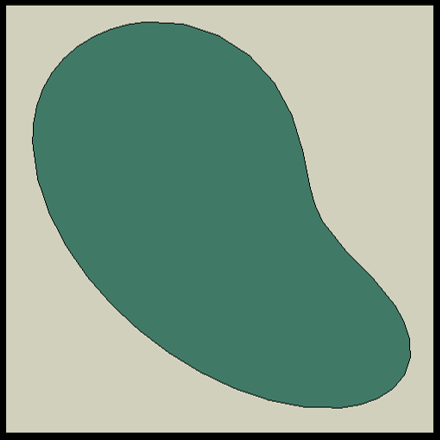

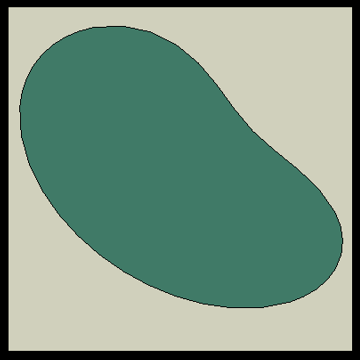

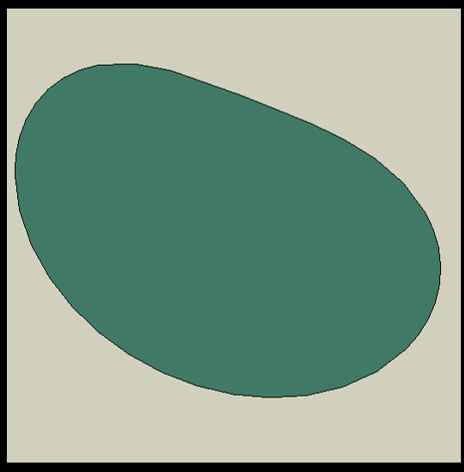

Figure 5: Unit cell models with constant fiber cross-sectional area, but with different fiber morphology parameters a and b: (a) a=1, b=3 ; (b) a=1, b=5; (c) a=1, b=7; (d) a =3, b=3 Real microstructure: Diffusivity and tortuosity of real microstructures within FRPCs are determined next by develop- ing their microscale models. To that end, images of CFRP composites at the microscale are obtained using a Zeiss LEO 1550 VP (Carl Zeiss Jena GmbH–Planetariums, Germany) field emission scanning electron microscope (SEM) at UW-Madison. Specimen cross-sections are polished thoroughly using SiC grinding paper up to 1200 grit size followed by polishing using DACRON II polishing cloth with 1-0.1 mm diamond solution. Then, the cross-section of these specimens are examined under 15 kV electron beam and secondary electron detector to obtain different magnified images with high resolution. The polished gray scale cross-section images similar to the one shown in Figure 6(a) from SEM are converted into two-phase binary images as shown in Figure 6(b) using an image processing tool. These binary images are imported into MATLAB and converted into finite element mesh using im2mesh and MESH2D, which is a simplified version of the mesh generation algorithm presented in [45, 46].

(C)

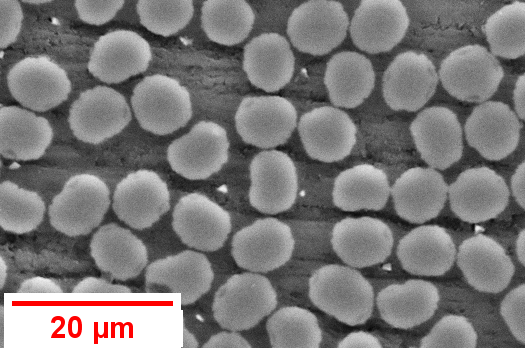

Figure 6: Process of converting real microstructure image of FRPC into a finite element meshed model: (a) SEM image of a CFRP composite; (b) Two phase binary image; (c) Meshed Finite Element Method model

Governing Equations And Input Properties

The governing equation for transient moisture diffusion is given by,

(2)

where, C is the moisture concentration, J is the flux associated with moisture and D is the diffusion coefficient of moisture or diffusvitiy. The total domain Ω= Ωf + Ωm, where Ωf is the fiber domain and Ωm is the matrix domain as

A Preprint - Subramaniyan, Imam & Prabhakar

shown in Figure 2(a). The exterior boundary of this domain, Γ = Γ1 ∪Γ2 ∪Γ3 ∪Γ4. Equation 2 cannot be directly applied to composites because of material heterogeneity. Therefore, a normalized concentration φ term is used for the diffusion analysis in order to overcome the discontinuities at multi-material interfaces. The normalized concentration and corresponding flux are defined in Equation 3.

(3)

where, S is the solubility.

(4)

This approach of normalized concentration can be verified using interfacial chemical equilibrium law, where a wetness fraction (normalized concentration) function is introduced in the paper by Wong et al. Here, we schematically explain the need for a normalized concentration approach for composites. Consider a bi-material domain as shown in Figure 7 which is representative of a FRPC material with different solubility limits for fiber and matrix. Saturation concentration of fiber is not equal to that of the matrix, which introduces a discontinuity at the interface. Figure 7 shows a schematic of the concentration in the fiber and matrix regions upon solving the original Fick’s law with concentration is the variable. There exists a discontinuity at the interface between the two materials.

Here, Sm and Sf are the solubility limits (saturation concentration) of the matrix and fiber, respectively, and Cm and Cf are the moisture concentration of matrix and fiber, respectively. Due to this discontinuity, it is not possible to solve for the concentrations using traditional finite element method.

(B)

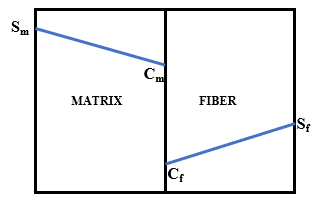

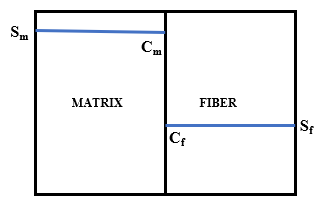

Figure 7: Heterogeneous medium with discontinuous concentration at the fiber-matrix interface: (a) Unsaturated (b)

Saturated

Upon normalizing the concentrations with their respective solubilities, the discontinuity at the interface is removed and φ becomes continuous according to the Nernst partition rule . Figure 8 represents the normalized concentration

(B)

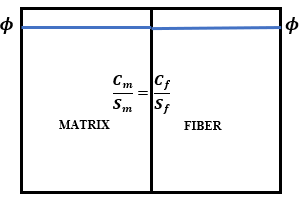

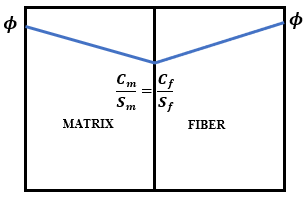

Figure 8: Heterogeneous medium with normalized concentration approach at fiber-matrix interface: (a) Unsaturated

And (B) Saturated

The boundary conditions for the 2D micromechanical model are:

(6)

The transient diffusion governing equations described in Equations 2 and 6 are solved using finite element method to determine effective diffusivity of moisture in micromechanical models. Quadratic triangular elements (DC2D6) within ABAQUS are used for mesh generation, and a convergence study is performed to determine the optimal mesh. The material properties for both fiber and matrix (resin) are given in Table 1. Here, the diffusivity for fibers is considered to be 0 since the diffusivity of fibers is very negligible compared to that of the matrix . This assumption is valid for Carbon and Glass fibers, whereas invalid for Kevlar fibers as they absorb significant amount of moisture. Material properties of Epoxy Resin (LY 556) with HT 972 Hardener were obtained from .

Effective Diffusivity Calculation

For calculating the coefficient of diffusion or moisture diffusivity for FRPCs, we used the theory proposed by Shen and Springer that predicts the coefficient of diffusion under constant temperature and moisture content. They developed an equation that relates moisture content in composites as a function of time with directional diffusivities, geometrical properties and saturation concentration. The percentage moisture gain in composites is given by,

(7)

where, Wd is the weight of a dry specimen after manufacturing, that is, at t = 0. W(t) is the weight of the specimen at a later time instant t.

(A)

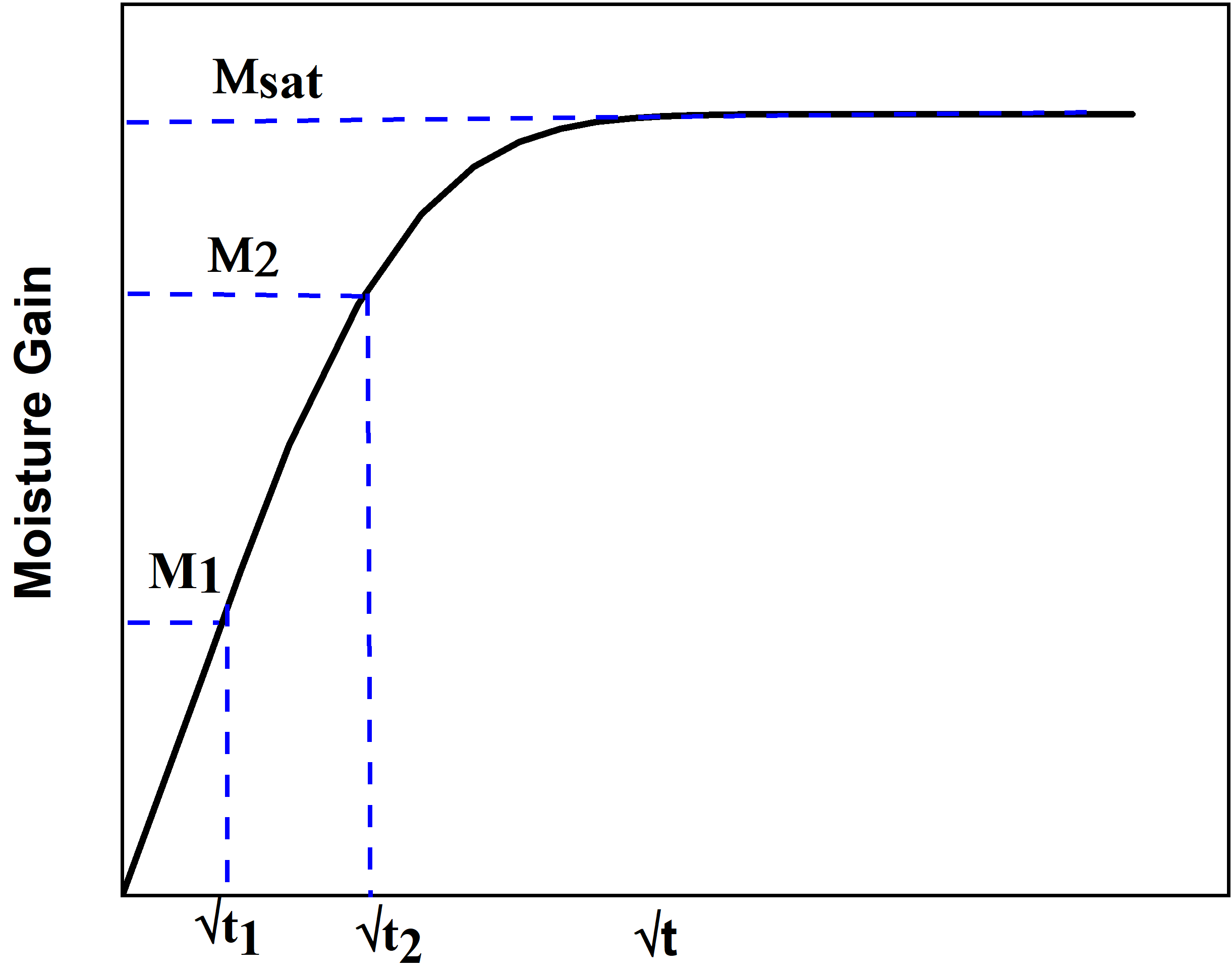

Figure 9: Schematic of moisture gain vs time response used for calculating effective diffusivity. Slope of the initial linear region and the plateau moisture saturation value is used in Equation 11.

(8)

where, Msat is the moisture concentration at saturation. Dx, Dy and Dz are the moisture diffusivities along x,y and z directions, respectively. t is time, and h, W and L are the thickness, width and length of the composite, respectively. Shen and Springer considered a composite exposed to moisture on the top and bottom surfaces perpendicular to the thickness h direction. They also assumed that the dimensions of the composite along the x and y directions to be infinite, which makes the concentration change along the x and y directions to be negligible. In our current study, since the diffusion is considered to occur primarily along thickness h direction, in addition to h being very small compared to the in-plan dimensions, the moisture gain is considered to primarily occur in the z direction. Hence, the terms h/L and h/W are neglected from Equation 8 making Dz = Deff. Equation 8 is rewritten to relate the effective diffusivity

(9)

Considering time instants t = t1 and t = t2 in the initial linear region of the moisture gain response, we pick their corresponding moisture gains M1 and M2. Hence, we have,

(10)

Subtracting the above two equations and rearranging gives:

(11)

Diffusivity is numerically calculated by first performing transient moisture diffusion analysis on micromechanical models. Moisture gain percentage the mass concentration at the centroid of each element. These values are averaged over the entire domain at several time instants to obtain the moisture gained by the composite over a time period until it attains moisture saturation concentration. Using the initial slope of the moisture gain curve, thickness along the flow direction and Msat, the effective diffusivity Deff is calculated using Equation 11. An empirical method for calculating effective diffusivity was also proposed by Shen and Springer based on the similarities between heat conduction and

A Preprint - Subramaniyan, Imam & Prabhakar

mass diffusion. Here, they modified the analytical equation proposed by Springer and Tsai for heat conduction to mass diffusion analysis. The transverse diffusivity is given by,

(12)

where Dm and Vf are the diffusion coefficient of resin and fiber volume fraction, respectively.

Tortuosity Calculation

Tortuosity has been predominantly used in electrochemical devices with highly complex electrode microstructure, which results in very tortuous electrolyte flow that plays an important role in ionic conductivity . Tortuosity in a porous media is a significant parameter that characterizes diffusive flow within hydraulic transport, mass transport, electric, heat or ionic conduction. Several porosity-tortuosity associations have previously been published based on experiments, and a detailed review is given by Shen .

Tortuosity is geometrically defined as the ratio of the length of a convoluted path of a diffusive flow in a porous medium to the length of the shortest path in a homogeneous media.

(13)

where, Le is the length of a convoluted path and L is the length of the shortest. Originally, Epstein coined a tortuosity factor that accounts for both the path length and change in diffusivity in a porous media. In their work , they use tortuosity factor within diffusion theory, where effective diffusivity Deff of a porous medium is calculated based on the bulk diffusion coefficient.

(14)

where, Deff , Dbulk, ϵ and τ are the effective diffusivity, bulk diffusivity, pore volume fraction and tortuosity, respectively. In 1935, Bruggeman proposed a Porosity-Tortuosity empirical relationship shown in Equation 15, which is commonly recognized in the field of porous media flow and is often used to derive materials’ effective properties. They assumed that the heterogeneous media consisted of only spherical particles.

(15)

Both geometrical and flux based algorithms have been developed by researchers for determining the tortuosity factor. In geometry based algorithms[56, 57], tortuosity is calculated as defined in Equation 13 using the shortest pathway for which the pore centroid method and the fast marching method are commonly used. Whereas, in flux-based algorithms, the tortuosity factor is calculated by considering diffusion behaviour. In addition, flux based paper, where we perform finite element analysis to determine flux in heterogeneous media as described next. Mesh sensitivity analysis is performed to reduce the effect of the finite element mesh on the tortuosity calculation.

(B)

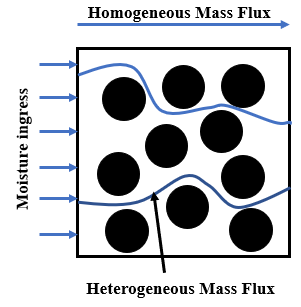

Figure 10: (a) Schematic representation of diffusive flow in heterogeneous medium with impermeable inclusions; (b) Micromechanical model with regions and boundaries defined For calculating tortuosity factor, we run steady state diffusion analyses on micromechanical models with different fiber volume fractions as well as a model with matrix only. The governing equation and the boundary conditions are as

(16)

Since tortuosity depends on the flow path, we obtained a tortuosity factor in the direction in which the moisture ingression occurs. By solving the Laplace equation shown in Equation 16 using finite element method, volume average of flux J in the heterogeneous medium is determined. The volume average of flux JMF in a homogeneous medium free of barriers (in our case, fibers) is also calculated. The tortuosity factor is determined using the expression shown in Equation 17, which is the same as Equation 14.

(17)

Here, V is the volume of the heterogeneous domain, τ is the tortuosity factor and ϵ is generally termed as porosity or in our case the volume fraction of domain that is available for the movement of flux. In this paper, since we consider that only the matrix absorbs moisture, ϵ can be defined as 1-Vf where Vf is the fiber volume fraction.

Results And Discussion

Effect of Fiber Volume Fraction and Spatial Distribution on Tortuosity and Moisture Diffusivity Our micromechanical model was first validated against experimental results from Vaddadi et al. by comparing the rate of moisture gain and moisture saturation. These 2D micromechanical model comprised of carbon fibers and epoxy matrix system. This numerical model for validation considers moisture ingression for the case of temperature = 85°C
