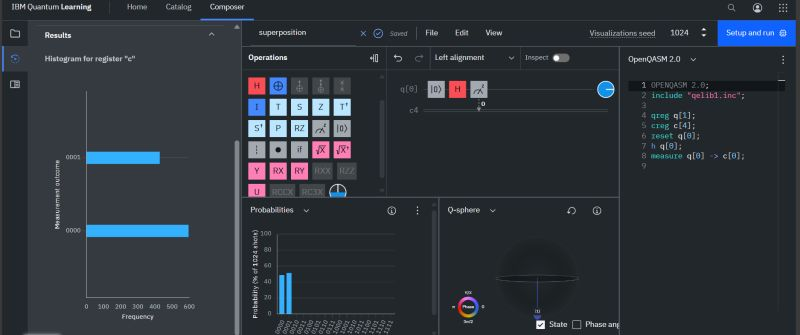

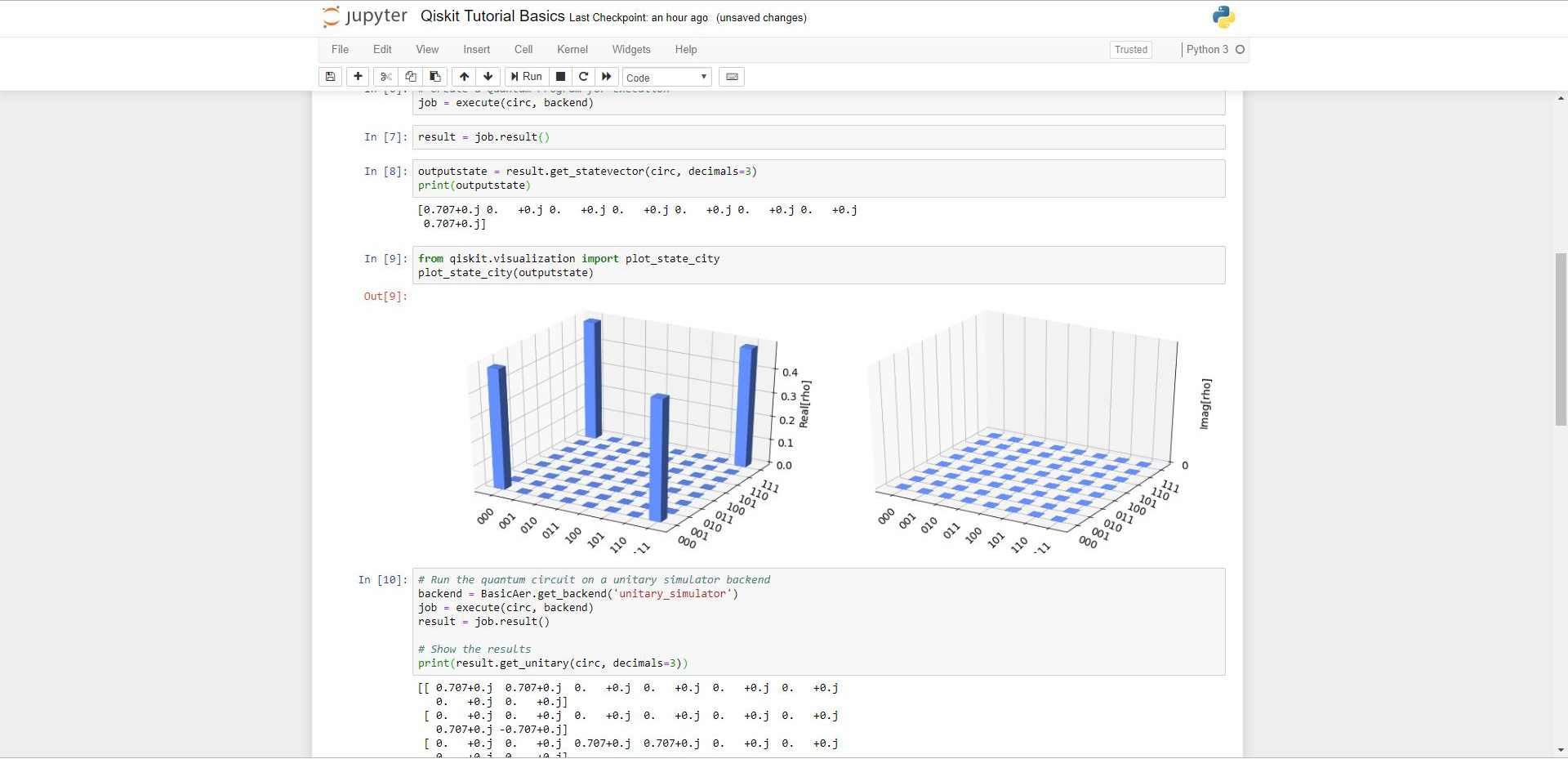

The Quantum Composer is a graphic user interface (GUI) designed by IBM to allow users to construct various quantum algorithms or run other quantum experiments. Users may see the results of their quantum algorithms by either running it on a real quantum processor or by using a simulator. Algorithms developed in the Quantum Composer are referred to as a "quantum score", in reference to the Quantum Composer resembling a musical sheet. The composer can also be used in scripting mode, where the user can write programs in the OpenQASM-language instead. Below is an example of a very small program, built for IBMs 5-qubit computer. The program instructs the computer to generate a quantum state | Ψ I = 1 2 ( | 000 I + | 111 I ) {\displaystyle |\Psi \rangle ={\frac {1}{\sqrt {2}}}\left(|000\rangle +|111\rangle \right)} , a 3-qubit GHZ state, which can be thought of as a variant of the Bell state, but with three qubits instead of two. It then measures the state, forcing it to collapse to one of the two possible outcomes, | 000 I {\displaystyle |000\rangle } or | 111 I {\displaystyle |111\rangle } .

Every instruction in the QASM language is the application of a quantum gate, initialization of the chips registers to zero or measurement of these registers. For this Qiskit in Classrooms module, students must have a working Python environment with the following packages installed: To set up and install the packages above, see the Install Qiskit guide. In order to run jobs on real quantum computers, students will need to set up an account with IBM Quantum® by following the steps in the Set up your IBM Cloud account guide.

This module was tested and used 5 seconds of QPU time. This is an estimate only. Your actual usage may vary. Watch the module walkthrough by Dr. Katie McCormick below, or click here to watch it on YouTube. There are infinitely many ways of encrypting and decrypting information, and literally thousands of ways have been well-studied. Here, we will restrict ourselves to a very early and very simple method of encryption, called "simple replacement", in order to focus on the quantum part of this protocol. The quantum part could be adapted to many other protocols with relatively few changes.

A simple replacement encryption is one in which one letter or number is replaced with another, such that there is a 1:1 mapping from the letters and numbers in a message, to the letters and numbers being used in an encrypted sequence. A pop-culture instance of these is the cryptoquote or cryptogram puzzle, in which a quote or phrase is encrypted using simple replacement, and the player is tasked with decrypting it. These are easy to solve if they are long enough. Consider the example: R WVXRWVW GSZG R’W YVGGVI NZPV GSRH KIVGGB OLMT. GSZG DZB, KVLKOV DROO SZEV ZM VZHRVI GRNV HLOERMT RG. R SLKV R NZWV RG HRNKOV VMLFTS.

People who solve these by hand mostly use tricks involving familiarity with the structure of the language of the original message. For example, in English, the only one-letter words like the encrypted "R" are "a" and "I". The double letters encrypted in, for example, "KIVGGB" can only take certain values. There are subtler things that give clues like the most common word fitting the "GSZG" pattern is "that". People using code to solve this have many more options, including simply scanning through possibilities until an English word is recovered, and updating while preserving that word. One simple but powerful method is using letter frequency, especially when the message is long enough to constitute a representative sample of English.

Try your hand at decrypting this if you like, though it is not necessary for the rest of the module. Click the "Answer" below to see the message. I decided that I’d better make this pretty long. That way, people will have an easier time solving it. I hope I made it simple enough.

The example above is associated with a "key", a mapping from the encrypted to the decrypted letters. In this case, the key is: And so on. To put it mildly, this is not a good key. Keys in which the encrypted and decrypted letters are simply shifted version of the alphabet (like A->B and B->C) are called "Caesar shift" ciphers. Note that these are very difficult if they are short. In fact, if they are very short, they are indeterminate. Consider: There are many possible decryptions, using different keys: HELLO, PETTY, HAPPY, JIGGY, STOOL. Can you think of others? But if you send many messages like this, eventually, the encryption will be cracked. So, you shouldn’t use the same “key” too often. In fact, best is if you use a certain substitution only once. Not in only one message, but only for one single character! By this, we mean you’ll have an encryption scheme or key for each character used in the message, in order. If you want to send a message to a friend using this message, you and your friend would need a pad a paper (in ye olden times) on which this ever-changing key is written. You will use this only once. This is called a “one-time pad”.

Let’s see how this works with an example. One could do this entirely with letters, but it is common to convert from letters to numbers, say, by assigning A=0, B=1, C=2…. Suppose we are friends involved in clandestine activities and we have shared a pad. Ideally, we would share many pads, but today’s is: We don’t want to send the above code; that is a simple substitution, which is not at all secure. We want to combine this with our key in some way. A common way is addition modulo 26. We add the value of the message to the value of the key, mod 26, until we reach the end of the message. So, we would send Note that if someone intercepts this and does NOT have the key, decrypting it is utterly hopeless! Not even the two “u”s in "quantum" are encoded with the same number! The first is a 3, and the second is a 16… in the same word! So, I send this to you, and you have the same key I do. You undo the addition modulo 26 which you know I carried out: Note that if the key is shorter than the message, we start to repeat our encoding. That would still be a hard decryption problem to solve, but not impossible if it is repeated enough times. So, you need a long key (or “pad”).

In many contexts, students will already be familiar with this encryption, such that this activity can be skipped. But it is a relatively quick, simple refresher. Step 1: Get a partner, and share a sequence of 4 letters to use as a key. Any class-appropriate 4-letter sequence will do. Step 2: Select a 4-letter secret word you want to send to your partner (both partners do this so you send each other different secret words) Step 3: Convert the 4-letter key/pad and each of the 4-letter secret words to numbers using A = 1, B = 2, and so on.

Step 4: Combine your 4-letter word with the one-time pad using modulo 26 addition. Step 5: Hand your partner the sequence of numbers encoding your secret word, and your partner will hand you theirs. Step 6: Decode each other’s words using modulo 26 subtraction. Step 7: Verify. Did it work? 2. System Architecture & Core Working Principles Swap encrypted words with a different group, that does not have access to your one-time pad. Can you decrypt it? Explain why or why not? Hopefully the activity above makes it clear that a one-time pad is an unbreakable form of encryption, given a few assumptions, like: So this is great. We have unbreakable encryption... unless someone gets our key. If someone gets our key, everything is decrypted. This difference between unbreakable encryption and having all our secrets exposed makes the sharing of a secure key extremely important. The goal of quantum key distribution is to leverage constraints that nature has imposed on quantum information to secure a shared key/one-time pad.

Let's assume we are working with qubits (emphasizing that qubits have two eigenstates). One could use quantum systems with higher numbers of quantum states, but the state-of-the-art quantum computers at IBM® use qubits. It’s no problem to encode our A, B, C, into sequences of 0’s and 1’s. So, it is sufficient for us to share a key of 0’s and 1’s and do addition modulo 2 on each bit storing a letter.

Our friends, Alice and Bob would like to share a quantum key in such a way that no one else can intercept it (at least not without them knowing). They need to have a way of sending quantum states to each other. Doing this with high fidelity and no noise/errors is NOT trivial. But there are two approaches tha we should be able to understand at this point: For this module, we don't want to require you to have high-fidelity optic setups for sharing photons, so we will use the second method for sharing quantum states. But this is not to say that it is the most realistic for long-distance sharing of quantum keys.

We will now explore a protocol first laid out by Charles Bennett and Gilles Brassard in 1984 for sharing states measured in different bases from Alice to Bob. We will use a clever measurement regimen to build up a key for use in later encryption. In other words, we are distributing a quantum key between two parties who wish to communicate, hence "quantum key distribution" (QKD).

Alice will start out by generating a random sequence of 0's and 1's. She will then randomly select a basis in which to prepare a quantum state, based on each random bit, using the table below (a table that Bob also has): For example, let us suppose Alice randomly generated a 0, and randomly selected the X basis. Then she would prepare a quantum state I ψ I = I + I x = 1 2 ( I 0 I + I 1 I ) |\psi\rangle = |+\rangle_x = \frac{1}{\sqrt{2}}(|0\rangle+|1\rangle) I ψ I = I + I x I = 2 I 1 I ( I0 I + I1 I) . One can certainly leverage quantum randomness to generate a random set of 0's and 1's, and a random basis choice. For now, let's simply assume a random set has been generated, as follows: This set of random bits, bases, and resulting states would continue in a long sequence, to give a key of sufficient length.

Bob also makes a random choice of bases. However, whereas Alice was using the basis choice to prepare her state, Bob will actually make measurements in these bases. If Bob makes a measurement in the same basis in which Alice prepared the the state, then we can predict the outcome of Bob's measurement. When Bob happens to pick a different basis from the basis Alice used in preparation, we cannot know the outcome of Bob's measurement.

In the table below, consider the first column. Alice has prepared the state I + I \vert +\rangle I + I , which is an eigenstate of X. Since Bob has also randomly chosen to measure in the X basis, there is only one possible outcome for Bob's measured state: I + I \vert +\rangle I + I . In the second column, however, they have chosen different bases. The state Alice sent is I − I = 1 2 ( I 0 I − I 1 I ) \vert -\rangle = \frac{1}{\sqrt{2}}(\vert 0\rangle-\vert 1 \rangle) I − I = 2 I 1 I ( I0 I − I1 I) .

This has a 50% chance of being measured by Bob in the I 0 I \vert 0\rangle I0 I state, and a 50% chance of being measured in I 1 I \vert 1\rangle I1 I . So the row showing what we know, a priori, about Bob's measurements cannot be filled in for column 2. But Bob will make a measurement and obtain an eigenstate of (in that column) Z. In the bottom row, we fill in what these measurements happened to yield.

Alice and Bob can now share with each other what basis they chose in each case. For all the columns in which they happened to choose the same basis, they each know for certain what state the other had. Bob can convert the state and basis to a 0 or 1 according to the convention shared by both parties. We can rewrite the table above to show only the instances where Alice's and Bob's bases matched: Alice has successfully transmitted the bit string 00100... to Bob. If the friends agreed ahead of time to use 5-bit strings as numbers in their one-time pad, these first five bits would give them the number 4 = 0 × 2 4 + 0 × 2 3 + 1 × 2 2 + 0 × 2 1 + 0 × 2 0 4 = 0\times2^4+0\times2^3+1\times2^2+0\times2^1+0\times2^0 4 = 0 × 2 4 + 0 × 2 3 + 1 × 2 2 + 0 × 2 1 + 0 × 2 0 .

Before Alice and Bob go any further, they should choose a subset of their classical bits to compare. Since they have only kept measurements of qubits which were prepared and measured using the same basis, all the measured values should agree. If there were a very small percentage that did not agree, this could be attributable to quantum noise or errors. But if many do not agree, something has gone wrong! Here we will not address what fraction of the key should be used for verification. For now, we will assume that this check goes well; we will revisit this in the section below on eavesdropping.

The friends would then send an encrypted message to each other using classical channels. They would then use the numbers in their one-time pad to encrypt/decrypt secret messages, without ever transmitting the one-time pad from one location to another. For the next section on eavesdropping, please keep in mind that all this sharing of the key happens prior to the revelation of the encrypted secret via classical channels.

Alice and Bob communicated their basis of choice via classical channels, so couldn't that be intercepted? Yes! But knowing the basis they used for measurement does not tell you what bit they sent or obtained. That is only possible if you also know Alice's starting bits. But then you would be in Alice's computer, where the secrets are stored, and secret communication of the secrets becomes moot. So interception of the classical communication does not break the encryption. But what about intercepting information in the quantum channel? Alice and Bob have a friend Eve, who is notorious for eavesdropping. Eve wishes to intercept Alice's and Bob's quantum key, so that she may use it to decrypt messages sent between the two. This would necessarily happen between Alice's preparation of the states and Bob's measurement of the states, since the measurement collapses the quantum state. In particular, this means the eavesdropping would have to occur before there has been any sharing or comparison of bases.

Eve must guess which base was used in encoding each bit. Again, if she is not able to access Alice's computer, she has nothing on which to base this guess, and it will be random. Let us assume Alice's start is the same as before, and let us further assume that Bob's random choice of measurement basis is the same as before. Let's fill in what Eve obtains if she makes measurements of the quantum channel. As before, if Eve happens to choose the same basis as Alice, we know what she will obtain. If not, she could obtain either of two outcomes, each with a 50% probability.

Now because Eve has no idea whether she matched Alice's basis or not, she does not know what to transmit on to Bob to match Alice's original states. When Eve measures, for example, I 0 I |0\rangle I0 I , all she knows for certain is that Alice did not prepare the state I 1 I |1\rangle I1 I for that qubit. But Alice could have prepared I 0 I |0\rangle I0 I , I + I |+\rangle I + I , or I − I |-\rangle I − I . All could be consistent with Eve's measurement. So Eve must make a choice. She might send on exactly the state she measured, or she might try to guess instances in which her measurement was not the eigenstate sent by Alice. We will include a mixture in our table: At this point, it is reasonable to ask, "Why doesn't Eve just make a copy of Alice's quantum state, keep one to measure, and transmit the other on to Bob?" The answer is the "no-cloning" theorem . Informally, it says that there is no unitary (quantum mechanical) operation that can make a second copy of an arbitrary quantum state, while preserving the first copy. The proof is relatively simple, and is left as a guided exercise. But for now, understand that Eve making copies of the quantum state is forbidden by fundamental laws of nature, and this is a principle strength of QKD.

As before, Alice and Bob would call each other and compare bases. They will reduce this table to the cases where the two friends selected the same bases: Alice and Bob have once again communicated a bit string... but the strings don't match. The far left and middle bits are flipped. Looking at the previous table, you can trace this mismatch to the interference from Eve. Critically, note that we can do statistics on the match between our bitstrings now, while setting up the key, long before sharing our encrypted secret. Alice and Bob are free to use as many of their one-time pad bits as they like to check the security of their channel. If a single bit, or a very small percentage of bits did not match, this might be attributable to noise or errors. But a substantial fraction of mismatches indicates eavesdropping. The meaning of "substantial" here depends a bit on the noise in the setup being used; what is means for IBM® quantum computers is discussed below when we implement this protocol. If excess errors are detected, Alice and Bob do not share the secret, and they can begin hunting the eavesdropper.

Proving security is extremely difficult. In fact the protocol loosely described here was proposed in 1984, and wasn't proved secure until 16 years later Shor & Preskill, 2000 . There are many subtleties that are beyond the scope of this introduction. But we will briefly list a few to demonstrate that the topic is more complex than illustrated here. Let us implement the above protocol in the absence of an eavesdropper. We will do this first using a simulator, simply to understand the workflow.

First, a note on quantum simulators: Most quantum problems involving more than ~30 qubits cannot be simulated by most computers. No classical computer, supercomputer or GPU can simulate the full range of behavior of a 127-qubit quantum computer. Usually, the motivation for using real quantum computers is that the many entangled qubits cannot be simulated. In this case, there is no entanglement of qubits, unless we use the teleportation scheme to move information. In this case, the motivation for using real quantum computers is different: it is the no-cloning theorem. A classical computer simulating a qubit could send information about a quantum state from Alice to Bob, but if this classical information were intercepted, it could easily be duplicated, and Eve could keep a perfect copy, while sending another to Bob. This is not possible with real quantum states.

IBM Quantum recommends tackling quantum computing problems using a framework we call "Qiskit patterns". It consists of the following steps. In this case, the mapping of our problem to quantum circuits reduces to simply preparing Alice's states, and then including Bob's measurements. We start with the random bit and random basis selection.

Let's visualize the bits, bases, and circuit. Note that sometimes the bases match, and sometimes they do not. This step takes the operations we want to perform and expresses them in terms of the functionality of a specific quantum computer. It also maps our problem onto the layout of the quantum computer. We will start by loading several packages that are required to communicate with IBM quantum computers. We must also select a backend on which to run. We can either choose the least busy backend, or select a specific backend whose properties we know. Although we will momentarily use a simulator, it is important to use a reasonable noise model in simulation, and it is good to keep the workflow as close as possible to what we will use later for real quantum computers.

There is code below for saving your credentials upon first use. Be sure to delete this information from the notebook after saving it to your environment, so that your credentials are not accidentally shared when you share the notebook. See Set up your IBM Cloud account and Initialize the service in an untrusted environment for more guidance. Here we interpret our results and extract useful information. We might try visualizing the output of our sampler, but we have used sampler in an unconventional way. Rather than making many measurements of our circuit and developing statistics on the states, we have made only one measurement (Bob's). Any qubit with a state that was prepared and measured in the same basis should have a deterministic outcome, such that only one measurement is necessary. Those qubits with states prepared and measured in different bases (which would have probabilistic outcomes and would require many measurements to interpret) will not be used to build up our one-time pad/key.

Let us extract a list of measurement outcomes from this bitstring. Take care to reverse the order if comparing with Alice's bit array we used to generate the circuit. Let's compare the measurement bases randomly chosen by Alice and Bob. This was step 3 in our QKD protocol (public discussion of bases). Any time they chose the same basis for a qubit, we add the bits associated with that qubit to a list of bits for generating numbers in a one-time pad. When the bases do not match, the results are thrown out. Let us also check to see the two lists of bits agree, or if there were any losses due to noise or other factors.

Alice and Bob each have a list of bits, and they match with 100% fidelity. They can use these to generate numbers in a one-time pad. They can then use this in QKD step 4: sending and decrypting a secret. The present array of bits is too short to decrypt much of anything. We will return to this after including eavesdropping. Assume you need digits large enough to facilitate shifting letters in the English alphabet by that alphabet's full length, or more, although there are certainly other encoding schemes. (a) How many letters long could a message be for it to be decrypted using the bits in the key above? (b) Must your answer agree with your classmates'? Why or why not? (a) The answer depends on how many randomly-chosen bases matched between Alice and Bob. Since there is roughly a 50-50 chance of the bases matching for any given qubit, we expect close to 10 of our bits to be useful. 9 or 11 will be perfectly common. Even 4 or 15 are not outside the realm of possibility. 5 bits are required to shift by a number greater than or equal to the length of the English alphabet, meaning you can apply the shift to one letter for every 5 bits you have. If you have at least 5 bits shared by Alice and Bob, you can encode a single letter. If you have at least 10, you can encode 2 letters, and so on.

3. Software Implementation, Frameworks & Protocols We will implement exactly the same protocol as before. This time, we will insert another set of measurements, by Eve, between Alice and Bob. Qiskit patterns step 4 (post-processing) is simple in this case. There is no need to visualize the distribution of measurements, since we made only one measurement. Eve has the following bits: Now Eve must reconstruct states to send on to Bob. A described in the introduction, she has no way of knowing if she guessed the encoding bases correctly, so she is not able to prepare exactly the same states that were sent. She could assume every basis choice was correct and encode exactly what she measured, or she could assume she chose the basis incorrectly and choose either eigenstate of the opposite basis. Here, we assume the former, for simplicity. We accomplish this by constructing a whole new quantum circuit, repeating Qiskit patterns steps as before.

Previously, there was a perfect match between the bits in Alice's and Bob's keys. Now, from Eve's interference, we see the bits of Alice and Bob are different in 14% of cases that should match due to Alice and Bob selecting the same bases. This should be easy for Alice and Bob to detect. However, relying on a percentage of errors like this does mean that there is a limit to how much noise we can tolerate in the quantum channel.

Let's run this on a real quantum computer. That way we can leverage the no-cloning theorem. At the same time, real quantum computers have noise, and have higher error rates than classical computers. So let's compare loss in fidelity of our key bits with and without eavesdropping, to make sure the difference is detectable when using a real quantum comptuter. We'll start in the absence of eavesdropping: With no eavesdropping, we obtained 100% fidelity over this set of 127 trial bits, resulting in 55 matched bases and usable key bits. Now let's repeat this experiment with Eve listening in: Here we found almost 23% loss of fidelity in shared bits due to eavesdropping! This is very detectable! Note that transferring quantum information over long distances could still introduce additional noise and errors. Assuring that eavesdropping can be detected, even in the presence of noise, and even when Eve uses all tricks at her disposal is a complex field beyond this introduction.

Instructors can request versions of these notebooks with answer keys and guidance on placement in common curricula by filling out this quick survey on how the notebooks are being used. Assume all basis choices are random for all participants, Alice, Bob, and Eve. Assume that after Eve listens in, she sends a state to Bob that is prepared in the same basis in which she measured, and which is consistent with that measurement.

Convince your partners that 12.5% of all qubits initialized by Alice will yield measurement mismatches between Alice and Bob, indicating eavesdropping (ignoring quantum errors and noise). Hint 1: Since there is no preferred basis, if you consider just one initial choice for Alice, the ratio for that one choice should be the same as the ratio for the sum of all choices. Hint 2: It may not be sufficient to count the number of ways something could happen, since some outcomes may occur with different probabilities.

Assume again that all basis choices are random for all participants, Alice, Bob, and Eve. But now, consider that Eve is free to send along any state she likes after her measurement. She could even try sending states that are inconsistent with her own measurements. Discuss with your partners/neighbors whether you think there is any choice of bases that could reduce the average percentage of qubits that indicate eavesdropping to Alice and Bob.

A Python and Qiskit based implementation of a simulated quantum key distribution (QKD) protocol , inspired by concepts such as BB84. This project was originally created during IBM's QxQ Coding School quantum computing course and demonstrates secure key exchange, basic encryption, and eavesdropper detection. Quantum Key Distribution allows two parties to establish a shared secret key using quantum mechanical principles. This project simulates the process with: Simulated Quantum Key Distribution (QKD) Protocol implementation in Python and Qiskit, created during IBM's QxQ Coding School Quantum Computing course. Showcases key distribution and eavesdropper interception scenarios in secure communications.
