Welcome! Floodlight is a community-developed, open source, Java OpenFlow controller, supporting OpenFlow protocols 1.0 through 1.5. We welcome anyone interested in OpenFlow to work with the code and contribute their work back. Floodlight is an open-source SDN controller written in Java, designed for centralized network management via the OpenFlow protocol. It balances modularity and performance but can face scalability challenges in very large or highly dynamic environments due to its single-controller architecture.

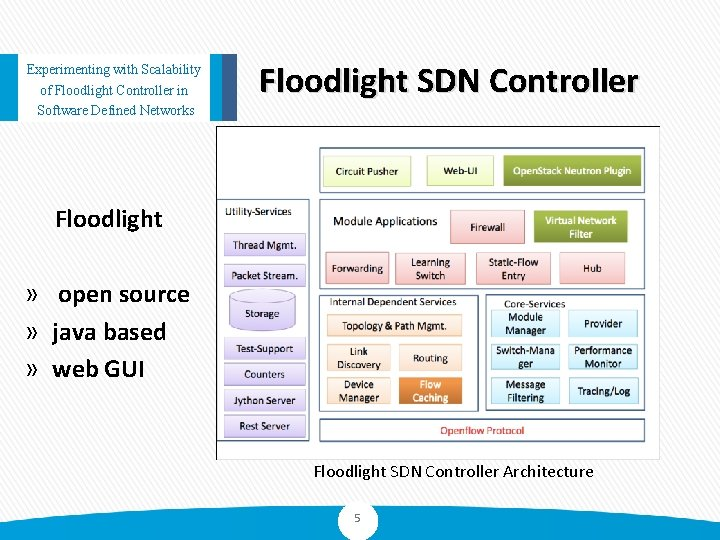

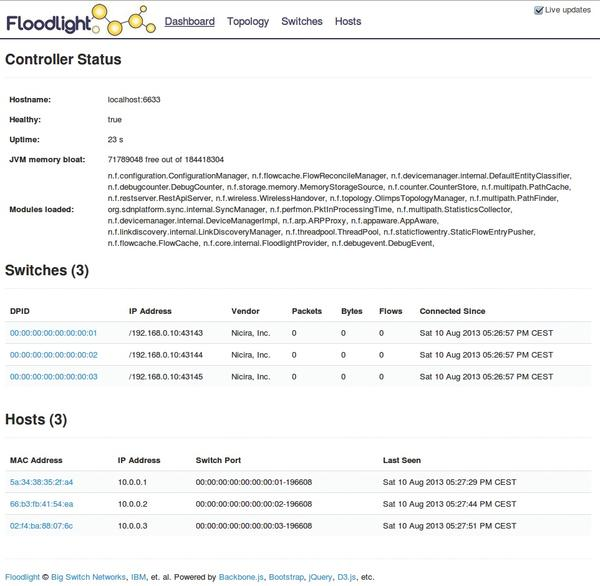

This overview excludes Floodlight’s security mechanisms and high-availability configurations, as these require separate, in-depth treatment beyond core controller functions. Figure 1: OpenFlow Controller » ADMIN Magazine The data plane executes packet forwarding based on flow rules installed by Floodlight. Latency in rule installation or controller unavailability can cause packet drops or fallback to default behavior.
Flow rules define packet processing logic. Misconfiguration can cause loops or blackholes. Below is a typical REST API call to add a flow rule: Floodlight provides modules for traffic monitoring and performance analytics. However, real-time analytics at scale may require external tools due to controller resource limits.

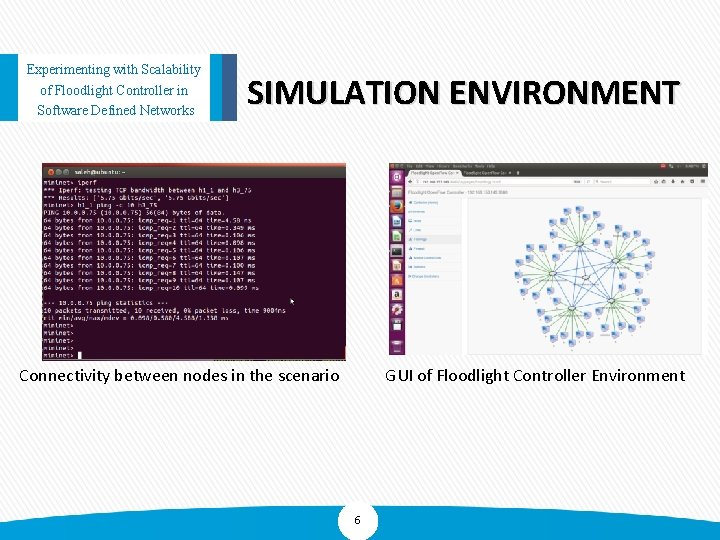

Floodlight’s REST APIs support integration with external systems for automation or analytics. Care should be taken to secure these endpoints and avoid excessive polling, which can degrade controller performance. Figure 2: Experimenting with Scalability of Floodlight Controller in Software Floodlight benefits from an active open-source community providing updates and documentation. However, commercial-grade support is limited, so organizations should plan for in-house expertise or third-party support for production deployments. See the Floodlight official site for resources.
As of August 2018, the Floodlight mailing list has moved to floodlight@groups.io ! Archives and the new group home page can be found here . Please see Documentation and Support below for up-to-date support information. Floodlight is the leading open source OpenFlow controller. It is supported by a community of developers , including a number of engineers from Big Switch Networks .
OpenFlow is a open standard managed by Open Networking Foundation. It specifies a protocol by which a remote controller can modify the behavior of networking devices through a well-defined “forwarding instruction set”. Floodlight is designed to work with the growing number of switches, routers, virtual switches, and access points that support the OpenFlow standard. Figure 3: Experimenting with Scalability of Floodlight Controller in Software The quickest way to use Floodlight is to start with our pre-built VM , which includes the controller, IDE, and everything you need to use Floodlight and/or start developing. You can also deploy and develop with Floodlight in your own environment .
If you are a developer and are looking for project ideas, please take a look at our current issues . They are a great way to get started developing with Floodlight and provide a concrete way in which to give back ! 2. System Architecture & Core Working Principles Ready to get started using Floodlight? The Floodlight wiki contains user and developer documentation, as well as helpful tutorials from beginner to advanced.
Floodlight is supported by contributions from developers like yourself. If you found and fixed something that needed attention or have added a feature, please consider giving back by opening a pull request . We value each and every contribution, no matter how large or how small. If you have found a bug or have a feature request, please send a note to floodlight@groups.io and open a issue to track it. If you are able to give back by addressing the issue yourself, please read the above and thank you! If you are unable to contribute a solution, following these simple steps will allow someone the opportunity to do so.
Interested in contributing but don't know where to start? Check out and consider addressing any of our current issues . Thank you to all who have contributed to Floodlight! Please reach out if we have missed you, so that you can be added to this growing list. A step-by-step guide to installing and configuring the Floodlight SDN controller. Includes dependencies, setup instructions, and troubleshooting tips.
This document provides a detailed guide on installing and using the Floodlight controller (an open-source SDN controller) and the Mininet network simulator. The primary aim is to offer a comprehensive guide for beginners and those interested in Software-Defined Networking (SDN). Software-Defined Networking (SDN) enables dynamic and flexible network management by separating the control plane from the data plane. This document demonstrates how to install and implement an SDN network using Floodlight (as the controller) and Mininet (as the network simulator).
This project demonstrated how to simulate and manage SDN networks using Floodlight and Mininet. The main benefits of this approach include: For more details, refer to the official Floodlight documentation.
https://floodlight.atlassian.net/wiki/spaces/floodlightcontroller/overview https://github.com/floodlight/floodlight A step-by-step guide to installing and configuring the Floodlight SDN controller. Includes dependencies, setup instructions, and troubleshooting tips. This project implements a UDP flood firewall using the Floodlight controller, an open-source OpenFlow controller, in a Software Defined Network (SDN) environment. The goal is to mitigate UDP flood attacks by dynamically adjusting flow rules in response to network conditions. Based on the number of requests within a specific time frame, the system will block a user attempting a DDoS attack.
All required packets and files with needed version are located in topology/requirments.txt To run project Linux distribution is needed. It can be chosen by the futere user but need to be compatible with all prerequisites. 3. Software Implementation, Frameworks & Protocols In this topology, a central point is represented by a switch serving as the core. Connected to this switch are four PC terminals, comprising two "legitimate" hosts alongside two "malicious" hosts, intended to simulate attack scenarios. Additionally, the switch interfaces with a controller, while a server is also linked to the switch to complete the network setup.
Within our topology, we simulate two distinct types of traffic. The first involves a typical WWW server setup, hosting various files of different sizes. PC1 and PC3 are configured to download these files, representing standard HTTP traffic. The second type of traffic consists of UDP packets generated by Packit, leading to the simulation of a UDP flood attack. Before generating UPD flood attack you need to intall generator sudo apt install packit -y . To perform attack bash script was made (we need to have continuous traffic from PCs). After executing, it generates following output in xterm of chosen host.
We add traffic generator in file traffic_generator.sh when we should give to input host, which send traffic and number of packets and times. Implementation of UDP flood firewall using floodlight controller in Software Defined Network Familiarisation with Software Defined Networking. In this lab you will learn how to build SDN applications in the Floodlight SDN controller. You will also learn how to use the mininet simulator that simulates OpenFlow enabled switches in a computer using (Open vSwitch) http://openvswitch.org/ Virtual Switches in the linux kernel. You will start by following the mininet walkthrough and then you will develop an SDN app using the floodlight controller https://floodlight.atlassian.net/wiki/display/ floodlightcontroller/Floodlight+Documentation that configures the switches in a network to block the forwarding of packets to forbidden IP addresses. The application then collects data about the TCP connections to the allowed destination IP addresses. Namely it stores the sizes and arrival times of the first three packets after the TCP handshake and then the duration and byte count of the connection after it stops.
Familiarisation with Software Defined Networking. In this lab you will learn how to build SDN applications in the Floodlight SDN controller. You will also learn how to use the mininet simulator that simulates OpenFlow enabled switches in a computer using (Open vSwitch) http://openvswitch.org/ Virtual Switches in the linux kernel. You will start by… There are more and more smart devices installed in residential networks. We want to protect and detect anomalies by monitoring the packets going through residential router, from controller side, and filter malicious requests. We are going to build and configure a residential SDN network experiment architecture step by step. And then we are able to develop a software of SDN as what we need. I assume the reader has some very basic SDN (Software Defined Network) and VLAN (Virtual Local Area Network) background.
Generally speaking, OpenWrt is an open source linux-like OS runs on routers/switches. It has to be flashed into compatible routers. The steps and useful links will be introduced later. Users can use linux commands and configuration files to set up OpenWrt. It also come with a GUI. Generally speaking, you can flash a router with OpenWrt by the firmware provided by the official site. After downloading it, you can update your router by the GUI of your router. You can access by http://192.168.0.1 or http://192.168.1.1 , depends on your router.
If your router is already flashed with OpenWrt and you want to update the firmware, you can use the same method by accessing http://192.168.1.1 . This is the default gateway used by OpenWrt, unless you have changed it. Beside, you can also download the current OpenWrt as a backup of your configuration, or you need to duplicate the configuration to other routers. There is a packets manager tool named opkg . (check usage by man opkg ) Unfortunately, due to some reasons, I'm not sure if you can use opkg install OVS successfully now. (Technically it should work). If you are going to play with OpenWrt for a long term, I'd suggest try to build the kernel by your self from source. The process is just like building a LKM (Linux Kernel Module).
Don't forget to click on the Open vSwitch while the building. The tutorial : Build OpenWrt from source . After your OpenWrt router is all set, you can try to log in and start your journey. Remember the default gateway is 192.168.1.1 , if you didn't update it. Connect to your OpenWrt, wired or wireless. Then open your terminal and execute telnet 192.168.1.1 . You should be able to log in the router and see the interface below. As you can see, you logged as root, but you don't know the password for root. So, at this time, you cannot even log in through the GUI (http://192.168.1.1) and you can only log in with telnet. Then, execute passwd and enter your strong password twice. After confirmed, you can exit and try if you still can log in with telnet. Hopefully not because you have activated ssh connection and this is the only way you can log in from terminal. Try log in with ssh root@192.168.1.1 . If it works, you should also be able to access the web GUI.
I can't even remember how many times I have reset the router after it's down, due to some bad configuration. So it's important to clarify how to reset a OpenWrt. 4. Practical Deployment, Analysis & Case Studies Stage 1 : Poweroff the router and unplug any cables (except power cable), especially make sure there is nothing on WAN port. Stage 2 : Turn on the router and hold the reset button of the router very soon. Wait for a while, it will restart. Keep your eye on SYS LED on the router. If it starts blinking faster, it means you are in the failsafe mode. Otherwise, do the steps again.
Stage 3 : After you are in failsafe mode, plug an ethernet cable onto WAN port, the other side connected to you laptop. I don't think at this time your laptop is assigned an IP address by dhcp server of the router, so you need to manually setup your IP address as 192.168.1.* to make your laptop and the router in the same subnet. Then you should be able to use telnet log in the router again. Stage 4 : Then you should delete the previous setups, thus router can be reset. All your files will be removed unless some of them are embedded in the firmware. The commands you need to run are mount_root mtd -r erase rootfs_data Then it will automatically restart. Stage 5 : Unplug the cable from WAN port and plug it to any other ports, you can continue exploring.
To be brief, we will call it OVS. OVS is an open source virtual switch. We use it because it provides the connection to remote controller. In other words, it supports OpenFlow protocol, which will be mentioned later on. For many other experiments you can find online, they are using OVS on virtual machine. But we are going to use it on a physical router, with OpenWrt together, which is harder than on the VMs. Also, the related commands are different from using it on linux machine. It's not hard to use, but there is a great video shows how to set it up on VMs. It's important to understand how to set up the interfaces and bridge to make VMs connect to the host machine and also the internet. After this, transferring to physical router could be much easier. About how to install OVS on a physical router I have mentioned in the section of building OpenWrt kernel.
OpenFlow plays a vital role in SND, also in our experiment. It's the most common used protocol currently on SDN network. Controllers could be built with different languages, while majority of them use OpenFlow as an interface. So you see how important to know OpenFlow well. It's important to read part of the latest version OpenFlow specification . There's a lot of staff. You don't have to read all of it right now. Just read by part through the whole experiment process.
We use Floodlight on our controller. It's based on Java. Floodlight provides not only the basic functionalities that a controller should have, but also many other built-in modules. The modules are independent to each other. According to the flow table on OVS router, some of the packets will be elevated to the controller, seen as PACKET_IN. Each of the PACKET_IN will be copied to each module. Modules will process the packets and make decisions how to deal with the PACKET_IN. But controller cannot do the actions itself. But they can use OpenFlow to tell OVS router how to do with each cases. Different module usually has different functionalities. In our experiment we are going to build our application on controller as one of the modules.
Some useful website about Floodlight. Floodlight wiki Floodlight Forum , which is very useful. Java documentation . Convenient to lookup any packages or built-in modules. The router I'm using is a really great one. The detailed information about this specific model (AC1750) can be accessed by clicking on the above link. If you already have a router, it's not promised it's compatible with OpenWrt. If you want to buy other routers, depends on need, for this kind of SDN experiment, you should first refer this link .
Some basic knowledge about physical router is important. If not clear with those concepts the experiment will be hard to understand. Secondly, I want to show a figure (can be found here ). about the router we are about to use. The figure is provided by OpenWrt. The vlan configuration is set by default when the router is flashed. Notice the port numbers are different from the router we use . Using wrong ones could makes the flows invalid and it's hard to debug, which misguided me for a long while.
Here I'm using the figure to introduce the inner structure of the router. As you can see, a router consists of two different parts, switch and CPU. Our primary goal is to use VLAN divide the ports in different VLANs. Then the devices connected to different port are just like connected to different subnets. Why we want to use VLAN? Because we want to monitor all the traffic by the controller. But the problem is, if we put, for example, port2 and port3 in the same VLAN, they will be able to talk with each other directly. The traffic is not going through the CPU. As CPU cannot see the packets, of course OVS cannot match the packets or elevate them to floodlight. Because OpenWrt and Open vSwitch are both installed on the CPU section of the router. For a counterexample, you can see there is a wifi port. All devices connected to the router by wireless network are connected to this specific port. So all of them are in the same VLAN. Traffic between them are not going through the CPU.
Thus the CPU will never see any packets between those devices. You may ask, we are working on residential network, right? Every devices at home are connected with WI-FI. How do we do the experiment if we cannot see the packets? Well, you are right, it should be. The isolation of wireless network devices could be explored in the future. We propose another solution. Though, ports of different VLAN should be connected with each other, and also the CPU. We need the define a path to let them talk. Okay, in VLAN, we can set up a tagged port. That one specific port can be assigned to different VLANs simultaneously. If both VLAN1 and VLAN2 has the same tagged port, devices in VLAN1 and talk to any devices in VLAN2. All of those can be set in the OpenWrt configuration file /etc/config/network . The guidance for configuring this file can be found HERE . I will cover some essential points in the coming sections.
The functionality of this device is quite simple, on and off. It can be controlled by an App on mobile phone. When the cell phone and WEMO are in the same subnet, they can directly talk with each other with plaintext traffic, though WEMO periodically sends keep alive messages to a remote server, provided by device manufacturer. When they are not located in the same subnet, they have to communicate via the server. And packets are encrypted.
After knowing about all the components, we continue to configure the environment. The first step is to learn how to configure VLANs in support of OpenWrt. The following is the default network configuration file located at /etc/config/network . I will cover some essential points. Others you may refer to this LINK , if you need.
According to this file, you can see it defines the interfaces, ip addresses, DHCP service, VLAN, etc. Look at 'lan'. This is the local area network interface. 192.168.1.1 is its IP address. And like what I said, it can also be used for connecting OpenWrt. 5. Performance Evaluation & Extended Technical Observations Look at the last two sections, 'config switch_vlan'. That defines each VLAN. It means which ports belong to which VLAN. x in "option vlan x" is the VLAN id, which can be used for flow matching. So apparently, this default network configuration file is exactly the situation showed in figure 1.
But this is not what we expect. If port 2 3 4 5 6 are in the same VLAN, CPU is not able to see the traffic between the ports. So as what I mentioned, we should separate them into different VLANs and leave a 'public' chanel to them for communication. The chanel supposed to be coordinated by CPU. Based on these considerations, we have the file like: Except changed the IP address to 192.168.3.1, I added some more 'switch_vlan' items. The VLAN ids are from 1 to 5. Each of them has an '0t' port and normal port [1-6]. 't' means tagged. That is to say, ports are put on different VLANs and port 0 was selected as the 'public channel'. Every VLAN are connected with it. As port 0 also connected with eth1, which is on the CPU, all the communications are going through CPU. Say, CPU is the bridge to connect the VLANs. Thus it can see all the traffic.
Why just port 1-4 were put on VLANs? There are only those four ports on the switch. Another set up helps you understand. There are some new interfaces with 'ifname' of 'eht1.1'-'eth1.4' in the file. Obviously the names are from eth1. The number behind point corresponding to VLAN id. Then, eth1 port is the intersection shared by VLANs.
So far, we have a complete network configuration. To make it takes effect, run /etc/init.d/network restart . All devices may have to reconnect to the network because the gateway was changed. DHCP has to dispatch new IP addresses to clients. As we need to see the traffic between phone, who operates the device, and WEMO from the router, can we cannot connect them to the same port or VLAN, we need to separate them into different VLANs. Once we have a clear goal, we have the idea how to do it: There are some questions: 1. Why we use three routers? 2. Why Router B and C connect use port 1, instead of WAN port, connect to OVS router? For the first question, the purpose was to divide devices into different VLANs. As what I mentioned, if phone and WEMO device are connected to the same router by wireless, they are in the same VLAN. Therefore we cannot see any traffic between them. Plus, currently we cannot achieve the wireless network isolation. So this method we connect phone and WEMO deivce to different routers and the routers belongs to different VLANs. By doing this, the phone and WEMO device are in different VLANs.
The second question. Imagine what will happen if the cable is inserted in WAN port for router B and C? There will be two more gateways and two more subnet with different IP prefixes. In our experiment, this should work after appropriate configuration. But actually, we don't need two more gateways and subnet. So we are going to make router B and C work as switch. In other word, router B and C are access points (AP). To configure AP, what we need is to disable DHCP server of router B and C and plug cable into any of the LAN ports. And keep in mind DHCP service on OVS router must not be disabled. Then, all devices connected with router B and C will be assigned IP addresses with the same prefix with OVS router. If gateway of OVS router is 192.168.3.1, then devices will have IP addresses 192.168.3.*.
In this experiment, we connect phone to router B and WEMO device to router C. At this point, phone and WEMO device should be able to talk with each other. To verify it, you may need another laptop. After laptop1 is connected to router B and laptop2 is connected to router C, they should be able to ping each other. At this point, either laptop 1 or 2 cannot ping www.google.com. That's because WAN port and LAN ports are not connected currently. We will fix this in next chapter.
Now we need to configure the OVS on the router. The script is attached. What we do here is firstly create bridge br0. Then add the virtual ports eth1.1-1.4 to the bridge. After correctly setting up the controller, it should be able to see the traffic going the ports. set-fail-mode makes sure the router works as normal router when the OVS is not about to connect to its controller. At this point, no matter the phone or WEMO device, should not be able to connect to the internet. As WEMO device needs to report its status periodically to the server, before they can talk. Otherwise the app on phone cannot detect the device and refuses any operations.
As the figure shows, OVS router is connected with Internet. So we have to use the tool brctl , which comes with openWrt. It's a nice tool to built bridge among the CPU port of the router and other LAN ports. The commands to do this: The main idea is to put the OVS bridge onto linux bridge. Remove the IP address of OVS bridge and assign it to the linux bridge.
