semiconductor dissipation, comprising conduction losses, turn-on switching loss (E_on), turn-off switching loss (E_off), and reverse recovery losses (E_rr). Power MOSFETs (Silicon Superjunction and Silicon Carbide SiC) exhibit low on-state resistance R_DS(on) with positive temperature coefficients, making them ideal for high-frequency DC-DC converters and low-to-medium voltage bridge inverters. Conversely, Insulated Gate Bipolar Transistors (IGBTs) combine high-impedance MOS gate structures with bipolar conduction characteristics, offering low forward saturation voltage drops V_CE(sat) under high current and voltage regimes (> 600V to 1200V). Current tailing during IGBT turn-off occurs due to minority carrier recombination in the wide n-base drift region, requiring optimized dead-time allocation and dedicated snubber circuits to prevent shoot-through faults and excessive thermal dissipation. Thermal impedance matrices model junction-to-case (R_thJC) and case-to-heatsink (R_thCH) heat flow under continuous pulsed electrical loads.

Analytical & State-Space Control Methodology

Section 3.1: Gate Driver Topologies, High-Voltage Isolation, Miller Clamp & Snubber Circuit Design for Eee Projects In Power sinking peak currents governed by I_g(peak) = (V_drive - V_th) / (R_gate + R_int). High-side power switches operating in bridge configurations require floating bootstrap supplies (bootstrap diode and high-voltage ceramic capacitor) or galvanically isolated DC-DC supplies with optical or magnetic isolation barriers (e.g., optocouplers or coreless transformer ICs like IR2110 / TLP250). Parasitic gate-to-drain Miller capacitances (C_gd) induce severe voltage spikes (dV/dt) during complementary switch turn-off, which can falsely trigger gate voltages above threshold and cause catastrophic half-bridge shoot-through faults. To resolve this, active Miller clamp circuits or negative turn-off bias supplies (-5V to -8V) hold the gate firmly at low impedance. RC and RCD snubber networks placed across drain-source or collector-emitter terminals suppress inductive voltage overshoot during turn-off transients.

Simulink Waveforms & Power Quality Findings

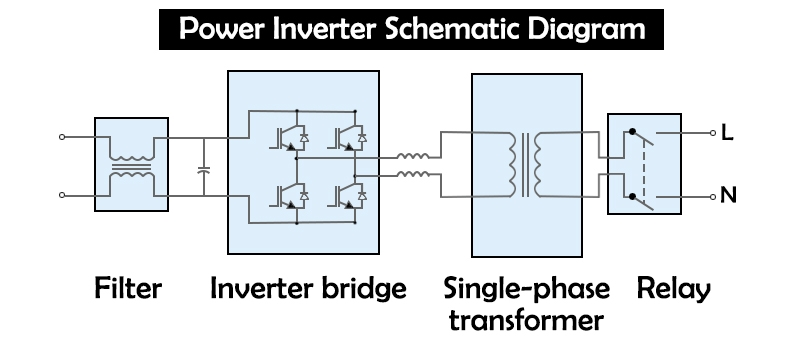

Figure 1: Power Converter Circuit Schematic & Electrical Interfacing for Eee Projects In Power Systems Section 4.1: Pulse Width Modulation (PWM), Space Vector Strategies & Digital Control Implementation for Eee Projects In distortion, and converter efficiency. Sinusoidal Pulse Width Modulation (SPWM) compares high-frequency triangular carrier waves with sinusoidal reference waves, generating variable-width switching pulses where modulation index m_a directly controls output fundamental amplitude. Space Vector Pulse Width Modulation (SVPWM) maps reference voltage vectors into eight discrete stationary switching vectors, increasing DC-bus voltage utilization by 15.5% compared to conventional sinusoidal modulation while reducing current ripple. Digital controllers (Microchip dsPIC, TI C2000, or STM32) execute discrete proportional-integral-derivative (PID) or sliding mode control (SMC) routines synchronized with ADC sampling at carrier peaks to avoid switching noise corruption.

Scope & Practical Applications

• High-efficiency DC-DC converters and isolated resonant topologies (LLC / DAB)
• Sinusoidal and Space Vector PWM inverters for grid integration & industrial motor drives
• MOSFET / IGBT gate driver optimization with active Miller-clamp shoot-through protection
• Power quality conditioning with Total Harmonic Distortion (THD) strictly compliant with IEEE 519
• Complete Simscape .SLX model files, parameter calculation scripts, and IEEE dissertation reports
