Eee Projects On Automatic Night Lamp With Morning Alarm: Power Electronics, MATLAB/Simulink & Circuit Modeling Integrated Analysis: MATLAB/Simulink · MOSFET/IGBT Gate Drivers · SPWM/SVPWM · THD Spectrum · ~4649 Words Chapter 1: Power Electronics Overview, System Specifications & Topology Modeling This project work is on the construction of automatic night lightening system. Which aimed at activating a switch or AC lamp at sunset and deactivate it at sunrise.
Analytical & State-Space Control Methodology
I 3,000.00 Original price was: I 3,000.00. I 5,000.00 Current price is: I 5,000.00. This project work is on the construction of automatic night lightening system. Which aimed at activating a switch or AC lamp at sunset and deactivate it at sunrise. This automatic night lightening system can trigger a relay to operate an AC lamp at Sunset. The lamp remains on till morning and then turns off. This eliminates the need of switching the lamp or Backyard lamp daily and also helps to light the premises of the house when the occupants are out of station. The alarm is basic thing required for maintaining our day with the proper time schedule. The alarm blows once the lamp turns off when the day breaks.
Simulink Waveforms & Power Quality Findings

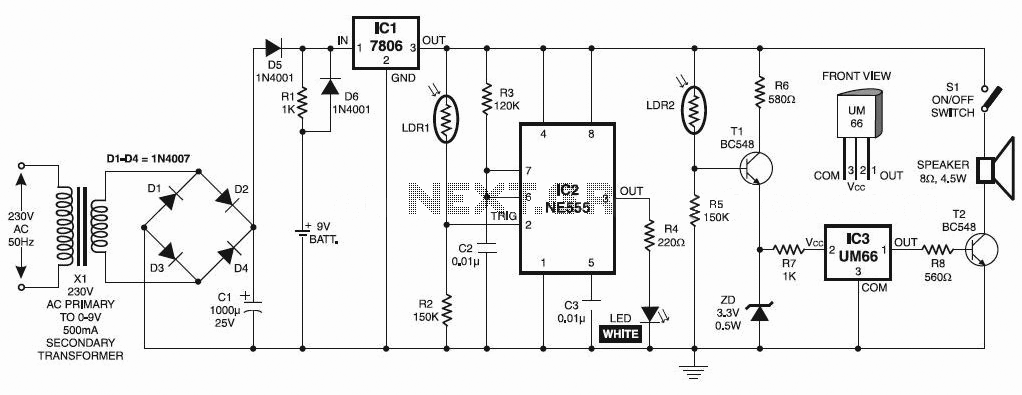

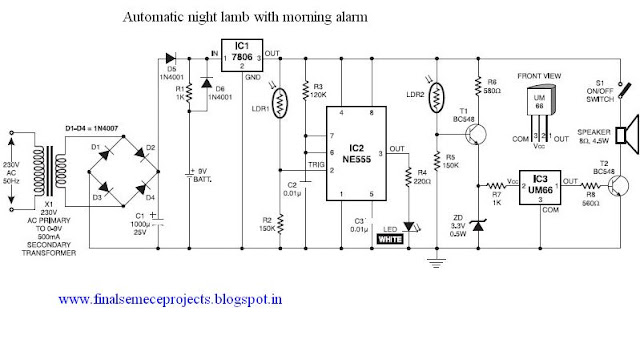

Figure 1: Power Converter Circuit Schematic & Electrical Interfacing for Eee Projects On Automatic Night Lamp With Morning Alarm 1.0 INTRODUCTION The controlling of home lamps (or security lights) is usually maintained by home occupants on several occasions. This is not only precarious but also sometimes results in wastage of power because of the negligence or unusual circumstances on part of the technician in operating the lights on and off. Not only in case of street lights, even for controlling the home appliances like garden or outdoor lights, we can utilize the automatic night lightening system for automatic switching of the lights based on daylight’s intensity by using a light sensor.
