Abstract — Eee projects on digital sound level meter in decibels using arduino

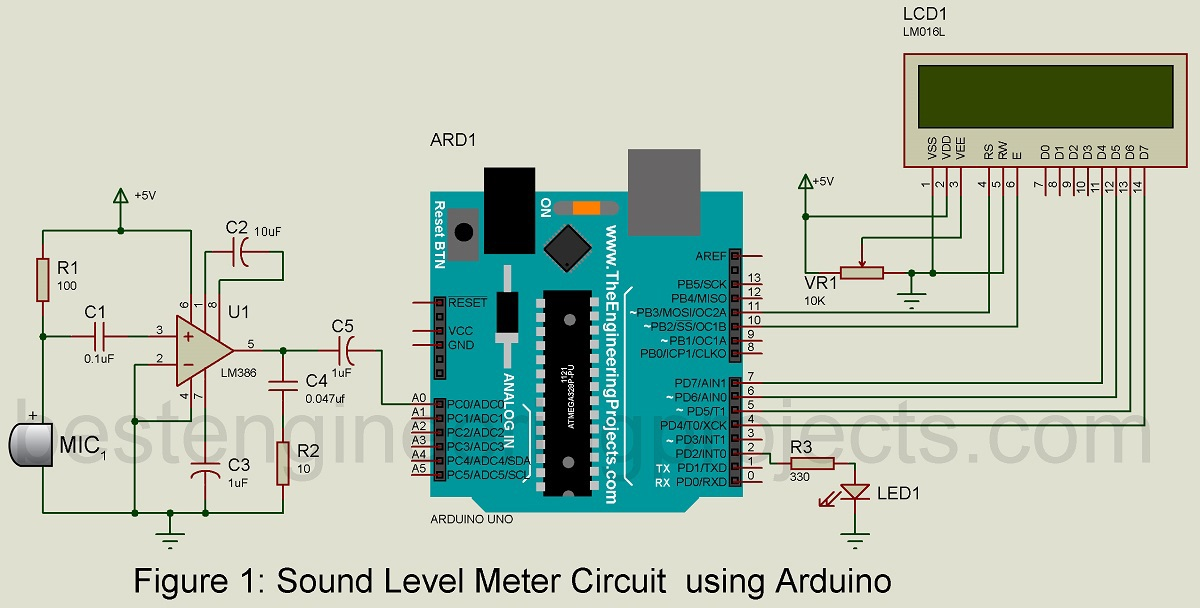

Arduino, you can assemble like this. But if you want to reduce the cost and use it with an ATmega328 microcontroller you can use this circuit diagram. Here you will learn how to detect ambient sound and how to handle the signal generated by this module. This board along with the microphone, has a small built-in amplifier (integrated circuit LM393), because only the microphone would not be able to send the plate, there is a potentiometer for sensitivity adjustment.
Analytical & State-Space Control Methodology

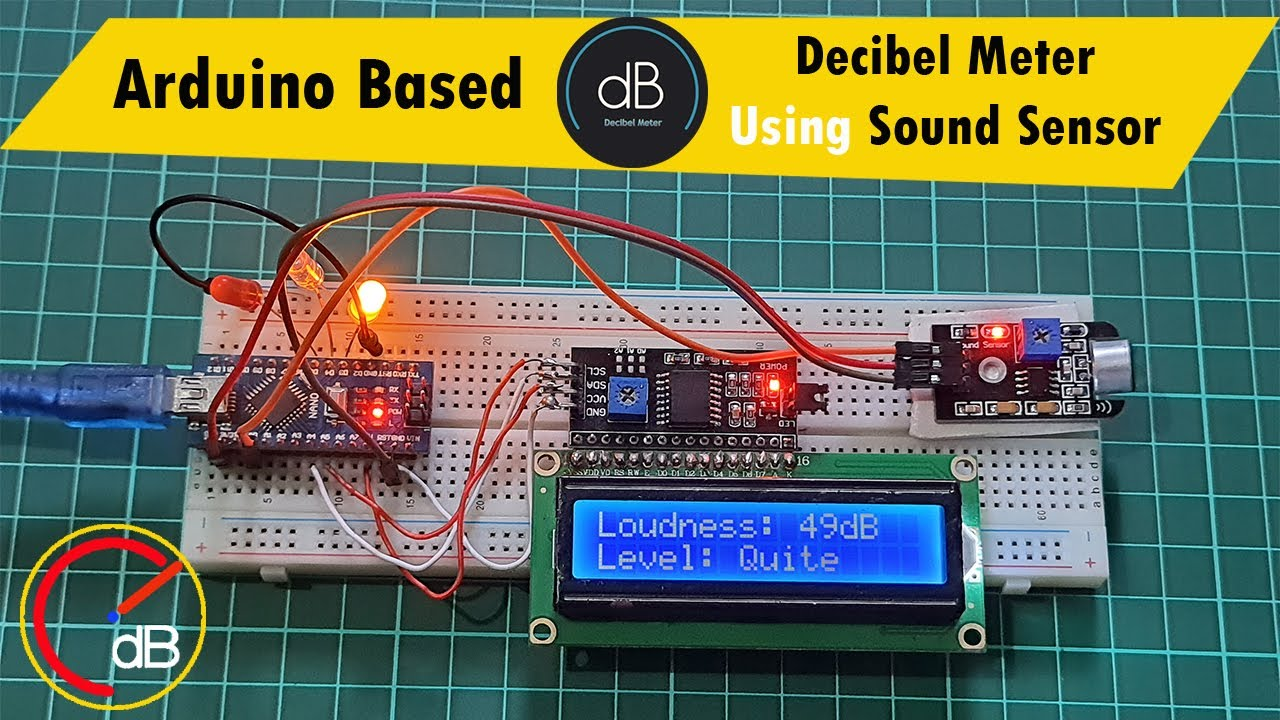

The board works with 5V voltage, and the signal pin should be connected preferably to an analog port of Arduino, since the generated signal is variable, and thus we can see the different levels of noise picked up by the microphone. The circuit tests will consist of the module Sound Sensor , plus the display 16×2 LCD. The display at its top, will show the sound level (Low, Medium and High), and bottom , a bar that will follow in real time the sound level detected by the microphone will be shown: Figure 2: Power Converter Circuit Schematic & Electrical Interfacing for Eee Projects On Digital Sound Level Meter In Decibels Using Arduino Features ¬ Main chip: LM393, electret microphone ¬ Working voltage: DC 4 ~ 6V ¬ Has the signal output instructions ¬ Single signal output. ¬ Effective signal output for a low level. ¬ Output low level and the signal light will on when there has a voice. ¬ Can be used for the sonic lamp, with photosensitive sensors act as sound and light alarm, also can be used in the occasion of voice control and sound detection. ¬ Circuit boards output switch value.
Simulink Waveforms & Power Quality Findings
Chapter 2: Semiconductor Dynamics: MOSFET & IGBT Switching Characteristics & Losses Specifications & Pin Details The simple specifications of sound module from left to right first pins are as follows: Pin 1 VCC :4V to 6V DC Pin 2 GND :GND Pin 3 D0 :Digital Out Pin 4 A0 :Analog Out Working The sound detection sensor module for Arduino detects whether the sound has exceeded a threshold value. Sound is detected via a microphone and fed into an LM393 op-amp. The sound level setpoint is adjusted via an onboard potentiometer. When the sound level exceeds the setpoint, an LED on the module is illuminated and the output is sent low.
