Abstract. An IoT-based battery management system (BMS) provides an innovative approach to monitor the performance of electric vehicle (EV) batteries. Electric vehicles rely heavily on their batteries for power, and over time the gradual decrease in energy supply leads to performance degradation, which is a significant concern for manufacturers and users. A practical IoT BMS comprises two main parts: a monitoring device and a user interface. The monitoring device collects data on battery performance including voltage, current, temperature, and state of charge. The user interface delivers real-time insights into battery health and performance so that users can track trends and receive alerts when degradation is detected. Experimental work shows that such a system can detect degraded performance and notify users promptly. By using IoT, remote and continuous monitoring becomes possible, supporting proactive maintenance and improving the reliability and efficiency of electric vehicles. Typical student implementations use Arduino Nano, ESP32, lithium-ion packs, voltage dividers, and cloud or local dashboards.

1. Introduction. The global automotive landscape is undergoing a significant transformation, with electric vehicles emerging as a popular choice driven by rising fuel prices and environmental concerns. This shift has pushed manufacturers to adopt electric propulsion and energy storage systems beyond traditional gasoline. Central to EV success are power storage units, especially lithium-ion batteries, which offer superior performance and environmental advantages compared with conventional lead-acid batteries. Lithium-ion cells provide compact size, relatively constant power output, and a lifespan often described as six to ten times that of lead-acid chemistry. They are not free of challenges: overcharging and deep discharge can compromise longevity and safety and may lead to hazardous incidents such as thermal runaway or fire. Ensuring safe and efficient operation of EV batteries therefore requires effective monitoring and management.

Traditional battery indicators inside the vehicle give only limited local feedback. With the growth of Internet of Things technology, continuous, connected monitoring has become practical. IoT uses network connectivity for real-time measurement, data analysis, and remote communication. Motivated by safety, performance, and maintenance needs in EV battery systems, an IoT-based battery monitoring system aims to give comprehensive real-time insight into battery condition, enable proactive maintenance, and improve user safety. The same architecture is equally relevant for stationary storage, solar home systems, e-bikes, and laboratory teaching kits used by BE, BTech, and MTech students.

2. Methodology — Battery Management System. A practical student-scale BMS often supplies two voltage domains: about 5 V to power the Arduino Nano, ESP32, and LCD, and a higher rail (for example 12 V) to charge a lithium-ion pack through a BMS protection board. The BMS board takes the charge input and distributes it to the cells while enforcing limits. Maximizing energy efficiency and safety is the core goal of the control circuitry: it oversees charging and discharging, prevents overcharge that can damage cells, and prevents over-discharge that shortens life. Over-voltage detection LEDs or similar indicators can signal when an input exceeds a safe threshold.

2.1 Lithium-ion batteries. Modern EV and portable systems prefer lithium-ion chemistry over lead-acid because of higher energy density, longer cycle life, and better efficiency. In a representative laboratory setup, a pack of three lithium-ion cells (nominally around 12 V when series-connected) is monitored. A voltage-divider network scales each cell voltage (or the pack voltage) into the safe analog input range of the microcontroller so that the Arduino Nano can sample individual or pack voltages without damage.

2.2 Arduino Nano as the sensing brain. The Arduino Nano acts as the local controller for the BMS. With analog and digital pins it interfaces to voltage dividers, current sensors, temperature sensors (for example LM35 or digital temperature sensors), and communication modules. It gathers voltage, current, and temperature data, processes them in real time, and supports decisions on charge and discharge control, cell balancing cues, and safety cut-offs. Collected temperature and current values are forwarded to an ESP32 and to an LCD for local display.

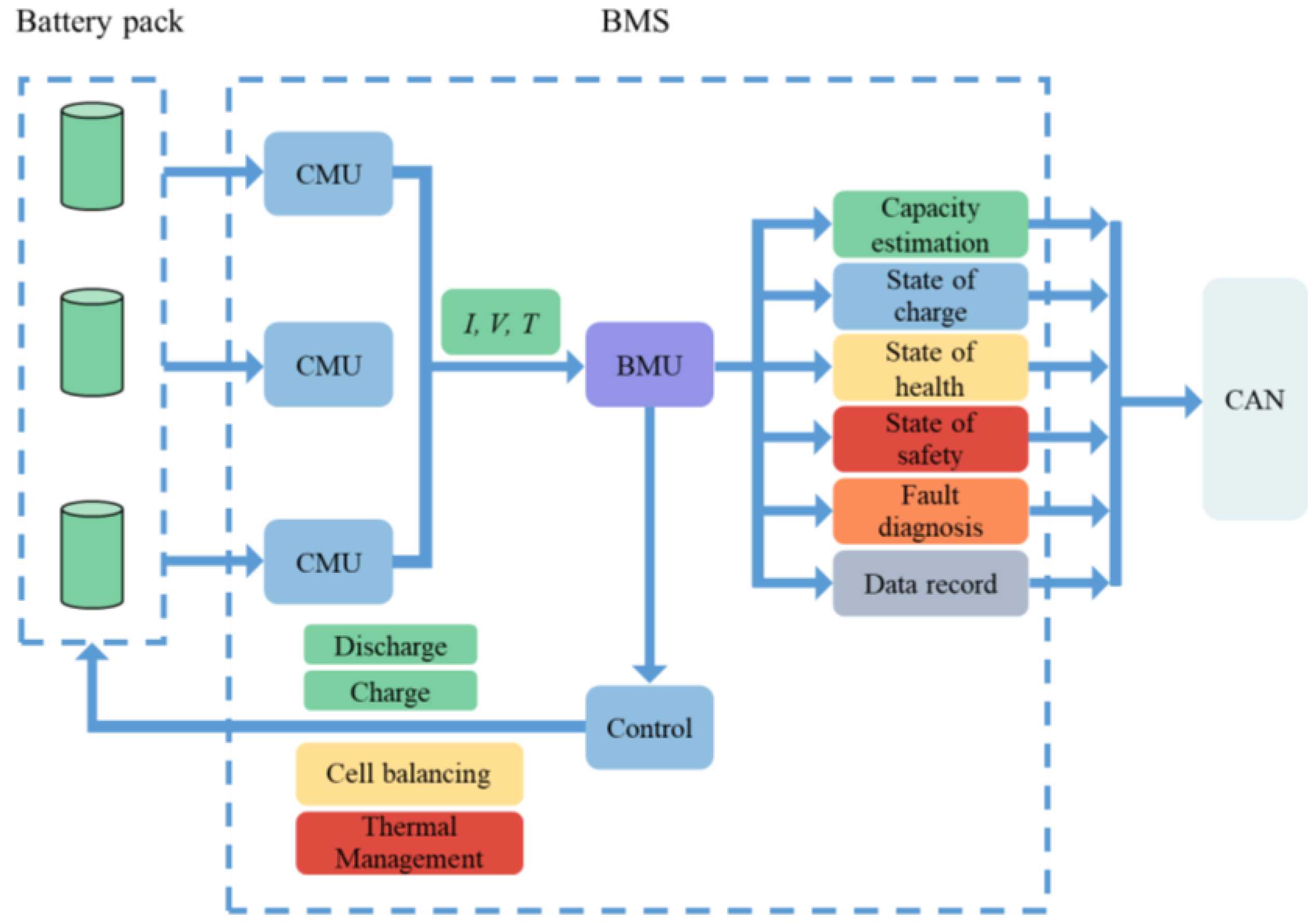

2.3 ESP32 and cloud connectivity. The ESP32 provides built-in Wi-Fi and Bluetooth. It receives measurements from the Arduino Nano (or may itself host sensing in simplified designs) and publishes data to a cloud platform or local server so that battery status can be viewed remotely. The LCD shows live temperature and current (and optionally cell voltages) at the hardware bench. An architecture diagram typically shows the lithium-ion pack and charger/BMS feeding cell measurement paths into the Arduino Nano ADC, with the ESP32 linking to the cloud and the LCD and status LEDs driven from the control path; a temperature sensor (such as LM35) closes the thermal monitoring loop.

2.4 Safety indicators. Over-voltage detection LEDs give a simple, immediate visual safety feature: when voltage exceeds a set threshold the LED lights, helping operators and students recognise unsafe conditions during experiments and demos.

3. Results. In experimental runs, current and temperature are displayed on an LCD driven by the microcontroller. Typical bench results show per-channel current readings and a temperature value (for example around 14 °C in a controlled indoor test) so that students can verify sensing accuracy and communication. The same values are available on the IoT dashboard for remote observation. The system demonstrates continuous acquisition of the main BMS parameters and remote visibility of performance trends.

4. Conclusion. An IoT-based battery monitoring system tailored for electric-vehicle and laboratory use can deliver real-time performance and degradation monitoring that is important for efficiency and longevity. Hardware for sensing and a web or app interface together provide accessible information on condition and, where implemented, location and time. Future enhancements include dedicated smartphone applications for remote monitoring and degradation reminders, and alternative connectivity (for example Ethernet or more robust cellular links) where Wi-Fi is insufficient. As demand for sustainable transport and distributed storage grows, such systems contribute to safer, more maintainable battery packs and give students a complete pipeline from sensors and embedded firmware through MQTT or HTTP cloud links to dashboards and alerts—ideal for final-year IoT, embedded systems, and EV technology projects.

By focusing on Battery Management System IoT, students practise voltage and current sensing, thermal monitoring, protection concepts, ESP32/Arduino firmware, cloud connectivity, and documentation suitable for viva and industrial roles in EV electronics, energy storage, and industrial IoT.
