Building Energy Management IoT

Building Energy Management IoT — Topics for IoT Students

Abstract. Buildings represent a major share of electricity consumption, and their operational energy use is strongly influenced by weather, occupancy dynamics, and the interaction of heating, ventilation, and air-conditioning (HVAC) systems with lighting and plug loads. Conventional building operation typically relies on fixed schedules and manually tuned control rules, which often fail to adapt to daily variability and can lead to unnecessary energy use and peak-demand events. A Smart Building Energy Management System (SBEMS) using Internet of Things sensing and artificial intelligence aims to improve energy efficiency while maintaining indoor comfort and operational robustness. The objective is an end-to-end, deployable pipeline that integrates sensing, data processing, load forecasting, and control optimization in a closed-loop framework. Time-series data are collected, synchronized, cleaned, and transformed through feature engineering. Two forecasting models are commonly evaluated for short-term demand prediction: a gradient-boosting model using engineered features and a recurrent neural network (LSTM) model using temporal sequences. Control is implemented in stages, starting from a safe rule-based baseline and extending to forecast-informed bounded optimization with fallback mechanisms. In a representative 28-day evaluation, such a system reduced total energy consumption by about 13.3% and maximum peak demand by about 11.5%, while comfort compliance improved with roughly a 19.0% reduction in total comfort-violation duration. LSTM forecasting typically achieves lower error than gradient boosting on the same data. Integrating connected sensing with AI-based forecasting and constraint-aware optimization can therefore deliver measurable energy and demand reductions while maintaining comfort—an ideal final-year IoT and smart-grid project theme for BE, BTech, and MTech students.

1. Introduction. Buildings account for a large share of final energy use. Operational consumption depends on occupancy patterns, weather variability, and equipment scheduling. Conventional building management approaches are often rule-based and manually tuned: they perform well only under the conditions they were configured for and struggle when the building use profile changes, leading to energy waste and inconsistent comfort. Good performance requires not only control logic but robust data pipelines, feature engineering, and continuous evaluation to avoid drift and hidden inefficiencies in real deployments.

Over the last decade, Building Energy Management Systems (BEMS) have evolved through the convergence of sensing and actuation networks, IoT connectivity, and data-driven intelligence. IoT-enabled BEMS deliver real-time visibility (metering, environmental sensors, device-level control) and create the data foundation for automation and analytics. In parallel, AI methods—forecasting, anomaly detection, and optimization—are applied to HVAC control and demand management. Model predictive control (MPC) is widely studied for multi-objective optimization of comfort and energy when informed by forecasts. Reinforcement learning is gaining traction for HVAC because it can learn policies from interaction data. Edge and fog computing reduce latency, bandwidth cost, and cloud dependence, which is critical for real-time actuation and resilience.

Three practical gaps remain. First, many studies focus on either IoT instrumentation or AI algorithms but do not close the loop from sensing → feature engineering → learning/optimization → actuation with measurable operational constraints. Second, AI-driven control is often validated in simulation or limited pilots, with insufficient attention to intermittent connectivity, latency-sensitive decisions, and edge-level robustness. Third, security and trust are often treated separately rather than embedded in design choices such as segmentation, data minimization, and secure telemetry. An integrated Smart Building Energy Management System that unifies IoT sensing, edge-aware data handling, and AI-based decision-making in one deployable framework is therefore a strong research and student-project target.

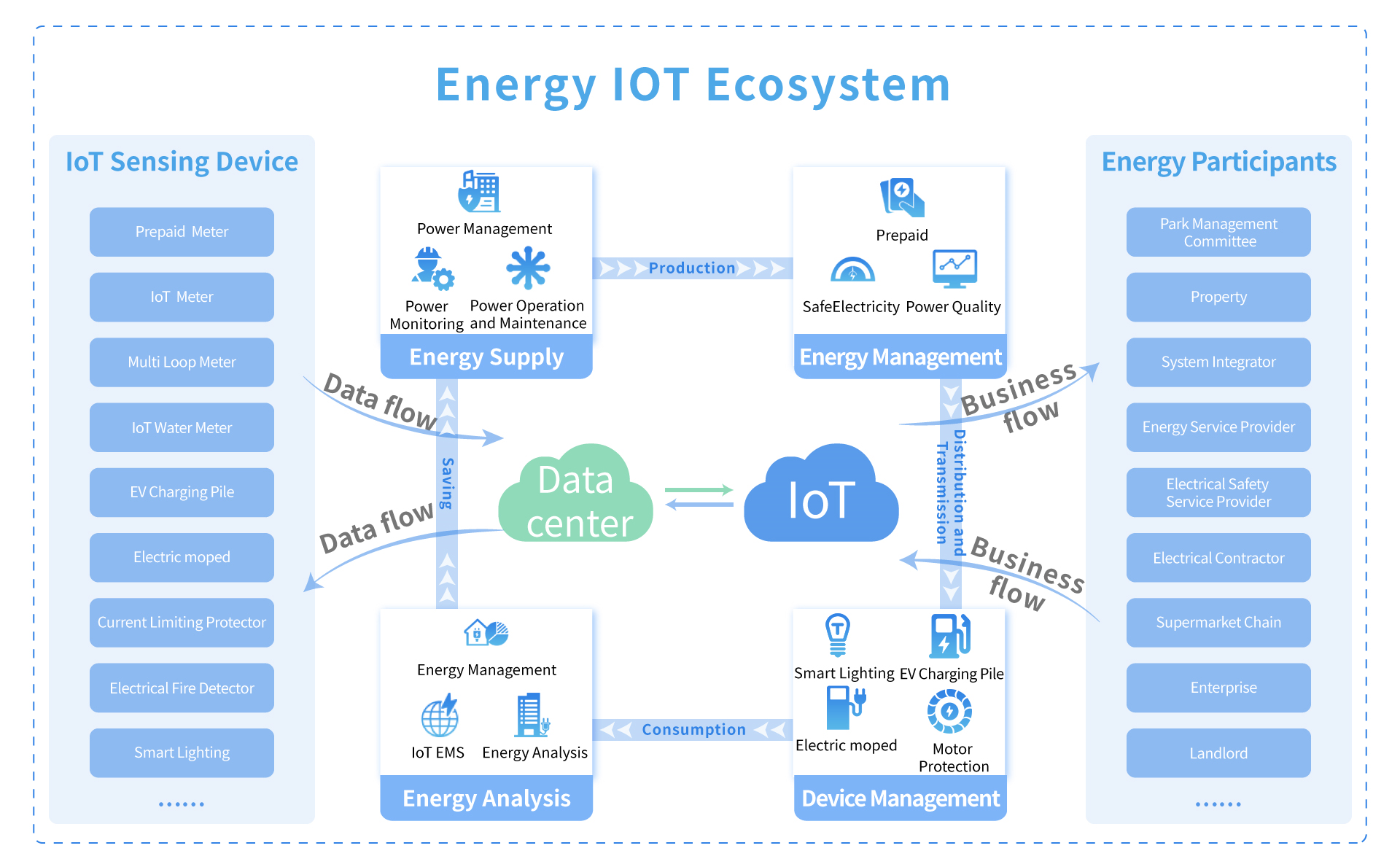

2. Architecture of the Device / System Layers. A practical SBEMS is implemented in layered form: (1) sensing and actuation devices, (2) communication and gateway services, (3) time-series data management and preprocessing, and (4) an intelligence layer for forecasting and control optimization. A staged deployment path is recommended: monitoring-only first, then rule-based control, then AI-assisted optimization, so that operation stays safe and integration is incremental.

Prototype operational data typically include electrical variables (power and/or energy readings), indoor environmental variables (temperature and humidity), occupancy proxy signals (for example PIR events), and device status (on/off or duty cycle). Sensor readings and actuator states are transmitted periodically from the device layer to the gateway and stored in a time-series repository. Public benchmark building energy time-series data can be used to validate forecasting models under a reproducible setting. Hardware materials include environmental sensors, occupancy sensors, energy meters, a gateway for message routing and local processing, controllable loads or actuators (smart relays, dimmers, or HVAC setpoint interfaces), and a server for storage and analytics. A lightweight publish/subscribe messaging pattern (for example MQTT) carries telemetry and control commands. A dashboard monitors device status, energy KPIs, and comfort indicators.

3. Methodology — Data Pipeline, AI Models, and Control. All data streams are synchronized to a uniform time interval. Cleaning removes duplicate timestamps, filters out-of-range readings, and handles missing values (forward fill for short gaps; exclusion for long gaps). Feature engineering represents temporal and operational behaviour: hour-of-day, day-of-week, weekend/weekday flags, lag features (previous interval, previous day), and rolling statistics (moving average and moving maximum). For sequence models, sliding windows provide a fixed-length history for each training sample.

Short-term load forecasting uses two complementary approaches. A tree-based gradient boosting regressor trains on engineered tabular features for a robust baseline. An LSTM recurrent network trains on fixed-length input sequences to capture temporal dependencies. The forecasting horizon is set for near-term operational use (next few intervals or hours), with time-ordered train/test splits to avoid leakage. Energy optimization and control start with a rule-based controller as the safe default: occupancy-aware scheduling (HVAC setback and lighting dimming when unoccupied) and peak-shaving rules (limiting simultaneous high-load operations during peak windows). An AI-assisted optimization layer then uses forecast outputs to recommend or adjust actions. Comfort constraints bound temperature setpoints within an acceptable range and limit actuator rate-of-change to avoid abrupt transitions. A fallback mechanism reverts to baseline rules when anomalies, sensor failures, or unstable behaviour are detected.

Evaluation metrics for forecasting include MAE, RMSE, and MAPE. Control performance compares baseline versus SBEMS on total energy (kWh), peak demand (kW), and comfort compliance (magnitude and duration of deviations outside the comfort range). Reliability is assessed via data completeness, message delivery continuity, and the number of fallback events.

4. Advantages. An integrated IoT–AI BEMS offers continuous visibility of loads and environment; adaptive control instead of fixed schedules; peak-demand reduction that can lower tariff costs; improved comfort compliance when constraints are enforced; staged deployment with safe fallbacks; edge-aware design for lower latency and better resilience; and a clear student learning path covering sensors, MQTT/gateways, time-series pipelines, gradient boosting and LSTM forecasting, and constraint-aware control.

5. Results and Discussion. In a representative 28-day evaluation comparing baseline (conventional operation) with SBEMS (forecast-informed AI-assisted optimization with comfort bounds and fallbacks), total energy consumption fell from about 14,584 kWh to about 12,653 kWh (−13.3%), maximum peak demand from about 104.3 kW to about 92.3 kW (−11.5%), and total comfort-violation minutes from about 1,214 to about 983 (−19.0%), with a small number of fallback events recorded for reliability monitoring. Weekly energy totals under SBEMS remained below baseline across all weeks, indicating a sustained reduction pattern. Daily peak profiles showed lower peaks on most days. Comfort-violation minutes were generally lower under SBEMS, supporting the claim that savings were not achieved by sacrificing indoor conditions. On forecasting, an LSTM model achieved lower MAE, RMSE, and MAPE than gradient boosting (for example MAE 3.6 vs 3.9 kW, RMSE 5.1 vs 5.4 kW, MAPE 7.5% vs 7.8%), consistent with sequence models capturing temporal structure while gradient boosting remains strong on tabular features. Fallback events confirm that safety overrides are necessary in real deployments under sensor noise, missing data, or connectivity issues—aligned with edge/fog and IoT security best practice.

6. Conclusion. A Smart Building Energy Management System that integrates IoT sensing and artificial intelligence can reduce energy consumption and peak demand while maintaining comfort and operational robustness. Measured improvements on the order of 13% energy reduction, 11–12% peak reduction, and improved comfort compliance illustrate the value of a closed-loop monitoring–prediction–control workflow. Limitations include evaluation length and the use of a defined comfort band; future work should cover longer deployments, diverse building types, seasonal and occupancy variation, and additional indicators such as cost, carbon intensity, and occupant satisfaction. For students, Building Energy Management IoT is an excellent capstone theme: it combines ESP32/Arduino metering and environmental sensing, MQTT gateways, cloud or edge dashboards, load forecasting (gradient boosting and LSTM), rule-based and forecast-informed control, and university-format reporting and viva preparation for careers in smart buildings, smart grids, and industrial IoT.
