Plant Health Monitoring IoT — Implementation & Analysis

Abstract — Plant Health Monitoring IoT

Plant Health Monitoring Iot Comprehensive Technical Investigation & Design Architecture · Prepared for Research & Evaluation 1. Executive Overview & Research Problem Statement An IoT-based smart plant monitoring system integrates sensor networks, edge processing, cloud connectivity, and AI analytics to facilitate precise, real-time plant health assessment and automated environmental control. The dominant design paradigm is a distributed cyber-physical architecture in which microcontroller nodes continuously acquire soil, air, and sometimes image-derived plant parameters, forward them to cloud platforms, and enable researchers or practitioners to visualize, predict, and interact with plant status and resource usage across scales. Increasingly, these systems incorporate advanced data pipelines, large-scale wireless protocols, mobile clients, and AI-driven natural language interfaces, reflecting a convergence of Internet of Things (IoT), edge computing, and foundational machine learning technologies ( Agarwal et al., 2024 , Nabaei et al., 27 Mar 2025 , Hasib et al., 22 Jan 2026 , Manivannan et al., 2023 ).

Operational Methodology & Framework

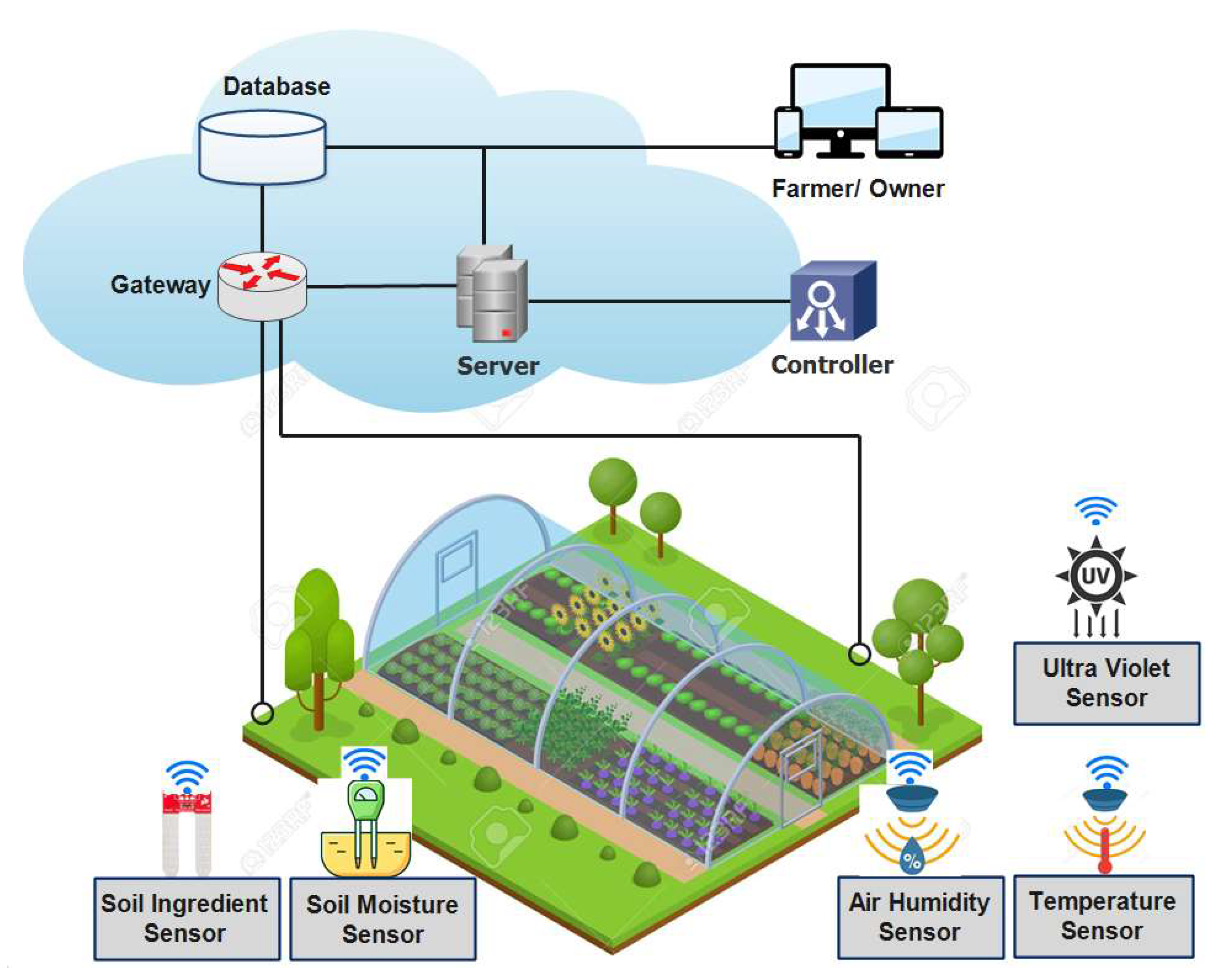

A representative architecture deploys sensor nodes equipped with analog soil moisture probes (calibrated via voltage mappings such as $M\% = \frac{V_{\text{out}-V_{\text{dry}}}{V_{\text{wet}-V_{\text{dry}}}} \times 100$), digital temperature/humidity sensors (e.g., DHT11/DHT22), electrical conductivity probes for soil nutrients (optionally using formulas EC = K V out V ref \text{EC} = K\,\frac{V_{\text{out}}}{V_{\text{ref}}} EC = K V ref I V out I I ), and light sensors or phenotyping vision modules. Nodes are typically powered by deep-sleep-capable microcontrollers (ESP8266, ESP32, STM32, Arduino), employing on-board regulators, USB power banks, or solar plus LiPo storage for autonomous deployments ( Agarwal et al., 2024 , Hasib et al., 22 Jan 2026 , Dhrubo et al., 17 Jun 2025 ).

Experimental Findings & Validation

Sampling rates span from 1 s (high-frequency dynamic events) to 60 s (standard moisture/temperature monitoring), with moving-average or outlier filters suppressing analog spikes: y [ n ] = 1 N ∑ i = 0 N − 1 x [ n − i ] y[n] = \frac{1}{N}\sum_{i=0}^{N-1}x[n-i] y [ n ] = N 1 I ∑ i = 0 N − 1 I x [ n − i ] . Actuation and power management are supported through relay-driven pumps and adaptive duty-cycling logics.

Scope & Practical Applications

• Real-time automated control and signal telemetry
• Embedded verification testbeds for institutional research
• High-throughput data streaming and anomaly alerting
• Performance optimization and resource consumption minimization
• Full integration ready for IEEE dissertation submission
