AC to DC Three Level Pulse Width Modulation Converter by Using

Matlab Simulink

Abdullahi Mohamed Samatar, Universiti Tun Hussein Onn, Malaysia

1. Introduction

AC-to-DC energy converters occur generally utilized within cables and data-midpointindustriousness. These types of converters change over the use AC energy to steady DC output appropriate for the output loads. The generation of the multiple voltage-level PWM voltage is based on the multilevel voltage source converter (VSC) power stages. The most frequently used VSC, AC to DC converters and power converters (A. Baluguri and P. B. Nanda, 2014). VSC-HVDC system is a new generation of HVDC technology based on pulse width modulation and voltage source converter (VSC), the modern high-power power electronic technology applied in the power system. The introduction of pulse width modulated voltage source converter technology into high voltage DC (HVDC) transmission system has booster their practicality in many appliances in terms of cost expense and performances.

Figure: System Model & Simulation Flow for Ac Ac Converter Matlab Simulink

To overcome drawbacks of Diode Bridge rectified, pulse width modulation (PWM) converters are proposed. The current PWM techniques are discussed in (B. Lin, 2000). Although there are different PWM techniques are accessible for Alternating current (AC) and direct current (DC) converters however the hysteresis current control is exceptionally prevalent technique due to crucial peak current limit, simple to implement and unresponsive to parameter difference.

Figure: System Model & Simulation Flow for Ac Ac Converter Matlab Simulink

2. Related Work

Traditionally, AC to DC converters, which are also known called as rectifiers, are developed using diodes and thyristors to provide controlled and uncontrolled unidirectional and bidirectional DC power. They have the issues of poor power quality in terms of injected current harmonics, DC output voltage distortion and poor power factor at input AC mains and gradually differing ripple DC output at load end, low efficiency, and extensive size of AC and DC filter. In perspective of their expanded applications, another type of rectifiers has been developed new solid-state self-commutating devices, for example, MOSFETs, insulated gate bipolar transistors (IGBTs), gate-turn off thyristors and (GTOs). Such converters are generally classified as switch mode rectifiers (SMRs), (PWM) rectifiers, multilevel rectifiers or multi-pulse rectifiers. Because of the strict requirement of power quality at the input AC mains, several standards been developed and enforced on the purchasers. Because of the severity of power quality issues some other options such as passive filter, active filter and hybrid filter alongside conventional rectifiers have been extensively developed, particularly in large rating and already existing installations. However, these filters are quite costly, bulky, and have reasonable losses, which reduce overall efficiency of the complete system, under such circumstance; it is considered better option to use such converters as an inherent part of the system. Under such circumstance, it is considered better option to use such converters as an inherent part of the system of AC to DC conversion, which provides reduced size, high efficiency, and well controlled and regulated DC to provide comfortable and flexible operation of the system (12).

Figure: System Model & Simulation Flow for Ac Ac Converter Matlab Simulink

Abstract

Another AC-DC single stage three level thunderous converter for high voltage DC distribution system of data centres applications is presented in this assignment. This converter changes general data voltage assortment (90-265Vrms) to 380V DC with high power factor. The expected topology retains a bridgeless booster converter and a half-bridge three level loud converter. Consequently, Voltage stresses on the switches are minimized to half of the DC bus voltage. Conduction losses and switches losses are reduced by eliminating with the rectifier bridge diode and achieving ZVS process over a wide load extend.

The converter is worked in DCM mode with the mixture control of PWM and frequency. Also, the symmetrical operation keeps the voltage adjusts of two DC bus capacitor without the associate circuit. In the paper, the operation and stable state of the proposed converter is illuminated and separated in detail.

Keywords: Pulse Width Modulation (PWM), Neutral Point Clamped (NPC) Three-Level AC-DC converter, Voltage Sourced Converter(VSC), Improved Power Quality Converters (IPQC).

50

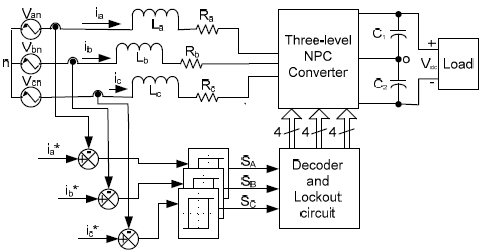

The close loop current control block diagram of 3 stage three-level of neutral point clamped (NPC) AC to-DC converter is presented in Fig. 1. This NPC AC-DC converter converted and description and modelling are well known (M. Milanovie, B. Sedmak, F. Mihalie, and A. Hren, 2000 ). The reference current of each phase is subtracted from the actual current of respective phase and tracking error is handled through signal decoder and lock out circuit. This is inward current control loop as shown in Figure 1.

Figure 1: Close loop current control block diagram The flowchart of the project as shown in Figure 2.

Figure 2: Flowchart Of The Project

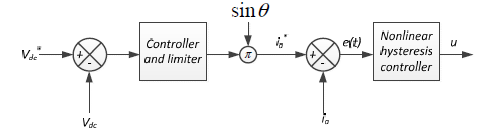

External loop DC link voltage control and the inward current control loop block diagram is shows in Fig. 3 and this control technique offers rise to variable and unpredictable switching frequency (N. E. D. Mohan and C. Zach, 2012). To obtain constant switching frequency variable, a forced switching technique is assumed and the detailed switching control is clearly mentioned in Figure 3.

Figure 3: Dc Link Voltage Control

To get suitable condition for stability of the AC-DC converter system in terms of given system parameters a state space modelling is carried out (R. K. Behera, 2016). The phase plane study based on has been completed for the triangular carrier frequency of 1 to 5 kHz. It ensures that the AC-DC converter is steady for all the compelling carrier frequencies.

The regularly topology about AC-to-DC rectifier is gathered of a front-end AC-to-DC booster converter and increasingly a full-bridge DC-to DC converter. In order to accomplish understand a high-power factor which is essential in harmonics standard the front of booster converter forms the current input to a sinusoid waveform.

3.1 Operation Of The Proposed Converter

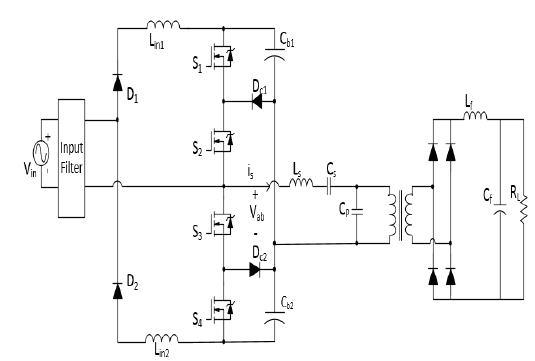

Figure. 3 shows that the circuit topology, the AC input Vin is among the focal point of the switches (S1, S2, S2 and S4) and double input rectifier diodes D1 and D2. Therefore, the double current input affecting inductor Lin1 and Lin2 are conduct for the duration of the negative and positive cycle of the Vin. Cb1 and Cb2 are the DC-bus capacitors which give out the DC bus voltage similarly (A. M, 2016). Dc1 and Dc2 fastened the shift voltages in the direction of part of the DC bus voltage as shown in Figure 4.

Figure 4: suggested 3-level booming single-stage DC-DC converter A sequence parallel resonant tank which is contained of Cs, Ls and Cp are used on control the output voltage by freuency control, in (C. Wang, S. Pan, and P. Jain, 2016). Lf and Cf is the output LC filter. However, the input inductor Lin1 and Lin2 are proposed to work in DCM mode like the input current may be sinusoidal waveform naturally.

Consequently, the ripple voltage of DC bus voltage is actually high with low-slung value of D. however, low quality of Di is only essential at the time DC bus voltage remains high and therefore, the ripple stay not that important when compared to a high DC bus voltage. Thus, the DC bus for voltage ripple may be good structured with an appropriate configurated DC bus capacitors 'evaluate.

The simulation AC to DC converter of three level PWM converter is composed and verified by the input range of AC root mean square (RMS) (Y. Son, S. Chee, and Y. Lee, 2016) .In evaluation with the converter exhibited, the converter appeared in this project has an interleaved structure, needs two less diodes in the DC, has a yield current which is persistent for all load ranges, has a DC bus voltage which is smaller than 450V for all load conditions, and has an extremely improved information current

3.2 Converter Design And Analysis

The study and the design of the suggested interleaved converter are nearly identical to that showed (Y. Xue, L. Chang, S. B. Kjær, J. Bordonau, and T. Shimizu, 2004). With respect to analysis, steady-state operating points are acknowledged using a matlab simulink. The only one difference among the analysis of the proposed converter and the one is the analysis and design of the input inductors. However, in the proposed interleaved converter, there are two sets of inductors (L1 andL2) at the input side, with every set conducting half the current (P. I. High-voltage and V. Michal, 2016). The analysis requires to consider the current in both sets instead of just one.
