American Journal of Applied Sciences 5 (8): 1083-1090, 2008

1083

Simulink Model of Direct Torque Control of Induction Machine

Selangor De, Malaysia

Abstract: Direct torque control (DTC) is one of the most excellent control strategies of torque control in induction machine. It is considered as an alternative to the field oriented control (FOC) or vector control technique. These two control strategies are different on the operation principle but their objectives are the same. They aim to control effectively the torque and flux. Torque control of an induction machine based on DTC strategy has been developed and a comprehensive study is present in this research. The performance of this control method has been demonstrated by simulations performed using a versatile simulation package, Matlab/Simulink. Several numerical simulations have been carried out in a steady state and transient operation on a speed control mode.

Key words: Direct torque control, induction machine, vector control, Matlab/Simulink

For Many Years, Induction Machine Have Provided

the most common form of electromechanical drive for industrial, commercial and domestic applications that can operate at essentially constant speed. Induction

Machines Have Simpler And More Rugged Structure,

higher maintainability and economy than DC motors. They are also robust and immune to heavy loading.

Basically, There Are Two Types Of Instantaneous

electromagnetic torque-controlled AC drives used for

Control In The Field Rotating Reference Using Pwm

inverter control.

Flux Control In The Stator Fixed Reference Frame

using direct control of the inverter switching.

Induction Machine. It Was Introduced In Japan By

Takahashi (1984) and also in Germany by Depenbrock

(1985). Dtc Of Induction Machine Has Increasingly

become the best alternative to field orientation methods or vector control.

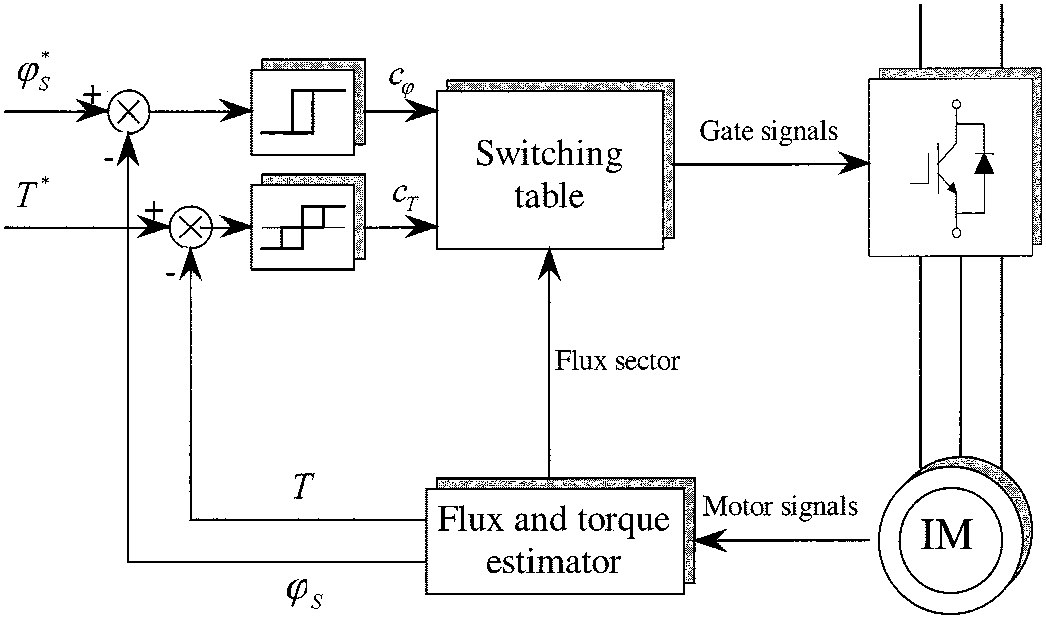

A Block Diagram Of A Dtc System For An Induction

machine is shown in Fig. 1,. The DTC scheme is very

Simple; In Its Basic Configuration It Consists Of

hysteresis controllers, torque and flux estimator and a Fig. 1: Direct torque control of induction machine switching table. The configuration is much simpler than

The Vector Control System Due To The Absence Of

coordinate transformation between stationary frame and synchronous frame and PI regulators. It also does not need a pulse width modulator and a position encoder,

Without Using The Current Regulation Loop. Dtc

scheme uses a stationary d-q reference frame (fixed to the stator) having its d-axis aligned with the stator q- axis. Torque and flux are controlled by the stator voltage space vector defined in this reference frame.

The Basic Concept Of Dtc Is To Control Directly

both the stator flux linkage (or rotor flux linkage, or magnetizing flux linkage) and electromagnetic torque of machine simultaneously by the selection of optimum

1084

inverter switching modes. The use of a switching table for voltage vector selection provides fast torque response, low inverter switching frequency and low harmonic losses without the complex field orientation

By Restricting The Flux And Torque Errors Within

respective flux and torque hysteresis bands with the

Optimum Selection Being Made. The Dtc Controller

consists of two hysteresis comparator (flux and torque) to select the switching voltage vector in order to

Maintain Flux And Torque Between Upper And Lower

limit. The main objective of this paper is to develop the simulink model of direct torque control of induction machine based on the mathematical modelling.

The Develop Torque Control Of Inverter Fed

induction machine is carried out by hysteresis control of magnitude stator flux and torque that selects one of the six non-zero and two zero inverter voltage vectors shown in Fig. 2. The selection is made in order to maintain torque and flux error inside the hysteresis band in which the errors are indicated by ∆Te and ∆Ψs

S As The

combination of switches status of the inverter are given

7

Fig. 2: Inverter output voltage vectors and voltage

Rotates At

the desired frequency ωs inside a specified band. If the stator ohmic drops are neglected, the stator voltage impresses directly the stator flux in accordance

Therefore The Variation Of The Stator Flux Space

vector due to the application of the stator voltage vector

Ss

V during a time interval of ∆t can be approximated as:

(6)

Torque Control: The electromagnetic torque given by equation (7) is a sinusoidal function ofγ , the angle

As Shown In Fig. 3. Since The

rotor flux changes slowly, the rapid variation of stator

Flux Space Vector Will Produce A Variation In The

developed torque because of the variation of the angle

V Has To Be

selected to obtain stronger rotation speed of ωs. The actual value of stator flux can be expressed as:

Indicate The Measured Stator Voltage

and current respectively. The electromagnetic torque is calculated by means of

(10)

Switching Table: On the basis of the torque and flux hysteresis status and of the stator flux switching sector,

Inverter Voltage Vector To Apply To The Induction

machine from the Table 1. The outputs of the switching table are the settings for the switching devices of the inverter. Figure 4 shows the relation of inverter voltage vector and the stator flux switching sectors.

V (111)

Table 1: Switching table of inverter voltage vectors

To Study The Performance Of The Developed Dtc

model, a closed loop torque control of the drive is simulated using Matlab/Simulink simulation package. The block diagram of the simulink model is shown in Fig. 5.

Start-Up With No Load: Torque Control Dynamic

performance of developed DTC model is evaluated by applying a step input of amplitude 30 Nm after 0.4 ms to torque reference while the stator flux reference is maintained at 1 Wb. The width of the hysteresis band is adjusted to ±0.01 Wb for the flux comparator and ±0.01 Nm for the torque comparator. Maximum step size of

0.1 Ms Is Used In This Simulation. The Obtained

responses are shown in Fig. 6.

The Equation Of Torque For No Load Running With

single inertia and negligible friction is shown below:

From Fig. 6(A), The Estimated Electromagnetic

torque remains at zero at period before 0.4 ms, so the rotor does not rotate. At t=0.4 ms, a step of 30 Nm is

1086

Fig. 5: Developed model of direct torque control of induction machine applied to the torque reference and the electromagnetic

Torque Immediately Increases To Reach The Demand

torque. This causes the rotor to accelerate at a rate dictated by the rotor inertia. From the torque response, the acceleration is given

The Rotor Speed Response In Fig. 6(B) Behaves

linearly during start-up. This is validating the equation of the speed for no load running with single inertia and

The

corresponding acceleration of the rotor speed can be

Both Of The Above Acceleration Calculations Based

on the estimated torque and the speed response are differ only by 2.8%. Thus, the small difference in percentage can verify the accuracy of the developed model.

In This No Load Situation, The Rotor Speed Would

eventually accelerate to synchronous speed of 147.8 rad/s. There is 5.9% difference with the calculated of

Rad/S. The Response Is Shown In

Fig. 7.

Figure 6(C) Shows The Stator Flux Magnitude

response has risen to its final value of 1.0 Wb that is equal to the stator flux reference. The stator flux magnitude is also constrained within its hysteresis band of ±0.01 Wb as shown in Fig. 6(d). The locus of the stator fluxes is presented in Figure 6(e). Since the stator

Flux Magnitude Is Constantly Maintained In The

hysteresis band, the locus draws the figure of a circle.

In Dtc Scheme, A Direct Control Of The Stator

current is not present and this may determine over current when a step variation of torque and flux are applied to the input command. Figure 6(f) and 6(g)

Uncontrolled Current During Start-Up, The Machine

exceeds the rated current with stator current amplitude,

Si

> 80 A as shown in Fig. 6(g). It can be noted that
