Dynamic Modeling and Simulation of a Grid-Connected PV- wind hybrid Microgrid System Using MATLAB/SIMULINK Ibrahim E. Abdualkafi1, Abdelbaset M. Ihbal2*.

Sabratha, Libya

The Libyan Academy for Postgraduate Studies, Tripoli, Libya

Abstract

Hybrid renewable Energy System (HRE) in a system configured with renewable energy sources requires storage facilities or backup generation to maintain continuity of supply to loads when the renewable energy sources alone are not sufficient. HRE systems are widely familiar as efficient power generation mechanisms due to their low operating costs, high reliability, and flexibility in grid-connected operations. This paper presents and investigate a model a Grid-Connected PV-wind hybrid Microgrid (MG) System. The system consists of a PV system, a wind turbine and an ultracapacitor as an energy storage element. All generation units have been connected to the distribution network to run in grid-connected mode. Maximum Power Point Tracking (MPPT) has been adopted to increase the power output then array efficiency of PV systems. For short-term transient simulations, dynamic models are developed for each system module. Utilizing MATLAB/Simulink, the simulated test-bed is created. Simulations are used to examine the test-bed's behaviors during steady state, abrupt variations in wind speed, and when facing a line fault. The outcomes of this study demonstrated that DER, UCESS, as well as the proposed control technique all support system stability under transient disturbance. The developed model might be seen as an effective tool for enhancing the functionality of the grid.

KEYWORDS: renewable energy source; grid-connected; hybrid AC/DC microgrid;

I. Introduction

Increased power demand will drive the deployment of energy storage (ES) and power generation at distribution level. Distributed Energy Resources (DERs) are small-scale energy sources that can be harvested to deliver reliable and efficient electricity to meet a regular demand of consumers, usually in close proximity to consumers. will be split. .

Most distributed energy sources are connected to the power grid and consumer loads via DC-AC voltage inverters. DER systems typically use renewable energy sources such as solar. small hydro, biogas, wind, and biomass [2, 3].

However, due to the intermittent nature of renewable energy, it requires the support of an Energy Storage System (ESS) to provide ancillary services and store excess energy for later use. ESS policies have been proposed in some countries to support renewable energy integration and grid stability. A microgrid (MG) can be easily achieved by simply installing distributed power resources to supply power to on-site consumers. DER, energy storage system and load define a microgrid that can operate in parallel with the main grid (grid-tied mode) or independently.

Microgrids (MG) have been applied in several practical areas such as industrial use, remote areas, residences, and commercial buildings [3, 4, 5, 6, 7]. The two most well- known sources of electrical distributed energy resources are wind turbines and solar power. Batteries, superconducting coils, flywheels, or supercapacitors are common energy storage devices used in numerous applications because of their rapid load acceptance and capability of storing and releasing energy within a short duration of time .

Microgrids can be confidential as DC microgrids, AC microgrids, or hybrid AC/DC grids . Wind turbines are

While

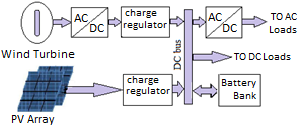

ultracapacitors solar cells and are direct current (DC) devices. Figure 1 shows the main components of a solar and wind hybrid energy system. The DC and AC microgrids are

Both Combined To Form A Hybrid Microgrid. Control

strategies and bidirectional power electronics are needed to govern hybrid AC/DC grids to attain stable performance

While Connected To The Ac Utility Grids . Dynamic

modeling of MG is performed to study steady-state and transient responses. Modeling includes storage systems, energy resources, controllers and power electronics devices.

The purpose of this study is to create a complete model of

123

electronics, controls and steady-state loads to study transient behavior with changing inputs. The system is simulated in his MATLAB/Simulink. The evaluation of results is discussed.

Generation Microgrid Modeling

This section describes the formation of a grid-tied hybrid AC/DC microgrid for a hybrid solar and wind turbine power generation system. The proposed system consisting of a wind turbine, a photovoltaic array, a DC/DC converter with an isolation transformer that ensures that the photovoltaic array operates at its MPP, a DFIG, and an ultracapacitor ESS and AC /DC/AC thyristor-controlled double-bridge converters is shown in Figure 2. The system frequency is 50Hz and the rated voltage is 400V.

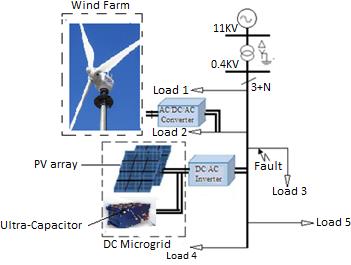

Fig.2. Grid-connected PV- wind hybrid AC/DC microgrid

Modeling Of Dc Microgrid

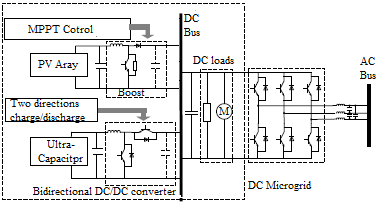

Figure 3 shows the structure of the DC microgrid. Here, a PV array and an energy storage device are connected to a

Dc Bus, Which Is Connected To The Grid Through An

inverter. Fig. 3. Structure of the DC microgrid. The PV arrays have boost converters and linked to a

Common Dc Bus. The Ultracapacitors Are Similarly

connected to a common DC bus via bidirectional DC/DC converters. DC motors and DC resistors are the two different types of DC load. PV power units are managed to produce a maximum power.

Photovoltaic Cell

Solar cells are basically pn junctions fabricated on thin semiconductor wafers. Electromagnetic radiation from solar energy can be converted directly into electricity by the PV effect. When a semiconductor is exposed to sunlight, photons with energies larger than the semiconductor's bandgap energy cause a proportional number of electron- hole pairs to form. Figure. 4 below shows the equivalent circuit of a solar cell.

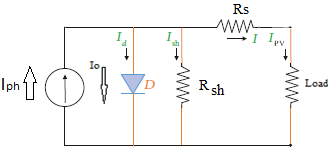

Fig 4. Single-Diode Solar Cell Equivalent Circuit

The current source Iph represents the cell photocurrent. Rs and Rsh are the inherent series and shunt cell resistances respectively. Usually, the value of Rsh is very large and the value of Rs is very small and can be ignored for simplicity of analysis. . PV cells are grouped into large units called PV modules and connected in a parallel-series configuration to form a PV array. A photovoltaic module can be mathematically modeled as in equations (1)-(4). [12- 14].

Is

Ns : number of series-connected cells., Np - number of parallel connected cells.

Voc = Vpv, 36 = Ns =& Np = 1

The specifications of the proposed PV models (including

Pv Manufacturing Datasheets) Are Exposed In

Table I. Electrical SpecificationS for Solar PanelS at

55

Impp (Rated) [A] 3.15 Vmpp (Rated) [V[ 17.4 Isc [A]

3.45

Voc [V]

B. Maximum Power Point Tracking (Mppt)

MPPT is a method commonly used in PV solar systems to maximize power production regardless of the environment . Figure 5 shows the MPPT tracking circuit.

Fig.5. Circuit Arrangement Of Mppt

By altering the IGBT's duty cycle in the converter for boost,

Mppt Can Be Matched. Mppt Aims To Use Control

algorithms to confirm that the PV system is working at the MPPT. The Perturbation & Observation (P&O) technique is one of the most commonly used MPPT methods, due to its simplicity and less requirements for measured variables.

The P&O algorithm constantly measures the current and voltage at the solar array terminals, constantly perturbs the voltage with small perturbations, and observes the change in output power to determine the next control signal. If the output power rises, the disturbance continues in similar way in the next step, otherwise the direction of the disturbance is reversed. To improve the tracking speed and accuracy of the algorithm, the perturbations should be continuously adjusted .

Observing the PV cell characteristics curve satisfy the following slope of the PV curve equations: equation

Determines Whether The Pv Module'S Operating

point is at the MPP. On the other hand, equations (

Act On The Left And Right Sides Of The Well-

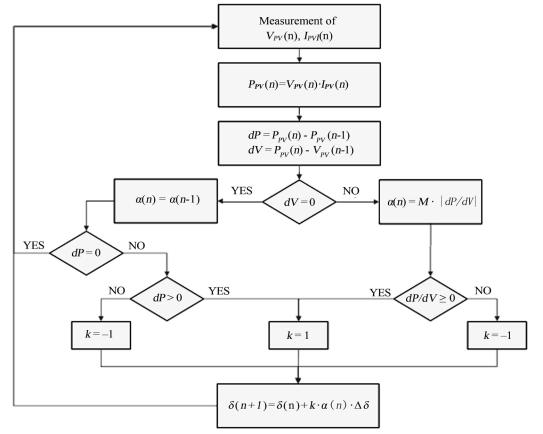

defined operating point of the PV curve. Fig 6. Flow-chart for variable-step P&O method.

C. Uc Energy Storage Systems

Ultracapacitors (UC) are energy storage devices that have lifetimes exceeding 1,000,000 charge-discharge cycles, high power densities, great reliability, almost instantaneous

Extreme

temperatures, and high efficiency.

1) Uc Model

UC model consists of a series resistor (ESR), an ideal capacitor, and a shunt resistor (EPR). The ESR is small, simulating heat loss and transient charge/discharge voltage mutations in the discharge/charge process. EPR with a large resistor represents current leakage impact and affects long term energy storages. The classical model for UC is represented in Figure 7.

Fig 7 Classical model for UC.

Control System

UC energy storage consists of an UC, a bidirectional DC to DC converter and a control system. This configuration should allow the ultracapacitor to operate in bidirectional mode. The bidirectional converter control system is shown in Figure 8. The main goal is to keep the voltage of the common dc link circuit constant . In this manner, the voltage of the common dc link remains stable regardless of whether the ultracapacitor is being charged or discharged, resulting in the lowest capacitor voltage ripple.

When the DC-link voltage is less than the reference, switch S2 becomes active and the converter operates similar to that of boost converters. When the DC-link voltage is greater

125

than the reference, switch S1 becomes active and the converter operates similar to that of buck circuit. In case of steady state, the input and output voltages satisfy

(Buck) (6)

Where, D is the switching signal duty cycle. Fig 8. Control of Bidirectional DC- DC converter .

Most Wind Power Systems Use Variable Speed Pitch-

controlled wind turbines with doubly fed induction generators (DFIGs). This is because it has some advantages over other types of wind turbine generators such as conversion of wind energy with high efficiency and control

Of Both Reactive And Active Power, Decrease Power

fluctuations and produce high-quality of power . The basic structure of a grid-connected DFIG wind turbine is shown in Figure 9. The rotor is powered by an AC/DC/AC converter and the stator is directly connected to the 50 Hz grid.

Fig 9 . Arrangement of the DFIG wind power .

1. Model Of Wind Turbine

The wind turbine's generated mechanical power can be

(7)

where ρ is the air density in Kg/m3, A =πR2 is the swept

Is Wind Speed In ( M/S ) ,

is the power coefficient that is a function of a tip speed ratio

(Λ ,Β ) Is The

measurement of the amount of wind energy that a turbine

(Λ ,Β ) ., The Following

expression is employed. The electromechanical equations of motion of shaft system

(10)

Where, Hwt and Hgen are stiffness coefficients of the turbine and the generator. ωwt and ωgen are the rotational speeds of the generator and the turbine, respectively, in rad/s; Twt and Tgen are the torques of the turbine and the generator; Jgen and Jwt are the moments of inertia of the generator and the turbine, respectively; Dgen and Dwt are the coefficients of linear damping of the both generator and turbine; and Hgen and Hwt are the coefficients of stiffness for the generator and the turbine.

2. Modeling Of Induction Generator

Figure 10 illustrates the induction machine's electrical circuit in reference frame (dq frame). Fig 10. Electrical circuit for the induction machine in

Reference Frame

The following set of equations can be used to compute the
