Incremental Conductance Mppt Matlab

(IJACSA) International Journal of Advanced Computer Science and Applications,

Rabat, Morocco

Abstract—The photovoltaic (PV) generator shows a nonlinear current-voltage (I-V) characteristic that its maximum power point (MPP) differs with irradiance and temperature. by employing simple maximum power point tracking algorithms, we can track this MPP and increase the efficiency of our photovoltaic system. Two methods for the maximum power point tracking (MPPT) of a photovoltaic system under variable temperature and insolation conditions are discussed in this work: Incremental Conductance compared to conventional tracking algorithm (P&O).

Figure: System Model & Simulation Flow for Incremental Conductance Mppt Matlab

In this paper, a new modeling solution is presented, using co- simulation between a specialist modeling tool called PSIM and the popular Matlab software using simcoupler module. Co- simulation is carried out by implementing the MPPT command circuits in PSIM and PV panel, boost DC-DC converter and battery in MATLAB/Simulink.

Figure: System Model & Simulation Flow for Incremental Conductance Mppt Matlab

Introduction

Photovoltaic power generation is nonpolluting, wide- distribution and promising renewable energy. But there are many problems to be solved in the development process, and the energy efficiency is one of the key points. PV panel is a nonlinear source that converts visible light into direct current (DC), it is influenced by irradiation and temperature in its operation. The PV panel characteristic presents an optimal operation point called the maximum power point (MPP) that allows the panel to generate maximum power. Maximum power point tracking (MPPT) is the process of finding this

Point And Keeping The Operation There.]

There are different techniques used to track the maximum power point: Constant Voltage (CV) method, Constant Current (CC) method Perturb & Observe (P&O), Incremental Conductance (InC) etc. In this paper, performances of two most preferably used MPPT algorithms are compared: Perturb & observe and Incremental Conductance.

Figure: System Model & Simulation Flow for Incremental Conductance Mppt Matlab

Co-simulation tool is a very important tendency in electronic simulation, that allows to rely on the merits of two powerful environments in complementary way to improve the efficiency of a stand-alone photovoltaic system: Simulink as a powerful environment for system modeling and simulation and PSIM as a widely used software in many areas, and it is characterized by a friendly simulation environment and powerful waveform processing.

Figure: System Model & Simulation Flow for Incremental Conductance Mppt Matlab

The rest of the paper is sorted out as follows: Section 2 presents a description of modeling the PV panel and covers theory of boost dc–dc converter of the PV system. Section 3 discuss on two MPPT algorithms P&O and InC in term of their structures and improvements. Simulation work including the results are discussed in Section 4. Finally, a simple conclusion is given in Section 5.

Figure: System Model & Simulation Flow for Incremental Conductance Mppt Matlab

Modeling Of Pv System Using Simulink

A photovoltaic cell that absorbs solar energy and converts it into electricity, is basically a photoactive semiconductor P- N junction diode. To increase the power obtained by the PV cell, we interconnect several PV cells, so that we get a PV panel.

Figure: System Model & Simulation Flow for Incremental Conductance Mppt Matlab

Different configurations can be used to model PV cell such as single diode model, two diode model , and 𝑅𝑠 -𝑅𝑝 model. the single diode configuration of PV module has been selected for this work due to degree of precision and simplicity, and the majority of previous works used single diode model .

(1)

Where Id is the diode internal diffusion current which is

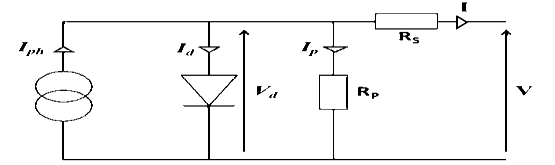

Fig. 1. The Equivalent Circuit Of Pv Cell

The I0 in the equation represents the dark saturation

B. Modeling The Pv Panel

specifications of PV panel, made by Green light energy company, are presented in Table 1.

36

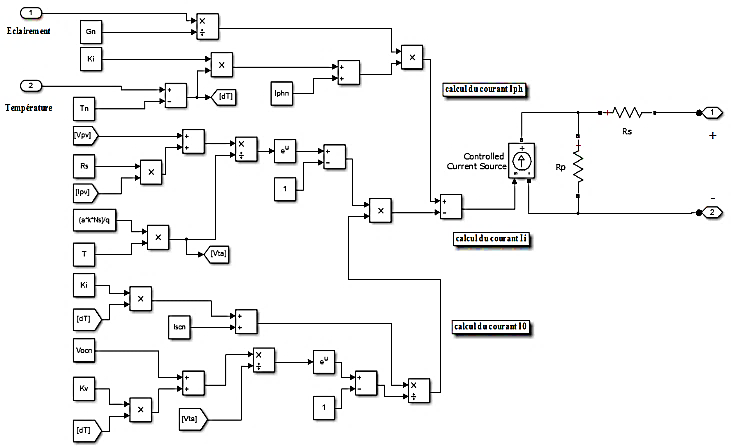

Based on mathematical equations related to PV modeling,

A Complete Simulink Block Diagram Of Pv Panel Is

demonstrated in Fig 2. To test the validity of the PV model, we must have nonlinear characteristics. The figures below present the PV panel characteristics under changing climatic conditions.

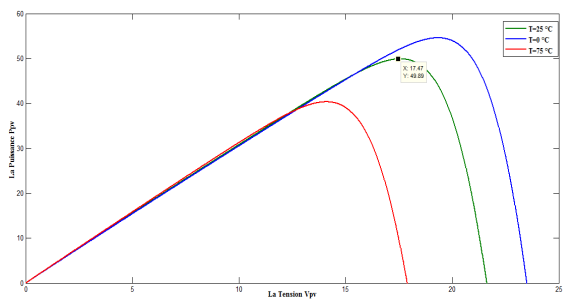

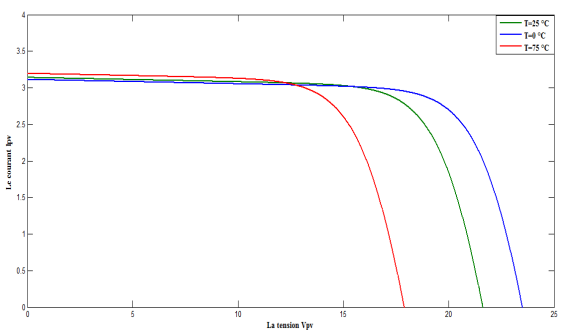

Fig 3 shows the variation in the characteristics at various temperature when temperature shifts from 0°C to 75°C and the irradiance is kept steady at 1000w/m, Then the temperature is kept constant at 25˚C while irradiance values

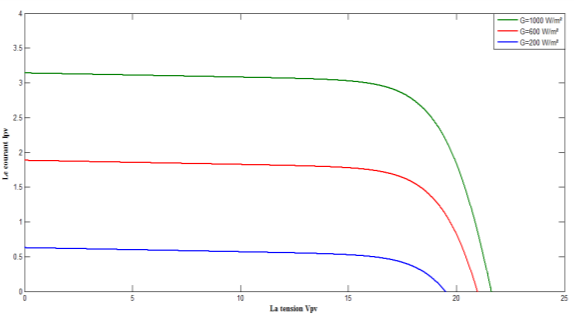

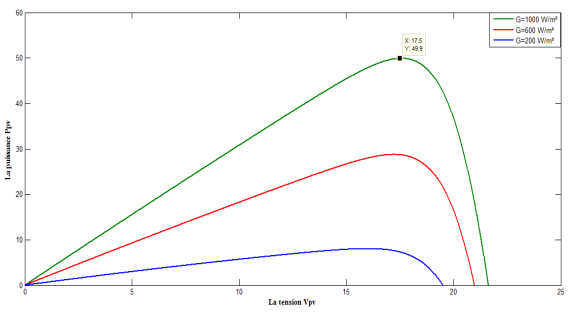

Varies From 400W/M To 1000W/M. The Variation In

characteristics of the chose PV panel are presented in Fig 4.

(B)

Fig. 3. (a) P-V characteristic of a PV panel (b) I-V characteristic of a PV

(B)

Fig. 4. (a) P-V characteristic of a PV panel (b) I-V characteristic of a PV

C. Dc-Dc Boost Converter

DC-DC converters are employed for the transmission of the power of PV panel to battery side guaranteeing that maximum power has been transmitted which make use of MPPT . The regulation is typically accomplished by pulse width modulation (PWM) that attacks the switching device which can be Bipolar power transistor or MOSFET; it depends on switching speed, voltage and current. The used battery has a nominal voltage of 24V, thus we use Boost dc-dc converter to increase dc voltage. Fig 5 shows the structure of boost converter in the PV system.

Deployment In Out-Of-Position Situations
