Journal of Engineering Science and Technology Review 15 (5) (2022) 145 - 152

Research Article

Indirect Matrix Converter Controlled with ANFIS-based Modulation Murikipudi Nagaraju1,*, G. Durga Sukumar1 and M. Ravindrababu2 1Vignan Institute of Technology and Science, Deshmuki, Yadadri, Bhuvanagiri, Telengana, 508284, India

Received 19 July 2022; Accepted 15 November 2022

___________________________________________________________________________________________

Abstract

A matrix converter is a one level converter; it converts from AC input to AC output without an intermediate circuit capacitor. An indirect matrix converter has more advantages and performs better with space vector modulation (SVM) techniques. This article proposed an ANFIS-based SVM technique for the rectifier stage of an Indirect Matrix Converter.

The data used to train the ANFIS-based SVM is generated from the traditional SVM. The training methods used for training are the combination of backpropagation and least squares methods. The angle and delay angle are inputs to the proposed scheme and outputs are switching times. Because of this technique; The converter output voltage is improved and THD (Total Harmonic Distortion) of voltage and currents are reduced compared to the traditional SVM. The performance of the converter with ANFIS-based SVM is compared with conventional and the changed SVM by using MATLAB/Simulink.

Keywords: Space vector modulation (SVM), ANFIS (Adaptive Neuro Fuzzy Inference System)-based SVM, Total Harmonic Distortion (THD), Indirect Matrix Converter (IMC), Converter side modulation modified matrix converter, Virtual DC link. ____________________________________________________________________________________________

1. Introduction:

The converter that converts from direct AC input power to AC output power is a matrix converter. The matrix converter has various advantages such as: Allowing current flow in both directions, no need for a large intermediate circuit capacitor, the life of the converter is extended due to the lack of a capacitor and it is economical. The matrix converters are grouped such as Direct Matrix converter (DMC) and Indirect Matrix Converter (IMC). The IMC has more advantages than the DMC, such as generating pulses to turn the devices ON (switching) is easy, and turning them OFF (commutating) is also easy. Due to these advantages of an IMC and with bidirectional power flow current source rectifier stage and unidirectional voltage source inverter, it is used in various applications such as electric drives such as controlling an asynchronous motor , as an active filter and also in FACT's device for power factor correction and power quality improvement [ 2.3]. The performance of an IMC depends on the type of modulation scheme used to switch the power electronic devices.

The indirect matrix converter is controlled using a carrier- based modulation method and a space vector method. The carrier based modulation methods are used to control the output voltage with the load of the motor and the slope of the carrier and the voltage offset to get the unity power factor on the input side . Phase Shift and Phase Disposition Carrier based modulation scheme is applied to control the output voltage.

Advantages,

e.g.

Simple

implementation by using digital controllers like DSP or microprocessor, output current quality, dynamic performance and performance under unbalance conditions are also good .

Space vector modulation is applied separately for the rectifier stage and the combination of booster and inverter stages, the rectifier is controlled with the current reference based SVPWM and the inverter is controlled with the voltage reference . In the modulation techniques for IMC are SVPWM and Sinusoidal PWM (SPWM), the rectifier stage is controlled with the SVPWM and an inverter stage is controlled with the SPWM. Carry-based PWM is used to control the IMC, the pulses are generated by comparing the modulation signal with the same triangle for rectifier and inverter, this IMC is used to drive the five-phase motor .

Controller

powered induction motor with current control is presented. This PI technique is replaced by a neuro-fuzzy controller to improve voltage levels and self-tune against speed command fluctuations and load disturbances . In order to reduce the common mode voltage by space vector pulse width modulation of matrix converters, the correct selection of the active vectors and the switching sequence is explained .

The neuro-fuzzy based SVM powered induction motor is presented. The neuro-fuzzy provides better drive performance with reduced torque ripple compared to neural network and traditional SVM methods . An alternative space vector modulation applied to a matrix converter based induction motor to reduce the common mode voltage. By analysing SVM switching patterns and matrix converter zero vectors replaced by rotating to reduce leakage current and increase motor life . The matrix converter based on space vector modulation offers better performance compared to a traditional matrix converter . The induction motor based on a matrix converter allows better control of torque, flux ripple and low reactive power delivered to the grid at unity power factor .

With conventional SVPWM for the rectifier stage, the output is the result of mains input voltages, with this PWM,

______________

Murikipudi Nagaraju, G Durga Sukumar and M Ravindrababu/Journal of Engineering Science and Technology Review 15 (5) (2022) 145 - 152

146

the virtual intermediate circuit shows more fluctuations. However, if the SVPWM for the rectifier stage is changed, the utilization of the DC link increases and the fluctuation of the DC link voltage also decreases. In this work, the modified SVPWM for the rectifier stage is implemented and compared to the ANFIS-based SVPWM for the rectifier stage. The THD of the output current and mains voltages is reduced in ANFIS- based SVPWM.

The paper is structured as follows: Section II explains IMC’s modified SVPWM at the rectifier stage and SVPWM for the inverter stage. The implementation of ANFIS-based SVPWM is described in Section III. In section IV, the simulation results are evaluated. Conclusions are presented in Section V.

2. Control Of An Indirect Matrix Converter

The schematic diagram of an IMC is shown in Fig 1 and has two conversion levels, one is the rectifier and the other is an inverter levels.

A) Switching Of Rectifier Stage

The IMC rectifier stage is a bidirectional power flow current source rectifier and the block diagram is shown in Figure 2. Fig 2. Rectifier stage of an Indirect matrix converter The rectifier has six bidirectional switches represented from Nap to Ncn as shown in Fig 2. The device with the suffix p indicates connection to the positive pole when they are on, and the suffix n indicates the negative pole when they are on.

The suffix a, b and c indicates the connected phase. The three- phase AC input voltages that enter the rectifier are VR, VY, and

(1)

Where the maximum or peak value of the sinusoidal input voltage is represented by Vmax and the frequency is represented by ω. The rectifier stage of IMC is controlled by SVM. The hexagon of the space vector is divided into six sectors, the duration of each sector is 600 and is shown in Figure 3.

Fig 3. Space vector diagram with different sectors

Process Of Space Vector Modulation (Svm):

1. Three phase voltages are converted into two axis – α and β components.

2. Calculate Vref And Θin From Vα And Vβ

3. The location of Vref in space vector Hexagon is identified with the help of θin and the modulation index considered as unity.

4. The Switching times Tp and Tn are calculated and there active vector are responsible to produce the required current in the sector.

5. Switching time of active vectors are calculated using

(3)

Where Ts is sampling time. 6. Sector and active voltage vector with variation of

Shown In Table 1 And The Turn-On Time Of Each

switch in each sector is given Table.2.

147

Table 1. Active Voltage Vectors of modified SVPWM at

Vry

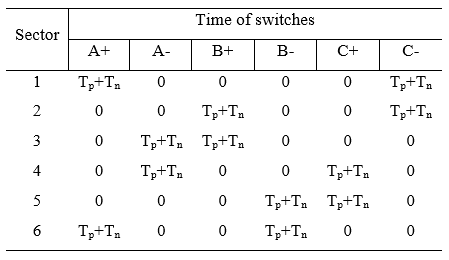

Table 2. Switching times of modified SVPWM at rectifier

B) Switching Of Inverter Stagey:

At the inverter side also SVM method is used. Space vector hexogen diagram and six active vectors V1 to V6 and two Zero vectors V0 and V7 are shown Fig 4. The voltage-time balance method is used to determine the switching times T1 and T2. In Fig 5, the operational switching times are shown along with active vectors for Sector-1.

(4)

Where the reference voltage is represented as Vref, the operational switching time of V1 is T1, T2 is the operational time of V2 and T0 is the operational time of zero vectors (V0

(7)

Where the virtual output voltage at the rectifier level is

Represented As Vdc

The operational switching times of the IMC inverter level are a combination of the switching times of rectifier and conventional inverter operation.

(8)

The operational switching sequence of IMC inverter level in sector-1 is shown in Fig 5. Fig. 5. Switching sequence of IMC inverter level of sector-1

I. Anfis Based Svpwm For Rectifier Stage:

The ANFIS controller is trained by taking angle α, and α are input and output are switching timings T1 &T2 are outputs. The α, and α are rectifier input voltage angle and derivative of the an angle respectively.

A) Structure Of Adaptive Neuro-Fuzzy Controllers

Fig. 6. Structure of five-layer ANFIS for T1 Switching time Fig. 7. Structure of five-layer ANFIS for T2 Switching time The structure of five-layer ANFIS for switching time T1 and T2 is shown in fig. 3 and 4.

Layer 1: Let Z′ j be the response of jth node in first layer and input is αj of jth node of the ANFIS, j = 1, 2, …, q, let a node function N be associated with each node.

(9)

Here, N1, N2, …, Nq are the node functions, which are same as the regular fuzzy system membership functions and q is the number of nodes for each input. The Gaussian shieled membership function is used.

Layer 2: The response of each node in layer 2 is the product of all input signals. Each node response represents the trigger strength of a rule.

(10)

Layer 3: The normalized triggering strengths are determining in this Layer.

(11)

Layer 4: It executes Sugeno-type inference system, i.H. the

Linear Input Variables Of Anfis, Α1, Α2,……,Αq And

constant term, d1, d2, …, dq. The weighted response sum of an intermediate is the node’s response.

Where Q1, Q2, …, Qq And D1, D2, …, Dq, Are

consequent parameters in this layer. Layer 5: This layer response is similar to the defuzzification processor of a fuzzy system using weighted average

Method. It Generates The Output By Summing Its

input signals.

This Output

is the T1 for this example.

B) Learning Algorithm

The ANFIS controller is initially taken as a fuzzy model and tuned using a backpropagation least squares combinatorial algorithm. In each epoch the difference between an actual response and a required response is measured, it is an error.

The error size is reduced. The training process ends when either the error rate or the specified number of epochs is reached.

Simulation Results

When the changes of SVPWM for rectifier stage is changed the virtual DC voltage magnitude variations are reduced and distortion in DC voltage is reduce. Fig. 8 shows the DC virtual link voltage with the conventional SVPWM. The magnitude is varied from 400 V to 740 V and have distortions. Fig.9 and 10 show the DC virtual link voltage waveform of changed SVPWM for rectifier stage and ANFIS SVPWM for rectifier stage respectively. The voltage magnitude is varied from 640V to 740V and waveform is smooth.

Fig. 8. Virtual DC link voltage waveform with conventional SVPWM Fig. 9. Virtual DC link voltage with modified SVPWM at rectifier stage Fig. 10. Virtual DC link voltage waveform with ANFIS SVPWM

Fig. 12. Fuzzy Rules Of Switching Time T2

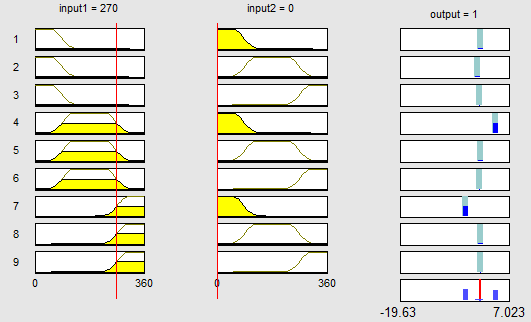

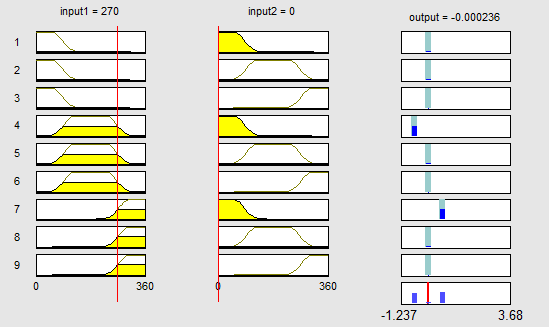

Fig. 11 and 12 show the funny rules of switching times T1 &T2 in ANFIS SVPWM. 13, 14 and 15 show the supply current waveforms in

Svpwm

respectively, the magnitude is varied from 30 A to -30 A peak to peak. The supply side current waveform has more
