Circuits And Systems, 2016, 7, 307-326

Published Online April 2016 in SciRes. http://www.scirp.org/journal/cs

Http://Dx.Doi.Org/10.4236/Cs.2016.74027

How to cite this paper: Inba Rexy, A. and Seyezhai, R. (2016) Investigation of Current Control Techniques of AC-DC Inter- leaved Boost PFC Converter. Circuits and Systems, 7, 307-326. http://dx.doi.org/10.4236/cs.2016.74027

A. Inba Rexy1*, R. Seyezhai2

Received 6 March 2016; accepted 24 April 2016; published 27 April 2016 Copyright © 2016 by authors and Scientific Research Publishing Inc. This work is licensed under the Creative Commons Attribution International License (CC BY).

Abstract

This paper presents the comparison of various current control strategies employed for an inter- leaved power factor correction (PFC) boost converter for improving the power quality. The major control strategies discussed in this paper are: peak current control, average current control, hys- teresis control, borderline current control and non-linear control. These strategies are imple- mented in MATLAB/SIMULINK and the performance of the proposed converter is compared under open loop and closed loop operation. From the results, the input current waveform was close to input voltage waveform implying improved power factor and reduced total harmonic distortion for nonlinear current control technique. Experimental results validate the proposed method.

Keywords

AC-DC Power Conversion, Power Factor Correction, Nonlinear Current Control, Control

1. Introduction

The power-electronics products are employed for a variety of applications such as power supplies for microelec- tronics, household electric appliances, electronic ballasts, battery charging, motor drives, power conversion cir- cuits, etc., but this leads to rich current harmonics at the supply side. Therefore, Power Factor Correction (PFC) is necessary for AC-DC converters in order to fulfill the requirements of international standards. PFC will re- duce the harmonics in the supply current and boost the efficiency of the system. Even though numerous methods have been suggested to resolve the problem of low power factor, it is important to make the supply power factor to unity. In order to meet the standards of IEC 6l000-3-2 Electromagnetic compatibility (EMC): harmonic *Corresponding author.

308

current limits, achieve high power factor and reduced harmonics, power factor corrected converters are com- monly employed in various types of switching power supply -. The continuous conduction mode (CCM) boost converter possesses many advantages such as low input current waveform distortion, high output voltage, high input power factor, less EMI noise and simple circuit construction, etc.

Interleaved boost converter is one of the most popular choices for high power factor converter. This type of converter provides an output voltage greater than the input voltage and also it operates at maximum duty ratio. The boost converter is supplied from a full wave rectified line voltage and operated so that the input current fol- lows the input voltage and it is generally preferred because of its simple construction. Power factor correction (PFC) - is necessary for AC-DC converters in order to accomplish the requirements of international stan- dards. PFC will decrease the harmonics in the supply current and raise the efficiency of the system. Even though a number of methods have been recommended to resolve the problem of power factor, it is essential to make the supply power factor closer to unity. Hence power factor corrected boost converter is very attractive, which eli- minates the filter from input side thereby achieving ripple free power in the AC line. Boost converter generally has at least two semiconductors and one energy storage element, a capacitor, inductor, or the two in combination.

Filters made of capacitors or in combination with inductors are normally added to the output of the converter which makes the circuit bulky. Hence to overcome this interleaved boost converters were suggested. Due to the absence of filter at supply side the converter is not bulky and hence it increases the power density of the conver- ter. The above said is achieved by employing a coupled inductor . As power densities continue to rise, interleaved boost designs become a powerful tool to keep input currents manageable and increase efficiency, while still maintaining good power density. With mandates on energy savings more common, interleaved con- struction may be the only way to achieve design objectives. The benefits of this approach are demonstrated by a two-phase boost converter design. A modified interleaved boost converter with a coupled inductor is also called as ripple steering technique which is also identified as coupled magnetic filters technique .

Various techniques are available for shaping the line current, and also they are supported by integrated cir- cuits -. These closed loop current control techniques provides very low current harmonic distortion, good performance, simple circuit construction and high efficiency. Therefore the shape of the current waveform is determined and found to be in line with the supply voltage waveform. The current control techniques offer improved performance and low input THD over existing open loop PFC schemes. Therefore various control techniques such as peak current control, average current control, hysteresis control, borderline control and non- linear current control for interleaved boost converter have been studied and analyzed. These techniques are si- mulated in MATLAB/SIMULINK and the feasibility of the proposed topology is experimentally verified. The objective of this paper is to improve the power factor of the proposed interleaved boost PFC converter.

The paper is organized as follows: Section 2.1 gives a brief idea of the interleaved boost converter. Section 2.2 analyzes the effect of the ripple steering technique in detail. Section 3 deals about the design of interleaved boost converter. Section 4 analyzes the operation of interleaved boost PFC converter with different current con- trol strategies. Section 5 gives the comparison between the proposed control techniques and the open loop con- figuration of interleaved boost PFC with ripple steering technique. The analysis is made in terms of input current, input voltage, output voltage and total harmonic distortion with the help of simulation results. A prototype has been built and tested, and the experimental results are presented in Section 6.

2.1. Interleaved Boost Converter

Power factor correction (PFC) interleaved boost converter is a popular topology for high level switching power supply to improve the power factor (PF). An interleaved boost converter provides benefits of component availa- bility, high efficiency, high power density and low harmonics compared to conventional converters. Hence it has been extensively used in numerous applications. The important features for these type of converters is the cur- rent cancellation effect thereby reduces the size, weight and cost of the filters. It also identifies the differential mode EMI noise hence suitable for input filter design, input and output side capacitor selection.

The interleaved boost converter is simply two traditional boost converters with half the power rating as a re- sult the input bridge rectifier must have the same power rating as the conventional power factor corrected boost converter. And also design equations will be alike to that of conventional converters. Interleaved boost conver- ters are usually employed for high input-current and high input to output voltage conversion applications. The

309

added benefit of interleaving is that ripple currents are reduced at both input and output side. There is an in- creased efficiency by splitting the output current into “n” pathways; considerably it reduces the power and in- ductor losses. Here the interleaved structure is presented for boost converter to improve the efficiency of the PFC converter -. This is mainly done for the applications of DC voltage smaller than the AC-side vol- tage.

2.2. Interleaved Boost Converter with Ripple Steering Technique Interleaved boost converter with ripple steering technique is employed to achieve active power-factor correction. This ripple steering technique is also called as coupled magnetic filter technique and it is implemented to IBC topology in this paper. The concept of zero-ripple or ripple-free input current is not new. It was originally used to reduce weight and increase power density of the converter. Generally, a zero-ripple phenomenon is achieved by using the coupled inductor technique in a modified boost converter. Based on the zero-ripple input current concept, various PFC converters with separate inductors and EMI filter requirements can be found in the litera- ture -. As earlier studied, a modified boost converter with a coupled inductor can provide a smaller converter size compared with conventional boost converter. The application of the zero-ripple current pheno- menon is of significant importance in switching converters, where there are few reasons why it is necessary to minimize inductor ripple currents. It reduces the stress on converter capacitors, resulting in either minimum power loss or more comfortable filtering requirements. And also most of the converter topologies have a pulsat- ing current at input or output, or at both. Advantages of interleaving, such as higher efficiency, reduced input and output ripple and also inductor count and the switches count are reduced. The conventional inductor is re- placed by a coupled inductor and a blocking capacitor here. Importance is given to the application of ripple steering to power factor corrected boost converter. Figure 1 shows the proposed PFC boost converter with a coupled inductor and a blocking capacitor. There is a fall in noise, size and complexity of filters by adapting the proposed technique. Although the control technique is similar to that of a conventional converter, there is some variation in power stage transfer function. This is done by replacing the inductor in a conventional boost con- verter by a coupled inductor and a blocking capacitor. Figure 1 shows the modified boost converter with ripple steering technique.

3. Design Equation For Ibc

Designing an interleaved boost converter includes the following steps:

3.1. Choice Of Duty Ratio

Since the number of phases chosen in this paper is two, 50% of the duty cycle will be the best choice. And also D = 0.5 gives less ripples when compared to other duty ratios. The duty ratio is calculated as,

In

V denotes the input voltage in volts and D denotes the duty ratio.

C

Figure 1. Interleaved boost converter with ripple steering technique.

3.2. Optimal Number Of Phases

This paper uses two phases, as the number of phases is increased the ripples will be minimum. But increasing the number of phases will increase the cost and complexity of the circuit. Therefore the number of phases is chosen as two.

3.3. Design Of Inductance And Capacitance

The inductor and capacitor values can be found using the formula given below.

O

V denotes the output voltage in volts, D denotes the duty ratio, R denotes resistance in Ω, T denotes

∆

denotes the change in the output voltage.

S

V denotes the source voltage in volts, D denotes the duty ratio, F denotes the frequency in hertz and

∆

denotes the inductor current ripple in ampere. 4. Current Control Strategies for Interleaved Boost Converter with Ripple Steering

Technique

The main objective of this paper is to present the current control design techniques and experimental results for the proposed converter. An open loop control technique is often used in simple processes because of its simplic- ity and low cost, especially in systems where feedback is not significant. Generally, to obtain a more accurate control of the circuits, closed loop systems are designed to automatically achieve and maintain the desired out- put condition by comparing it with the actual condition. It does this by generating an error signal which is the difference between the output and the reference input. By adopting current control techniques , the power factor obtained in the open loop configuration of the converter can be enhanced. The advantage of current con- trol techniques over voltage control techniques are, it provides an additional inner control loop control. The in- ductor current is sensed and used to control the duty cycle. An error signal is generated by comparing output voltage with reference voltage. Then this error signal is used to generate control signal. The inductor current is then sensed and compared with control signal to generate the duty cycle of the switch and drive the switch of the converter. If the feedback loop is closed, the inductor current becomes proportional with control signal and the output voltage becomes equal to reference voltage. Using the feedback and feed forward loops, lower harmonic profile can be maintained. The general control principle of the controller is that the supply current is forced to track a generated sinusoidal reference so that the converter draws a sinusoidal current; thereby improving the power factor. Many current control strategies have been reported in the literature. The classification of current control strategies namely discontinuous inductor current mode (DICM) where the inductor current reaches zero during a cycle and continuous inductor current mode (CICM) where the inductor current does not reach zero during a cycle and energy is stored in the inductor. To operate the converter as a power factor corrector, consider continuous conduction mode: as the current stress and current ripple are minimum in this mode -. A number of continuous inductor current mode control strategies such as peak current control, average current control, hysteresis current control, borderline current control and non-linear control are implemented and ana- lyzed for the proposed converter.

4.1. Peak Current Control

A schematic circuit diagram of PFC interleaved boost converter under peak current control is presented in Figure 2. The switch turns on with a constant frequency and it can turn off until inductor current reaches a level set by the outer loop. Therefore, instant over-current switch protection is easier, but there is very noise sensitive control. A compensating ramp is always required to add, when the duty cycle exceeds 0.5, otherwise the control is inherently unstable. The switch is getting turned on with a fixed frequency by a clock signal and is turned off

Ff

Figure 2. Control circuit for peak current control. when the sum of the positive ramp of the inductor current (i.e. the switch current) and an external ramp (i.e. compensating ramp) touches the sinusoidal current reference. Usually, this reference can be attained by multip- lying a scaled replica of the rectified line voltage vg times the output of the voltage error amplifier, which sets the current reference amplitude. In this way, the reference signal is naturally synchronized and always propor- tional to the line voltage, which is the condition to obtain unity power factor. Whenever the inductor current crosses zero, switch is turned ON and as it reaches the reference current, the flip-flop is reset and the switch is turned OFF. Obviously the ramp compensation can improve the quality of the input line current, which means the amplitude of the ripple is decreased significantly. Owing to the large output capacitance, the output voltage ripple can be neglected. Therefore, the time-varying mathematical mode of PFC boost converter can be ex- pressed as a first order differential equation as follows:

In

V denotes the root mean square value of the line voltage.

O

V is the DC output voltage, T is the switching cycle and D is the duty cycle.

4.2. Average Current Control

In most of the power electronic converter applications the output variable is the voltage and is involved in the outer loop. The variable within the inner loop is current, this is the reason this technique is called as average current control technique. The average current controlled interleaved boost PFC converter, is designed to oper- ate in CCM, it may transit to DCM when the load becomes light. Figure 3 shows the main circuit and control block diagram of the average current controlled converter. It uses voltage control loop and current control loop.

C

Figure 3. Control circuit for average current control. Firstly the inductor current is sensed and filtered by a current error amplifier whose output drives a PWM mod- ulator. Hence the inner current loop tends to limit the error among the average input current ig and the reference.

The converter works in CICM, so the same considerations done with regard to the peak current control can be applied. The average of inductor current is taken as reference and the inductor current is forced to go after it. The switch is turned ON whenever the inductor current reaches zero and switch is turned OFF when the inductor current falls below the reference.

We know that the rectified input voltage of the boost converter can be expressed as follows:

In

ω are the root mean square value and angular frequency of the input voltage respectively. The average value of the inductor current is programmed to sinusoidal shape for achieving the PFC function.

Under different input voltage and load conditions, the average current controlled technique may operate in all CCM or partly CCM/DCM. When the converter operates in CCM, the duty cycle

Where

sf is the switching frequency.

4.3. Hysteresis Control

Figure 4 shows an alternative control technique called hysteresis control, which is proposed and analyzed . Among the various control methods, hysteresis current control is the extensively used technique owing to its noncomplex implementation, enhanced system stability, fast response, less distortion in input current waveform and regulating the output voltage. This technique is believed to exhibit greater stability. According to this con- trol technique, when the inductance current is less than the lower current reference, power switch is turned ON

C

Figure 4. Control circuit for hysteresis control. and when the inductance current is more than the upper current reference, power switch is turned OFF. The boost converter is being operated at continuous current mode (CCM). For the hysteresis control, the inductance current is switching at a variable switching frequency. The switch must be turned ON while zero crossing of the line voltage for restraining very high switching frequency. In order to avoid too high switching frequency, the switch can be kept open near the zero crossing of the line voltage so introducing dead times in the line current.

4.4. Borderline Control

In this type of control approach the ON time of the switch will remain constant during the line cycle and the switch is turned ON when the inductor current falls to zero. Therefore the converter operates at the boundary between Continuous and Discontinuous Inductor Current Mode. The freewheeling diode is turned OFF softly and the switch is turned ON at zero current. So the commutation losses are also reduced. And also the higher current peak increase the device stresses and conduction losses will lead to heavier input filters. This is a type of hysteretic control in which the lower reference IV, ref is zero anywhere. The principle scheme is shown in Fig- ure 5. The instant input current is constituted by a sequence of triangles whose peaks are proportional to the line voltage. Thus, the average input current becomes proportional to the line voltage, this characterizes this control as an automatic current shaper technique. Some of the merits of this technique are: compensation ramp is not necessary, no need of a current error amplifier and switch current limitation can be introduced.

4.5. Nonlinear Carrier Control

Nonlinear carrier controllers are proposed for high power factor boost rectifiers with low total harmonic distor- tion . In this type of controllers, the duty ratio is determined by comparing a signal derived from the main switch current with a periodic nonlinear carrier waveform. As a result, the average input current follows the in- put line voltage. This technique is suitable for boost converters operating in the continuous conduction mode.

The proposed controller obtains the duty ratio in each switching period from the comparison of the negative ramp carrier waveform and the sensed inductor current signal as shown in Figure 6 and sensed switch current signal as shown in Figure 7. So, the input voltage sensor, the error amplifier in the current feedback loop, and the multiplier as used in the conventional control technique are not required.

Comparator

Figure 5. Control circuit for borderline control.

Ff

Figure 6. Control circuit for non-linear current technique-inductor current sensing.

5. Simulation Results

The simulation results of the different current control strategies for interleaved boost converter are discussed here. The converter is designed with the simulation parameters as shown in Table 1; The performance of the in- terleaved boost converter is examined by computing parameters such as Total Harmonic Distortion (THD), Distortion factor Kd, Displacement factor Kθ and the power factor. Two phase interleaved boost converter with ripple steering technique for different control techniques are simulated using MATLAB/SIMULINK.

Ff

Figure 7. Control circuit for non-linear current technique-switch current sensing. Table 1. Simulation parameters.

0.5

For an ideal sinusoidal input voltage, the power factor can be expressed as the product of distortion factor and the displacement factor.

=

, which is called as displacement factor. The distortion factor

D

K is the ratio of the fundamental root mean-square current

I

. The displacement factor Kθ is the cosine of the displacement angle φ between the fundamental input current and the input voltage. The following equations link total harmonic distortion to power factor:

(13)

where φ is the angle between voltage and current, PF is the power factor, THD is the total harmonic distortion. The simulation results of the interleaved boost converter with ripple steering technique are shown in Figure 8. From Figure 8(c), it is clear that the total harmonic distortion of the proposed open loop configuration is 12.17% which is very less compared to conventional methods.

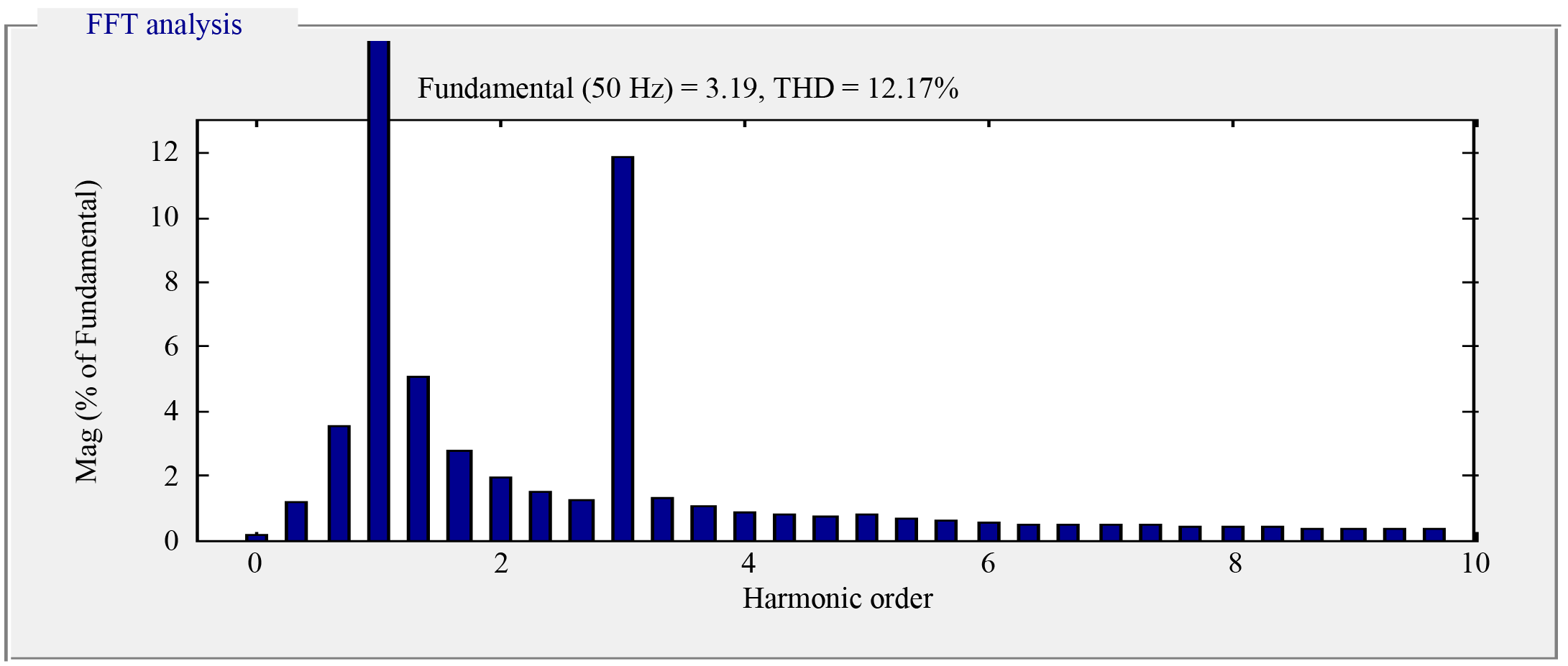

Figure 9 shows the simulation results of peak current control technique. The total harmonic distortion is found to be 11.63%.

(C)

Figure 8. Simulation results of interleaved boost converter with ripple steering tech- nique (open loop) (a) Supply voltage and supply current (b) Output Voltage (c) FFT analysis of current.
