J. Electromagnetic Analysis & Applications, 2009, 3: 170-180 Copyright © 2009 SciRes JEMAA

Distributed Generation

Alben CARDENAS, Kodjo AGBOSSOU, Mamadou Lamine DOUMBIA Institut de recherche sur l'hydrogène (IRH), Département de Génie Électrique et Génie Informatique, Université du Québec à Trois-Rivières, Trois-Rivières (Québec), Canada.

Received May 21st, 2009; revised July 23rd, 2009; accepted August 23rd, 2009.

Abstract

Islanding detection is an essential function for safety and reliability in grid-connected distributed generation (DG) sys- tems. Several methods for islanding detection are proposed, but most of them may fail under multi-source configura- tions, or they may produce important power quality degradation which gets worse with increasing DG penetration. This paper presents an active islanding detection algorithm for Voltage Source Inverter (VSI) based multi-source DG sys- tems. The proposed method is based on the Voltage Positive Feedback (VPF) theory to generate a limited active power perturbation. Theoretical analyses were performed and simulations by MATLAB /Simulink /SimPowerSystems were used to evaluate the algorithm’s performance and its advantages concerning the time response and the effects on power quality, which turned out to be negligible. The algorithm performance was tested under critical conditions: load with unity power factor, load with high quality factor, and load matching DER’s powers.

Keywords: Distributed Generation (DG), Interconnected Power Systems, Islanding Detection, Power Generation, Voltage Positive Feedback.

1. Introduction

The Distributed Energy Resources (DER) including Dis- tributed Generation (DG) and Distributed Storage (DS) are, as renewable energy resources, very important to improve power distribution reliability and capability.

Their penetration is increasing nowadays and their utili- zation shows potential for rural utility solutions . The Hydrogen Research Institute (HRI) has designed and developed a renewable energy (RE) system which in- cludes Photovoltaic (PV) arrays, Fuel Cells (FC) and Wind Turbine Generators (WTG) with an energy storage capability using electrolytic hydrogen . This RE sys- tem operates presently in stand-alone mode. It can be adapted for rural dispersed generation solutions and in- terconnected with the electric utility grid by using in- verter based interfaces (DC/AC static converter). Figure 1(a) is a simplified diagram of the basic RE unit as im- plemented at HRI. Figure 1(b) shows the possible multi- source DER system presently under construction.

An important technical issue with utility interfaced DER systems is unintentional islanding operation. The islanding condition occurs when the utility is discon- nected and the DG continues to supply power to the local load. This condition is not desirable because it can gener- ate voltage and frequency instability and power quality degradation; and it constitutes a great risk for mainte- nance personnel. In view of the importance of human and equipment protection, unintentional islanding for DG operation is not tolerated . For these reasons the detec- tion of unintentional islanding operation is required as rapidly as possible to allow the timely disconnection of , the DG disconnection is required within two seconds after the utility disconnection. Consequently, for safety DER integration, Anti-Islanding (AI) protection is a re- quirement.

Remote and local techniques are used for islanding de- tection. Remote techniques such as Supervisory Control and Data Acquisition (SCADA), Trip (disconnect) Signal and Power Line Carrier Communication (PLCC) systems are centralized methods implemented on the utility side.

They offer high performance and applicability on multi- source topologies. However, those centralized methods are expensive to implant . On the other hand, local techniques include passive and active methods which are

Implemented On The Dg Side. Local Passive Methods

have a large Non Detection Zone (NDZ), and hence are not useful for high DG penetration. A solution for the

Ndz Reduction Is The Utilisation Of Local Active

anti-islanding methods. Islanding Detection Method for Multi-Inverter Distributed Generation

171

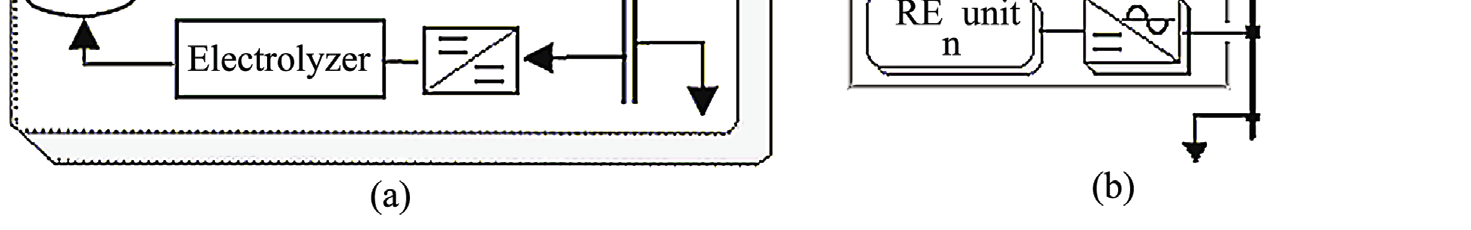

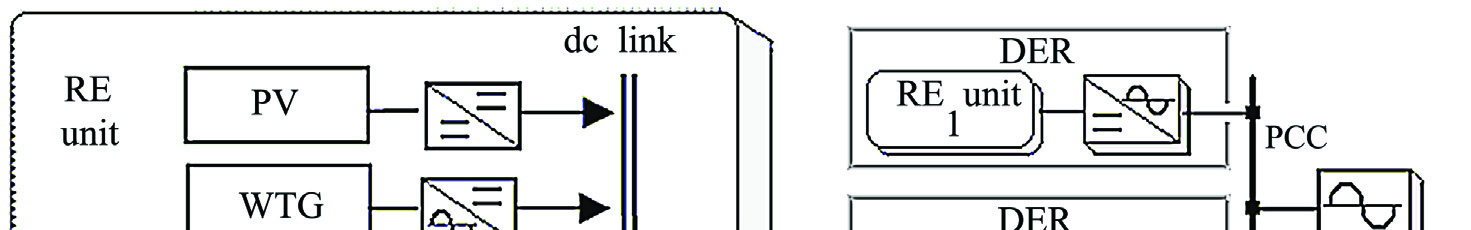

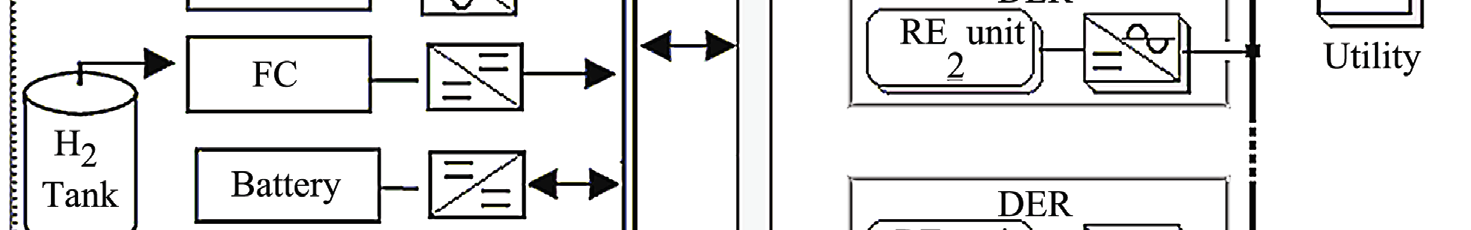

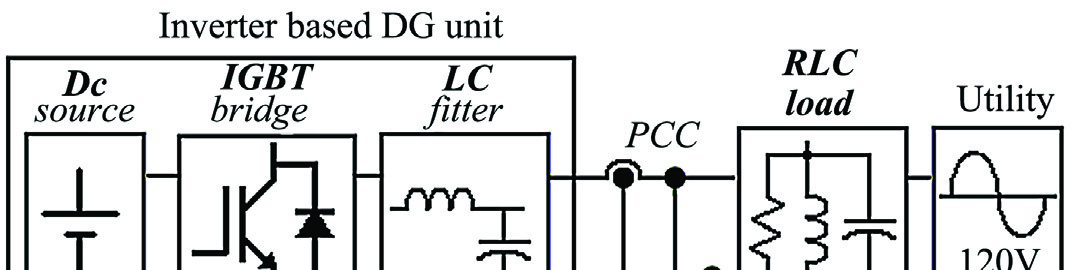

Figure 1. Simplified diagram of stand-alone RE system implemented at HRI and the possible multi-source DER system Those active methods are currently based on the injec- tion of voltage, frequency or output power perturbations, and the subsequent monitoring for the detection of changes in electric parameters to confirm islanding con- dition. Those methods can detect the islanding condition, but one of their problems is that they can fail when mul- tiple sources are connected at PCC, because the effect produced by one source may be interfered by another one if synchronization between the multiple converters is not possible. Another drawback of active methods is that they can cause power quality disturbances as Total Voltage Harmonic Distortion (TVHD) increase and voltage and frequency fluctuations or instability. These problems become bigger if the introduced perturbation is increased to make possible the islanding detection , especially in systems with high penetration.

Use of the Correlation Function combined with active

Methods Is Proposed In And For Multi-Source

topologies. In , the correlation function is combined with an active method that introduces a constant alternat- ing perturbation of reactive power (±5% and ±10%), the anti-islanding algorithm is implanted in only one (master unit) of multiple DGs, and the others units use a passive anti-islanding scheme. The detection time depends on the output power of the master unit and on the reactive power perturbation level. In and , the correlation func- tion is combined with an active algorithm that introduces a user defined or random (M-sequence) perturbation of the output voltage (fixed to ±2V for 120V/60Hz system).

The correlation function may change with the number of connected DGs, and consequently a threshold adjustment is necessary if the number of units change.

In this article we propose an active islanding detection method based on Voltage Positive Feedback (VPF) and passive method Under/Over Voltage Protection and Un-

Der/Over Frequency Protection (U/Ovp-U/Ofp). The

proposed method can be used on multi-source configura- tions, and allows both unity power factor and power fac- tor improvement operation modes. This method intro- duces a limited active power perturbation proportional to measured variations of PCC voltage (VPCC). Simulations

Using Matlab™/Simulink™ And Simpowersystems

™ are carried out to validate the algorithm under several operating conditions.

2. Power Control Scheme

The system we consider is illustrated in Figure 1, where several DG units are interconnected with the utility at PCC. Each unit has an IGBT voltage source inverter (VSI) and its active and reactive power control using a current control scheme as shown by Figure 2.

In this power control scheme, the output current fun- damental magnitude (IINV(1)) and phase angle (I) are calculated respectively using (1) and (2).

* Are Respectively The Reactive And

active power external set points for the DG unit. The power angle I represents the phase angle between the inverter output fundamental current and the funda- mental voltage measured at PCC.

The resultant set-point current (3) is used to generate the switching signals for the IGBT bridge inverter, using Hysteresis Current Control (HCC) or Sinusoidal Pulse Width Modulation (SPWM) techniques.

(3)

where  and f are the phase angle and frequency of the voltage measured at PCC, and t is time in seconds. Considering that the proposed algorithm (see Section 3) Copyright © 2009 SciRes JEMAA Islanding Detection Method for Multi-Inverter Distributed Generation

172

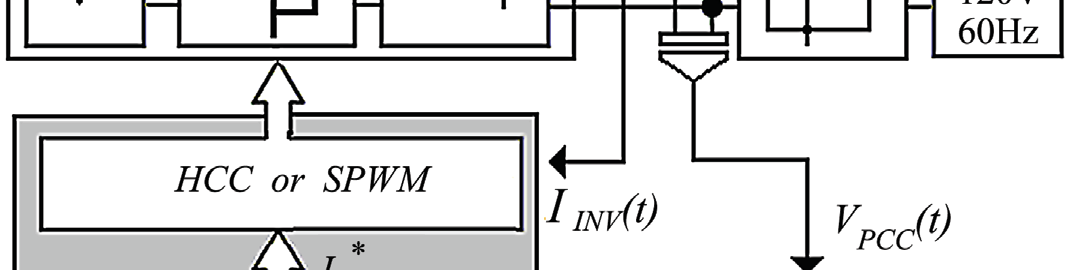

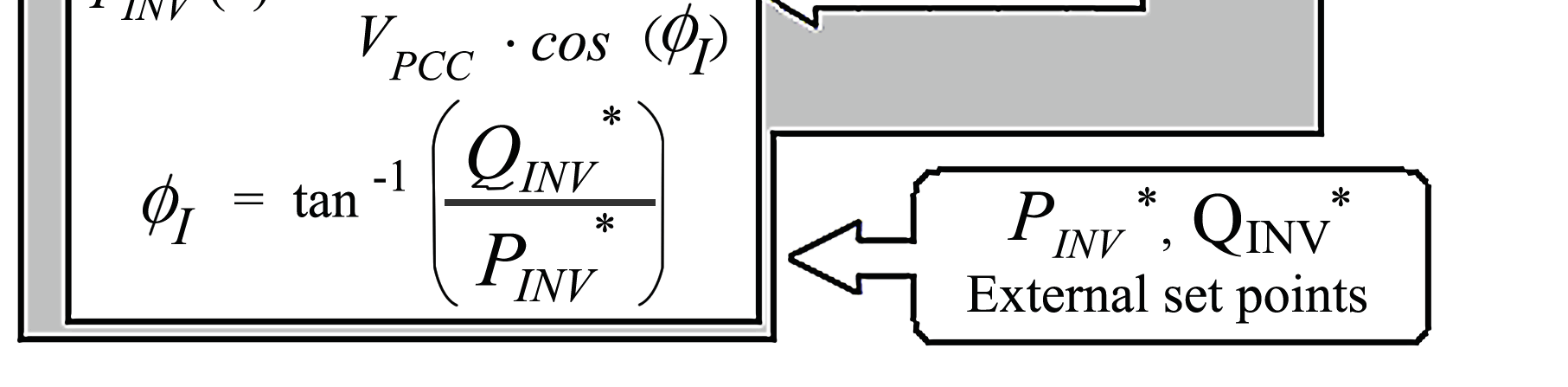

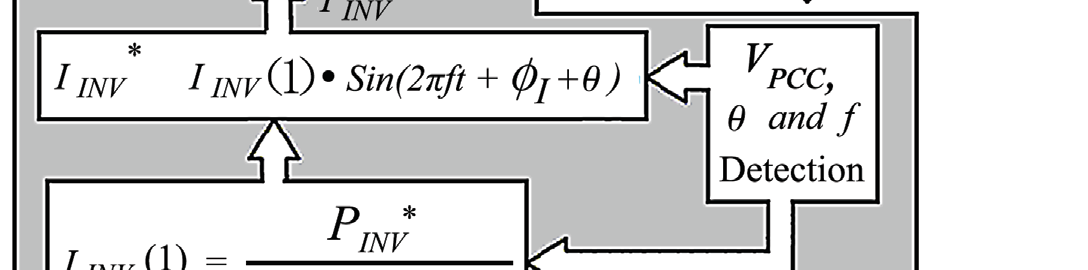

Figure 2. Power control scheme for single grid connected DG unit Figure 3. Voltage positive feedback with d-q current control scheme introduces an active power perturbation that is added to the external set point, we are not limited to the Figure 2 power control scheme, and it may be changed to another one such as the d-q transformation based power control scheme . Notice that the d-q control scheme is con- venient when decoupled active and reactive power con- trol is required principally in three phase systems.

3. Islanding Detection Algorithm

This section describes the voltage positive feedback princi- ple and the proposed active islanding detection algorithm.

Detection Methods

Positive feedback with d-q current control based family of islanding detection methods is presented in and

. These Methods Consider The Relation Between The

active (P) and reactive (Q) powers with the voltage mag- nitude (V) and frequency (f) as shown in (4) and (5), and the effects of current magnitude and angle deviation on the output active and reactive powers.

(4)

Copyright © 2009 SciRes JEMAA Islanding Detection Method for Multi-Inverter Distributed Generation

(5)

where, =2f, and R, C and L are the resistance, capaci- tance and inductance of the resonant load. This family of islanding detection methods includes fre- quency and magnitude of voltage positive feedback based schemes. The positive feedback is used to generate a low frequency perturbation signal (∆id or ∆iq) that is added to

* And/Or Iq

* set points.

Figure 3 Shows The Principle Of Voltage Positive

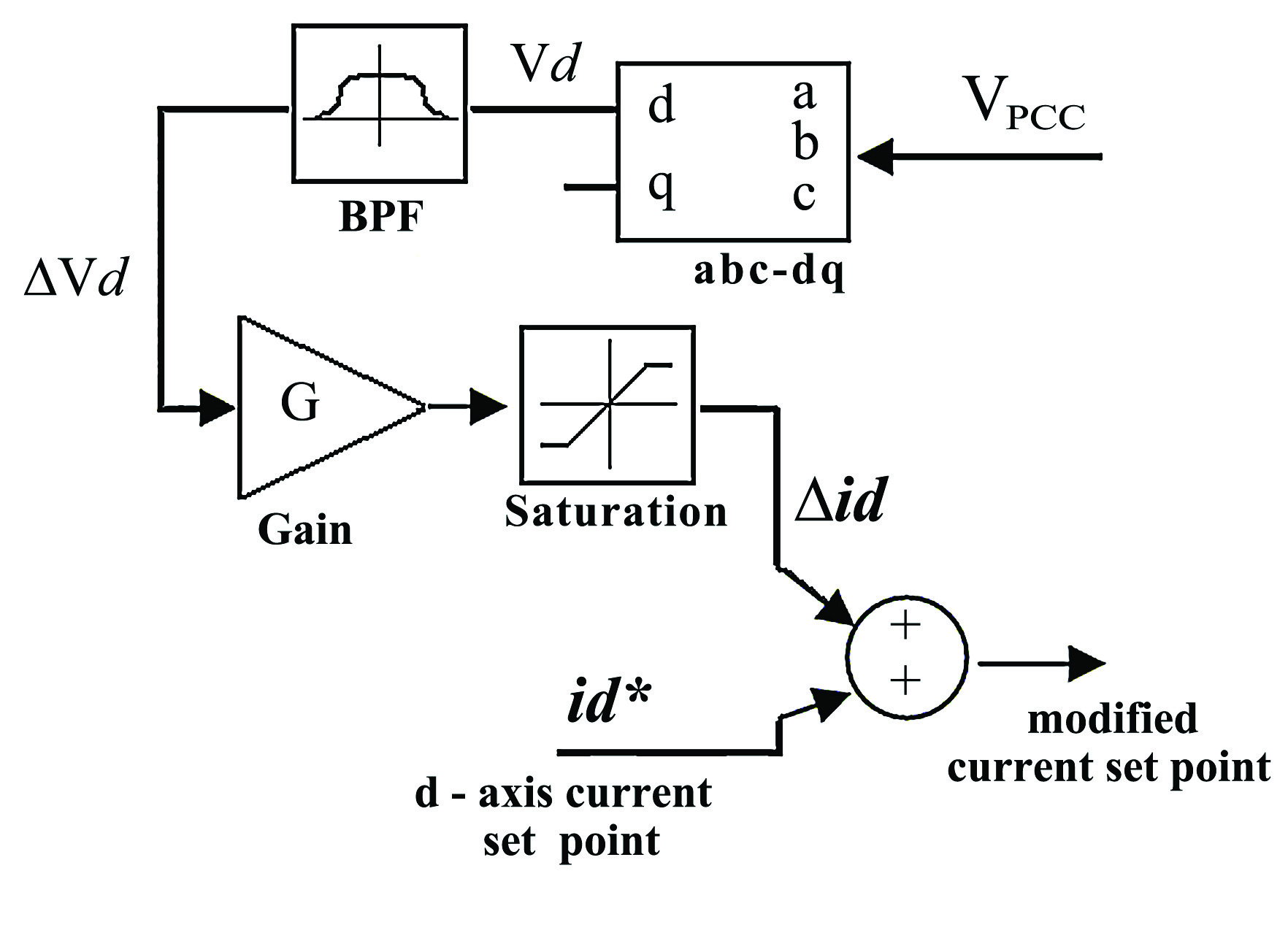

Feedback (VPF) with d-q current control scheme. The d-axis component of VPCC (Vd) is monitored and filtered using a band pass filter (BPF) to obtain the voltage varia- tion ∆Vd, this voltage variation is amplified with a preset gain G (A/V) and used as d-axis current perturbation (∆id). The d-axis current perturbation signal affects di- rectly the inverter output power and consequently the VPCC magnitude and frequency in islanded mode. A satu- ration block is used to limit the output current perturba- tion. As a result, on islanding condition a rising deviation of frequency (df) or magnitude (dV) of VPCC is observed,

And This Deviation Can Trip U/Ovp Or U/Ofp For Dg

safety disconnection. An important characteristic of the VPF based methods is the low power quality degradation in contrast with other active methods that use distorted signals injection, as proposed in and .

On the other hand, the time necessary to generate the trip signal using the VPF based method is determined by the load quality factor qF (6) and the feedback preset gain G. One simple way to improve the response speed is to increase G, but this solution increases the risk of voltage or frequency instability, especially in multi-source to- pologies.



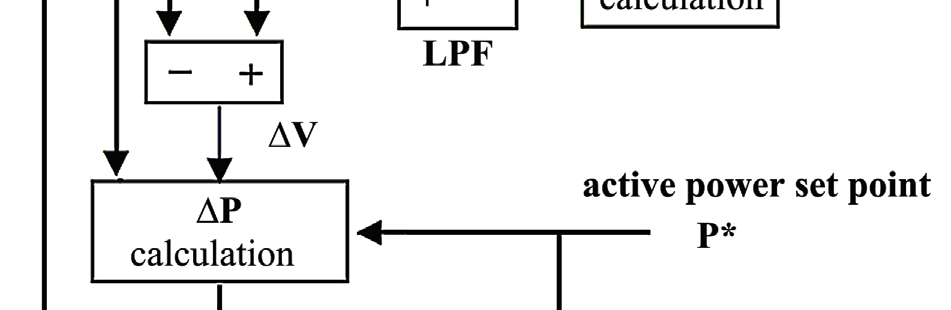

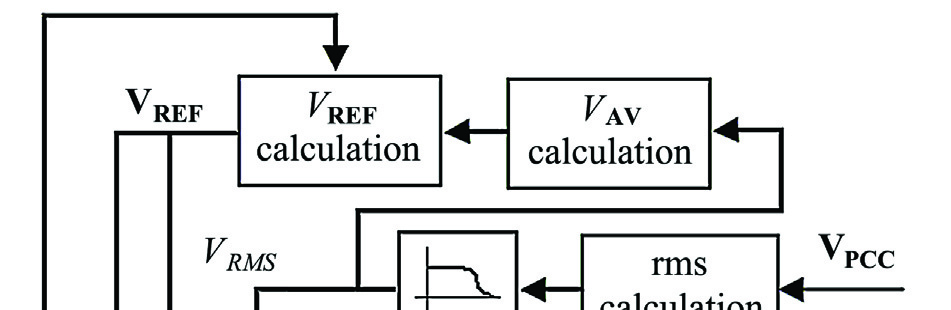

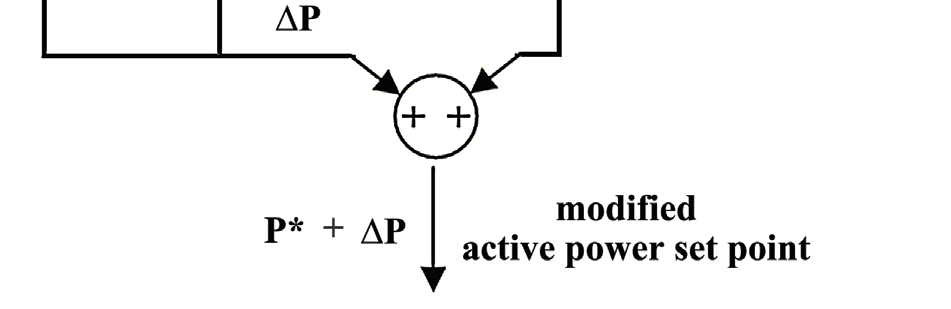

Figure 4. Proposed voltage positive feedback scheme voltage measured at PCC (VRMS) as the feedback variable to generate a limited active power perturbation. The ba- sics of the proposed scheme are presented in Figure 4.

The VRMS (after the LPF filter) is compared with a refer- ence voltage VREF, and the difference ∆V is used to cal- culate the active power perturbation ∆P.

The reference voltage VREF[k+1] is set initially equal to the nominal RMS voltage (VNOM), and is subsequently updated only on System Stable Condition (SSC) using the historic RMS average voltage VAV (7). Otherwise, the new voltage reference (VREF[k+1]) is set equal to the old reference value (VREF[k]) according to (8). The SSC is defined as the condition where both the power and the voltage perturbations (∆P and ∆V) are stable.

The Sandia Voltage Shift (Svs) Method Uses The

utility voltage to calculate the output current amplitude; in this method the average voltage of the utility is com- pared with the actual voltage in each electric cycle (or- half cycle) to calculate the current perturbation that is amplified by a preset gain.

In both methods, SVS as well as VPF with d-q transforma- tion, the output voltage at the islanding condition is forced to the trip points of the U/OV protection by an important output current reduction or increase, and it is finally the U/OVP that shuts down the power converter. This important perturbation of the output current before the disconnection may affect the load, and is not appropriate if stand-alone operation of the system is desired after the safety disconnection.

(7)

where, m is the number of samples considered for the average calculation.

(8)

The active power perturbation ∆P is calculated using

The Maximal Allowed Power Perturbation ∆Pmax, The

minimal power perturbation ∆PMIN, a gain factor G, and the difference between VREF and VRMS, according to (9,10) and (11).

3.3 Parameter Selection

The parameters ∆PMIN, ∆PMAX and G are selected to pro- duce a low active power variation in the interconnected mode and a low voltage variation in the islanding detec-

Nnected Mode, The Active Power Deviation Is

reduced to minimal ∆PMIN on voltage stability condition. The expected evolution of voltages (VREF and VRMS) and

The Active Power Perturbation For The Islande

n period. Considering an ideal utility source, the volt- age error in the interconnected operation mode may be close to zero, but in practice a minimal error is always resent, and this error affects the real output power. We set the ∆PMIN near the mean active power perturbation cal- culated using the typical utility voltage variations (εMIN).

Based on the measured voltage of the utility, we take a εMIN=0.167% (0.2V at 120V) as the minimal voltage error. This εMIN allows us to set a minimal active power perturbation ∆PMIN=0.5% using a gain of G=3. At the islanding condition, if the system operates at unity power factor, this ∆PMIN introduces a voltage variation of

0.25% (0.3V At 120

To limit the effects on the output voltage in the detec- tion period, we set the ∆PMAX=2.5% to produce a maxi- mal voltage error ε= 1.24% (1.5V at 120V). This set- ting permits the islanding detection without output volt- age degradation if the load and DG powers are close or matched.

D Mode Is

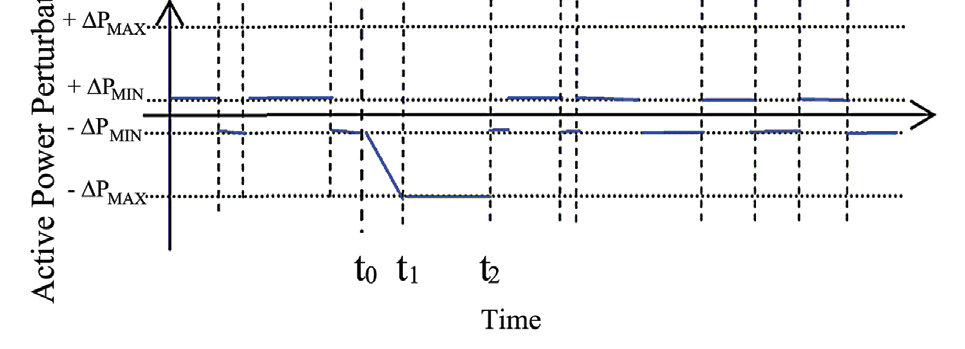

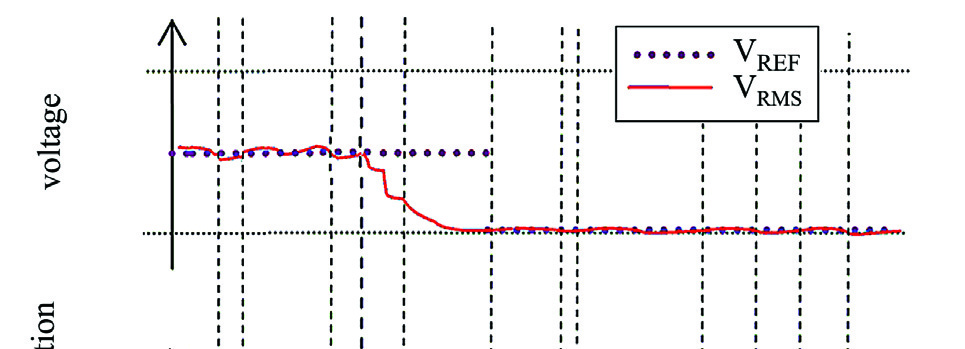

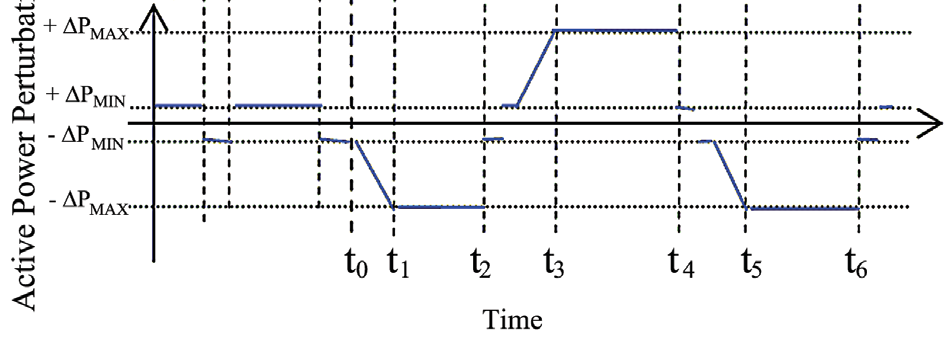

Figure 5. Expected effect of the proposed VPF scheme un-

Der Islanding Condition

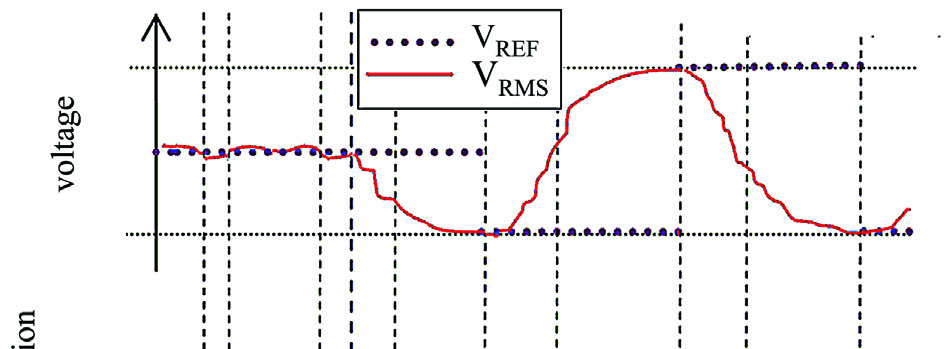

Figure 6. Expected effect of the proposed VPF scheme un- der voltage reduction and normal voltage variation shown by Figure 5. Before the utility disconnection (t

Produces A

negative increasing of ∆P until its saturation at t=t1. The

Consequently, The Vref Is Updated And Th

oltage variation.

3.5 Islanding Confirmation

If the average of the magnitude of the active power per-

Counter) And ∆Prc (Reset Counter) To Activate Or

a time counter (TC). If the TC count is larger than a p limit of time TMAX, the islanding condition can be confirmed.

Rms

tage. After the utility disconnection (t>t0), if VRM

L

VREF, the negative ∆PMIN and the VPF effect produce a progressive VRMS reduction and negative increase of ∆P, until the ∆P saturation at t=t1.

The SSC condition is reached at t=t2 with voltage sta- bilization, and VREF is updated to VAV. Consequently, a reduction and a subsequently positive increase of ∆P are expected to produce a voltage level increase (from t2 to t4). The power perturbation is saturated at t=t3, and a new SSC is reached at t=t4. A cyclic power perturbation and a voltage level oscillation can be observed and used to con- firm the islanding condition.

The expected trajectories for a voltage variation are presented in Figure 6. In this case, if an important voltage

Variation Is Occurred At T=T0, The Vpf Effect

ilization at t=t2.

E Active Power

perturbation is reduced to ∆PMIN. Subsequently the minimal active power perturbation may be observed as an

Effect Of The Normal V

rbation (∆PAV) is calculated and observed during a de- tection period TDET, then under islanding condition the expected profile of this variable is shown in Figure 7, and we can use this new variable to establish the islanding condition. For islanding condition confirmation, the ∆P

Reset

Copyright © 2009 SciRes JEMAA
