Analysis and Development of SiC MOSFET Boost Converter as

A.Bharathi Sankar 1, Dr.R.Seyezhai 2

Abstract: Renewable energy source such as photovoltaic (PV) cell generates power from the sun light by converting solar power to electrical power with no moving parts and less maintenance. A single photovoltaic cell produces voltage of low level. In order to boost up the voltage, a DC-DC boost converter is used. In order to use this DC-DC converter for high voltage and high frequency applications, Silicon Carbide (SiC) device is most preferred because of larger current carrying capability, higher voltage blocking capability, high operating temperature and less static and dynamic losses than the traditional silicon (Si) power switches. In the proposed work, the static and dynamic characteristics of SiC MOSFET for different temperatures are observed. A SiC MOSFET based boost converter is investigated which is powered by PV source. This DC - DC converter is controlled using a Pulse-Width Method (PWM) and the duty cycle d is calculated for tracking the maximum power point using incremental conductance algorithm of the PV systems implemented in FPGA. Simulation studies are carried out in MATLAB/SIMULINK.A prototype of the SiC converter is built and the results are verified experimentally. The performance parameters of the proposed converter such as output voltage ripple input current ripple and losses are computed and it is compared with the classical silicon (Si) MOSFET converter.

Keywords: Photovoltaic panel, Maximum power point tracking control, Silicon carbide, Incremental Conductance, Pulse Width Modulation, Field Programmable Gate Array.

1. Introduction:

For several decades, silicon (Si) has been the primary semiconductor choice for power electronic devices. However, Si is quickly approaching its limits in power conversion. Wide band gap (WBG) semiconductors offer improved efficiency, reduced size and lower system cost. Of the various types of WBG semiconductors, silicon carbide (SiC) have proven to be the most promising technologies, with several devices already being available commercially . SiC has shown tremendous high temperature capability, as well as aptitude for high voltage applications. Furthermore, the cost of SiC devices has decreased within the last decade, and the performance has proven superior to that of conventional Si based devices. Some of the potential application areas for these devices include: transportation electrification and renewable energy. SiC devices have been explored for replacement of Si IGBTs in photovoltaic inverters in order to improve efficiency. Further, the fast switching speed of these devices allows for high frequency operation thereby resulting in the reduction of the passive components, which decreases the total size, weight and cost of the system .

The advantages of SiC have been investigated in this paper by developing a DC-DC boost converter using SiC MOSFET for PV applications. The characteristics of SiC MOSFET are analyzed and its performance is compared with the classical Si MOSFET. SiC based boost converter results in reduced input current and voltage ripple by implementing the PWM control using FPGA. Further, to get maximum power from PV, incremental conductance algorithm is employed and implemented using FPGA. Hardware setup of the proposed DC-DC converter is developed and the results are verified experimentally.

2. Description Of Sic Mosfet

SiC MOSFETs being unipolar devices typically experience faster switching than an IGBT. As a result, extensive work on the characterization of SiC MOSFETs and comparison of their dynamic performance with Si IGBTs has been carried out. . A common structure for SiC MOSFETs is the double-diffused or DMOSFET which is shown in Figure 1, that allows for fast switching speed and high durability. Upon the application of a positive gate bias, an inversion layer is produced at the surface of the p- well region underneath the gate electrode.

This inversion layer provides a path for the flow of current from the drain to the source. This structure includes an intrinsic body diode, and allows operation both in the first and third quadrants. Current flows through the body diode when the MOSFET gate is off, and a positive drain bias exceeding approximately 0.7 V is applied. If instead a positive gate voltage is applied, and the drain is negatively biased, then the channel will conduct with current flowing from the source to the drain, resulting in third quadrant operation .

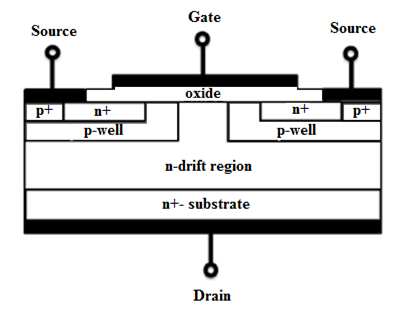

Figure 1: Sic Mosfet Structure

SiC power MOSFET is also capable of supporting high positive drain voltages. Furthermore, due to its greater critical electric field for breakdown, the doping concentrations in the drift region of SiC MOSFETs can be increased, thereby resulting in a lower drift resistance for a given blocking voltage. This relationship is shown by the following equation for the ideal on-state resistance Ron-ideal

………… (1)

Where BV is the breakdown voltage, εs is the dielectric constant of the semiconductor, µ n is the mobility of the drift region, and Ec is the critical electric field for breakdown. Moreover, SiC also features a higher saturation drift velocity, allowing for faster switching, and thus is suitable for high frequency applications.

3. Characterization Of Sic Mosfet

SiC MOSFET is modeled in MATLAB and the static and dynamic characteristics are simulated by extracting the parameters from the data sheet for various temperatures.

3.1. Output Characteristics

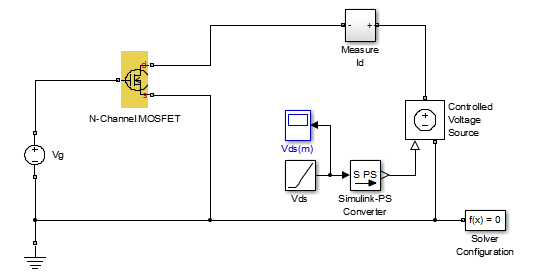

Figure 2 shows the Simulink model for output characteristics for the SiC MOSFET. Output characteristic shows the variation of the drain current with respect to the drain source voltage at 25 °C and 150°C temperature as shown in figure 3 & 4. The output characteristics are Drain current ID versus Drain-source voltage VDS measured under different gate voltage VGS from 10 V to 22 V. It is found the results that the SiC MOSFET goes into saturation at prolonged period thereby pinch off point is increased.

Figure 2: Simulink model of SiC MOSFET Static characteristics.

Vg = 22 V

Figure 3: Output characteristics of SiC MOSFET at 25 C

Vg = 22 V

Figure 4: Output characteristics of SiC MOSFET at 150 C

3.2. Transfer Characteristics

Figure 5 shows the variation of the drain current with respect to the gate source voltage for various temperatures. From the figure it is clear that at high temperature, the threshold voltage of the device and transconductance increases.

3.3 On-State Resistance Rds(On)

The on-state resistance RDS(ON) is a critical parameter to the device since it determines the conduction power dissipation. The power D-MOSFET structure with its eight internal resistance components between the drain and source electrodes when the device at turned-on state. The total on-state resistance is the sum of the eight resistances,

Which Can Be Expressed As Rds(On) = Rcs + Rn

+ + RCH + RA + RJFET + RD + RSUB + RCD. Where RCS is source contact resistance, RN+ is the source resistance, RCH is channel resistance, RA is accumulation resistance, RJFET is JFET resistance, RD is drift region resistance, RSUB is the substrate resistance and RCD is the drain contact resistance. There are several different definitions for the RDS(ON), it to be the maximum slope of the output curve at a given turn-on gate voltage. This definition gives the minimum possible RDS(ON) for a given VGS, which resulting in RDS(ON) = 0.129 Ω at VGS = 20 V in our case. In this work, RDS(ON) can be read directly from the output characteristic curves.

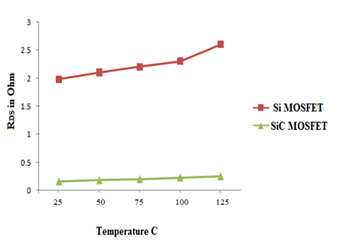

The RDS characteristic of Si and SiC MOSFET is shown in figure 5 respectively for various temperatures. It is clear that the variation of on state resistance is in milliohms for the entire range of temperature for SiC compared to Si.

3.3 Switching Characteristics Curve

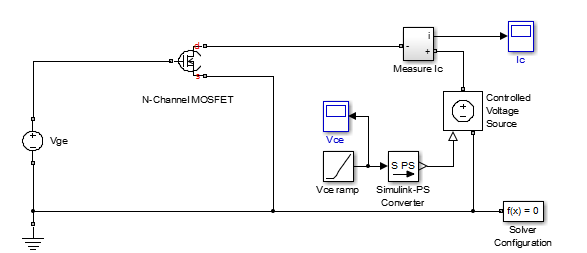

Figure 6 shows the Simulink model for dynamic characteristics for the SiC MOSFET. Switching characteristics for SiC MOSFET is shown in figure 7 and it provides the information of the SiC MOSFET under transient and saturation region and its corresponding dynamic parameters Turn on time(ton)=35ns, Turn off time (toff)=76ns, Fall time (tf)=36ns & Rise time (tr)=22ns is shown in fig 7a & 7b.Experimental setup Switching characteristics for SiC MOSFET is shown in figure 7c.

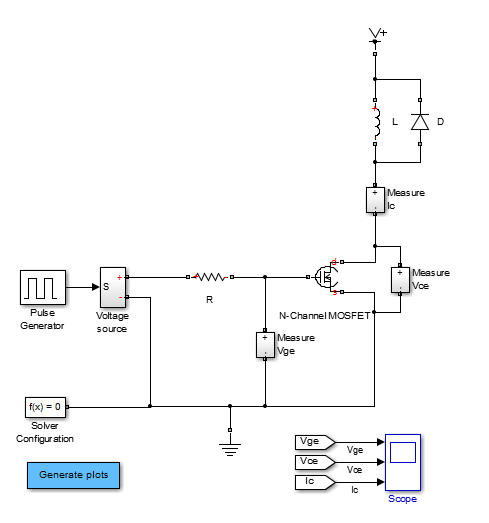

Figure 6: Simulink model of SiC MOSFET Dynamic characteristics.

Vds,Id (Volts,Amps)

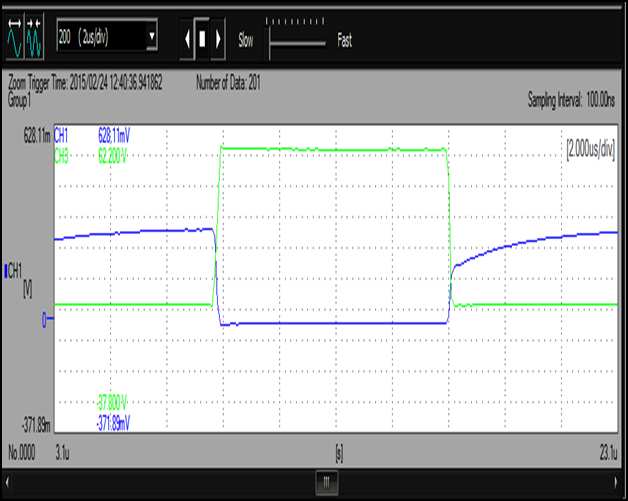

Figure .7a Switching characteristics Ton state for SiC MOSFET

Vds,Id (Volts,Amps)

Figure .7b Switching characteristics Toff state for SiC MOSFET Figure .7c Experimental setup Switching characteristics for SiC MOSFET

3.4.Thermal Analysis For Sic Mosfet

As the power density and switching frequency increases, thermal analysis of power electronics system becomes imperative. The analysis provides valuable information on the semiconductor rating, long term reliability and efficient heat sink design have been reported in the literature for thermal analysis of SiC MOSFET. The aim of this work is to build a comprehensive thermal model for the SiC MOSFET modules. It is used in boost converter in order to predict the dynamic junction temperature rise under real operating conditions. The thermal model is developed in two steps, first step the losses are calculated and then the junction temperature is estimated. The real- time simulation environment dictates the requirement for the models for easy implementation on the software platform. The parameter of the thermal network is extracted from the junction to case and case to ambient dynamic thermal impedance curves. An equivalent RC network model is built to platform the thermal analysis as shown in Figure 8. It is shown in Figure 9 that the SiC MOSFET junction temperature and case temperature is about 400°C and 340°C respectively.

Theatsink

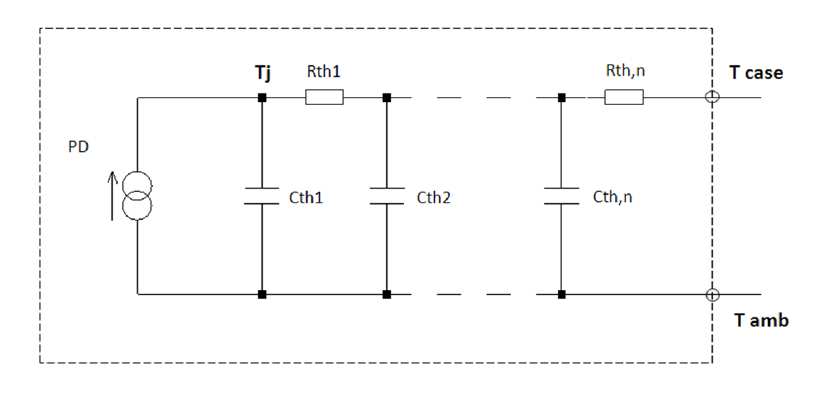

Figure .9: SiC MOSFET junction and case temperature Figure 10 shows the Simulink model for Thermal characteristics for the SiC MOSFET. Thermal characteristic shows the variation of the drain current with respect to the drain source voltage at 25 °C and 125°C temperature as shown in figure 11.The output characteristics are Drain current ID versus Drain-source voltage VDS measured under different gate voltage VGS from 10 V to 22 V. It is found the results that the SiC MOSFET goes into saturation at prolonged period thereby pinch off point is increased.

Figure 10: Simulink model of SiC MOSFET Thermal characteristics.

Figure .11 Thermal Characteristics For Sic Mosfet

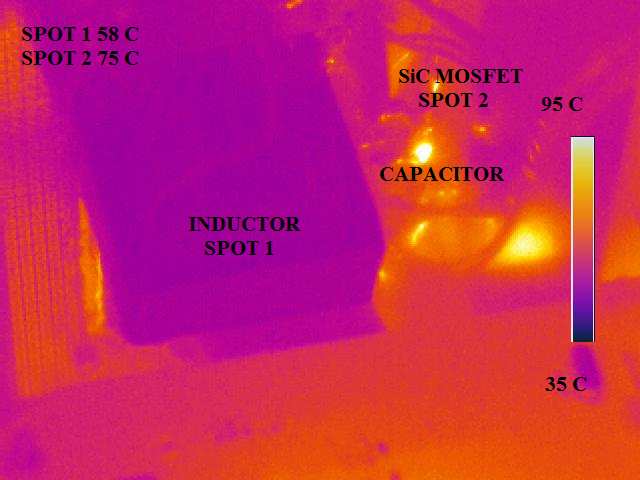

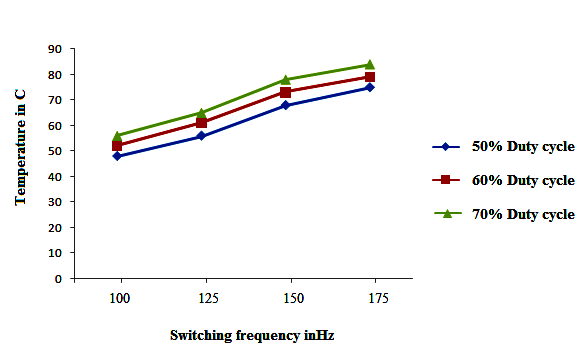

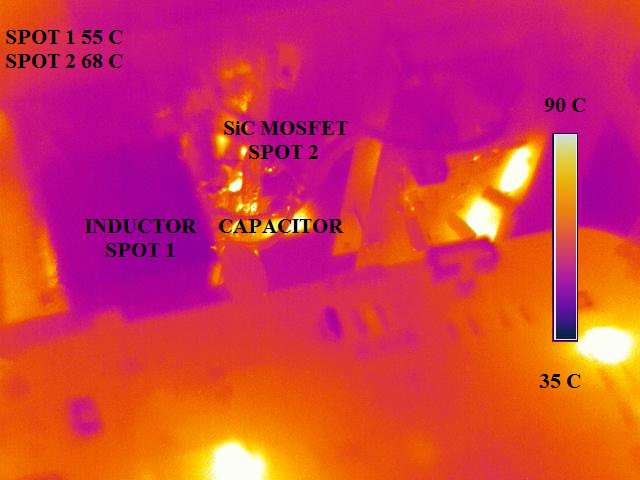

Figure .11 Experimental setup temperature Vs switching frequency temperature Vs Drain current for SiC MOSFET for various duty cycle. Fig.11. Thermal pictures of the main components in the boost converter for different switching frequencies An infrared camera was used to investigate how the switching frequency affects the different components in the converter. For 100 kHz, 150 kHz and 175 kHz, temperatures of the diode, the SiC MOSFET and the inductor are shown in Fig.11. At a switching frequency of 150 kHz, the boost inductor has a temperature of 55 C. The heat sink, to which the SiC MOSFET is attached to, has a temperature of 68 C.Increasing the switching frequency to 175 kHz results in a high thermal stress in the SiC devices. The boost inductor has a temperature increases to 58 C. The case temperature of the SiC MOSFET increases to 75 C.

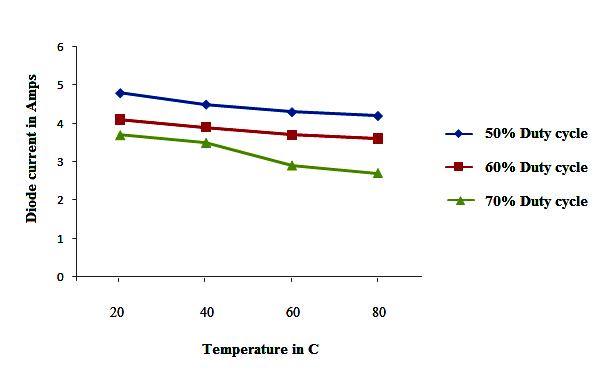

Experimental setup Thermal characteristic for SiC MOSFET is shown in figure 11.The SiC MOSFET junction temperature Vs switching frequency for various duty cycle and SiC MOSFET junction temperature Vs Drain current for various duty cycle.

4. Sic Mosfet Based Dc-Dc Converter

Choppers are static DC-DC converters for generating variable DC voltage source from a fixed DC voltage source. It is used to step up the input voltage to a required output voltage without the use of a transformer. The control strategy lies in the manipulation of the duty cycle of the switch which causes the voltage change. The circuit diagram of the designed SiC boost converter is shown in Figure.8.

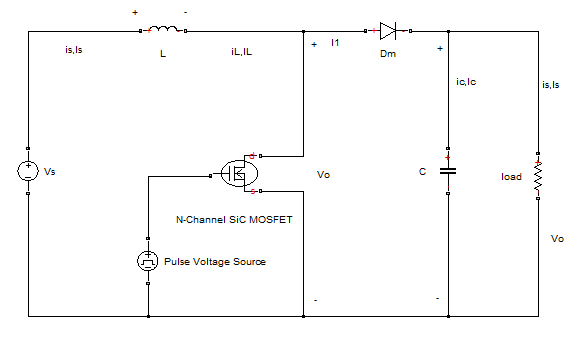

Figure 8: Circuit Diagram Of Boost Converter

The function of boost converter can be divided into two modes, Mode 1 and Mode 2.

Figure 9: Boost Converter Operation Of Mode I

Mode 1 begins when MOSFET is switched on at time t=0. The input current rises and flows through inductor L and MOSFET are shown in Figure 9.

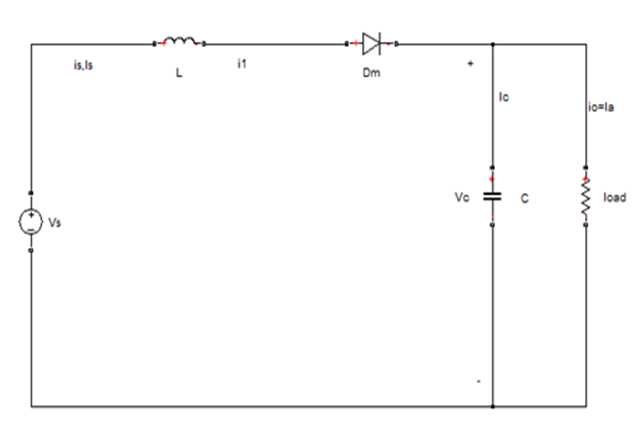

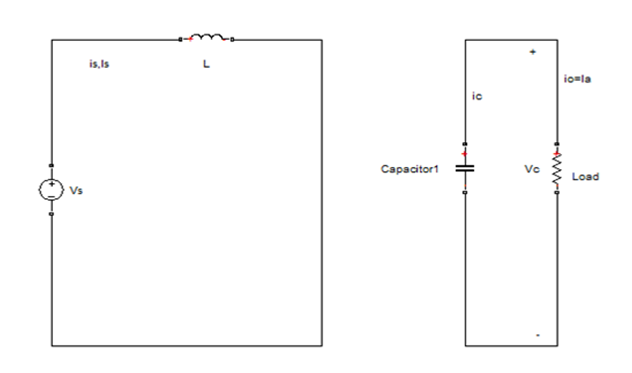

Figure 10: Boost Converter Operation Of Mode Ii

Mode 2 begins when MOSFET is switched off at time t=t1. The input current now flows through L, C, load, and diode Dm. The inductor current falls until the next cycle. The energy stored in inductor L flows through the load is shown in Figure 10.The waveforms of the voltages and currents for boost converter are shown in Figure 11.

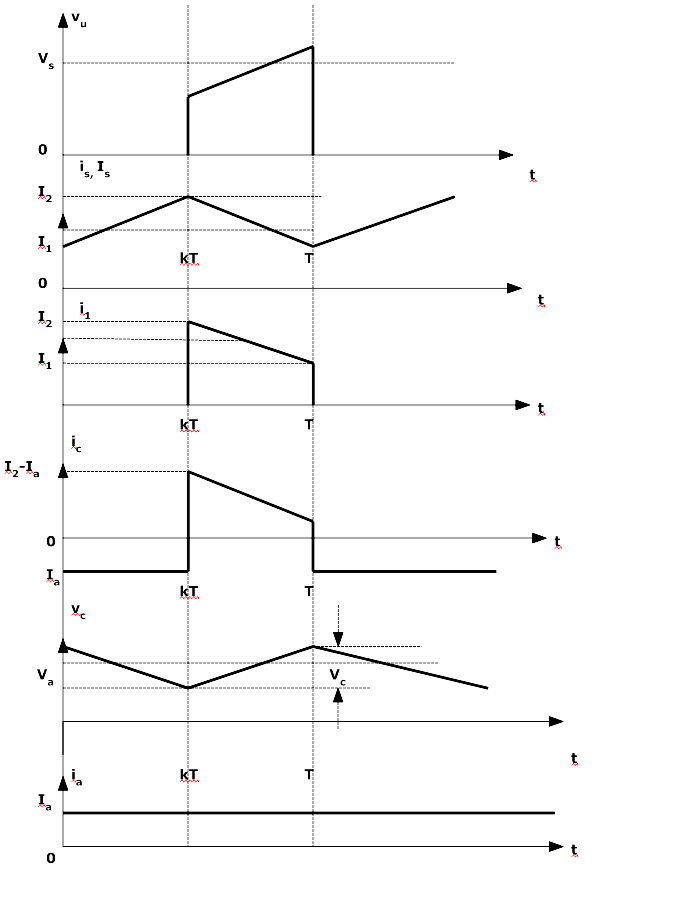

Figure 11: The waveforms of the voltages and currents for boost converter. The voltage-current relation for the inductor L is:

When The Mosfet Is Switched:

and when the MOSFET is switched off the current is: Here VD is the voltage drop across the diode Dm, and VM is the voltage drop across the MOSFET.

, We Can Solve For Vout:

Neglecting the voltage drops across the diode and the switch The active switch in the boost converter is a SiC MOSFET (1200V, 40A). A fast recovery diode is used as the freewheeling diode. The functioning principle of the boost is to excite the switch (SiC MOSFET) transistor with a duty cycle D produced by the MPPT control and when the switch is closed the inductor L is loading during T(D) time, afterwards the switch is opened, the inductor supplies the load through the diode during (1-D)T. For a DC-DC boost converter, the input–output voltage relationship for continuous conduction mode and design equation of L & C

Is Given By:

Based on the design equations, the simulation parameters for SiC boost converter is shown in Table 2.
