Piotr Kuwałek

Institute of Electrical Engineering and Electronics

Poznań, Poland

Abstract—Low-frequency disturbances of power quality are one of the most common disturbances in the power grid. These disturbances are most often the result of the impact of power electronic and energy-saving devices, the number of which is increasing significantly in the power grid. Due to the simultaneous operation of various types of loads in the power grid, various types of simultaneous disturbances of power quality occur, such as voltage fluctuations and distortions.

Therefore, there is a need to analyze this type of simultaneous interaction. For this purpose, a special and complementary laboratory setup has been prepared, which allows for the examination of actual states occurring in modern power networks. Selected research results are presented for this laboratory setup, which determine its basic properties. Possible applications and possibilities of the laboratory setup are presented from the point of view of current challenges.

Keywords— power quality, power grid model, laboratory setup,

I. Introduction

Low-frequency disturbances of power quality are one of the most common disturbances in the power grid . Low-frequency power quality disturbances include: voltage fluctuations, voltage distortions caused by higher harmonics or sub-, inter- or supra-harmonics, frequency fluctuations, etc.

These disturbances occur most often as a result of the impact of electronic and energy-saving devices , the number of which in the power grid has been increasing significantly in recent years. Due to the simultaneous operation of various types of loads in the power grid, various types of simultaneous disturbances of power quality occur. One of the most common simultaneous disturbances in the low-voltage network are, for example, voltage fluctuations and voltage distortions caused by higher harmonics . The "clipped cosine" voltage distortion is common in low-voltage networks and is caused by the input stages of switching power supplies. If a load that periodically changes its operating state is connected to such a network, simultaneous voltage fluctuations and voltage distortions occur as a result . In recent years, simultaneous power quality disturbances have also been shown to cause negative effects that are unobservable for individual disturbances occurring separately . For example, for voltage fluctuations alone, a flicker can occur as a result of a change in the operating state at a frequency of 3fc, where fc is the power frequency . In turn, in the case of simultaneous voltage fluctuations and voltage distortions, a flicker can occur for the load that changes its operating state with a frequency whose limit value depends on the level of supply voltage distortion and can be greater than 3fc .

Therefore, it is a need to analyze this type of simultaneous interaction . It is worth noting that in the currently applicable normative documents in the field of methods for measurement and assessment of low-frequency disturbances (e.g. the standard

Standard

IEC 61000-4-7 in the field of voltage/current distortion measurements or the standard IEC 61000-4-15 in the field of flicker assessment (voltage fluctuations)), idealized states are considered or certain models are proposed that recreate the state of occurrence of a low-frequency disturbance of only one type. This analysis facilitates the testing of measuring instruments and simplifies the assessment of the propagation of disturbances in the power grid. It is worth noting, however, that such an analysis does not guarantee a small measurement error in the event of actual disturbance states typical of modern power networks.

Examples of discrepancies in measurement results in the research with the normative approach and in the research with the approach recreating actual disturbance states can be observed for AMI smart energy meters equipped with the

Power Quality Assessment Functionality . To Some

extent, the simultaneous occurrence of low-frequency disturbances can be recreated using a high-power broadband arbitrary generator. However, the assessment of the propagation of disturbances in the event of their simultaneous occurrence requires a specialized laboratory setup. Taking into account the indicated needs, a special and complementary laboratory setup was prepared, which allows for the examination of the actual conditions that occur in modern power networks. The paper discusses the construction of this unique laboratory setup. Selected research results are presented for this laboratory setup, which determine its basic properties. Possible applications and possibilities of the laboratory setup are presented from the point of view of current challenges.

Ii. Description Of The Laboratory Setup

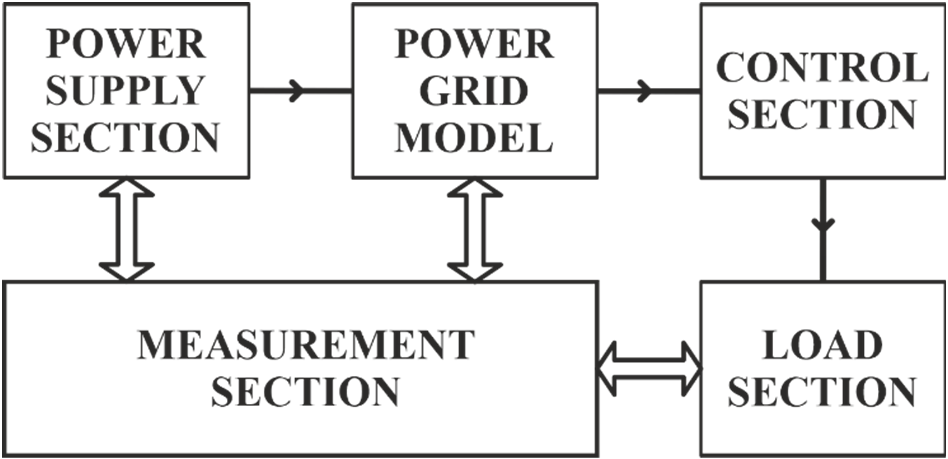

The specialized laboratory setup is shown in the block diagram in Fig. 1. Fig. The block diagram of the laboratory setup for testing low-frequency

Disturbances Of Power Quality

This work was funded by National Science Centre, Poland – 2021/41/N/ST7/00397. For the purpose of Open Access, the author has applied a CC–BY public copyright licence to any Author Accepted Manuscript (AAM) version arising from this submission.

reprinting/republishing this material for advertising or promotional purposes, creating new collective works, for resale or redistribution to servers or lists, or In the diagram shown in Fig. 1, five blocks are indicated:



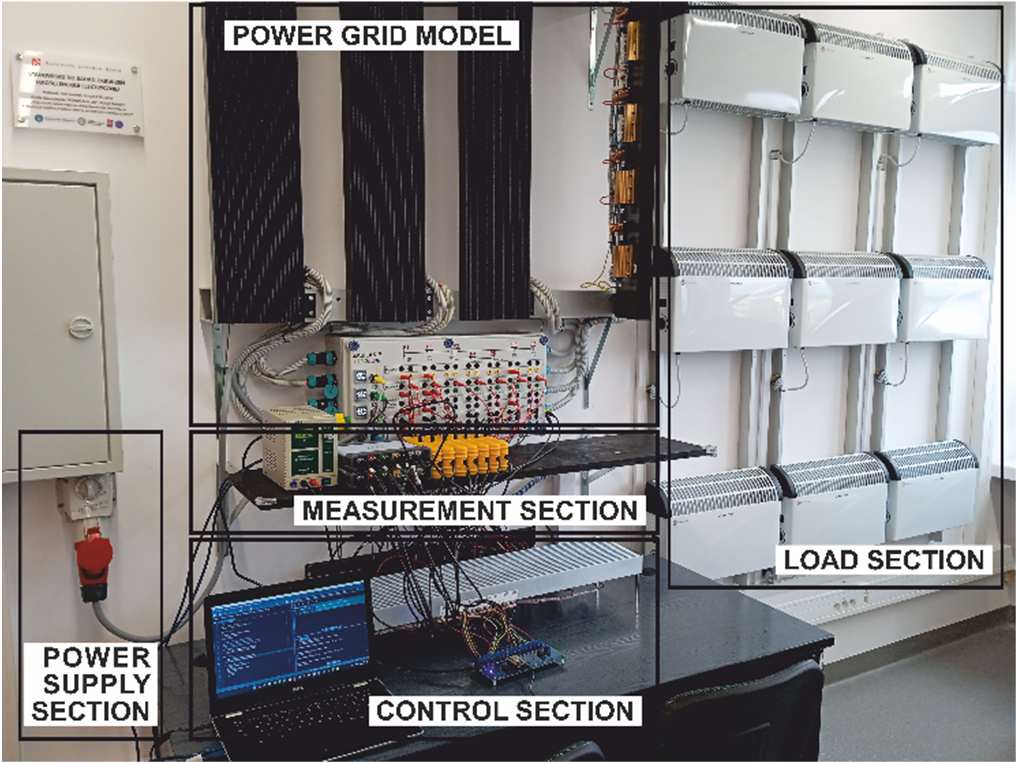

measurement section. The actual view of the laboratory setup is shown in Fig. 2. The presented laboratory setup can be used, for example, for:



research in the field of evaluating the propagation of



research on the identification and localization in sources of disturbances of power quality (including,



assessment of the interaction between power quality



post-factum examination of disturbance states in the



post-factum testing of voltage-supplied loads in the presence of various power quality disturbances .

A. Power Grid Model

The most important element of the laboratory setup is a single-sided power supply model of branching 3-phase power grid with a radial topology. This is a typical model for low- voltage networks, where low-frequency disturbances of power quality occur most often. The diagram of the power grid model is shown in Fig. 3. The prepared power grid model consists of six sections, where sections III and IV are included in the first branch, and sections V and VI are included in the second branch. In the prepared power grid model, individual resistance values Ri and inductance Li were selected in such a way as to obtain typical conditions typical for an overhead line. The nominal values of the resistance RN of the resistors used and the inductance LN of the coils used are presented in Table I.

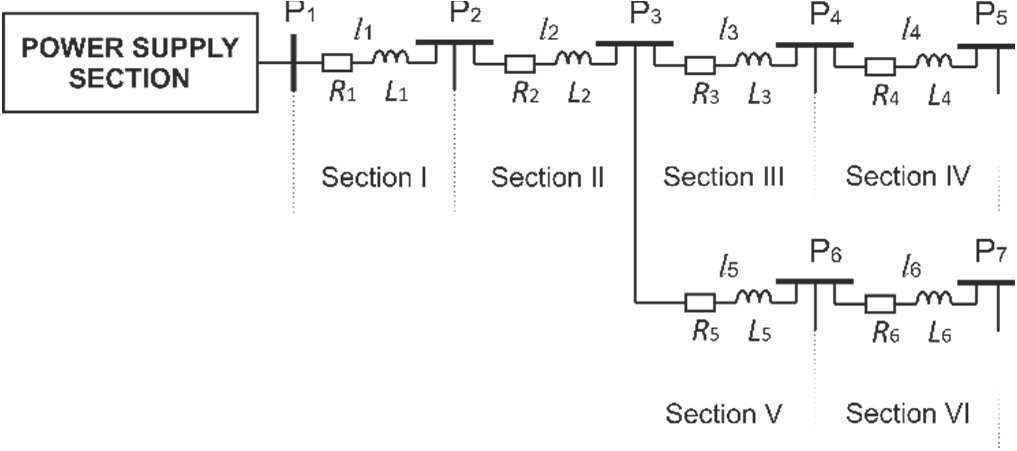

Fig. 3. The Diagram Of The Power Grid Model

The individual power supply points Pi of the power grid model



power connections allowing for the connection of a

Measurement Connection Allowing For The Recording

of voltage signals from individual points of the power

Measurement Connection Allowing For The Recording

of current signals using clamp current transformers

From Individual Points Of The Power Grid Model

[copper wire with a cross-section of 4 mm2].

6.8

The power grid model has lumped parameters corresponding to the distributed parameters of the real long line. Taking into account this fact and the fact that the connections for recording voltage signals are shielded, the prepared laboratory setup ensures effective suppression of external interferences that could affect the correctness of the analysis. Fig. 4 shows a photo of a part of the neutral line mounted on the radiator. It is also worth noting that it is possible to slightly modify the prepared power grid model by connecting capacitances to the power terminals in parallel (in the case of the designed model, the capacitances can be in the order of nF), which allow the model to be changed from an overhead line model to a cable line model.

Fig. 4. The view of a fragment of the neutral line mounted on the radiator

B. Power Supply Section

The power supply section ensures that the supply voltage is supplied to the power supply point P1 of the prepared power grid model. The prepared power grid model allows the free connection of various types of power supply according to

Supply Voltage Directly From The Fluke 5500A

calibrator [impact analysis for nominal conditions - functional test signals generated with an inaccuracy

Amplifier [Analysis Of Impacts For Conditions

recreating real disturbance states in modern power



supply voltage directly from the MV/LV transformer station with a power of 630 kVA [impact analysis for

Real Conditions - Study Of The Propagation Of

disturbances generated by the tested real loads, study

Voltage And The Operation Of The Selected Load In

controlled conditions in which the added loads are



supply voltage from any source that is not currently available in the laboratory and which allow testing of conditions specified by a specific user.

C. Control Section

The control section allows for independent switching of connected loads, synchronously or asynchronously. The control is implemented by an SSR system based on a MOSFET transistor, which allows for achievement of maximum switching at the kHz level. In addition, the use of an SSR system based on a MOSFET transistor allows the load to be switched on and off at any time, without delays of µs between the appropriate edge of the control signal and the change of the switch state. Fig. 5 shows a simplified diagram of a single switch. 6 shows the view of individual switches mounted on the radiator.

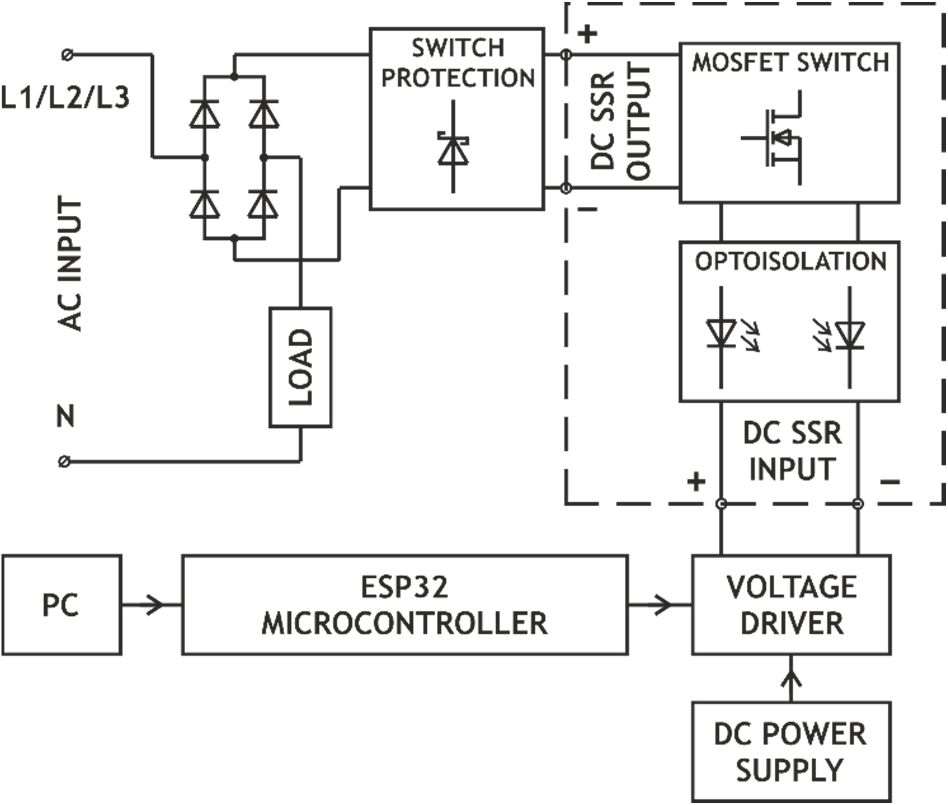

Fig. 5. The Simplified Diagram Of A Single Switch

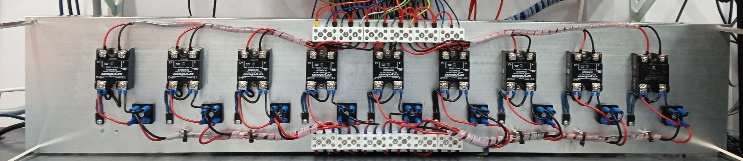

Fig. 6. The view of individual switches mounted on the radiator The control system presented in Fig. 5, apart from the assessment of the propagation of disturbances after turning on or off a specific load, also allows for recreation of the operation of a group of loads or selected power electronic systems. In such a case, it is sufficient to use elements such as a resistor, coil, and capacitor in a series or parallel configuration as a load. The indicated elements allow for simulation of the nature of the load, and the switching frequency allows for recreation of the variability of the operating state of a specific device (e.g., inverter). The control

System Is Operated From A Computer Via The Esp32

microcontroller. The individual digital outputs of the ESP32 system are fed to a voltage driver, which appropriately amplifies the signal and has an appropriate current carrying capacity. Switching of the control system on the AC side is possible by using a Greatz bridge. Additionally, the Schottky diode to the SSR output provides additional protection of the switch against possible overvoltages that can arise as a result of switching.

D. Load Section

The load section available at the laboratory setup includes:



resistors in the form of convection heating systems with an active power of 0.75 kW, 1.25 kW, or 2 kW;



capacitors with a capacity of 9.6 µF and a reactive



chokes with an inductance of 1.123 H and a reactive



selected specific loads, such as UPS with an apparent power of 1.8 kVA, electric vehicle charger, selected

Led Or Fluorescent Light Sources, Switching Power

supplies, etc. The laboratory station is configured in such a way that it is also possible to connect any other real load supplied from the low-voltage network to analyze the disturbances emitted by it and the impact of other disturbances of power quality on the operation of this device.

The Measurement Section Allows For Synchronous

(simultaneous) or asynchronous recording of low-voltage signals with a value not exceeding 20 V. PicoScope 5444D PC oscilloscopes are used as recorders. The PicoScope 5444D PC oscilloscope provides recording with a sampling rate of 1GSa/s at 8-bit resolution or 62.5 MSa/s at 16-bit resolution.

The bandwidth of this recorder is 200 MHz. The following are used to acquire voltage signals from the laboratory setup:
