Design of a Sag and Surge Detector For Residential Voltage

Abstract

An inexpensive protection device capable of disconnecting a load upon detecting a voltage sag or surge is presented. Said device is aimed towards the residential voltage of Venezuela’s electrical system. The device is based on the Arduino platform, and uses an ATmega 328P. It detects the presence of a voltage sag or surge by sampling the residential voltage used to feed

1

2 voltage. It disconnects the load after 3 semi-cycles where the residential voltage is outside the boundaries established by Venezuela’s national electrical code, and therefore there’s the presence of a voltage sag or surge. The device is capable of transmitting the data of the sampled signal, for making further analysis.

Figure: System Model & Simulation Flow for Voltage Sag Mitigation Matlab

Introduction

In present day Venezuela various power disturbances such as voltage sags and surges are very prominent. Even though there isn’t any official data disclosed on the topic, it is agreed among many Venezuelans that one of the main sources of damage of electric appliances are volt- age sags and surges. These disturbances arise because Venezuela’s electrical system is in a bad state, which is due to mismanagement. The only permanent solution to this issue would be to make the necessary improvements to the electrical system in order to restore its proper functioning.

Figure: System Model & Simulation Flow for Voltage Sag Mitigation Matlab

For this reason it can be asserted that any permanent solution to the main power quality issues of Venezuela is mid-term, at least. For as long as the improvements aren’t done or even started to do, the voltage sags and surges are going to keep reappearing. This problem gene- rates the necessity of creating a short-term solution, one that doesn’t have to be permanent but that definitely has to have swift means of implementation. The solution has to be very low cost as well, due to the precarious si- tuation of the Venezuelan economy.

The design of a voltage sag and surge detector based on the Arduino platform is presented as a possible so- lution. Said device disconnects any load attached to it,

2 Value Of The Residential Voltage Sig-

nal is outside the boundaries established by Venezuela’s national electrical code (NEC) , for a period of time equal or higher than 3 semi-cycles. The boundaries set (Daniel P´erez).

by Venezuela’s NEC coincide with the ones established residential systems can either use 110 or 120 VRMS, it was decided to use 110 VRMS to set the lower boundary and 120 VRMS to set the upper boundary.

To do the detection, the device samples the residential voltage signal at a rate of 3600 Hz, using the code of a power quality monitor developed to address Venezuela’s power quality issues as well . After establishing the presence of either a sag or surge, the device disconnects the load attached to it by triggering a relay connected in series with the load. The device doesn’t reconnect the load until the residential voltage signal is in compliance with the set boundaries. The device is capable of trans- mitting the sampled data it retrieves, which can be used for either a deep analysis after the fact, or real-time mo- nitoring.

The device distinguishes itself from other protection de- vices using the term “detector”, because usually protec- tors that are marketed as voltage sag or surge protectors offer some sort of relief upon the disturbance, such as peak suppression, instead of just disconnecting the load.

Hardware

The hardware used for this device is comprised by a small and simple circuit used for sampling the residential volt- age signal, a circuit for managing the load attached to the device and the ATmega328P that controls the entire system.

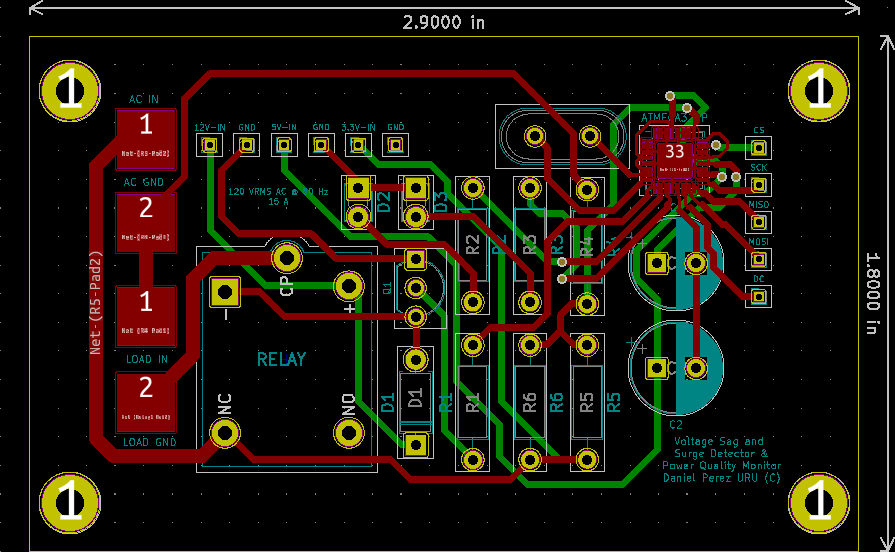

In figure 1 can be seen the PCB design of the entire system. It is shown directly instead of presenting the

Arxiv:2006.02974V2 [Eess.Sp] 7 Aug 2020

schematic first to maintain simplicity in the presenta- tion, and because it lets showcase the positioning of the elements of the system.

Figure 1. Preview of PCB design that encompasses entire

Design. Doesn’T Include Dc Sources

For this design it was assumed that separate modules are going to be used to provide the DC voltages required by the system. Being that this design doesn’t include a model for the case, this gives total freedom in terms of making a design for it. Also, it is worth noting that each pin used for the serial port interface (SPI) is connected to a pad, in such way that is easy to solder any mod- ule that can be used for transmitting the sampled data, which opens up the possibility of assembling an Internet of Things infrastructure with this design. If a compo- nent to send the data isn’t to be added, then the pads of the pins of the SPI should be shorted to ground to avoid leaving them floating.

To lower the amount of noise in the system as much as possible, a series of measures taken in the power qua- lity monitor were employed here as well. Those mea- sures were taken because floating pins generate noise

Dt Transients In The System , And

are based on various concepts of transmission lines,

Grounding, Power Electronics And Electromagnetic

compatibility,. It should be pointed out that in or- der to reduce the overall inductance of the system tracks were kept as short as possible, and to increase the over- all capacitance the gap between power lines was kept as short as possible.

The circuit utilized for sampling is the same used for a power quality monitor targeted for Venezuela’s residen- tial voltage . Said circuit transforms a 120 VRMS at 60 Hz sine wave into one of 0.6 VRMS at 60 Hz with an offset of 3.3 V. This measure was taken to stay in com- pliance with the limits of the analog to digital converter

(Adc) Of The Atmega 328P . This Design Was Pre-

ferred because using a transformer would unnecessarily add noise to the system, and it would incorporate losses as well. The use of resistors in this scenario is valid be- cause the measurement of an analog signal is done with a shunt connection, and the value of the internal resis- tance of the ADC of the ATmega 328P is 100MΩ, which is 20000 times higher than the value of the resistor that perceives the input analog signal.

To manage the load, a relay with a normally open switch is connected in series with it. The ATmega 328P only closes the switch when the code determines that proper conditions for powering the load are met, according to the set boundaries. As can be seen in figure 1, there’s a diode connected to the coil of the relay, and it has the function to prevent that a negative voltage is seen by the pins of the ATmega 328p, scenario that can happen

Due To A Di

dt transient. A couple of LEDs are used to indicate if the residen- tial voltage signal is currently meeting the requirements.

The red LED indicates that the voltage is beyond the

10% Above The 120 Vrms Or 10% Under 110 Vrms,

while the green LED points that the system is providing adequate energy. Adding a small display to indicate the current stats of the residential voltage signal is planned to be added in the future. An alternative design using

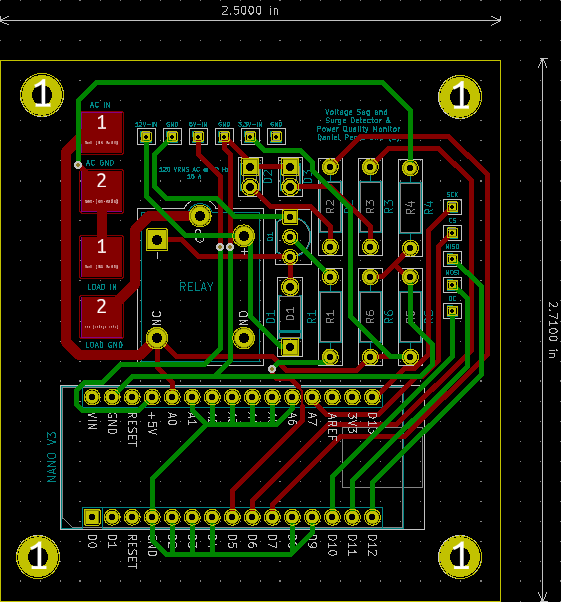

An Arduino Nano V3 Is Shown In Figure 2:

Figure 2. Preview of an alternative PCB design that uses an

Arduino Nano V3 Board

This alternative version works exactly the same as the original one. The main difference lies in the fact that up- dating the software is a simple and straightforward pro- cess in this alternative design, because it only requires using a PC with the Arduino IDE and a mini USB ca- ble. Also, it is capable of transmitting data only using the mini USB cable if desired.

Deployment In Out-Of-Position Situations
