Automated Drain/Gutter Cleaner Project

Key Components & Mechanism

Core mechanical parts used in the Automated Drain/Gutter Cleaner fabrication project.

Metal Teeth Jaws DC Motor Chain Drive Motorized Shaft Filter Basket Vertical Frame Bed Solid Waste Collection Automated Dump Cycle

Mechanical fabrication final year project with complete documentation support.

Cleaning of drains and gutters has always been a major problem in urban and campus environments. Manual cleaning is unsafe, unethical, and exposes workers to infections or poisoning from chemical and biological waste. Bottles, plastics, and debris thrown into gutters narrow the flow path and eventually cause blockages and overflow.

This project provides a fully automated drain and gutter cleaning mechanism that lets fluids pass through while catching and accumulating large solid waste. Cleaners only need to empty the installed collection units at fixed points instead of cleaning entire gutter floors.

Call: +91 95919 12372

Abstract

Cleaning of drains and gutters has always been a problem. Manual labor for gutter cleaning is unsafe and leads to a high risk of infections or poisoning due to large amounts of waste and chemicals. Throwing bottles, plastics, and other objects into gutters leads to narrowing and eventually blockage of flow, causing overflow in many cases.

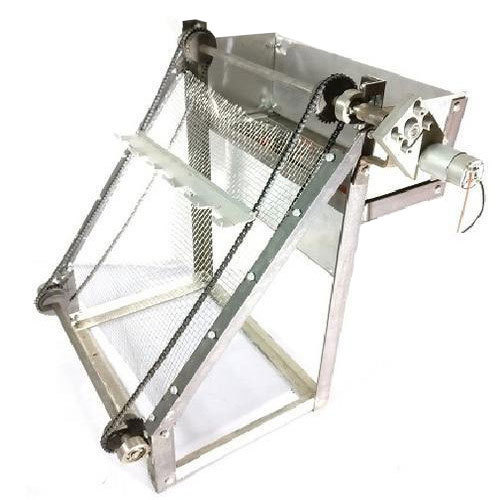

This project presents a fully automated drain and gutter cleaning mechanism to tackle modern gutter jamming issues. The system allows fluids to flow through while catching large solid waste such as bottles and plastic, accumulating it for easy disposal. The mechanism uses metal teeth-based jaws at the bottom of the unit, a vertical frame bed for liquid passage, and a filter basket on top. At set intervals, a motorized shaft connected by chain lifts the jaws, inverts them to dump collected waste, and returns them to the bottom position to continue collection. It is an efficient solution for automated gutter and drain cleaning.

Problem Statement

Manual gutter cleaning exposes workers to health hazards.
Plastic bottles and debris block drainage channels.
Blocked gutters cause water overflow and sanitation issues.
Full-length manual cleaning is time-consuming and inefficient.

Working Principle

Metal jaws remain at the bottom and collect solid waste.
Liquid flows through the vertical frame bed and filter basket.
Motor and chain lift the jaws to the top at fixed intervals.
Jaws invert to dump waste, then return to collect more debris.

Advantages

Reduces dependence on manual gutter cleaning.
Prevents blockage by collecting solid waste early.
Suitable for municipal, campus, and industrial drainage points.
Simple operating principle with affordable fabrication cost.

Applications

Urban storm water drains and roadside gutters.
College and industrial campus drainage systems.
Low-maintenance waste collection at fixed drain points.
Mechanical engineering fabrication and design projects.

What We Provide

ProjectsatBangalore offers complete support for the Automated Drain/Gutter Cleaner Project including working fabrication, project report, PPT, block diagram, viva questions, and demonstration guidance for BE, B.Tech, Diploma, and MTech students in Bangalore.

Working Fabrication

Project Report

PPT Presentation

Block Diagram

Viva Support

Demo Guidance
