Mini Bench Saw Machine Project.

Compact motor-driven bench/table saw featuring circular blade, work table, fence and safety guard. Complete working model with fabrication, project report, PPT and viva support for BE, B.Tech, Diploma and MTech students.

View Project Details Talk to a Mentor
12K+
Students Guided
100%
Fabrication Support
98%
Project Success

Mini Bench Saw Machine Project Report

& Key Components & Technology

Core mechanical, electrical and cutting components used in the Mini Bench Saw Machine fabrication project.

Work Table Drive Motor Circular Blade Blade Guard Fence / Guide Machine Base Power Transmission Workshop Cutting

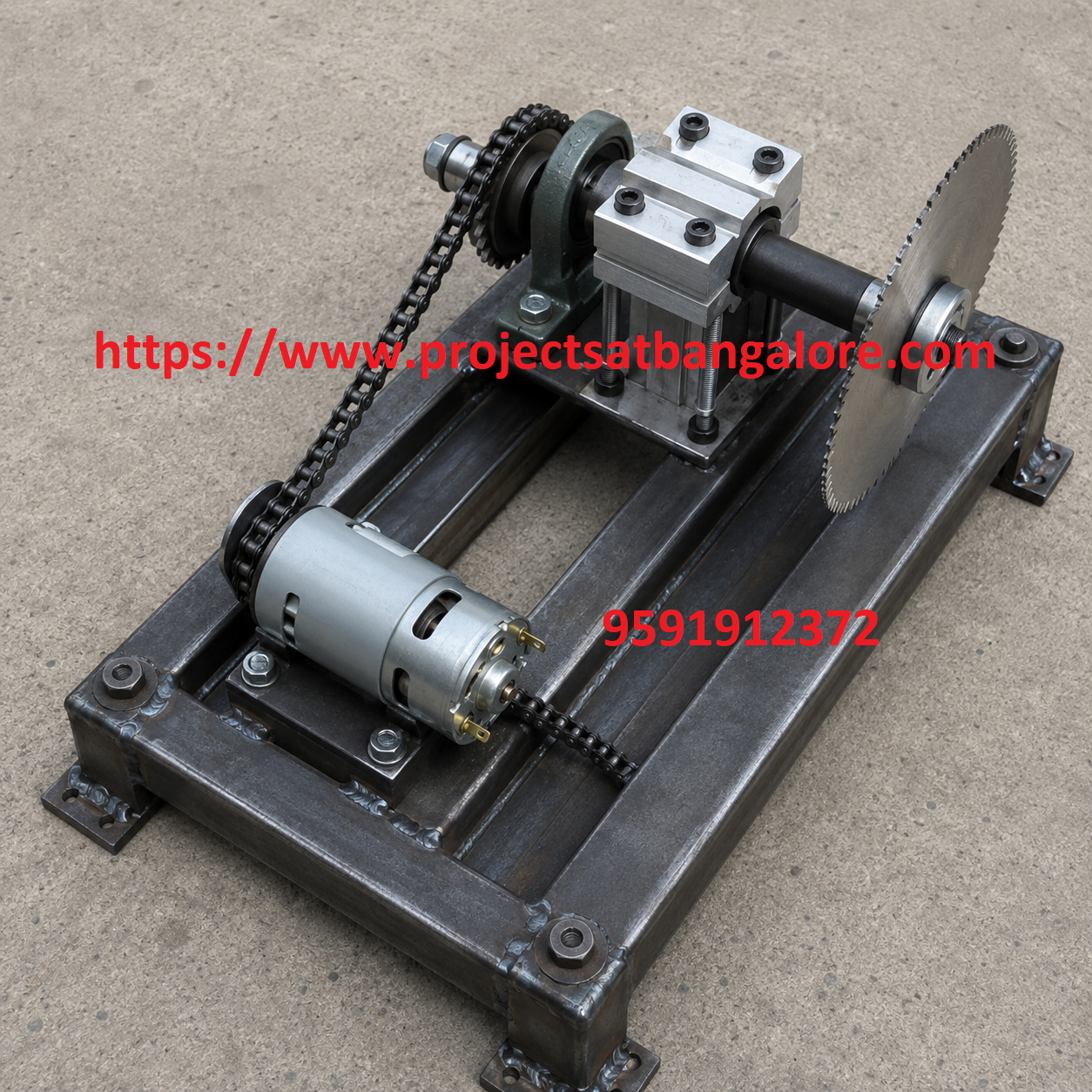

Mini Bench Saw Machine Project fabrication setup

Mini Bench Saw Machine Project

Mechanical & Fabrication workshop final year project with complete documentation support.

Accurate and safe cutting of wood, plastic and soft materials is fundamental in workshops and small fabrication units. A mini bench saw provides a practical, compact platform to study circular-blade cutting, power transmission and machine safety at student level.

This project fabricates a motor-driven mini bench/table saw with circular blade, work table, rip fence, blade guard and sturdy base. The design covers frame fabrication, motor mounting, belt or direct drive, blade alignment and basic safety features — ideal for Mechanical, Production and Manufacturing Engineering students.

Call: +91 95919 12372

Abstract

Workshop cutting operations demand controlled, repeatable sawing of sheet and bar stock. A mini bench saw offers a low-cost educational platform to study circular-blade dynamics, motor drive systems and machine guarding.

This project develops a Mini Bench Saw Machine powered by an electric motor that drives a circular saw blade through a belt or direct coupling. Key subsystems include the fabricated base and table, blade arbor, fence/guide, safety guard and power transmission. The unit demonstrates core concepts of machine design and manufacturing suitable for academic evaluation.

It is an excellent final-year project for Mechanical, Production, Manufacturing and Industrial Engineering students, combining fabrication, power transmission and workshop safety principles.

Working Principle

  • Electric motor transmits power to the blade arbor via belt or direct coupling.
  • Rotating circular blade performs cutting as the workpiece is fed against the fence.
  • Work table and fence provide support and guided linear feed.
  • Blade guard and stable base enhance operator safety during operation.

Advantages

  • Compact footprint suitable for laboratory and small workshop use.
  • Clear demonstration of circular-blade cutting and drive systems.
  • Relatively simple fabrication with standard mechanical components.
  • Useful for teaching machine safety, alignment and power transmission.

Challenges

  • Blade alignment, run-out and arbor rigidity for clean cuts.
  • Adequate motor power and speed for intended materials.
  • Safe guarding and emergency stop considerations.
  • Vibration isolation and stable base under cutting loads.

Technical Specifications

Parameter Details
Drive MotorSingle-phase AC or DC motor (suitable RPM & power)
Blade TypeCircular saw blade (typically 150–250 mm diameter)
Work TableMild steel / aluminium plate with fence / guide
TransmissionV-belt / direct coupling to blade arbor
Base FrameFabricated mild steel structure for stability
Safety FeaturesBlade guard, optional emergency stop
Typical WorkWood, soft plastic, light demonstration cuts

What We Provide

ProjectsatBangalore offers complete support for the Mini Bench Saw Machine Project including working fabrication, project report, PPT, block diagram, viva questions, and demonstration guidance for BE, B.Tech, Diploma, and MTech students in Bangalore.

Working Fabrication
Project Report
PPT Presentation
Block Diagram
Viva Support
Demo Guidance
