Sand Filter and Separator Project
Sand Filter and Separator Project report

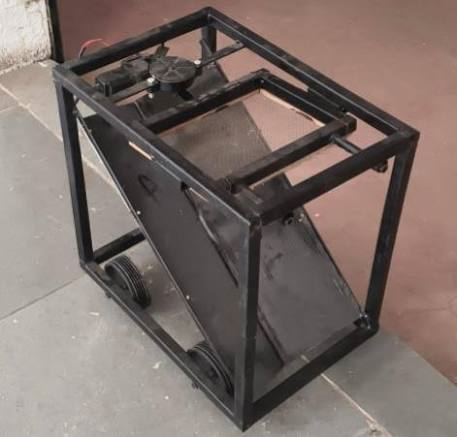

Abstract: In daily life sand is used for the construction, and manufacturing for buildingís constructions. For this construction we needed more sand filtered and different sizes for different construction process like Column/Beam construction, Plaster, Flooring etc. The conventional sand separation methods required more time and labor, it increase the separation time and labor cost. It is veryslow process hence decrease production rate hence Conventional method are not suitable for large production. Thatís why we decide to design and fabricate the Multi stage sand separator and filter for a future used. Our designed machine is used for the three different sizes of sand. We used three different sizes of filter and three different compartment to get sand separately This machine works on single slider crank mechanism The AC motor coupled with pulley and V-belt mounted on it. The motor started then belt drive through power and motion transmitted to the next stepped pulley this is attached to the separator and this separator will vibrate and sand will goes down and remaining sand will goes to the next filter This filter will vibrate with first separator steeped pulley through beltdrive in this separator the sand will separate and remaining will goes to the third filter itís also get power from second separator and sand will get separated in three compartment and remaining big Stones, Coal, Wood etc will get outside of machine.Multistage sand separator and filter is very efficient method for separating sand in three different sizes. Small size sand is use for plaster, medium size sand column and large size sand use making floor in building. In construction site or industry separating sand is very time consuming .save this time and complete all construction within given time period we can use multistage sand separator and filter. By using our prototype model we separate diff sizes of sand at atime and also in our model material handling is less compared to conventional method.
