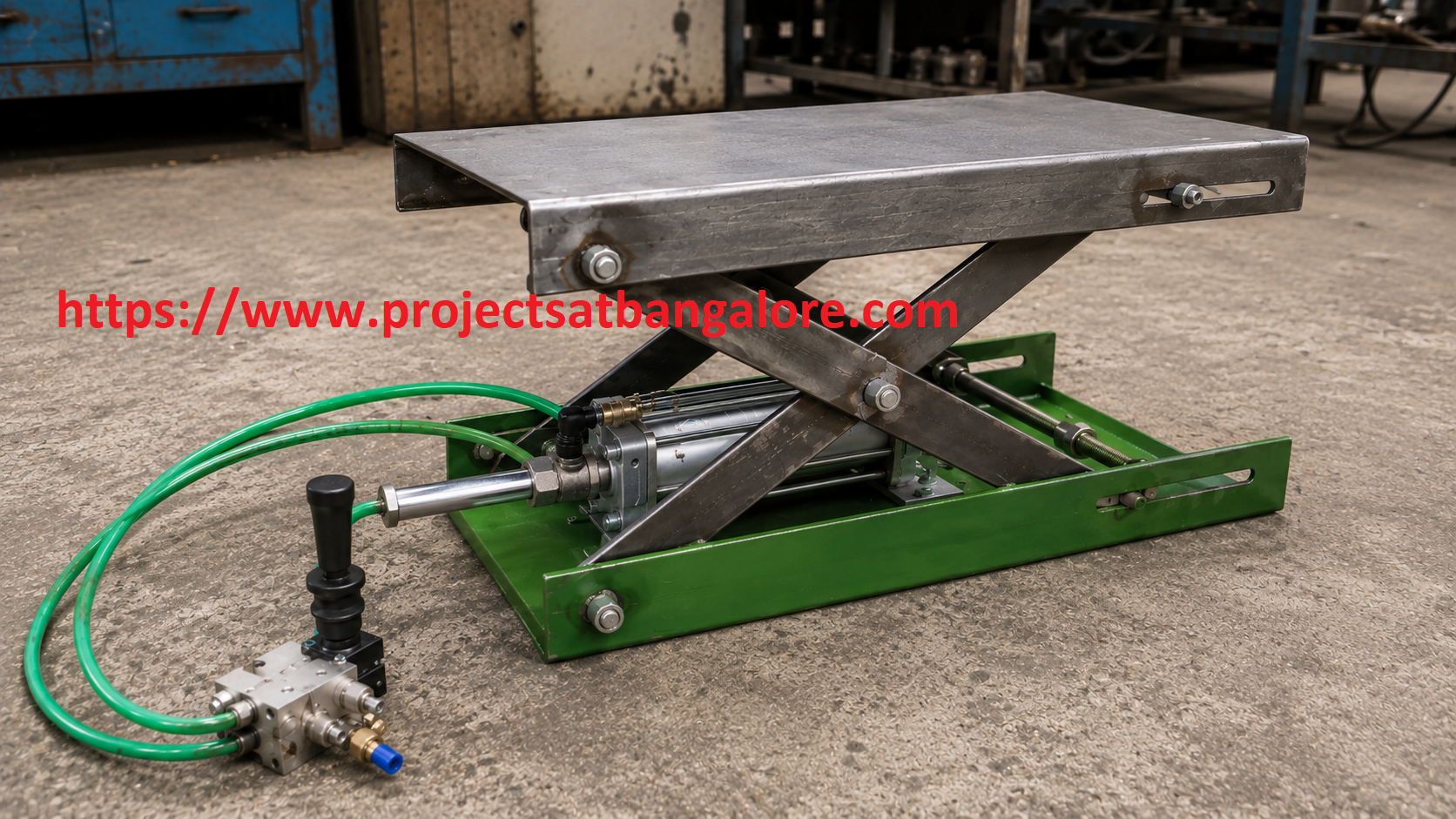

Pneumatic Scissor Lift Jack Project

Pneumatic Scissor Lift Jack Project


Abstract: The aim of the project is the design as well as analysis of a hydraulic scissor lift. Conventionally a scissor lift or jack is used for lifting a vehicle to change a tire, to gain access to go to the underside of the vehicle, to lift the body to appreciable height, and many other applications Also such lifts can be used for various purposes like maintenance and many material handling operations. It can be of mechanical, pneumatic or hydraulic type. The design described in the paper is developed keeping in mind that the lift can be operated by mechanical means by using pantograph so that the overall cost of the scissor lift is reduced. In our case our lift was needed to be designed a portable and also work without consuming any electric power so we decided to to use a hydraulic hand pump to power the cylinder Also such design can make the lift more compact and much suitable for medium scale work. Finally the analysis of the scissor lift was done in ansys and all responsible parameters were analyzed in order to check the compatibility of the design values These types of lifts are used to achieve high travel with relatively short platform. Industrial scissor lifts & tilters are used for a wide variety of applications in many industries which include manufacturing, warehousing, schools, grocery distribution, military, hospitals and printing. The scissor lift contains multiple stages of cross bars which can convert a linear displacement between any two points on the series of cross bars into a vertical displacement multiplied by a mechanical advantage factor. This factor depends on the position of the points chosen to connect an actuator and the number of cross bar stages. The amount of force required from the actuator is also amplified, and can result in very large forces required to begin lifting even a moderate -Designand Analysisof Hydraulic Scissor Lift ByFEA---Design, Manufacturing & Analysis of Hydraulic Scissor Lift.
